Key Components of a Solar Heating System Explained

A solar heating system typically consists of solar collectors, a heat transfer fluid, a storage tank, a circulation pump, and a control system to optimize performance and manage temperature.

Solar heating systems harness the sun’s energy to provide hot water or space heating for homes and businesses. These systems consist of several critical components that work together to capture, transfer, and store solar energy efficiently. Understanding these parts helps in selecting, maintaining, and optimizing your solar thermal system.

Solar Collectors: The Heart of the System

Solar collectors are the most visible part of any solar heating system. They capture sunlight and convert it into usable heat. There are three main types used in residential applications:

1. Flat-Plate Collectors

These are the most common type, consisting of:

• A dark absorber plate (usually copper or aluminum)
• Transparent glass or plastic cover
• Insulated backing
• Pipes or channels for heat transfer fluid

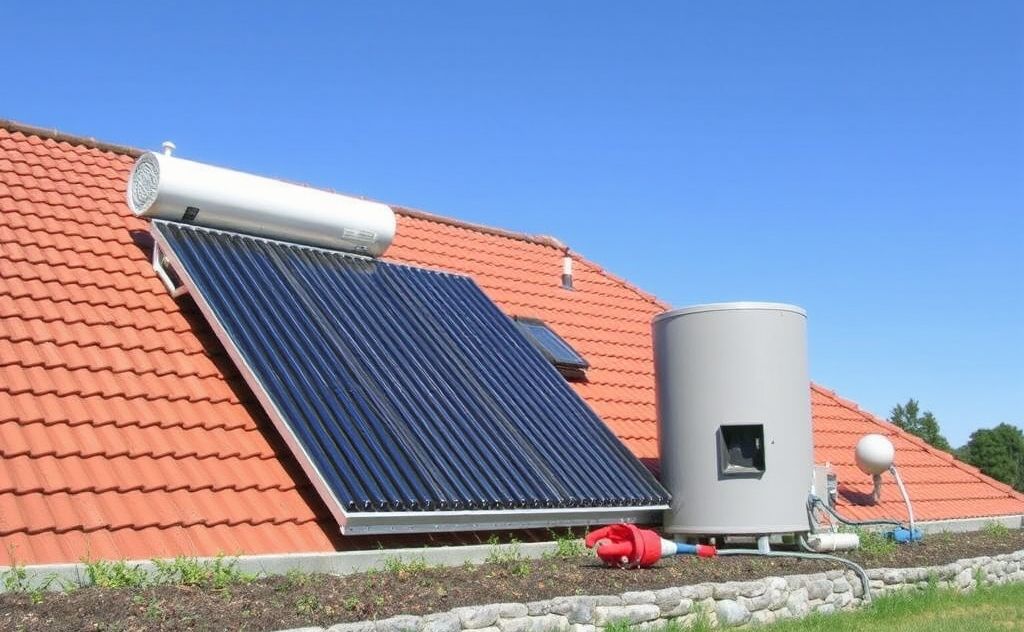

2. Evacuated Tube Collectors

More efficient in cold climates, these feature:

• Parallel rows of glass tubes
• Vacuum insulation between inner and outer tubes
• Metal absorber fins inside each tube

3. Integral Collector-Storage Systems

Also called “batch collectors,” these combine collection and storage:

• Black storage tanks inside insulated boxes
• Transparent covers facing the sun
• Best for mild climates

Heat Transfer System

The components that move heat from collectors to storage include:

Heat Transfer Fluid

This can be either:

• Water (in warm climates)
• Propylene glycol antifreeze (in freezing climates)

Circulation Pumps

Active systems use pumps to move fluid. Key features:

• Low-power DC pumps often used
• Variable speed for optimal flow
• Must match system pressure requirements

Piping Network

Proper piping is critical for efficiency:

• Insulated copper pipes most common
• PEX tubing sometimes used
• Must withstand high temperatures

Heat Exchangers

These transfer heat from the solar loop to domestic water without mixing fluids. Types include:

Internal Tank Coils

Common in solar storage tanks, these:

• Place heat exchanger inside water tank
• Provide efficient heat transfer
• Reduce risk of freezing

External Plate Exchangers

Used in some systems for:

• Higher efficiency
• Easier maintenance
• Flexible installation

Storage Tanks

Solar systems need well-insulated storage. Options include:

Single-Tank Systems

Combine solar storage with backup heating:

• Electric or gas backup elements
• Simpler plumbing
• More compact footprint

Two-Tank Systems

Use separate solar preheat tank:

• Feeds into conventional water heater
• Better for large households
• Allows independent maintenance

For those considering alternative heating options, propane tankless water heaters can complement solar systems during cloudy periods.

Control Systems

Smart controls optimize performance:

Differential Temperature Controller

The brain of active systems that:

• Compares collector and tank temperatures
• Activates pumps when solar heat is available
• Prevents nighttime heat loss

Monitoring Systems

Advanced options include:

• Remote performance tracking
• Leak detection
• Maintenance alerts

Backup Heating

Solar systems typically need supplemental heat sources:

• Electric resistance elements
• Gas or propane burners
• Connection to existing water heater

For those in cold climates, understanding heating oil freeze protection can be valuable for conventional systems.

System Types and Configurations

Active vs. Passive Systems

Feature	Active	Passive
Pumps/Controls	Yes	No
Efficiency	Higher	Lower
Cost	Higher	Lower
Freeze Protection	Better	Limited

Direct vs. Indirect Systems

Direct systems circulate potable water through collectors, while indirect systems use a heat exchanger. According to U.S. Department of Energy, indirect systems are preferred in freezing climates.

Installation Considerations

Proper installation affects performance:

• Collector orientation (south-facing in northern hemisphere)
• Optimal tilt angle (latitude ±15° depending on use)
• Shading avoidance
• Pipe insulation quality

The U.S. Energy Information Administration notes that proper sizing is crucial – most residential systems need 20 square feet of collector area per person.

Maintenance Requirements

While solar thermal systems require minimal maintenance, key tasks include:

• Annual inspection of collectors and mounting
• Checking fluid levels and quality every 3-5 years
• Monitoring system pressure
• Cleaning collector surfaces in dusty areas

For those considering other efficient options, vented gas heaters offer reliable supplemental heating.
