To size a hydronic boiler, calculate the total heat loss of your space in BTUs, then select a boiler with a capacity that meets or slightly exceeds this requirement.
Properly sizing a hydronic boiler is crucial for home comfort, energy efficiency, and system longevity. This guide covers everything from heat load calculations to piping considerations.
Why Boiler Sizing Matters
An accurately sized hydronic boiler delivers consistent warmth while minimizing energy waste. Oversized boilers short-cycle, reducing efficiency and lifespan. Undersized units struggle to maintain temperatures during cold weather.
The Cost of Improper Sizing
- Oversized boilers: 15-30% higher operating costs
- Undersized boilers: 20-40% longer run times
- Both scenarios lead to premature component failure

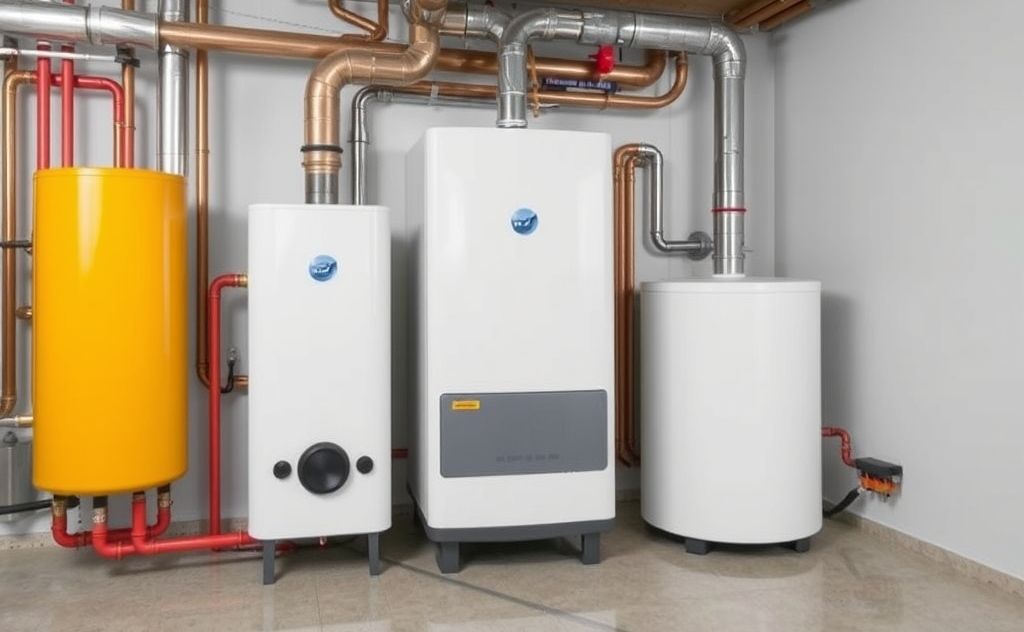

Key Factors in Hydronic Boiler Sizing
1. Heat Load Calculation
The foundation of proper sizing is determining your home’s heat loss. Professionals use Manual J calculations that consider:
| Factor | Impact |
|---|---|
| Square footage | Larger homes need more BTUs |
| Insulation quality | Poor insulation increases heat loss by 25-40% |
| Window efficiency | Single-pane windows lose 2x more heat than double-pane |
| Climate zone | Colder regions require 30-50% more capacity |
2. System Type Considerations
Different hydronic systems have unique requirements:
- Radiant floor: Operates at lower temps (100-120°F)
- Baseboard heaters: Need higher temps (160-180°F)
- Fan coils: Require precise flow rates
For homes considering wall-mounted hydronic heaters, factor in their specific BTU requirements.
Step-by-Step Sizing Process
1. Calculate Heat Loss
Use this simplified formula for quick estimates:
BTU/hr = (Square Footage × Climate Factor × Insulation Factor) + Safety Margin
Climate Factors
- Mild climate: 30-35 BTU/sq.ft.
- Moderate climate: 40-45 BTU/sq.ft.
- Cold climate: 50-60 BTU/sq.ft.
2. Select Appropriate Delta T
The temperature difference between supply and return affects flow rates. Most systems use 20°F ΔT, but modern boilers may perform better with 25-30°F ΔT.
3. Determine Flow Requirements
Calculate required flow rate (GPM) using:
GPM = (BTU/hr) ÷ (500 × ΔT)
Piping and System Design
Primary-Secondary Systems
These separate boiler and distribution loops, allowing different flow rates. Benefits include:
- Prevents flow starvation in zones
- Maintains consistent boiler temperatures
- Simplifies future expansions
For complex systems, consider hydronic baseboard heaters with built-in thermostatic controls.
Pipe Sizing Guidelines
Follow these velocity limits to prevent noise and erosion:
- Copper: 4-6 feet per second
- PEX: 3-5 feet per second
- Steel: 2-4 feet per second
Modern Boiler Considerations
Modulating Condensing Boilers
These high-efficiency units adjust output from 20-100% capacity. When sizing:
- Match maximum output to calculated heat load
- Ensure minimum output is below 30% of load
- Consider outdoor reset controls for additional savings
According to U.S. Department of Energy, properly sized condensing boilers can achieve 90-98% efficiency.
Common Sizing Mistakes
1. Oversizing “Just in Case”
Contractors often add 25-50% capacity unnecessarily. This leads to:
- Frequent on/off cycling
- Reduced efficiency during mild weather
- Higher installation costs
2. Ignoring Zoning Requirements
Homes with multiple zones need careful pump sizing. The Hydronic Balancing Act explains how to avoid flow problems in multi-zone systems.
3. Neglecting Future Upgrades
When planning boiler size, consider:
- Potential home additions
- Improved insulation projects
- Additional heating zones
Professional Tools and Resources
Heat Loss Calculation Software
Advanced tools like WrightSoft or Elite Software provide precise load calculations accounting for:
- Air infiltration rates
- Thermal bridging
- Local weather data
Manufacturer Sizing Guides
Major brands like Weil-McLain and Burnham offer detailed sizing manuals with:
- BTU output tables
- Piping diagrams
- System configuration examples
“`
