Zoning Options For Radiant Floor Heating: Complete Guide

You walk into your living room on a cold morning. The tile feels warm under your bare feet, but the bedroom down the hall is cold enough to make you grab a robe. Your radiant system runs constantly, yet one room is always overheated while another never catches up. That’s the classic single-zone problem — and it’s fixable.

Zoning splits your radiant floor system into separate control areas, each with its own thermostat and flow regulation. Instead of heating the whole slab to satisfy the coldest room, you deliver heat only where and when it’s needed. This guide covers the four core zoning methods, how to design zones based on heat loss and usage, what it costs, and how to retrofit an existing system without tearing up your floors.

You’ll also see how a programmable thermostat like the BOWSEN underfloor heating thermostat fits into a zoned setup — it gives you room-by-room scheduling and built-in GFCI protection, which matters when you’re running multiple circuits.

What Is Zoning in a Radiant Floor System?

Zoning means dividing your heating system into independent control areas. Each zone has its own thermostat, a way to regulate water flow (for hydronic systems) or electrical current (for electric systems), and a sensor that measures temperature. The goal is simple: heat each room to its own setpoint, not the whole house to one average.

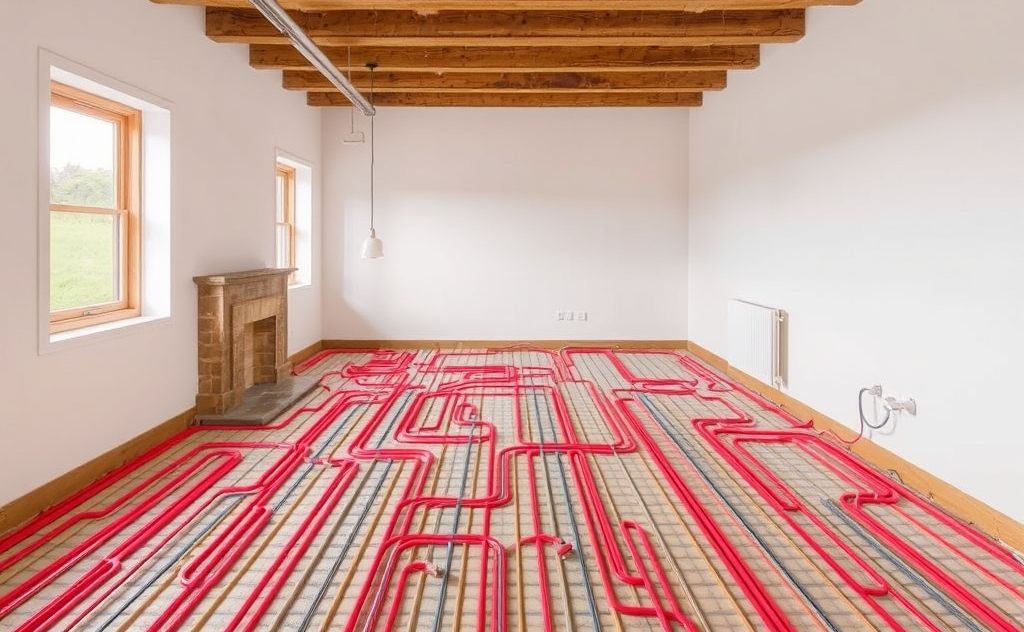

In a hydronic system, zoning controls the flow of hot water from the boiler or heat pump to different loops of tubing. A manifold distributes water to each loop, and each loop can have an actuator that opens or closes based on the thermostat call. In an electric system, zoning is usually done with separate thermostats per circuit or mat, each with its own floor sensor.

The key difference between zoning and simply turning down a single thermostat is precision. With one thermostat, the sensor reads temperature at one point. A sunny south-facing room might hit 75°F while a north-facing bedroom sits at 62°F. Zoning lets you set 68°F in the living room and 70°F in the bathroom, and each zone maintains its own temperature.

Why Single-Zone Systems Fail (and When They Are Okay)

Single-zone systems work fine in small, open floor plans where the thermal load is uniform. A 600-square-foot studio apartment with a slab-on-grade floor and no interior walls might be perfectly comfortable with one thermostat. The problem appears when you add walls, multiple rooms, or different floor coverings.

Here’s the physics: heat loss varies by room. A room with large windows loses heat faster than an interior hallway. A room with carpet over the slab absorbs heat differently than one with tile. When you have one zone, the thermostat in the living room controls the boiler or pump, and every loop gets the same water temperature and flow. The bedroom with poor insulation stays cold, so you crank the thermostat up. Then the living room becomes an oven because it’s receiving the same hot water but losing less heat.

Single-zone is also problematic with slab-on-grade construction. The concrete slab has high thermal mass — it stores heat and releases it slowly. If one zone heats the entire slab, you get uneven temperatures that swing slowly. A room that’s too warm stays warm for hours after the thermostat shuts off, because the slab is still radiating stored heat.

There is one situation where single-zone is fine: when the entire floor is covered by the same material and the house has minimal interior walls. A small cabin or a workshop with a single open space doesn’t need zoning. But for a typical home with bedrooms, bathrooms, and a living area, single-zone heating is a compromise.

The 4 Core Zoning Methods

1. Manifold Actuators (Hydronic)

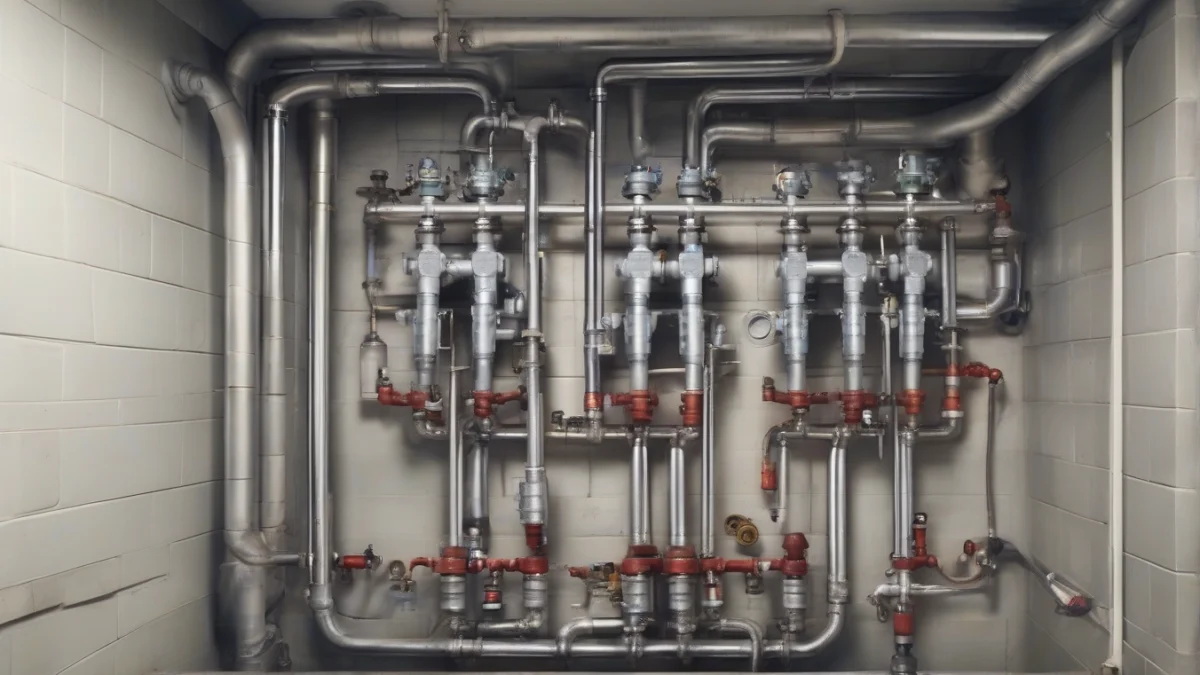

In a hydronic system, the manifold is the distribution hub. Each loop of tubing connects to the manifold, and each loop can have an actuator — a small motorized valve that opens or closes based on the thermostat signal. When a zone calls for heat, the actuator opens, allowing hot water to flow through that loop. When the zone reaches setpoint, the actuator closes.

Manifold actuators are the most common zoning method for new hydronic installations. They’re relatively inexpensive (around $30–$60 per actuator), easy to install, and provide precise control per loop. The downside is that they only control on/off — they don’t modulate flow. For most radiant systems, that’s fine, because the thermal mass of the slab smooths out temperature swings.

You can also use balancing valves on each loop to set the flow rate. This is critical when you have loops of different lengths. A short loop (say, 100 feet) will naturally get more flow than a long loop (300 feet) if the pressure is equal. Balancing valves restrict flow on the short loops so each loop delivers the same heat output.

2. Zone Valves

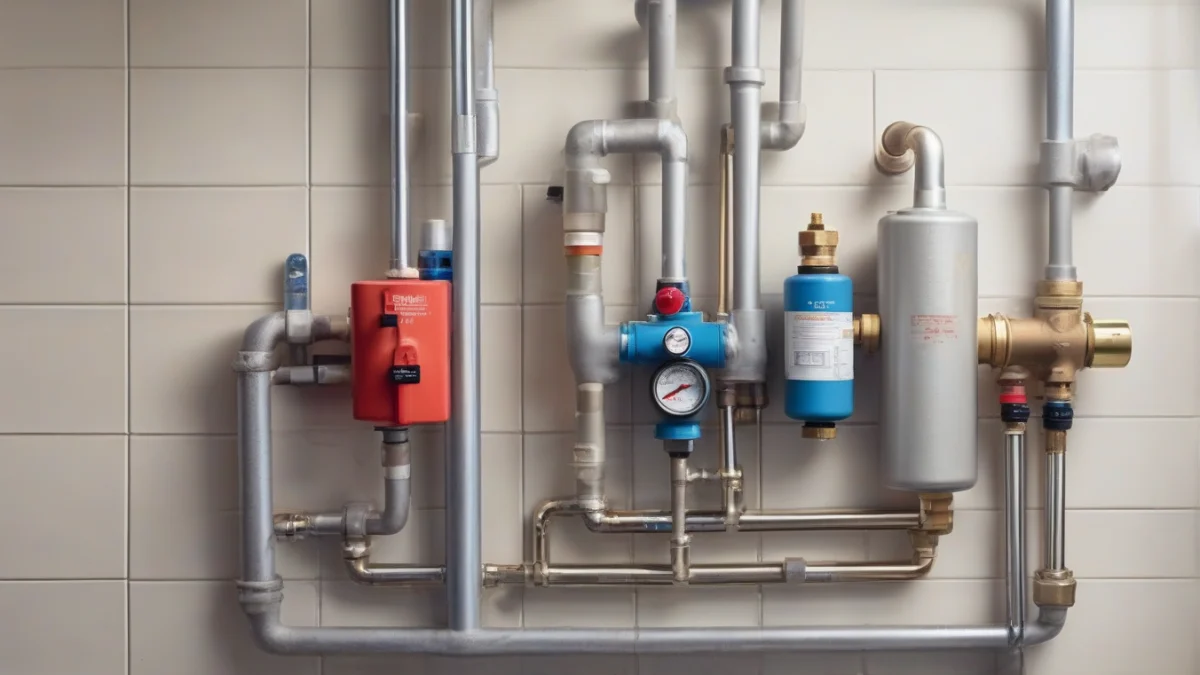

Zone valves are motorized or thermostatic valves installed on the supply or return lines to a group of loops. They’re typically used when you have multiple manifolds or when you want to zone by room groups rather than individual loops. A zone valve can shut off water to an entire manifold, which is useful if you have a manifold in the basement serving the first floor and another on the second floor.

Zone valves are more expensive than actuators (around $100–$200 per valve) and require more space, but they’re easier to retrofit into an existing system because they don’t require access to the manifold. You can install a zone valve on the pipe feeding a bathroom addition without touching the existing manifold.

3. Smart Thermostats with Floor Sensors

The thermostat is the brain of the zone. For electric radiant systems, each circuit or mat needs its own thermostat. Smart thermostats add programmability — you can set different temperatures for different times of day. For example, you can keep the bedroom at 64°F during the day and warm it to 68°F an hour before you go to bed.

Dual sensing is important. A thermostat with both air and floor sensors can maintain a comfortable air temperature while ensuring the floor doesn’t get too hot (or too cold). The BOWSEN thermostat includes both sensors, plus a built-in class A GFCI, which is a safety requirement for electric floor heating in bathrooms and other wet areas.

In hydronic systems, smart thermostats work with actuators or zone valves. They can also communicate with the boiler or heat pump to enable weather-reset control, which adjusts water temperature based on outdoor temperature. This is a more advanced control strategy that improves efficiency but requires compatible equipment.

4. Variable-Speed Circulator Pumps

Instead of on/off control, a variable-speed pump modulates the flow of water through the entire system. When only one zone calls for heat, the pump runs at low speed. When all zones call, it ramps up. This is more efficient than a fixed-speed pump that runs at full power regardless of demand.

Variable-speed pumps are often used in combination with manifold actuators. The pump responds to the number of open zones by adjusting its speed, which maintains a constant pressure differential across the manifold. This prevents the “short-cycling” problem where a single open zone gets too much flow and the boiler cycles on and off rapidly.

Choosing the Right Method for Your Home Size

There’s no one-size-fits-all answer, but here’s a rough guide:

• Small home (under 1,500 sq ft): A single manifold with actuators on each loop is sufficient. You’ll have 3–5 zones, which is manageable.
• Medium home (1,500–3,000 sq ft): Multiple manifolds with zone valves for each floor or wing. You might have 6–10 zones.
• Large home (over 3,000 sq ft): Consider a variable-speed pump with weather-reset control. You’ll likely have 10+ zones, and the pump will save significant energy by matching output to demand.

For electric systems, the zoning is simpler: each room or area gets its own thermostat and circuit. The main decision is whether to use a programmable thermostat or a basic one. Programmable models like the BOWSEN cost more upfront but can pay for themselves in energy savings, especially if you use setbacks during the day when the house is empty.

How to Design Zones: Heat Loss, Solar Gain, and Usage Patterns

Designing zones is more than just putting a thermostat in each room. You need to group rooms with similar heat loss and usage patterns. The goal is to avoid short-cycling (zones turning on and off frequently) and to maximize the time each zone stays at setpoint.

The “Bedroom vs. Living Room” Rule

Bedrooms and living rooms have different heating needs. Bedrooms are typically cooler during the day and warmer at night. Living rooms are the opposite. If you put them on the same zone, you’ll either overheat the bedroom during the day or underheat the living room at night. Separate zones let you set a daytime setback for the bedroom and a nighttime setback for the living room.

Solar gain matters too. A room with south-facing windows will heat up significantly during the day, even in winter. If that room is on the same zone as a north-facing room, the thermostat will read the temperature in the sunny room and shut off the heat, leaving the north room cold. Separate zones let the sunny room coast on solar gain while the north room receives heat.

Here’s a practical example: a 2,000-square-foot ranch with a living room, kitchen, three bedrooms, and two bathrooms. A sensible zone design would be:

• Zone 1: Living room and kitchen (open floor plan, high heat loss due to windows)
• Zone 2: Master bedroom and master bath (used in the morning and evening)
• Zone 3: Guest bedrooms and hall bath (low occupancy, can be setback most of the day)

Each zone would have its own thermostat and actuator. The living room zone might have two loops (one for the living room, one for the kitchen) sharing an actuator, or separate actuators if you want finer control.

The Cost vs. Comfort Equation: Is Zoning Worth It?

Zoning adds upfront cost, but it can reduce energy bills by 10–30% depending on the home. The exact savings depend on how much you use setbacks and how uneven the heating was before. Here’s a realistic breakdown for a hydronic system in a 2,000-square-foot home:

Item	Single Zone	Multi-Zone (4 zones)
Manifold with 4 loops	$300	$300
Actuators (4)	$0	$160
Thermostats (1 vs. 4)	$80	$320
Wiring and labor	$100	$400
Total upfront cost	$480	$1,180
Annual energy cost (estimate)	$1,200	$960
Annual savings	—	$240
Payback period	—	~3 years

That payback period assumes you actually use the setbacks. If you set all zones to the same temperature 24/7, you’ll save almost nothing. The savings come from lowering the temperature in unoccupied rooms and during the night when you’re under blankets.

For electric systems, the math is similar but the stakes are higher because electricity is more expensive than natural gas. An electric floor heating mat in a bathroom might use 15 watts per square foot. If that bathroom is on a single thermostat that heats the whole floor, you’re wasting energy heating an empty bathroom. A programmable thermostat with a floor sensor can cut the run time by 30–50%.

There’s also a comfort value that’s harder to quantify. A zoned system eliminates hot and cold spots, which means you’re less likely to crank the thermostat up to compensate for a cold room. That alone can save 5–10% on your heating bill.

Retrofitting Zoning into an Existing System

If your radiant system is already installed and it’s a single zone, you don’t necessarily need to tear up the floor. The approach depends on whether you have hydronic or electric.

Hydronic Retrofit

The easiest retrofit is to add actuators to an existing manifold. Most manifolds have ports for actuators, even if they weren’t installed initially. You can buy actuators that snap onto the manifold and wire them to new thermostats. This is a DIY-friendly project if you’re comfortable with basic wiring.

If you don’t have a manifold — for example, if your system uses a single supply line that branches to multiple loops — you’ll need to install zone valves on each branch. This requires cutting into the pipes, which is more involved. You’ll also need a way to control the pump so it doesn’t run when all zones are closed. A relay or a variable-speed pump can handle that.

One caveat: retrofitting zoning to a slab-on-grade system can be tricky because the thermal mass of the slab means the floor temperature responds slowly. If you set a setback, the slab will take hours to cool down and hours to warm back up. You need to set the recovery time well in advance — typically 2–4 hours before you want the room to be warm.

Electric Retrofit

Electric systems are easier to retrofit because each circuit is independent. If you have a single thermostat controlling multiple mats, you can install a separate thermostat for each mat, provided you have enough wiring. In many cases, the existing thermostat wire can be reused, but you’ll need to run new wires if the mats are on different circuits.

If you have a single mat covering a large area, you can’t easily split it into zones. But you can install a programmable thermostat with a floor sensor to at least reduce energy use during unoccupied periods. The BOWSEN thermostat is a good option here because it has a 7-day schedule and dual sensing — you can set the floor to a lower temperature during the day and warm it up before you wake up.

Troubleshooting Common Zoning Issues

Zoning adds complexity, and with complexity comes problems. Here are the most common issues and how to diagnose them.

Hot Floor in One Room, Cold in Another

This usually means the flow is unbalanced. Check the flow meters on your manifold (if you have them). Each loop should have a similar flow rate, typically between 0.5 and 1.5 gallons per minute depending on loop length. If one loop reads high and another low, adjust the balancing valves. A short loop will naturally get more flow, so you need to restrict it to match the longer loops.

If you don’t have flow meters, you can use a thermal camera to see the temperature distribution on the floor. Hot spots indicate too much flow; cold spots indicate too little.

Short-Cycling (Zones Turning On and Off Rapidly)

This happens when a zone is too large or the thermostat is located in a spot with rapid temperature changes (like near a window or a heat source). The thermostat calls for heat, the actuator opens, and within minutes the temperature rises above setpoint, shutting it off. The thermal mass of the floor can’t respond that fast, so the room temperature swings.

Solutions: move the thermostat to a more stable location, or increase the differential setting (the temperature difference between on and off). Most thermostats have an adjustable differential, often 0.5°F to 2°F. A wider differential reduces short-cycling but allows more temperature swing.

No Heat in One Zone

First, check if the actuator is opening. You can often hear a click when it opens. If not, the actuator may be stuck or the wiring may be wrong. Test the thermostat by turning it up and listening for the actuator. If it doesn’t open, check the wiring connections at the manifold and the thermostat.

If the actuator opens but the zone still doesn’t heat, the problem might be a closed balancing valve or a blockage in the loop. Check the flow meter — if it reads zero, the loop is likely blocked or the valve is closed.

GFCI Tripping

For electric systems, a tripping GFCI means there’s a ground fault — current is leaking to the ground. This is a safety issue. Check the connections at the thermostat and the junction boxes. Look for damaged insulation on the heating cable. If the cable is embedded in the floor, you might need a thermal imager to find the fault location. The BOWSEN thermostat has a built-in GFCI with a test button, so you can verify it’s working correctly after installation.

What About Smart Home Integration?

Many modern thermostats offer Wi-Fi connectivity and app control. This lets you adjust zones from your phone, which is convenient but not essential. The real benefit of smart thermostats in a zoned system is learning your schedule and adjusting setbacks automatically. Some models also integrate with weather forecasts to pre-heat the floor before a cold front arrives.

However, smart thermostats for radiant systems are more expensive than basic programmable ones. If you’re comfortable setting a schedule manually, a 7-day programmable thermostat like the BOWSEN will save you money without the extra cost. The key is to actually use the schedule — set it once and let it run.

Frequently Asked Questions

Can I add zoning to an existing radiant floor system?

Yes, in most cases. For hydronic systems, add actuators to the manifold if it has ports. If not, install zone valves on the supply lines. For electric systems, install separate thermostats for each circuit. The main limitation is access to wiring and the manifold.

How many zones should a typical home have?

Most homes do well with 3–6 zones. Group rooms by similar heat loss and usage patterns. A common setup is: living area, bedrooms, and bathrooms. You don’t need a zone for every room — that adds cost and complexity without much benefit.

What’s the difference between a zone valve and an actuator?

An actuator mounts directly on the manifold and controls one loop. A zone valve is a separate valve installed in the pipe that can control multiple loops or an entire manifold. Actuators are cheaper and easier to install, but zone valves are better for retrofits where the manifold isn’t accessible.

Does zoning increase the lifespan of my boiler or heat pump?

It can. A single-zone system often short-cycles the boiler, which causes wear and tear. Zoning reduces the frequency of on/off cycles and lets the boiler run longer at a steady state. That’s easier on the equipment. However, if you have a boiler with a minimum output that’s higher than what a single zone needs, you might still get short-cycling. A buffer tank can help in that case.

Can I use a smart thermostat with a zoned hydronic system?

Yes, as long as the thermostat is compatible with your manifold actuators or zone valves. Many smart thermostats have dry-contact outputs that can control actuators. Some also support weather-reset control if you have a compatible boiler or heat pump. Check the specifications before buying.

Putting It All Together: A Practical Approach

Zoning isn’t about adding more gadgets — it’s about matching heat delivery to the actual needs of each space. Start with a heat load calculation for each room. That tells you how much heat each zone needs. Then decide on the zoning method based on your system type and budget.

• For new hydronic installations, manifold actuators are the most cost-effective and flexible option.
• For retrofits, zone valves are easier to install than actuators if you don’t have manifold access.
• For electric systems, use a programmable thermostat with dual sensing for each circuit.
• Always balance the flow in hydronic systems to avoid hot and cold spots.
• Use setbacks for unoccupied rooms — that’s where the energy savings come from.
• Test your GFCI regularly if you have electric floor heating.
• Don’t over-zone. Three to six zones is plenty for most homes.

If you’re planning a new system, include zoning from the start — it’s much cheaper than retrofitting later. And if you’re replacing a thermostat, consider a model with dual sensing and GFCI protection, like the BOWSEN underfloor heating thermostat, to get the most out of your zoned setup. For more on installation, check this radiant floor heating guide. And if you’re deciding between electric and hydronic, this comparison of hydronic vs. electric will help.
