Thermal Fuse in Water Heaters: Your Safety Guardian

You smell a faint burnt odor near the utility closet. The water heater’s burner is roaring, but the tank feels lukewarm. A few minutes later, the gas shuts off entirely. You’re not out of hot water—you’re out of danger. That small, unassuming component just saved your home from a potential fire.

That component is the thermal fuse, a one-shot safety device that acts as the last line of defense against overheating. Unlike a thermostat that regulates temperature, the thermal fuse is a binary switch: it’s either closed (working) or open (blown). When it blows, it cuts power to the gas valve or heating element, stopping the heating process entirely. This article covers how it works, why it fails, how to test it, and what to do when it trips.

You’ll walk away knowing exactly what to check when your water heater stops heating, and you’ll understand why bypassing this fuse is one of the worst decisions you can make.

If you’re comparing tankless units, you’ll find that tankless water heaters use a similar thermal cutoff, but the reset procedure differs. That’s a separate topic—this guide focuses on the storage tank type most homes use.

What Exactly Does the Thermal Fuse Do?

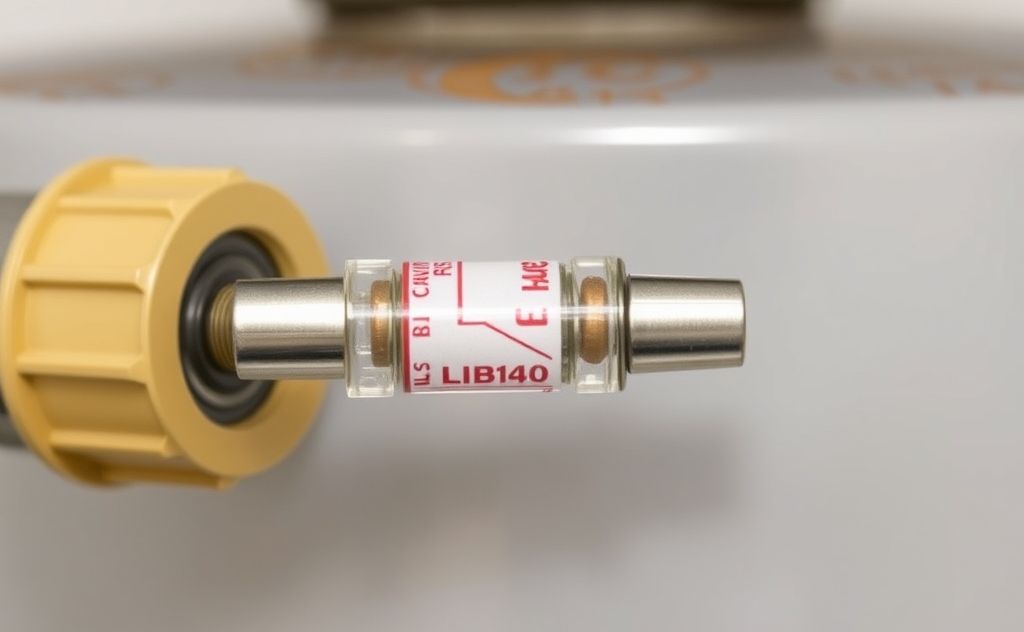

The thermal fuse sits on the burner assembly or near the flue. It’s a small, cylindrical component with two wires connected to the gas valve circuit. Inside is a heat-sensitive alloy that melts at a specific temperature—usually around 240°F to 250°F for most residential water heaters.

Normal operation keeps the flue temperature well below that threshold. If the burner runs too long, or if the flue gets blocked, the temperature climbs. When it hits the fuse’s rating, the alloy melts, the circuit opens, and the gas valve closes. No gas, no flame, no fire.

Here’s the catch: the thermal fuse is not resettable. Once it melts, it’s dead. You cannot push a button or flip a switch to bring it back. You have to replace it.

This is intentional. The fuse is designed to fail permanently so that the underlying problem—like a failed thermostat or a blocked vent—gets fixed before the unit runs again. If it were resettable, people would just reset it and ignore the real issue, creating a recurring fire hazard.

Why Does a Thermal Fuse Blow?

The most common cause is a failed thermostat that never tells the burner to shut off. You’ll notice the water getting scalding hot before the fuse trips—that’s the thermostat stuck in the closed position, calling for heat continuously.

Another frequent culprit is a blocked flue or vent. When combustion gases can’t escape, heat builds up rapidly around the burner. The thermal fuse catches this spike before the heat warps the tank or ignites nearby materials.

Sediment buildup plays a role too. A thick layer of calcium carbonate at the bottom of the tank insulates the water from the burner flame. The water stays cooler than the thermostat reads, so the burner runs longer and hotter, eventually tripping the fuse. This is why periodic flushing matters—not just for efficiency, but for safety.

One more scenario: a gas pressure spike. If the supply pressure runs high, the burner flame gets larger and hotter than designed. The fuse reacts faster than the thermostat in this case, which is a good thing.

Testing the Thermal Fuse: A Step-by-Step Guide

Before you test anything, shut off the gas supply and let the unit cool completely. This isn’t optional—working on a hot burner assembly is a burn hazard.

1. Locate the fuse. It’s usually near the burner access panel, attached to the burner tube or the flue baffle. Follow the two wires from the gas valve; they’ll lead you to it.
2. Disconnect the wires. Use a screwdriver or pliers to pull the spade connectors off the fuse terminals.
3. Set your multimeter to continuity mode. If you don’t have a multimeter, you can use a simple battery-operated continuity tester.
4. Touch the probes to the fuse terminals. A reading of zero ohms (or a beep) means the fuse is intact. No reading means it’s blown.

That’s the whole test. It takes two minutes once you have the panel off.

If the fuse is blown, don’t just swap in a new one and call it a day. You need to find out why it blew. Check the thermostat with a separate multimeter test—it should show continuity when the water is cold and open when hot. Inspect the vent for blockages, and drain a few gallons to check for heavy sediment.

Replacement: What to Buy and What to Avoid

When you buy a replacement, match the temperature rating and the physical size. Most residential water heaters use a 240°F fuse, but some use 250°F. Check the label on your old fuse or consult your unit’s manual. Installing a higher-rated fuse than the original is dangerous—it defeats the purpose of the safety cutoff.

You’ll find two types: bare fuses and fuses with wire leads already attached. The lead type is easier to install, but the bare type is more universal. Either works, as long as the rating matches.

Here’s a quick comparison to help you decide:

Type	Temperature Rating	Best For	Installation Effort
Bare thermal fuse	240°F or 250°F	Universal replacement	Requires crimping connectors
Fuse with wire leads	240°F or 250°F	Direct match to original	Simple wire connection
High-temp cutoff (manual reset)	190°F (thermostat function)	Some newer models	Reset button, not a fuse

One thing to avoid: bypassing the fuse with a jumper wire. It’s tempting when you’re out of hot water and the store is closed. Don’t. You’re removing the only protection between a stuck burner and a house fire. The cost of a fuse is a few dollars. The cost of a house fire is everything.

If you’re dealing with a gas valve issue that keeps tripping the fuse, you may need to restart the gas water heater after replacement. That process is straightforward, but follow the manufacturer’s sequence exactly.

Common Questions About Thermal Fuses

Can I reset a thermal fuse on my water heater?

No. The thermal fuse is a one-time device. Once the internal alloy melts, the fuse is permanently open. You must replace it. Some water heaters have a manual reset high-limit switch instead, which looks similar but has a small red button. If your unit has that, you can press the button to reset it—but only after the unit cools down and you’ve identified why it tripped.

What’s the difference between a thermal fuse and a thermostat?

The thermostat is an active controller. It reads water temperature and opens or closes the gas valve to maintain your set point. The thermal fuse is a passive safety device. It doesn’t regulate anything; it just breaks the circuit if the temperature exceeds a dangerous threshold. Think of the thermostat as the driver and the fuse as the airbag.

Why does my water heater keep blowing thermal fuses?

Recurring failures point to a root cause you haven’t fixed. The usual suspects: a stuck thermostat, a blocked flue, or severe sediment buildup. Replace the fuse once, but if it blows again within a few weeks, you need to inspect the venting system and the gas pressure. Ignoring this pattern is how fires start.

Is the thermal fuse the same as a pressure relief valve?

No, and they serve different purposes. The pressure relief valve (T&P valve) releases water if the tank pressure gets too high—typically above 150 psi. The thermal fuse reacts to excessive temperature at the burner. A tank can overheat without over-pressurizing, and vice versa. Both are critical, but they protect against different failure modes.

Can a thermal fuse fail on its own without any other problem?

It’s rare, but yes. Like any electrical component, thermal fuses can degrade over time, especially if they’ve been exposed to moisture or vibration. If you test a fuse and it’s open, but everything else checks out—thermostat works, vent is clear, no sediment—then you may have just gotten a bad fuse. Replace it and monitor the unit for a few days.

What to Do After Replacing the Fuse

Once the new fuse is in place, turn the gas back on and light the pilot according to your unit’s instructions. Set the thermostat to a normal temperature—120°F is the recommended default for safety and energy savings. Let the unit run through a full heating cycle and confirm the burner shuts off when the water reaches the set point.

Listen for the gas valve clicking closed. If it doesn’t shut off, you have a thermostat problem, not a fuse problem. The new fuse will blow again, and you’ll be back where you started.

Also, check the flame color through the viewport. A healthy burner flame is blue with a small yellow tip. A lazy yellow flame indicates incomplete combustion, which creates carbon monoxide. That’s a separate issue, but it can also cause overheating. If you see a yellow flame, call a professional.

For those with electric water heaters, the concept is similar but the implementation differs. Electric units use a high-limit cutoff on the upper thermostat instead of a thermal fuse. The testing procedure is the same—check continuity with a multimeter—but the replacement part is a thermostat assembly, not a fuse.

Final Thoughts on Staying Safe

• Test the thermal fuse with a multimeter before assuming the gas valve is bad. It’s a cheap test that saves expensive mistakes.
• Always replace a blown fuse with the exact temperature rating specified for your unit. Going higher is not a smart move.
• Never bypass the fuse, even temporarily. The risk isn’t worth the convenience.
• Flush your water heater annually to prevent sediment buildup that causes overheating.
• Check the venting system for blockages every six months, especially if you have birds or rodents in the area.
• If the fuse blows twice in a row, stop replacing fuses and call a licensed plumber or HVAC tech. There’s a deeper issue.
• Keep a spare fuse on hand. They cost a few dollars and can save you an emergency service call.

The thermal fuse in water heaters is your safety guardian, but it’s not a smart one. It doesn’t diagnose problems or warn you in advance. It just does its job—silently, reliably, and permanently. Respect what it does, and it will never let you down. Ignore it, and you’re gambling with something you can’t afford to lose.
