You walk into a room with old cast-iron radiators. They hiss, they clank, and the temperature swings from boiling to cold. You think hydronic heating is outdated. But modern systems are a different animal. They run quietly, respond fast, and slash energy bills — if you understand how they work.
This article covers the real engineering behind today’s hydronic radiators. We’ll bust some popular myths, explain the key components, and give you a clear framework for choosing the right setup. By the end, you’ll know what actually matters when you’re buying or upgrading a system.
For those who want the full technical background — including heat transfer calculations and material science — the book Radiators in Hydronic Heating Installations: Structure, Selection and Thermal Characteristics (Springer) covers all the nitty-gritty. It’s a reference I keep on my desk when I’m specifying systems. Check the current price on Amazon if you need that level of detail.
Why Bigger Isn’t Always Better
One of the most common mistakes I see: people assume a radiator with more watts heats a room faster. That’s not how hydronic systems work.
A radiator’s output depends on the temperature difference between the water inside and the room air. Double the surface area does not double the heat output during normal operation. Why? Because the water temperature is regulated by the boiler and the flow rate is limited by the pipe diameter. A huge radiator will just run at a lower surface temperature, not blast more heat.
In fact, oversizing leads to a problem called ‘short cycling.’ The room reaches setpoint quickly, the thermostat shuts off the boiler, but the radiator still holds residual heat. The system turns on and off too often, wasting energy and wearing out components. A correctly sized radiator runs longer at a lower water temperature, which is more efficient.
Modern condensing boilers depend on low return water temperatures to capture latent heat from flue gases. Oversized radiators keep return water too cold? No — actually they help. But the point is you don’t need a massive radiator; you need the right match for your heat loss calculation. A simple rule: buy for the design temperature delta (usually 20°C or 30°C between average water temp and room temp), not for max possible wattage.
The Real Role of Water Temperature (It’s Not What Most People Think)
Another myth: you need scalding hot water to get good heat output. That was true for old steam systems, but modern hydronic radiator technology uses lower temperatures — often 120°F to 140°F (49°C to 60°C).
Lower water temperature does two things. First, it improves boiler efficiency dramatically, especially with condensing models. Second, it gives a more even, comfortable heat. Radiators don’t feel scorching to the touch, but they still deliver the same thermal energy over time because they run longer.
The tricky part is that older radiators are designed for higher temperature drops — say 180°F supply, 160°F return. If you drop to 140°F supply, an old single-panel steel radiator might only put out 60% of its rated capacity. That’s why a proper retrofit requires recalculating the heat output at your target water temperature.
Most modern panel radiators come with performance data at multiple temperature regimes. Look for values at ΔT 50°C (difference between average water temp and room temp) and ΔT 30°C. That tells you how the radiator behaves in low-temperature systems. If you’re pairing with a heat pump, you almost always need radiators rated at ΔT 30°C or lower.

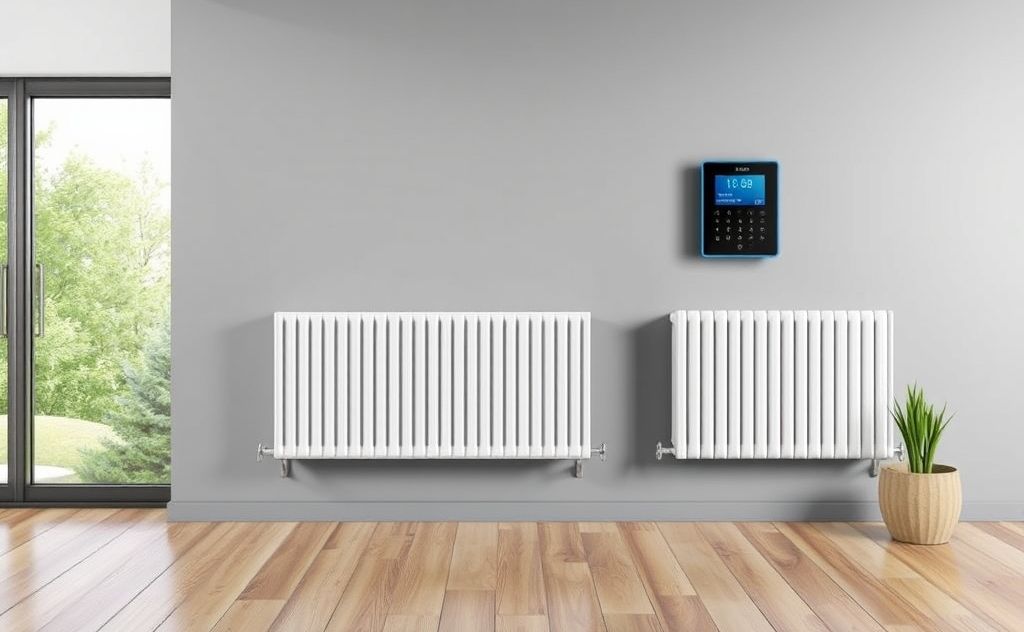

How Modern Valves and Controls Actually Work
The valve is the brain of the radiator. People think it’s just an on/off switch. It’s not. Modern thermostatic radiator valves (TRVs) modulate flow continuously to hold a target temperature.
A TRV contains a wax or liquid-filled bellows that expands with room temperature. As the room warms, the bellows pushes a pin that closes the valve. As it cools, the bellows contracts, opening the valve. It’s mechanical, no electricity needed. But the response is slow — takes 10 to 15 minutes to adjust. Smart TRVs add electronic control and scheduling, but the core principle is the same.
Manual valves (wheelhead or lockshield) are still common for balancing. A lockshield valve sets the maximum flow through each radiator so all rooms heat evenly. You only set it once during commissioning. Then a wheelhead or TRV on the return side gives the occupant control.
Here’s a quick comparison of common valve types:
| Valve Type | Control Method | Best For | Efficiency Impact |
|---|---|---|---|
| Thermostatic (TRV) | Wax/liquid bellows, modulates flow | Individual room temperature control | Moderate – prevents overheating |
| Smart TRV (e.g., Tado, Honeywell) | Electronic thermostat, app control | Scheduling, zone control from phone | High – reduces runtime with presence detection |
| Manual wheelhead | Turn knob, fixed position | Simple on/off, no feedback | Low – often left on full, wastes energy |
| Lockshield | Pre-set with Allen key, not user-adjusted | System balancing during installation | Critical for even distribution |
One thing people overlook: TRVs need free airflow around them. If you cover them with curtains or furniture, the sensed temperature is wrong. The valve stays open too long, and the room overheats.
For a deeper look at how these valves interact with the rest of the system, check out our guide on hydronic radiator valve operation.
Retrofitting Old Radiators: What Works and What Doesn’t
You can keep old cast-iron radiators and still get modern performance — if you make a few changes. But some retrofits are a waste of money.
First, replace the boiler. An old cast-iron section boiler with 70% efficiency kills any benefit from fancy radiators. Pair your old radiators with a modern condensing boiler or heat pump, and set the system for lower temperature. You’ll lose some output from the radiators, but the boiler gains more than makes up for it.
Second, add a balancing valve set. Old systems often have one radiator getting all the flow while others stay cold. Install lockshield valves on each radiator and use a manometer to set the pressure drop correctly. This step alone can cut your energy use 10-15%.
Third, consider adding a mixing valve. If you have a high-temperature zone (original radiators) and a low-temperature zone (radiant floor), a thermostatic mixing valve blends the supply water to the right temperature for each zone. That’s better than running the whole system at high temp.
But don’t bother replacing the pipes unless they’re corroded. Old steel or copper pipes can handle modern water temps fine. And don’t bother adding TRVs to every radiator if you already have a single zone thermostat — the TRVs will fight the zone control. Choose one control strategy and stick with it.
If you’re planning a complete system upgrade, you’ll want to understand how a hydronic boiler works first.
Frequently Asked Questions About Hydronic Radiator Systems
Can I use hydronic radiators with a heat pump?
Yes, but you need low-temperature radiators. Heat pumps output water around 100-120°F (38-49°C). Old radiators designed for 180°F won’t deliver enough heat. Look for radiators with high output at ΔT 30°C (like 25-30% higher surface area). Many European multi-panel radiators work well with heat pumps.
Do I need to flush my hydronic system every year?
No. Most modern sealed systems with inhibitor chemicals need flushing only every 5-10 years, or when you replace the boiler. If you see sludge in the radiators (black sediment), do a power flush. Otherwise, leave it alone.
Why is my radiator hot at the top but cold at the bottom?
That’s trapped air or sludge buildup. Bleed the air first: open the vent valve at the top with a radiator key until water comes out. If that doesn’t fix it, the bottom is probably filled with magnetic sludge. You’ll need a chemical flush or a magnetic filter installation.
What size radiator do I need for a 200-square-foot room?
It depends on insulation, window area, and ceiling height. A rough figure: 30-40 Btu per square foot in a moderately insulated home, so 6,000-8,000 Btu (about 1,800-2,300 watts). But don’t rely on online calculators in a 20-year-old house with single-pane windows. Get a professional heat loss calculation.
Are stainless steel radiators better than steel panel radiators?
Stainless steel resists corrosion better, but it costs a lot more and has lower thermal conductivity (about 30% less than mild steel). Steel panel radiators are standard and perfectly reliable if the system has proper corrosion inhibitor. Save stainless for high-moisture rooms like bathrooms or if you have hard water.
What to Remember
- Oversized radiators waste energy and cause short cycling. Size for your calculated heat loss, not for max wattage.
- Modern systems run at lower water temperatures (120-140°F) for better boiler efficiency and comfort. Check radiator output at ΔT 30°C or 20°C.
- Thermostatic radiator valves are not on/off switches. They modulate flow; give them space to breathe.
- Balancing the system with lockshield valves is the single most impactful retrofite step — do it before buying new radiators.
- Old cast-iron radiators can work with new condensing boilers, but only after adjusting for lower temperature output.
- For heat pump integration, choose multi-panel radiators with high surface area and low temperature specs.
- The book Radiators in Hydronic Heating Installations by Springer is a solid technical resource if you need to dig deeper into selection and thermal dynamics.
