The biggest mistake is burying the tubing before the loops are pressure-tested. That leak can turn into a jackhammer job, and the repair bill is always meaner than the planning was.
Start with the room, the floor build-up and the heat source, not the tubing coil. Hydronic floors work when the insulation, spacing and control parts match the room’s heat loss.
Step-by-Step Guide to Installing Hydronic Floor Heating

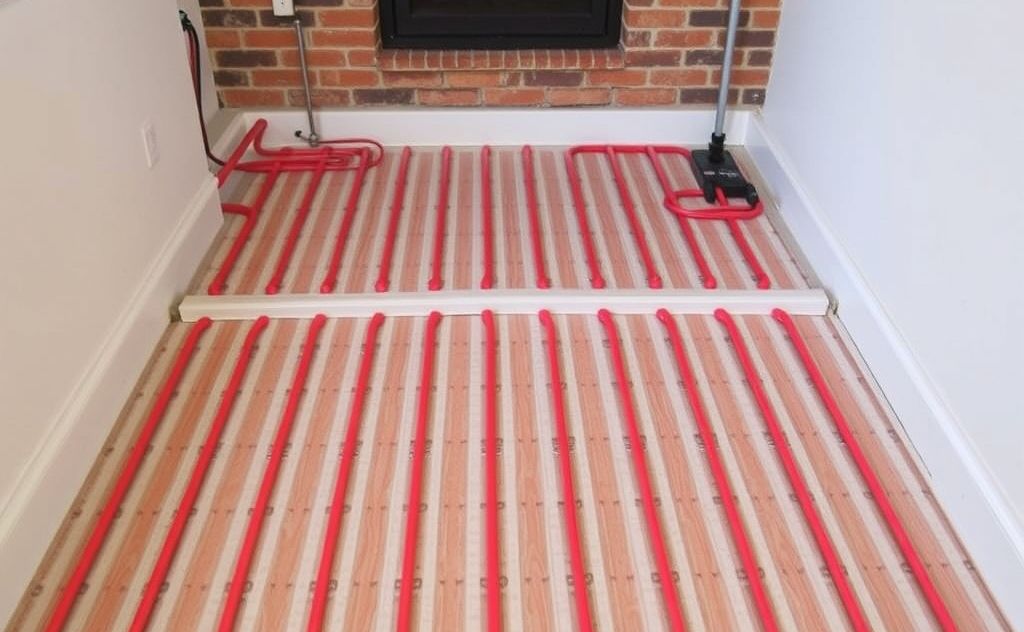

Installing radiant floor heating means laying out tubing beneath your floor, connecting it to a manifold and boiler, pressure-testing the system, and then covering the tubes with a suitable floor. You can handle the tubing layout and insulation yourself if you’re comfortable with DIY, but connecting the boiler, gas lines, and venting usually requires a licensed professional.
A small room with one heating zone can take a long weekend, while multiple zones or a whole-floor system typically require several days plus the time for the floor covering to cure properly before use. Planning and sequencing the work carefully avoids costly mistakes.
What The Manifold And Tubes Need
Radiant floor heating tubing installation demands the right parts and careful planning to avoid leaks and uneven heat.

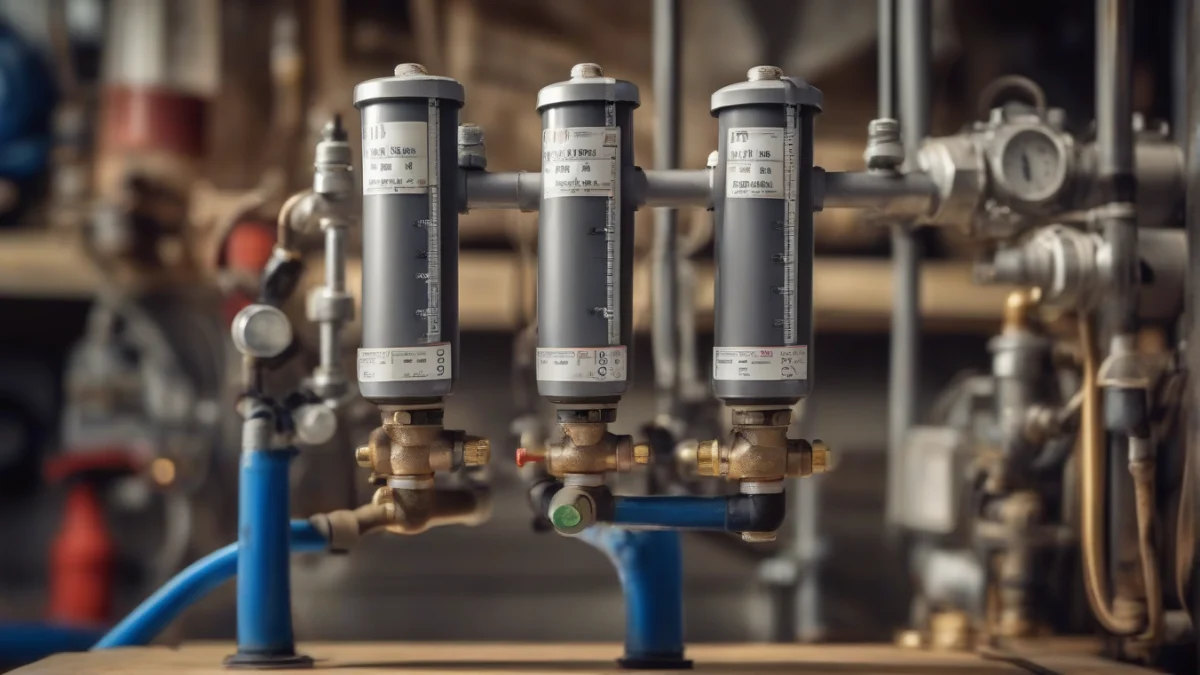

At its core, you need PEX tubing, a manifold to distribute water, flow meters or balancing valves to adjust each loop’s flow, a floor sensor thermostat for temperature control, insulation beneath the tubing, and a secure fastening method to keep the tubes in place during the pour. Pressure-test gear completes the toolkit to verify your loops hold tight before covering them up.
Loop length and spacing matter more than just matching square footage. Too long a loop reduces flow and heat output; too wide spacing leaves cold spots. Manufacturers recommend keeping loops under 300 feet long and spacing tubes between 6 and 12 inches apart, depending on the heat load and floor type. A well-planned layout avoids guesswork and costly fixes.
| Part | Purpose |
|---|---|
| PEX Tubing | Carries hot water through the floor |
| Manifold | Distributes water to each loop and allows balancing |
| Flow Meters or Balancing Valves | Control water flow for even heat |
| Floor Sensor Thermostat | Monitors and controls floor temperature |
| Insulation | Prevents downward heat loss |
| Fastening Method | Secures tubing during installation |
| Pressure-Test Gear | Checks for leaks before floor covering |
The heat source for the system can be a boiler or another approved hot water source. Your installation must meet the manufacturer’s temperature and flow requirements exactly to avoid damage or poor performance. For example, if your boiler supplies water at 140°F and 3 gallons per minute, your tubing and manifold must handle that flow and temperature without restriction or leaks.
Where Permits And Licensed Pros Come In
The cost to install hydronic heating includes materials, labor, permits, and finishing your floor, but much of that labor requires licensed pros due to safety and code.
Installing the boiler, gas connections, venting, electrical wiring, and tying the system into pressure-relief valves or existing water heaters usually falls outside DIY. These tasks demand licensed plumbers or HVAC technicians because of combustion risks and code compliance.
Permits commonly come into play for structural changes such as cutting or reinforcing floors, plumbing modifications, electrical work, and installing fuel-burning equipment. Local codes may also regulate the use of vent-free gas heaters and slab work.
You can tackle tubing layout and securing the floor heating system yourself, but expect to hand off connections to pros unless you’re fully qualified. Plumbing and electrical inspections will verify safety before you close walls or floors.
For hot water heater installation steps, including tankless models, licensed plumbers handle gas and water connections to meet code and warranty requirements. Electrical tankless water heaters also require a certified electrician for high-voltage work.
If you want to dive deeper into the technical installation of hydronic boilers, consider a dedicated guide on that topic for pros and advanced DIYers.
The Mistakes That Cause Leaks Or Weak Heat

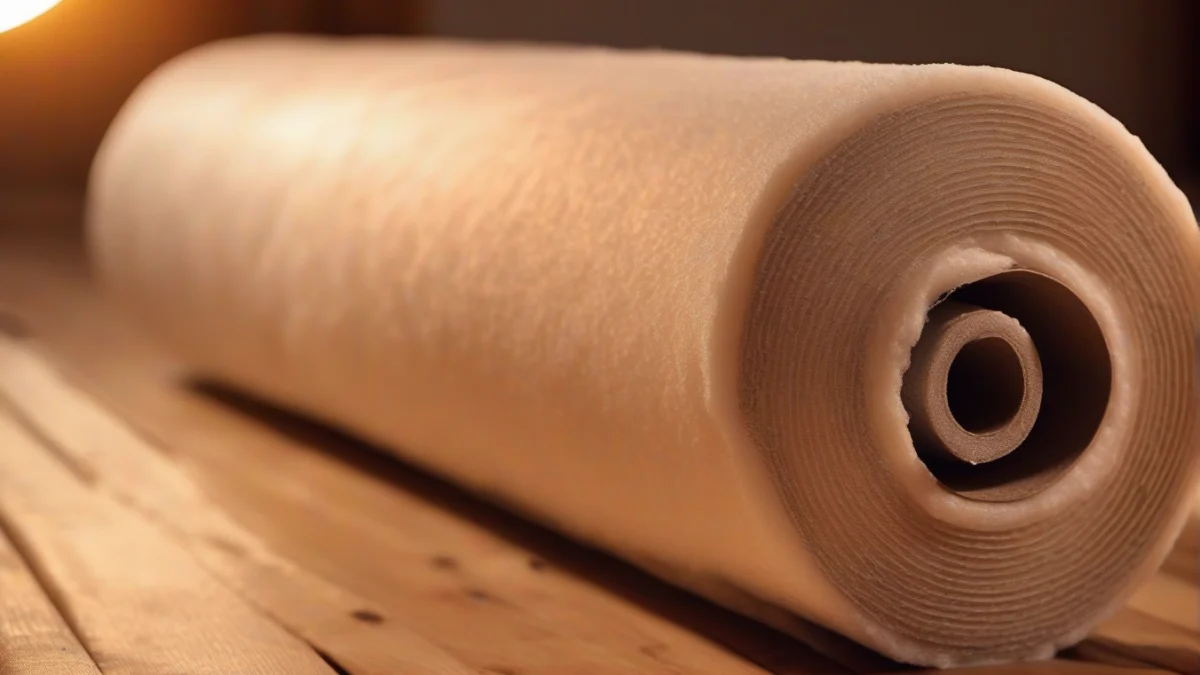

A proper radiant floor heating installation manual warns about common mistakes that can ruin your system before you even cover the tubes. Missing insulation under and around the loops lets heat escape down or sideways, starving your floor and wasting energy.
Loop spacing is critical. If the tubes are too far apart, you’ll get cold spots. If the loops are too long—more than about 300 feet per loop—the water cools too much before it reaches the far end, causing weak heat there. The manifold must be clearly labeled so you know which loop serves which room or zone. Otherwise, troubleshooting leaks or balancing heat becomes a guesswork nightmare.
Kinking the tubing during installation damages it internally and narrows flow, reducing heat performance. Fastening loops too tightly or using staples that puncture the tubing is another common cause of leaks. Keep an eye on door heights too—floor build-up from tubing and insulation can raise finished floor height, causing doors to bind or not close.
The hydronic radiant floor heating installation guide also stresses that skipping the pressure test or rushing the job leads to failures. Punctures and leaks often come from careless stapling or stepping on tubing. Labeling the manifold and loops is the only way to keep track of the system’s complex layout.
What To Do Next
To install heated floors, start by measuring your room and calculating the heat load to confirm your heat source can handle it. Check local permit rules early—some areas require inspections or licensed installers for hydronic floor heating.
If you’re working on a small retrofit, buy the parts you need, lay out the loops carefully, and plan to schedule a pro for boiler, gas, and water connections if you can’t do that work yourself. Whole-house or slab new builds need more planning: secure permits, finalize your heat source, then install tubing before pouring concrete or laying subfloor.
For a straightforward start, see our step-by-step radiant floor heating installation guide for detailed instructions on laying the tubing and setting up the manifold. Step-by-Step Radiant Floor Heating Installation Guide
