Radiant floor heating installation usually takes one weekend for a small electric tile floor, plus curing time for mortar or self-leveling compound. It’s a DIY job if you’re comfortable with subfloor prep, basic wiring to a thermostat, and following the manufacturer’s layout exactly; hydronic installs usually belong to a licensed pro.
The most common mistake is buying the cable or mat before you measure the heated area. That mistake costs you a return, a delay, and sometimes a floor that’s patched around the wrong spacing because the kit doesn’t match the room.
Electric radiant floor heat is forgiving once it’s laid out correctly. The cable is the easy part; the flat subfloor, sensor placement, and GFCI wiring are where the job lives or dies.
Key takeaways
Measure the heated area first and buy a kit that matches the square footage you can actually cover.
Keep the heating cable continuous, never crossed, never shortened, and never coiled.
Set the floor sensor in conduit so you can replace it later without tearing up tile.
Use GFCI protection, a dedicated circuit, and the manufacturer’s spacing and coverage rules.
Hire a licensed pro for hydronic boiler, venting, gas, or major electrical work.

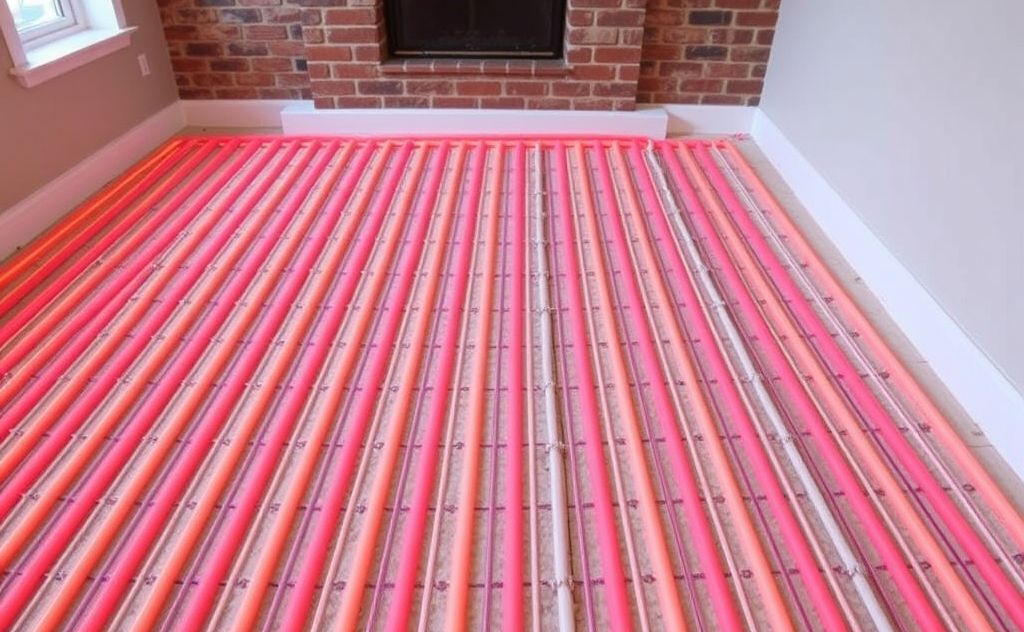

Step-by-Step Radiant Floor Heating Installation
Small electric radiant floor heating installations under tile are a careful homeowner’s DIY job, while hydronic systems usually belong to a licensed pro. For a small bathroom, radiant flooring installation often takes one weekend for planning, prep, cable installation, and tile work, followed by the cure time required by the mortar or self-leveling compound.
Installing in-floor heating starts with the heated area, not the room’s full floor area: cabinets, toilets, tubs, and other fixed objects don’t need cable beneath them. The kit size must match the open floor, because electric heating cable can’t be shortened, crossed, or overlapped.
45 sq ft
Example heated area
A 45-sq-ft kit can use 180 linear feet of cable at 12 W per sq ft; the layout still has to follow the kit and its spacing instructions.
If you want a small electric floor heating installation with the thermostat and safety checks in one package, Product 1 includes 45 sq ft of 120V cable, a floor sensor, cable guides, an installation monitor, and a programmable thermostat. Its 540 W load suits that sized heated area; it doesn’t replace the required circuit, layout planning, or local electrical rules.
Tools And Parts
Tape measure and pencil for measuring the open heated area
Utility knife for underlayment and layout work
Trowel suited to the mortar or self-leveling product
Multimeter for resistance checks before, during, and after installation
Underlayment or thinset approved for the floor system
Cable guides or a factory heating mat
Thermostat and floor sensor
Conduit for protecting the sensor lead where required
GFCI protection, either at the breaker or as specified by the thermostat and local code
Tile-setting materials, including mortar, grout, spacers, and the tile itself
Before You Touch The Wiring
Electricity, hot mortar, and sharp tile tools can injure you. Shut off power at the breaker before any wiring, verify that the circuit is dead, and follow the thermostat manual exactly; have a licensed electrician handle work that local code reserves for one.
Myth
The cable can be trimmed to fit after you reach the far side of the room.
Fact
Heating cable is a fixed electrical load. Cutting it can change its resistance and create a failure or shock hazard, while crossing or overlapping runs can create damaging hot spots. Measure the open floor first and choose a kit that fits it.
1
Measure And Plan
Measure the usable floor area after marking cabinets, plumbing fixtures, door swings, and other permanent obstructions. Sketch the cable route from the thermostat location, leave the cold lead where it can reach the box, and keep the floor sensor between cable runs rather than directly over a heated wire.
2
Prep The Subfloor
Remove debris, fasteners, and high spots, then repair movement or damage before the heating system goes down. The surface must be clean, dry, sound, and flat enough for the underlayment, mortar, or self-leveling compound specified by the flooring and heating manufacturers.
3
Lay And Test The Cable
Place the mat or cable guides according to the planned heated area, keeping the specified spacing consistent. Never shorten, cross, or overlap the cable. Use a multimeter to record the cable resistance against the manufacturer’s stated range before laying it, after securing it, and again before covering it; keep the installation monitor connected if the kit supplies one.
4
Embed The Cable
Secure the cable so it can’t float or shift, then cover it with the approved thinset or self-leveling compound. Work carefully around the cable rather than dragging a trowel edge across it, and allow the material to cure for the time printed on its instructions before loading the floor.
5
Wire The Thermostat
With the breaker off, route the floor sensor and power conductors through the required boxes or conduit and connect them exactly as the thermostat manual shows. The thermostat’s GFCI protection and test function need to work before the floor is closed up; electrical connections and breaker changes may require a licensed electrician or permit.
6
Tile And Commission
Set the tile without puncturing the cable, keep grout and mortar joints consistent, and wait for the full cure period before energizing the system. Restore power, test the thermostat and floor sensor, confirm the GFCI trips and resets correctly, then program a moderate floor temperature rather than trying to heat the room instantly.
Worked Example
Say the open bathroom floor measures 42 sq ft after the vanity and tub are excluded. A 45 sq ft cable kit leaves a small planning margin, but the cable still must follow its specified spacing and stay entirely within the heated zone. A 540 W, 120V load draws about 4.5 A, calculated as 540 ÷ 120, so the thermostat and circuit must be suitable for that load and installed according to local requirements.
Open floor42 sq ft
Kit coverage45 sq ft
Rated load540 W at 120V
Approximate current4.5 A
In short
For DIY radiant floor heating, measure the open floor, match the cable to that area, test it before covering it, and follow the thermostat manual for wiring. Don’t power the system until the mortar or self-leveling compound has cured for the time its instructions require.
What You’ll Need
Tools, parts, and the one kit worth using on a first electric tile floor.
First tile-floor kit
Warming Systems 45 Sq Ft 120V Kit
This kit bundles the heating cable, cable guides, floor sensor, programmable thermostat, and installation monitor, so you aren’t piecing together parts before the mortar goes down. The flexible cable suits floors with angles, while built-in GFCI protection and wet-area approval fit bathroom installations.
To install heated floor under tile, build a flat stack, place the sensor between cable runs, and embed the electric heat evenly before setting tile. A radiant heat under tile floor install works best when the heating area, cable spacing, and finished height are planned before mortar meets the floor.
The usual floor stack is simple: subfloor at the bottom, heating cable or mat above it, an embed layer of thinset or self-leveling compound, then tile backer or a tile-setting bed, followed by tile. Follow the kit’s listed assembly; some systems go over backer board and others are designed to be buried beneath a mortar bed. The cable must be fully supported and covered without sharp bends or air pockets.
Measure the Heated Area First
Measure only the open floor that can safely receive heat. Leave out cabinets, toilets, vanities, built-in fixtures, and areas where the cable can’t be installed at the specified spacing. Never cut a heating cable to make a kit fit.
Worked example
Say the kit covers 45 square feet. Your marked heating area should be close to 45 square feet, not 38 or 52. A few feet short forces wider spacing and can create cool strips; too much area can force tight spacing or leave cable where furniture will cover it. Lay out the route on the floor first and mark the cable’s planned path.
Kit coverage45 sq ft
Target heated areaAbout 45 sq ft
Check before embeddingCable spacing and full route
Place the Floor Sensor Correctly
Put the sensor inside conduit between two heating runs, with its tip away from and parallel to the cable rather than touching it. Run the conduit back to the thermostat, cap the far end so mortar can’t enter, and leave a path that lets you replace the sensor later. Burying the sensor directly in mortar turns a small thermostat part into a demolition project.
1
Lay out the cable or mat
Start from the thermostat side and keep the manufacturer’s spacing marks consistent. Keep heating cable away from walls, plumbing penetrations, floor drains, and any excluded areas shown in the instructions.
2
Embed the heat
Use the specified thinset or self-leveling compound to cover the cable completely. Self-leveling compound is especially useful for a first-time installer because it creates a flatter, protected surface for tile, provided the subfloor and perimeter are prepared as directed.
3
Set the tile
After the embed layer has cured for the product’s stated time, check for ridges, loose spots, and the required finished height. Set tile with the mortar specified for the heating system and avoid tools or movements that can pinch the cable.
System
Difficulty
Floor height
Who it suits
Electric cable
Moderate
Low to moderate
A careful DIY installer who can maintain spacing
Electric mat
Easier layout
Low to moderate
Beginners with a regular, open floor
Hydronic tubing
High
Moderate to high
Licensed installers or major renovations
Actual build-up and clearance depend on the listed system and local requirements.
Existing tile and finished height
Existing tile can sometimes remain when it’s sound, flat, and low enough, but damaged or uneven tile usually needs removal. Check the new floor height against doors, toilet flange height, baseboards, and transition strips before choosing an overlay system. For a bathroom-specific layout, see how to install heated floor under tile.

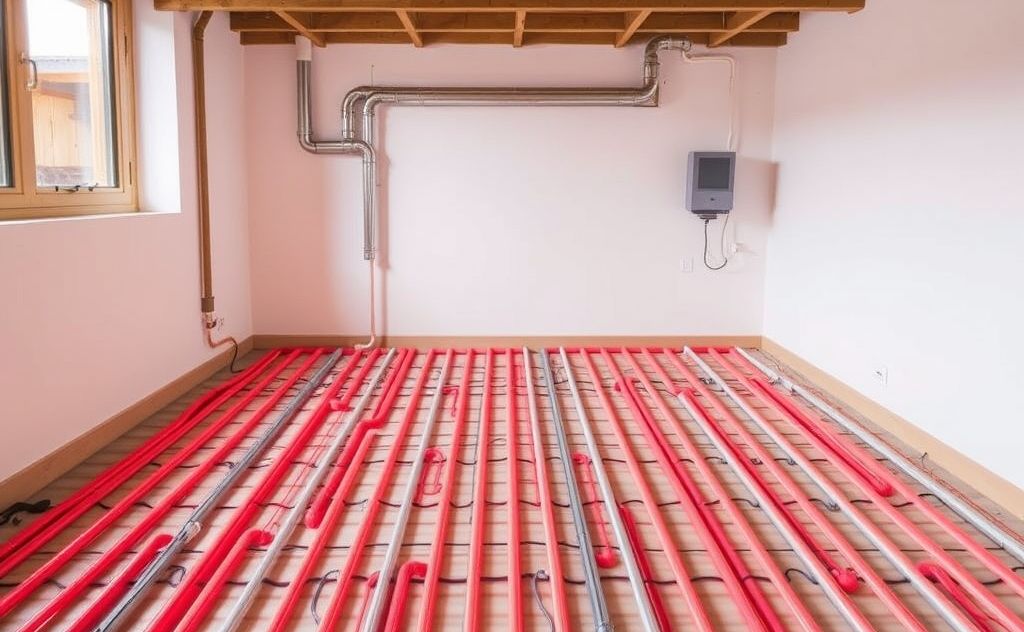

Radiant floor heating tubing installation is a different project from electric floor heat: hydronic tubing needs a heat source, manifold, controls, pressure testing, and a suitable slab or underfloor layout. Installing radiant heat under an existing floor may work from the crawlspace or basement, but it won’t produce the same tile build-up and still needs access, support, and a design that matches the tubing system.
Permits, Wiring, and When You Need a Pro
A simple electric radiant floor thermostat on an existing suitable circuit may be DIY work where local code allows, but new circuits, final connections, and inspection often belong to a licensed electrician. For US electric radiant floor heating tile installation, follow the manufacturer instructions exactly: they control cable spacing, thermostat compatibility, sensor placement, breaker protection, and allowable floor areas.
Part of the job
Who should handle it
Why it matters
Cable or mat layout and embedding
DIY if the instructions and local code allow
The heating cable must stay intact, evenly spaced, and fully covered.
New circuit, breaker, or 240 V wiring
Licensed electrician or required inspection
A dedicated circuit and correct protection must match the heater and thermostat.
Thermostat connection
Electrician where required by local code
The thermostat switches substantial current and must be bonded and wired correctly.
Boiler, manifold, pump, and water lines
Licensed plumber or heating contractor
Flow, pressure, expansion, air removal, and leak testing all affect safety and performance.
Gas piping and venting
Licensed professional
Combustion gases and fuel connections need code-compliant installation and testing.
Your local building department decides which permits and inspections apply.
Permits are commonly required for a new electrical circuit, a bathroom remodel, or a change to a building system, but the local building department has the final say. Ask before opening walls or ordering parts; a permit question is cheaper before the tile goes down.
Stop at the service panel
Water heater or boiler connections, 240 V work, gas piping, and venting aren’t weekend guesswork. Turn the wiring over to an electrician, and have a licensed plumber or heating contractor handle boiler piping and pressure testing.
Hydronic radiant floor heating installation usually needs a licensed plumber or heating contractor for boiler piping, manifold work, pump selection, air removal, venting, and pressure testing. If you’re considering a water-based system, see installing infloor heating before choosing equipment.
For hydronic radiant floor heating, the wall thermostat usually connects to a zone control or actuator, not directly to the manifold. A simple control path is: thermostat → zone control → manifold actuator and pump → boiler; the manifold distributes heated water through each loop. The control board and system design determine the actual wiring.
Boiler Versus Water Heater
A boiler for radiant floor heat is designed to heat and circulate system water through closed loops. A radiant heat floor water heater installation isn’t a drop-in substitute: domestic water heaters, pumps, mixing controls, expansion equipment, and code requirements differ. Don’t connect a floor loop to a water heater without a qualified design.
Vent-free gas equipment, unlisted heaters, and improvised connections are the wrong tools for indoor floor heat. Use a listed electric system or a properly designed hydronic system, with the required permits, controls, clearances, and inspections.
From HeaterGuides · our own guidePage 4 sets boilers beside every other system, side by side.Heating System Upgrade PlannerChoose between a heat pump, a furnace, a boiler or a hybrid with your own numbers, and hire the right installer.Every system compared side by side25 questions for contractors, red flagsRunning-cost, payback and quote calculator (Excel)$14.99$9.99Get it for $9.99See what's inside and watch the 2-minute video →16-page printable PDF + Excel calculator · instant download · 30-day refund
Mistakes That Damage Cables or Cause Leaks
A radiant floor heating diagram and the radiant floor heating manual are your map: the radiant heating element must follow the shown spacing, turns, sensor route, and coverage area. Radiant floor warming comes from evenly embedded cable or tubing, so learning how to do radiate flooring starts with protecting that layout rather than adding heat wherever it seems useful.
Myth
More watts will fix uneven spacing or a poor subfloor.
Fact
More watts won’t correct cable crossings, cold gaps, movement, or an uneven surface. A flat, sound subfloor and the manufacturer’s spacing give the heat somewhere sensible to go.
4.5 A
Draw from a 540 W kit at 120 V
The calculation is 540 W ÷ 120 V = 4.5 A. Confirm circuit capacity, required GFCI protection, and the thermostat’s load rating; use a dedicated circuit when the manual or local code requires it.
Crossing heating cable is a classic failure because concentrated heat can damage the insulation. Never cut the heating wire, even if a mat seems too large; only the approved lead or mesh may be trimmed as the manual allows. Skipping the floor-sensor conduit makes a later sensor replacement unnecessarily destructive.
Test the cable before installation, after it is laid out, and after mortar or self-leveling compound cures. A nicked cable buried without that test can mean pulling tile back up, which is the expensive part nobody wants to fund twice. Photograph the finished layout and mark cable runs, sensor position, and the thermostat location before covering anything.
Hydronic floors have a different failure list: poor crimping, leaking manifold connections, and skipped pressure tests can send water into the subfloor, where framing damage may continue quietly. Pressure-test the tubing and inspect every joint before closing the floor, following the system manual and local requirements.
Mistake
What it breaks
How to prevent it
Crossing or sharply bending cable
Cable insulation and even heat
Follow the layout; keep every run separated
Cutting the heating wire
The complete heating circuit
Trim only approved mesh or lead sections
Skipping sensor conduit
Future sensor service
Route conduit before mortar and leave the sensor replaceable
Covering a damaged cable
Tile and underlayment may need removal
Record resistance tests before and after embedding
No layout photos
Safe drilling and repairs later
Photograph and measure cable and sensor locations
Skipping a hydronic pressure test
Leaks into subfloor or framing
Test tubing, crimps, and manifold joints before closing
Catch these failures while the floor is still accessible.
In short
The manual’s spacing is part of the heating design, not decoration. Test, photograph, and pressure-test before the cable or tubing disappears under the floor.
What To Do Next
For radiant floor heating installation, choose your route first: DIY radiant floor heating suits a properly planned electric tile kit, while hydronic floor heating systems installation starts with local permits and a licensed professional.
1
Choosing electric tile heat
Measure the heated area, excluding cabinets and permanent fixtures; confirm circuit capacity and thermostat compatibility; then buy the correctly sized kit before opening the floor. For how to install heated floor under tile, keep the kit, sensor, manual, and test records together.
2
Choosing hydronic heat
Stop before buying a boiler or manifold. Ask your building department about permits and required inspections, then have a licensed pro size the system and plan the tubing, controls, and venting.
3
The floor is already open
Photograph the subfloor, mark the sensor route, and dry-fit the thermostat location before any mortar goes down. Check the layout against the manual, then test the cable or tubing.
Frequently Asked Questions
How long does radiant floor heating installation take?
A small electric mat under tile can take a weekend to lay out, test, embed, and tile, followed by the mortar or compound’s required curing time. Larger rooms, multiple zones, and hydronic tubing add design, plumbing, and inspection time.
Can you install radiant floor heating under existing tile?
Usually, you can install an electric system over sound, firmly bonded tile if the added height and approved underlayment work with the finished floor. Clean and level the surface, confirm the tile can carry the new assembly, and follow the heating system’s instructions; loose tile or an unsuitable adhesive calls for removal first.
Do I need a permit for electric radiant floor heat?
Permit rules depend on your city, state, and the work involved. Replacing a thermostat may be treated differently from adding a circuit or changing wiring, so ask the local building department before starting and arrange inspection where required.
Can I install radiant floor heating myself?
A capable homeowner can often install a small electric tile system if local rules allow and the layout, testing, and floor preparation are followed exactly. Hire a licensed electrician for a new circuit or final electrical connection, and use a licensed professional for hydronic design, gas work, or major plumbing.
Where does the floor sensor go in a radiant floor system?
Place the sensor between two heating cable runs, centered in the heated area and away from a wall, doorway, drain, or another heat source. The sensor must not touch or cross the heating cable; run it in the manufacturer-specified path so it can be replaced without opening the floor.
What causes radiant floor heating cables to fail?
Most damage comes from cutting a cable, crushing or sharply bending it, overlapping runs, or driving a fastener through the heated area. Check the cable’s resistance and insulation before installation, after securing it, and again after the floor covering is installed; a changed reading means stop before covering the system.
