Control systems for hot water in central heating include thermostats, zone valves, and programmable controls, optimizing temperature and energy efficiency.
Modern central heating systems rely on precise control mechanisms to deliver hot water efficiently. From smart thermostats to advanced heat recovery, these systems balance comfort with energy savings.
Primary Control Components
Central heating systems use several key components to regulate hot water temperature and distribution:
Thermostats and Smart Controls
Advanced thermostats like Google Nest can manage both space heating and domestic hot water. These devices offer:
- Programmable schedules for different times of day
- Home/Away detection to reduce energy waste
- Legionella prevention cycles for health safety
Circulation Pumps
Constant circulation prevents scale buildup and maintains consistent temperatures. The P-K COMPACT system demonstrates how continuous flow improves performance:
| Feature | Benefit |
|---|---|
| 90-10 copper nickel shell | Prevents corrosion in potable water systems |
| Segmental baffles | Improves heat transfer efficiency |

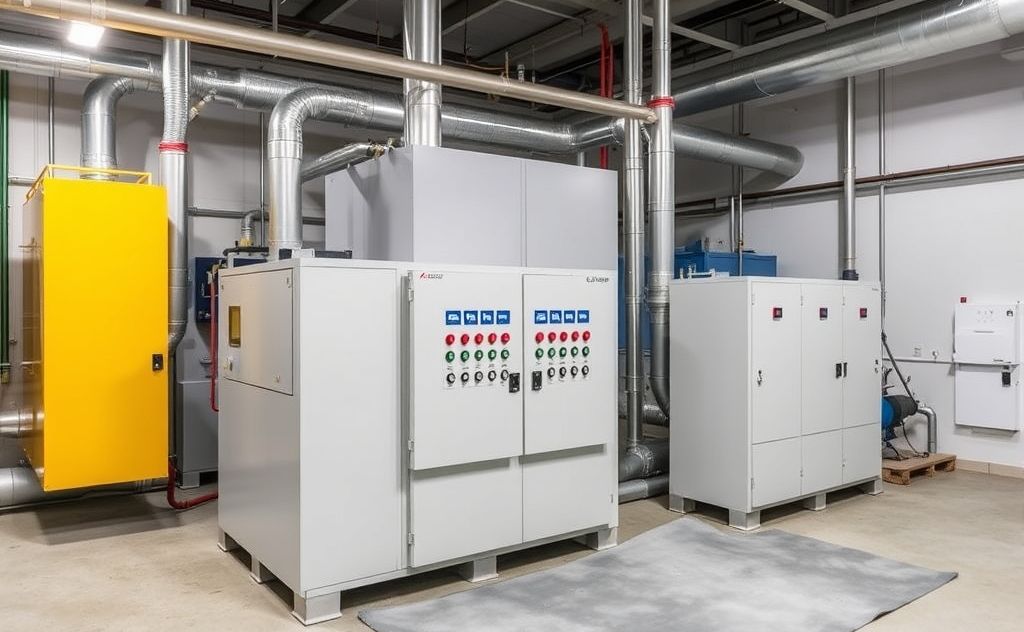

Advanced Heat Recovery Systems
Innovative facilities like Stanford’s CEF showcase cutting-edge approaches:
Heat Recovery Chillers
These massive units (2,500-ton capacity) simultaneously cool some campus areas while using waste heat to warm others. The system achieves:
- 88% of heating from recovered waste heat
- 70% water savings versus conventional systems
Thermal Storage Tanks
Massive storage tanks allow heating and cooling at optimal times rather than peak demand periods. This approach:
- Reduces need for backup generators
- Lowers energy costs through time-shifting
Specialized Control Valves
The ANTICIPATOR system in P-K heaters demonstrates advanced valve technology:
Precision Temperature Control
Maintains water temperature within ±4°F of set point through:
- Steam flow modulation
- Baffled heat exchanger design
- Minimum storage volume for quick response
Emerging Technologies
New developments are transforming hot water control:
OpenTherm Integration
Compatible with some Nest thermostats, this protocol allows:
- Direct water temperature adjustment
- Improved boiler modulation
- Higher system efficiency
According to Patterson-Kelley, modern systems can handle up to 250 gpm flow rates while maintaining precise temperature control. Meanwhile, Nest’s documentation shows how smart algorithms can optimize hot water schedules based on usage patterns.
Material Innovations
Copper-nickel alloys and naval brass components extend system lifespan while preventing rust contamination in potable water systems. These materials withstand:
- High-pressure operation (up to 400psi)
- Various water conditions
- Long-term corrosion
