Water Heater in Small Closet: Safe Installation Guide

A water heater in a small closet can save space, but ensure proper ventilation and accessibility for maintenance and safety compliance.

Installing a water heater in a small closet requires careful planning to meet safety codes and ensure proper ventilation. Whether you’re working with traditional tank models or modern heat pump units, space constraints create unique challenges for homeowners and professionals alike.

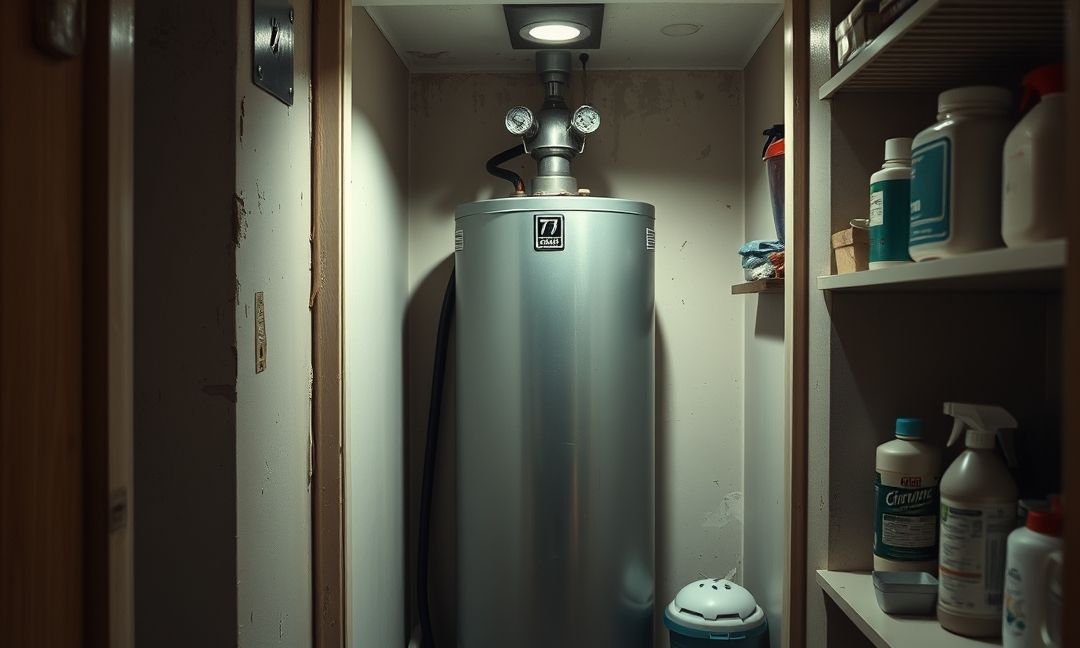

water heater installed in a compact closet space

Types of Water Heaters for Small Closets

Not all water heaters work equally well in confined spaces. Consider these options:

Heat Pump Water Heaters (HPWH)

The Rheem HPWH 80-gallon model offers energy efficiency but requires special ventilation considerations. As noted in a Green Building Advisor discussion, these units work best when:

  • Vented to adjacent living spaces (like basements) in cold climates
  • Installed with louvered doors for minimum air circulation
  • Placed in spaces with stable ambient temperatures (65-70°F ideal)

Tankless Water Heaters

According to NACHI forum experts, tankless models can work in closets when:

  • Proper combustion air pipes connect to exterior
  • Manufacturer clearance requirements are met
  • Vent pipes use approved materials (no flexible metal ducts)

Traditional Tank Heaters

Gas models pose the greatest challenges in small spaces. A NACHI case study showed common installation mistakes:

  • Inadequate combustion air leading to flame rollout
  • Improper TPRV pipe installation
  • Electrical panels placed too close to units

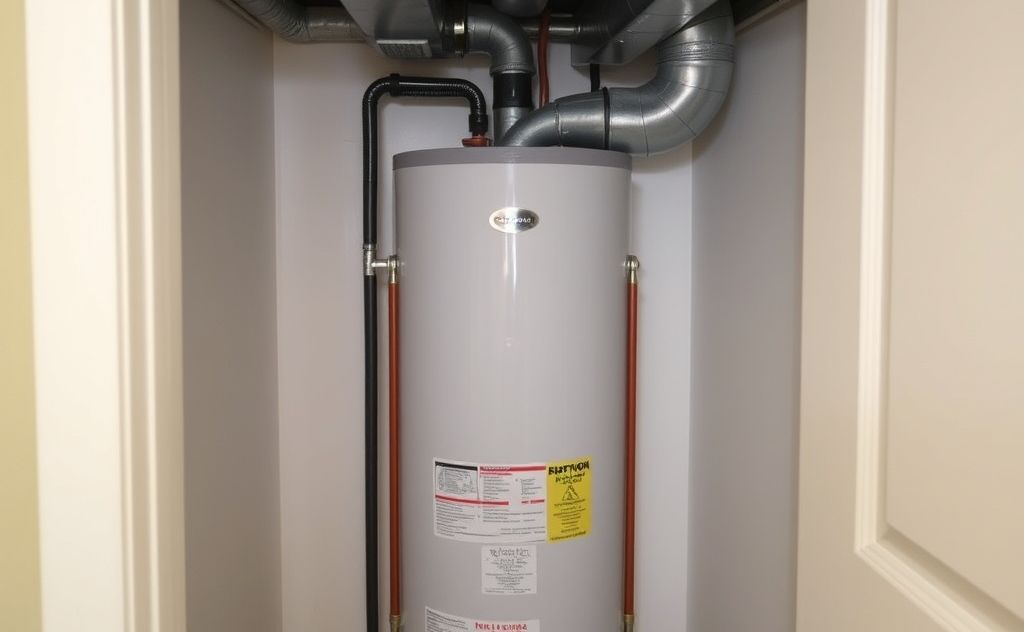

Water heater in small closet with ventilation system

Ventilation Requirements

Proper airflow prevents dangerous backdrafts and maintains efficiency.

Combustion Air Needs

The International Residential Code (IRC) specifies:

Water Heater Type Air Source Requirements
Gas Tank 50 cu. ft. minimum room volume per 1,000 BTU/hr
Tankless Direct vent or sealed combustion required
Heat Pump 6-12 inches clearance around unit
READ MORE  Water Heater Amps: What Size Circuit Do You Need?

Venting Solutions

For closet installations consider:

  • Louvered doors: Provide 50-75 sq. in. of free area
  • Ducted intake: Use 4-6 inch insulated pipes
  • Shared vents: Connect to existing furnace vents when possible

Safety Considerations

Closet installations increase certain risks that require mitigation.

Clearance Requirements

Maintain minimum distances:

  • 30 inches front clearance for service
  • 6 inches side/rear clearance
  • 24 inches vertical clearance

Fire Protection

Install these safety features:

  • Drain pans piped to exterior
  • Smoke detectors within 10 feet
  • Fire-rated drywall for enclosures

Alternative Solutions

When closet installation proves too challenging, consider these options from our HVAC systems for small spaces guide:

Wall-Mounted Units

Some tankless models like Rinnai RU199iN can mount on exterior walls, eliminating closet space needs.

Point-of-Use Heaters

Small under-sink units reduce demand on main heaters.

Hybrid Systems

Pair a small heat pump with traditional tank for space savings.

Professional Assessment Checklist

Before installing, professionals should verify:

  • Local code compliance
  • Manufacturer specifications
  • Combustion air calculations
  • Vent pipe materials
  • Emergency shutoff access

“`
