Bosch Water Heater Red Light Off? What It Means

You walk into the laundry room or kitchen, turn on the hot tap, and get nothing but cold water. You glance at the Bosch unit and notice the red light is completely off. No blink, no glow, nothing. That little LED is your only window into what the heater is doing, so when it goes dark, you have to figure out whether it’s a simple power issue or something deeper.

This guide walks you through the diagnostic process step by step. You’ll learn what each light state means, how to test the components yourself with a multimeter, and exactly when to stop poking around and call a licensed technician. I’ll cover both tank-style electric units and tankless gas models, because the red light means different things depending on which one you own.

If you have a small electric point-of-use unit under a sink, the Bosch Tronic 3000T 2.5-gallon mini-tank is a common culprit for this exact scenario. It plugs into a standard 120V outlet, so the troubleshooting often starts at the wall, not the tank itself.

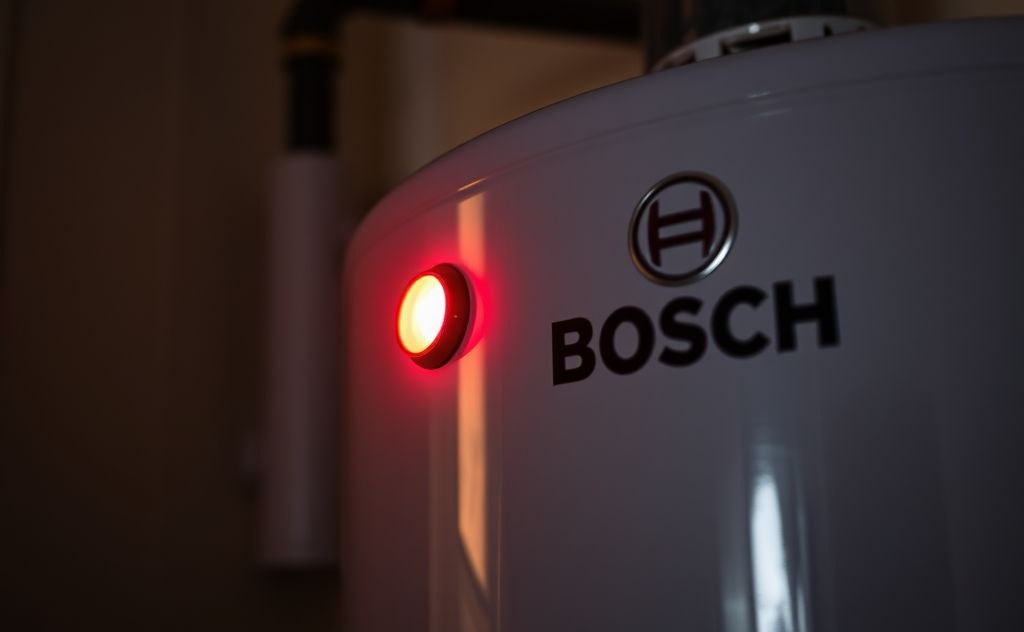

Decoding the Bosch Water Heater Red Light: Off vs. On vs. Blinking

Before you touch anything, look at the light. The state of that LED tells you which diagnostic path to take. There are three primary states, and each one points to a different family of problems.

• Solid red light: The unit has power and is actively heating. This is normal operation.
• No light at all: The unit has no power, or a safety switch has tripped internally. This is your situation.
• Blinking red light: The control board has detected a fault and is flashing an error code. The pattern matters.

Most people assume a dark display means the heater is broken. In my experience, it’s usually something far simpler, like a tripped GFCI outlet or a loose plug. But it can also mean a failed heating element or a blown thermal fuse, which requires actual repair.

The key is to confirm power delivery first. You can’t diagnose a heating element if the unit isn’t getting electricity. That sounds obvious, but you’d be surprised how many people skip this step and start taking the unit apart.

The Most Common Reason the Red Light is Off: Power and the Reset Button

On electric Bosch models, the red light is directly tied to the heating circuit. If that light is off, the heating element isn’t energized. The first thing to check is the power source, and the second is the high-limit reset button.

Checking the GFCI Outlet and Circuit Breaker

Bosch electric mini-tanks like the Tronic 3000T plug into a standard 120V outlet. That outlet is often a GFCI, especially in kitchens, bathrooms, or laundry rooms where water is nearby. GFCI outlets trip for a reason, usually a tiny ground fault, and they don’t always look tripped.

Press the TEST button on the outlet, then press the RESET button. If the outlet clicks and stays in, you have power. If the RESET button won’t stay in, you have a wiring problem or a faulty GFCI. Replace the outlet before you do anything else.

Next, go to your electrical panel. Find the breaker that feeds that circuit. A tripped breaker sits in a middle position, not fully ON or OFF. Flip it firmly to OFF, wait ten seconds, then flip it back to ON. If it trips again immediately, you have a short circuit somewhere in the heater or the wiring, and that’s a job for an electrician.

How to Properly Press and Hold the Reset Button

Bosch electric water heaters have a high-limit cutoff switch, often called a reset button. It’s usually a small red button located behind a cover plate near the thermostat. This switch trips when the water inside the tank gets too hot, usually above 190°F, which is a safety mechanism to prevent scalding or tank damage.

To reset it, you need a flathead screwdriver. Turn off power to the unit at the breaker first. Remove the access panel and any insulation blocking the thermostat. You’ll see a small red button. Press it firmly until you hear a click. It should stay depressed. If it pops back out, the switch is still open, which means the overheating condition hasn’t cleared, or the switch itself is defective.

Here’s the part most people get wrong: do not reset this switch more than once without finding the root cause. If the water overheated, why? A stuck thermostat, sediment buildup on the element, or a failed temperature sensor are all common reasons. Resetting it repeatedly just masks the problem and risks permanent damage to the tank.

Red Light Off But No Hot Water? Diagnosing the Heating Element

Let’s say you have confirmed power at the outlet, the breaker is on, and the reset button clicks and stays in. The red light is still off, and the water is cold. You’re now looking at a failed heating element or a broken thermostat.

The heating element is a metal rod that sits inside the tank. It draws a lot of current, typically 12 amps on a 120V unit like the Tronic 3000T. When it burns out, it breaks the circuit. No current flows, so the red light stays dark.

You can test the element with a multimeter. Set the meter to measure resistance (ohms). Disconnect power, drain the tank, and remove the element cover. Touch the multimeter probes to the element’s two terminals. A healthy element reads between 10 and 16 ohms. If you read infinite resistance (OL on the meter), the element is open and needs replacement.

Also check the thermostat. It’s a small device that sits against the tank wall. It should read near zero ohms when it’s calling for heat. If it reads infinite, it’s stuck open, and the element won’t get power. Replacing a thermostat is a cheap fix, usually under $20, and it’s a common failure point on units that have hard water.

Tankless Models: What a Completely Dark Display Means

Tankless Bosch units, like the Greentech or the older HydroPower series, work differently. They have a control board that runs the whole show. A completely dark display on a tankless unit almost always means the control board isn’t receiving power.

Gas Supply and Ignition Failure Codes

On a gas tankless unit, the red light doubles as an error indicator. If the display is dark, check the power cord and the dedicated circuit. These units often require a 120V outlet, but they draw much more current than a mini-tank. If the breaker is fine and the outlet has power, the issue is internal, usually a blown fuse on the control board.

If the unit has power but the red light is blinking, you’re dealing with a fault code. A common one on Bosch tankless units is a blinking pattern that indicates ignition failure. This happens when the unit tries to light the burner but the flame sensor doesn’t detect a flame within a few seconds. The control board then locks out the system for safety.

Ignition failure usually comes down to one of three things: no gas supply, a dirty burner, or a failed igniter. Check that the gas shutoff valve is fully open. The handle should be parallel to the gas pipe, not perpendicular. If the gas is on, check the venting. A blocked vent can cause a pressure switch to open, which prevents ignition. You can often clear a blocked vent yourself, but a dirty burner or failed igniter requires professional service.

For a deeper look at specific error codes on tankless models, this tankless error code reference breaks down the common patterns.

The “Cold Water Sandwich” and Why Your Light Flickers (But Isn’t Broken)

Sometimes the red light flickers or blinks briefly while you’re using hot water, and then goes back to normal. This isn’t always a fault. On tankless units, this can be the “cold water sandwich” effect.

Here’s what happens. You turn on the hot tap, and cold water in the pipes between the heater and the faucet comes out first. The heater senses the flow and fires up. Then the hot water arrives. If you turn the tap off and on quickly, the heater cycles through a startup and shutdown. During that cycle, the flame flickers, and the red light might blink to indicate the burner is modulating.

This is normal behavior, not an error. The unit is just responding to flow changes. If the light blinks continuously for more than a minute without any water running, that’s a problem. But a brief flicker when you adjust the tap is nothing to worry about.

When the Red Light is Blinking: A Guide to Fault Codes

A blinking red light is a diagnostic message. The pattern tells you what’s wrong, but you have to count the blinks. Different models use different codes, so check your manual, but here are the common ones on Bosch units.

Blink Pattern	Likely Cause	What to Check
1 blink, pause	Ignition failure	Gas valve position, gas pressure, igniter operation
2 blinks, pause	Flame sensor error	Flame rod position, sensor wiring, burner cleanliness
3 blinks, pause	Overheating	Water flow rate, inlet filter clog, heat exchanger scale
4 blinks, pause	Ventilation issue	Exhaust vent blockage, wind conditions, vent length
5 blinks, pause	Thermistor failure	Temperature sensor resistance, wiring connection

If you see a pattern that matches overheating, check the inlet water filter first. It’s a small screen that catches debris. If it’s clogged, water flow drops, and the unit overheats because the heat exchanger can’t dump heat fast enough. Clean it with a toothbrush and vinegar.

For a broader look at what different flashing patterns mean across brands, this water heater light guide covers the general logic.

Safety First: When to Stop Troubleshooting and Call a Pro

There is a line between DIY troubleshooting and dangerous guesswork. You should never cross that line when gas is involved. If you smell gas, even a faint odor, stop everything. Do not touch any electrical switches. Do not light a match. Open a window, leave the house, and call your gas utility from a neighbor’s phone.

Beyond the gas smell, there are other red flags. If the reset button trips repeatedly, that’s a sign of a serious overheating issue. A leaking tank is another one. If you see water pooling under the unit, shut off the water supply and the power, and call a plumber. A leaking tank can cause electrical shorts and structural damage.

Also, be honest about your skill level. Testing a heating element with a multimeter is fine. Replacing a gas valve or cleaning a burner is not a beginner project. A mistake there can cause carbon monoxide poisoning or a fire. The cost of a service call is far less than the cost of a hospital visit.

If you have a tankless unit and the error code points to a control board failure, that’s another job for a professional. The board is a sealed component, and replacing it requires special tools and training to calibrate the gas-to-air ratio.

Preventative Maintenance to Keep the Red Light Off

Most Bosch water heater failures are preventable. The red light usually comes on because of neglect, not because the unit is poorly made. A little routine maintenance goes a long way.

• Flush the tank annually: For tank units, drain a few gallons of water from the bottom valve every six months. This removes sediment that settles on the heating element. Sediment acts as an insulator, causing the element to overheat and trip the reset button.
• Descale tankless units: Tankless heaters need a vinegar or descaling solution flush every 12 to 18 months, depending on your water hardness. Scale buildup on the heat exchanger restricts water flow and causes overheating errors. You can buy a descaling kit with a pump and hoses for about $50.
• Check the anode rod: On tank units, the anode rod sacrifices itself to prevent tank corrosion. Check it every two years. If it’s worn down to less than half its original thickness, replace it. A worn rod leads to a leaking tank, and there’s no fixing that.
• Clean the inlet filter: On tankless units, remove and clean the inlet water filter every few months. It’s a two-minute job that prevents a lot of flow-related error codes.
• Test the temperature relief valve: Once a year, lift the lever on the pressure relief valve to make sure it opens and closes freely. If it’s stuck, replace it. A stuck valve can cause a pressure buildup that ruptures the tank.

These steps take about an hour a year. They will save you the headache of a cold shower and the cost of an emergency service call. I’ve seen units last 15 years with regular flushing, while neglected units fail in five.

Frequently Asked Questions

Why is my Bosch water heater red light off but no hot water?

Start with the power source. Check the GFCI outlet and the circuit breaker. If those are fine, press the high-limit reset button. If the light stays off after that, test the heating element and thermostat with a multimeter. A failed element reads infinite resistance and needs replacement. On a tankless unit, a dark display usually means the control board has no power, which could be a blown fuse or a tripped breaker.

How do I reset my Bosch tankless water heater?

Tankless units typically don’t have a physical reset button like tank models. Instead, you reset the control board by turning off the power at the breaker for 30 seconds, then turning it back on. This clears the fault code and allows the unit to attempt a new ignition cycle. If the error returns immediately, you have a persistent problem like a gas supply issue or a blocked vent, not a software glitch.

Is a blinking red light dangerous?

Not by itself. A blinking red light is a diagnostic message, not a fire hazard. However, the underlying cause can be dangerous. Ignition failure can lead to gas accumulation if the unit fails to light. Overheating errors can indicate a blocked vent, which risks carbon monoxide poisoning. If you see a blinking light, treat it as a warning to investigate. If you’re not comfortable troubleshooting gas components, call a professional. The light itself is safe; the reason it’s blinking might not be.

Can I use a Bosch mini-tank heater without a GFCI outlet?

You can, but you shouldn’t. The National Electrical Code requires GFCI protection for outlets in kitchens, bathrooms, and laundry areas. A mini-tank heater near a sink is exactly the kind of appliance that needs GFCI protection. If your outlet isn’t a GFCI, have an electrician install one or replace the standard outlet with a GFCI model. It’s a $20 part and an hour of labor, and it could save your life.

Why does my Bosch water heater keep tripping the reset button?

This points to an overheating condition. The most common cause is sediment buildup on the heating element. Flush the tank to remove the sediment. If the problem persists, check the thermostat. It might be stuck in the closed position, causing the element to heat continuously. A faulty temperature sensor can also cause this. If flushing and replacing the thermostat don’t fix it, the element itself might be shorted to ground, which requires a professional diagnosis.

What You Should Do Right Now

• Check the GFCI outlet and reset the breaker before touching the heater itself.
• Press the high-limit reset button once. If it trips again, find the cause, don’t just reset it.
• Test the heating element with a multimeter. A reading above 16 ohms or infinite means it’s dead.
• Count the blinks on a tankless unit and match them to your manual’s error code table.
• Flush your tank or descale your tankless unit every six to twelve months to prevent most red light issues.
• Call a professional if you smell gas, see a leak, or get an error code you don’t understand.
• Consider a Bosch mini-tank heater for point-of-use hot water, but keep its filter and element clean to avoid nuisance lockouts.
