Hydronic Boilers for Underfloor Heating: Efficient & Comfortable

A hydronic boiler efficiently heats water for underfloor heating systems, providing consistent warmth and energy savings through radiant heat distribution.

Hydronic boilers are the backbone of modern underfloor heating systems, delivering consistent warmth through heated water circulating in tubing beneath your floors. This method outperforms traditional forced-air systems in efficiency and comfort while reducing allergens.

Hydronic boiler system for cozy underfloor heating

Why Choose Hydronic Boilers for Underfloor Heating?

Hydronic systems dominate radiant floor heating for good reason. They use 25-30% less energy than forced-air systems by eliminating duct losses. The water retains heat better than air, allowing lower operating temperatures while maintaining comfort.

Key Advantages

  • 30% more efficient than forced-air systems
  • Works with multiple heat sources (gas, solar, wood)
  • No air movement means fewer allergens
  • Silent operation
  • Even heat distribution

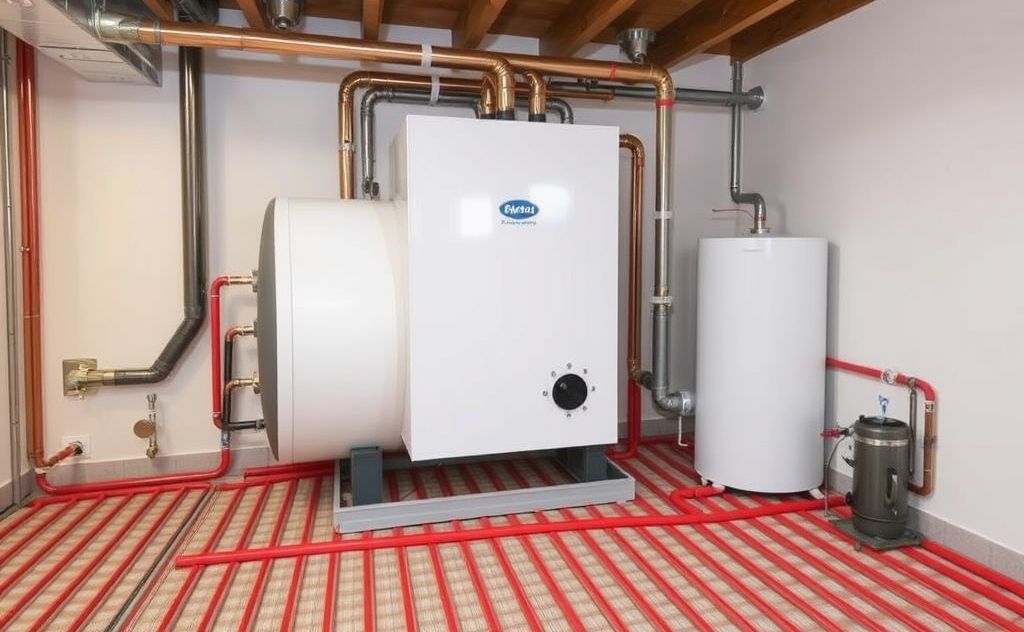

Hydronic boiler for underfloor heating system

Types of Hydronic Underfloor Systems

Wet Installation

Concrete slab systems embed tubing in thick thermal mass. Ideal for new construction, they store heat well but respond slowly to temperature changes. For existing homes, thin-set installations use lightweight concrete or gypsum over subfloors.

Dry Installation

Faster and lighter options include:

  • Aluminum heat diffuser plates between subfloor layers
  • Prefabricated plywood panels with integrated tubing channels
  • Suspended tubing beneath subfloors with reflective insulation

Dry systems cost 15-20% less to install but require higher water temperatures (120-140°F vs 85-115°F for wet systems).

Boiler Options for Hydronic Systems

Boiler Type Efficiency Best For
Condensing Gas 90-98% AFUE Most homes, especially with low-temperature systems
Modulating Up to 95% AFUE Homes with varying heat demands
Electric 100% Small spaces or off-grid with solar
Wood-fired 75-90% Rural areas with wood access
READ MORE  Condensing Hydronic Boilers: The Ultimate Efficiency Solution

Matching Boilers to Floor Coverings

Your floor finish impacts system performance:

  • Tile/Stone: Ideal – conducts heat well (requires 85-105°F water)
  • Engineered Wood: Good – keep surface below 85°F
  • Carpet: Acceptable – use thin padding (max R-2 value)

Installation Considerations

Zoning Strategies

Smart zoning boosts efficiency:

  • Separate loops for different floor coverings
  • Individual room control with thermostats
  • Mixing valves for temperature adjustment

Retrofit Challenges

Existing homes often use:

  • Low-profile aluminum plates under finished floors
  • Between-joist installations with reflective barriers
  • Thermal break layers to prevent downward heat loss

Maintenance Tips

Protect your investment:

  • Annual boiler servicing
  • Water quality testing (pH 7-8.5 ideal)
  • System flushing every 3-5 years
  • Check check valves and circulator pumps

Cost Analysis

Typical installed costs:

  • New Construction: $6-$15/sq.ft.
  • Retrofit: $8-$20/sq.ft.
  • Boiler: $3,500-$7,500

According to U.S. Department of Energy, properly installed systems can save 15-30% on heating bills compared to forced air.

Future Trends

Emerging technologies include:

  • Low-mass micro-tubing systems
  • Integrated solar thermal collectors
  • Smart mixing valves with weather compensation
  • Phase-change materials for thermal storage

The ASHRAE estimates hydronic systems will grow 7% annually through 2030 as builders prioritize energy efficiency.
