You’ve felt it—walking across a cold tile floor on a winter morning, the chill radiating up through your slippers. Hydronic radiant floor heating solves that problem completely. Instead of pushing warm air through ducts, it circulates heated water through tubing embedded in the floor slab or subfloor. The heat rises evenly, silently, and efficiently. No drafts, no noisy blowers, no hot-and-cold spots.
This guide walks you through the full installation process for a hydronic system, from planning the layout to pressure testing and pouring the slab. It covers the major decisions you need to make before you start—spacing, tubing material, manifold location, and heat source selection. You will walk away knowing exactly what materials to buy, what tools you need, and what mistakes to avoid.
LuxHeat
LuxHeat 40sqft Floor Heating Cable Kit -…
LUXURY AND COMFORT - Enjoy the warmth of LuxHeat's easy to install electric floor heating system. Your purchase includes a 40sqft (120volt) Heating Cable, Alarm (to provide peace-of-mind during installation), and Floor Sensor. (Excludes Thermostat & Cable guides/strapping). The LuxHeat floor heating system allows for individual room control, ensuring personal comfort.
See on AmazonIf your project is smaller—say, a single bathroom or a kitchen island—and you prefer a simpler electrical solution, consider the LuxHeat 40sqft Floor Heating Cable Kit. It uses electric resistance cable instead of water tubing and works under tile, laminate, or stone. The kit includes the heating cable, alarm, and floor sensor, though you will need a separate thermostat. It covers 40 square feet at 12 watts per square foot and is UL certified for wet locations. For larger whole-house systems, however, hydronic remains the more cost-effective choice over time.
Understanding Hydronic System Components
A hydronic radiant floor system has four main parts: the heat source, the distribution manifold, the tubing, and the control system. Each component must match your floor area, climate, and subfloor type.
The heat source is usually a boiler, a heat pump, or a solar water heater. For most homes, a condensing gas boiler with an efficiency above 90% makes sense. It runs at lower water temperatures (100–130°F) than standard radiators, so the boiler condenses more often and uses less fuel.
The manifold splits the supply water into multiple loops and returns the cooled water. Each loop should not exceed 300 feet of tubing. Longer loops increase pressure drop and reduce heat output. Plan your zones so that each loop has roughly the same length, within 10%. That keeps flow balanced without extra valves.

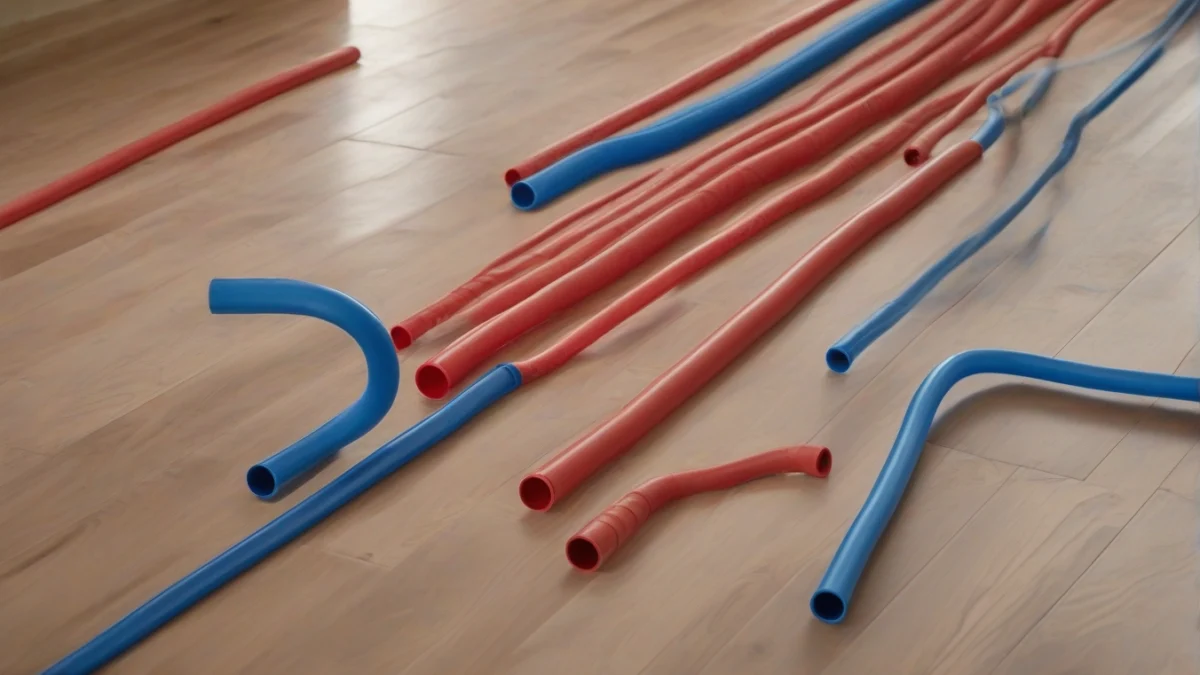

Tubing is almost always cross-linked polyethylene (PEX) with an oxygen barrier. The standard diameter is 1/2-inch, though 5/8-inch works for very long loops. Use PEX-AL-PEX (aluminum sandwiched between PEX layers) if you need the tube to hold a bent shape without springing back. That helps during installation on a staple-up system.
The control system includes a thermostat, zone valves or pumps, and a mixing valve to keep supply water between 100°F and 140°F. Without a mixing valve, the floor can overheat and damage the finish, especially wood.
Planning the Layout: Spacing, Zones, and Subfloor Prep
Start by measuring the floor area in each room. Subtract cabinets, toilets, and fixtures. You do not need heat under fixed objects—it only wastes energy and can damage wood furniture over time.
Tube spacing determines heat output. Standard spacing is 6 inches on center for a slab-on-grade floor with carpet, 9 inches for tile or stone, and 12 inches for engineered wood. Tighter spacing delivers more BTUs per square foot. For a concrete slab with 6-inch spacing and 110°F water, you can expect about 25–30 BTUs per square foot. That is enough for a well-insulated room with standard ceiling height.
Draw your tube path on graph paper or use a layout tool. The most common pattern is a serpentine (back-and-forth) loop that starts at the manifold and returns to the same manifold location. Avoid running tube under walls or through doorways—use expansion joints where the slab meets a wall. For a slab-on-grade, lay 2-inch rigid foam insulation under the entire slab, then a layer of 6-mil polyethylene vapor barrier, then wire mesh or rebar to hold the tubes.
If you are installing over a wood subfloor (staple-up system), the process changes. You attach aluminum heat-transfer plates to the underside of the subfloor, then staple the PEX tube into the plates. The plates spread heat evenly into the flooring above. This method works well for retrofits where you cannot pour concrete. The downside: you lose about 10–15% of heat output compared to a slab because the wood acts as an insulator. To compensate, reduce tube spacing to 6 inches and increase water temperature slightly.
For both methods, calculate the required power using the room heat loss. A rough rule: 12–15 BTUs per square foot for moderate climates, 20–25 for cold climates. Our power calculation guide provides the full formula including window U-values and infiltration rates.
Step-by-Step Installation Procedure
1. Prepare the Subfloor
Clean the surface completely. Fill cracks and level low spots with self-leveling compound. For concrete slabs, apply a primer before the compound. For wood subfloors, screw down any squeaky boards and sand high spots.
2. Install Insulation and Vapor Barrier
For slab-on-grade: lay 2-inch XPS foam boards with seams taped. Then roll out 6-mil polyethylene, overlapping seams 12 inches. Tuck the vapor barrier up the walls 4 inches. This prevents ground moisture from wicking into the slab.
For wood subfloor: place 1-inch rigid foam between the joists from below, or use foil-faced bubble insulation against the underside of the subfloor.
3. Lay Reinforcement Mesh
Place 6×6-inch wire mesh on chairs 1 inch above the insulation. Tie the mesh together with wire ties. The mesh supports the tubing and prevents cracking.

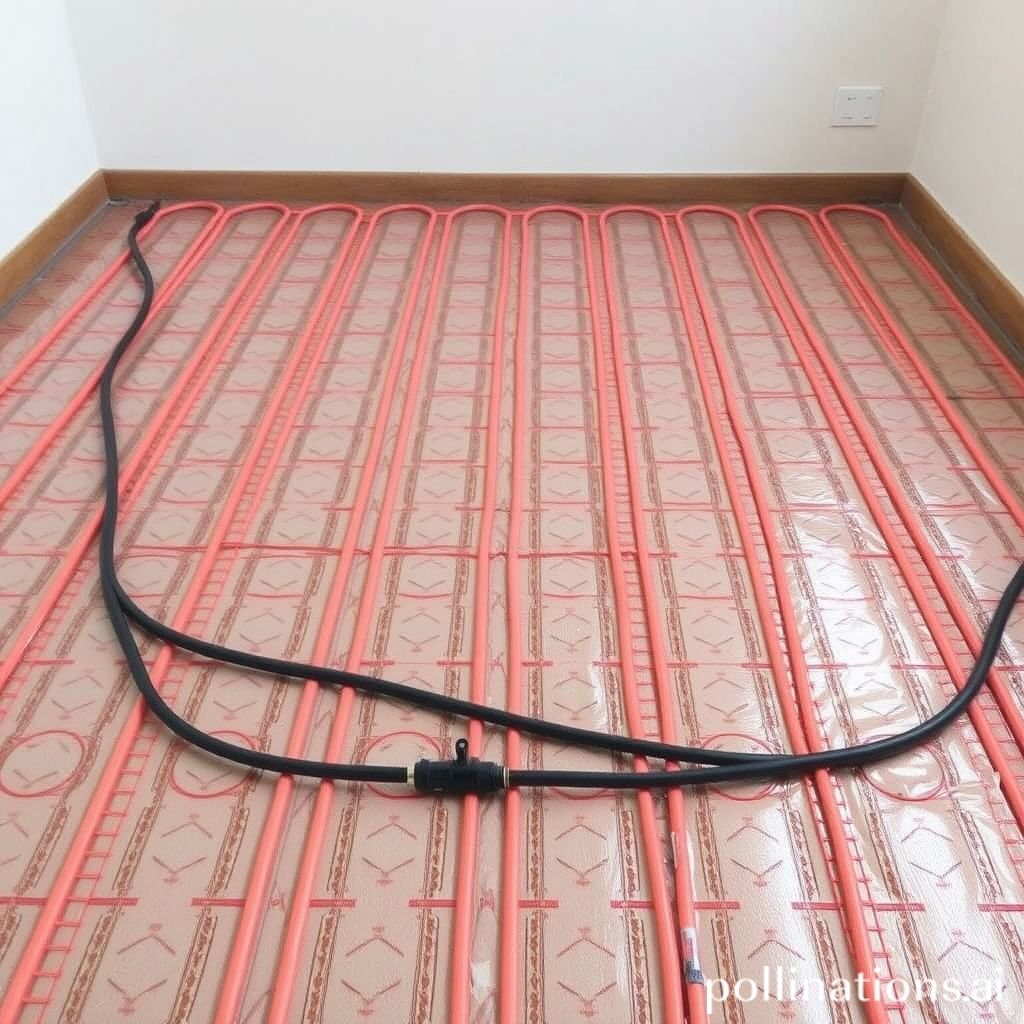

4. Run the Tubing
Uncoil the PEX tube on a warm floor—cold tube is stiff and hard to bend. Start at the manifold, clip the tube to the mesh with zip ties or PEX clips every 2 feet. Maintain your planned spacing. Avoid kinks: the minimum bend radius for 1/2-inch PEX is 5 inches. If you kink a tube, that section will restrict flow permanently. Cut it out and use a PEX coupling.
Run each loop back to the manifold. Label each tube end with the zone name. Leave an extra 6 feet of tube at each end for connection to the manifold.
5. Connect the Manifold
Mount the manifold on a wall near the boiler or heat source. Use a pre-assembled manifold with flow meters and balancing valves. Connect each tube using a brass compression fitting. Tighten by hand, then one-quarter turn with a wrench. Pressure test the system before covering.
6. Pressure Test
Fill the system with water, purge all air through the air vents, and pressurize to 80–100 psi (or 1.5 times the operating pressure, whichever is higher). Leave the pressure gauge connected for 24 hours. A drop of more than 5 psi indicates a leak. Locate the leak by listening or using a thermal camera, then repair it before proceeding.
This step is non-negotiable. Read our safety checklist for more detail on pressure-test procedures and what to do if the gauge drops.
7. Pour the Slab (or Cover)
For a slab system: pour concrete or gypsum-based self-leveling underlayment over the tubing. Use a mix specifically for radiant floors—it should have a compressive strength of at least 2,500 psi and a thermal conductivity of 0.8–1.2 BTU/(hr·ft·°F). Do not use lightweight aggregate, which insulates. Pour thickness should be 1.5 inches minimum above the tube. Gypsum underlayment is easier to work with and sets faster, but it must be protected from moisture if you install tile later.
For a staple-up system: close the subfloor from below with drywall or rigid foam. No pouring required. Just install the finished floor directly over the aluminum plates.

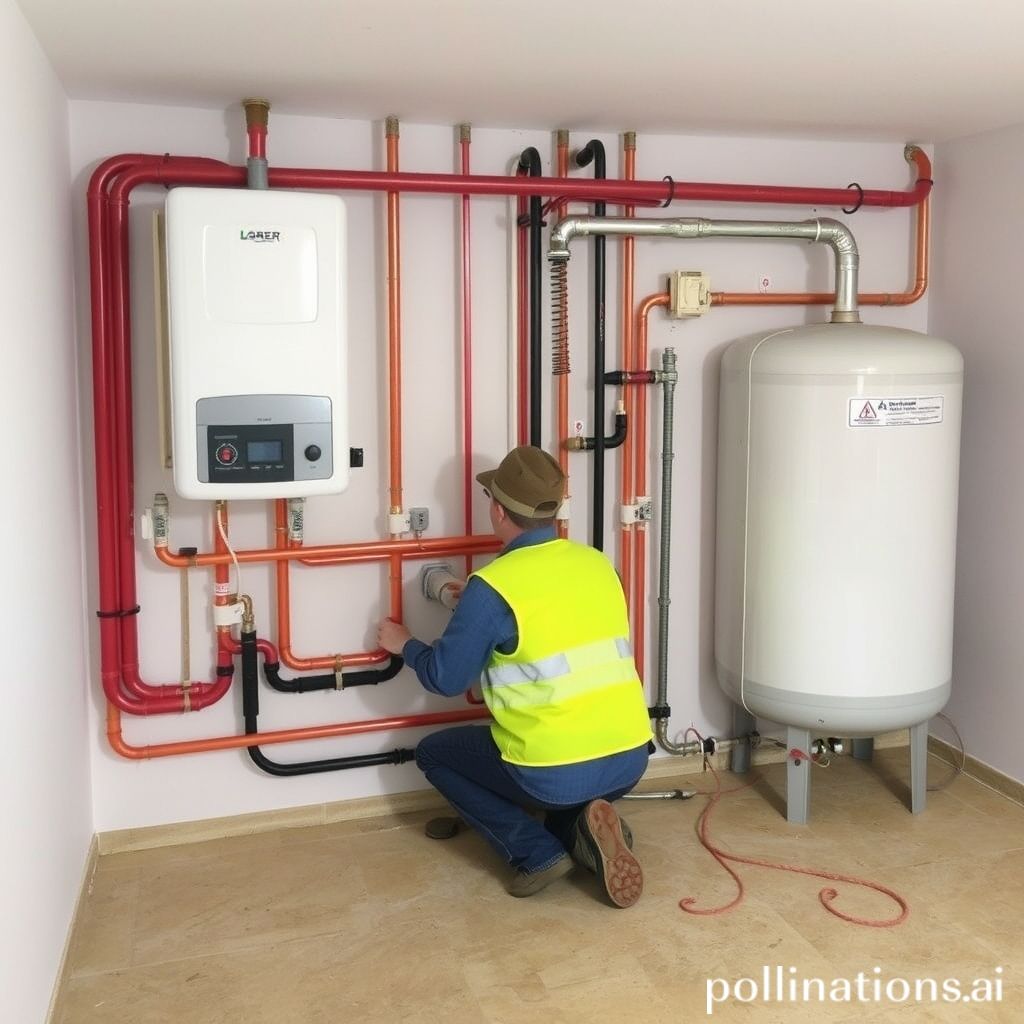

8. Final Connections and Startup
Connect the manifold to the boiler and mixing valve. Set the mixing valve to 110°F. Turn on the circulator pump. Let the system run for 24 hours, ramping the temperature up slowly (5°F per hour) to avoid thermal shock in the slab. Balance the flow in each loop using the manifold valves. A thermal camera helps verify even coverage.
| System Type | Best For | Subfloor Prep | Typical BTU Output | Install Difficulty |
|---|---|---|---|---|
| Slab-on-grade (concrete pour) | New construction, basements, garages | 2-inch foam + vapor barrier + mesh | 25–30 per sq ft @ 6-in spacing | Moderate |
| Staple-up (wood subfloor) | Retrofits, upper floors | Aluminum plates below subfloor | 18–22 per sq ft @ 6-in spacing | Higher (requires access below) |
| Gypsum underlayment pour | Renovations over existing slab | Thin foam + primer + edge strips | 22–27 per sq ft @ 6-in spacing | Moderate |
| Electric cable (LuxHeat-style) | Small rooms, tile floors | Thinset or self-leveling over cable | ~12 per sq ft (fixed wattage) | Easy |
Common Mistakes and How to Avoid Them
The biggest mistake is skipping the pressure test. You cannot see a leak once the slab is poured. A slow drip will ruin flooring and breed mold. Test for a full 24 hours.
Another mistake is using too long a loop. A single 400-foot loop will not circulate evenly. The first part of the loop gets hot, the last part stays cool. Keep loops under 300 feet and balance them at the manifold.
Do not install tubing where furniture or permanent cabinets will sit. The heat has nowhere to go, and the furniture may warp. Trace your layout on the floor with chalk before you start.
Forgetting expansion joints is common. A concrete slab expands and contracts with temperature changes. Without expansion joints around the perimeter and in doorways, the slab can crack. Place 1/4-inch foam expansion strip against all walls and where the slab meets other structures.
Finally, do not use an undersized pump. Calculate the head loss of the longest loop and add 15%. Most residential systems need a pump with 5–7 feet of head at 10–15 gallons per minute. Our pump selection guide explains how to match pump curves to your loop lengths.
Frequently Asked Questions
Can I install hydronic heating under an existing floor without breaking concrete?
Yes, but it is trickier. The staple-up method works if you have access from below (basement or crawlspace). You attach aluminum heat-transfer plates to the subfloor and staple PEX into the plates. The finished floor above stays intact. If you cannot access from below, you may need a thin overlay system: lay foam boards and tubing on top of the existing subfloor, then pour 1 inch of gypsum self-leveler and install new flooring over it. This raises the floor height by about 1.5 inches, so plan for door clearances.
What water temperature do I need for hydronic floor heating?
For most floor coverings, supply water between 100°F and 130°F works best. Tile and stone can handle up to 140°F. Wood should stay below 120°F to prevent cupping or gapping. Carpet requires higher temperatures (130–140°F) because the carpet and pad insulate. Always use a mixing valve to protect the floor finish and the tubing.
How long does the installation take for a typical 1000 sq ft home?
For a new slab installation, budget 3 to 5 days: one day for subfloor prep and insulation, one day for tubing and manifold, one day for pressure test, one day for pour, and one day for cleanup and startup. Retrofit staple-up installation can take longer because you are working in a crawlspace. Plan for a week minimum.
Do I need a special boiler for hydronic floor heating?
No, but a condensing boiler with at least 90% efficiency is ideal because it operates well at low water temperatures. Standard cast-iron boilers work too, but they may not condense enough to achieve high efficiency. If you already have a boiler for baseboard radiators (which run at 160–180°F), you must add a mixing valve to drop the temperature for the floor. A heat pump (air-to-water or geothermal) also works and can achieve COP of 3–4 in moderate climates.
Can I use hydronic heating with all types of flooring?
Most hard surfaces work: ceramic tile, porcelain tile, stone, engineered wood, and laminate rated for radiant heat. Solid hardwood is riskier because of expansion and contraction. Carpet works if the total R-value of carpet + pad stays below 2.5. Thick carpet with a thick pad blocks too much heat. Check the flooring manufacturer’s warranty for radiant heat compatibility before installing.
Key Takeaways
- Plan your tubing layout before you buy materials. Measure twice, cut once.
- Keep each loop under 300 feet and balance loop lengths within 10%.
- Pressure test for 24 hours at 80–100 psi. Do not skip this step.
- Use a mixing valve to keep supply water between 100°F and 130°F.
- Install 2-inch foam insulation under slab-on-grade systems to prevent heat loss into the ground.
- For small rooms under 50 sq ft, consider electric floor heating cables as a simpler alternative.
- Hire a professional if you are uncomfortable with boiler connections, gas lines, or electrical work.
