How To Insulate Hydronic Radiators For Maximum Energy Savings

You walk into a room with hot water radiators and feel warm air near the unit, but the opposite wall stays cold. The boiler fires constantly, your gas bill climbs, and you wonder where all that heat goes. Most of it never hits the living space — it soaks into exterior walls or rises straight to the ceiling. Insulating hydronic radiators isn’t complicated, but doing it wrong wastes time and money.

This article explains exactly where heat leaks out of a hot-water radiator system and what materials actually stop those leaks. You’ll learn why reflective insulation works, where pipe insulation matters most, and how a few simple adjustments cut heating costs by 20–30% without replacing the boiler. I’ve installed these techniques in old cast-iron systems and modern panel radiators — same physics, different details.

One product that helps in multiple places is the AGHITG Reflective Insulation Foam (48″ x 10 ft). It’s a double-sided aluminum foil bubble sheet you can cut to size. Stick it behind radiators mounted on exterior walls, wrap it around exposed pipes in crawl spaces, or lay it under floor registers. The reflective layer bounces radiant heat back into the room instead of letting it warm the wall cavity.

Where hydronic radiators lose heat

A hydronic radiator heats a room through two mechanisms: convection (warm air rising off the metal) and radiation (infrared energy traveling in straight lines until it hits a solid object). Both pathways have weak points.

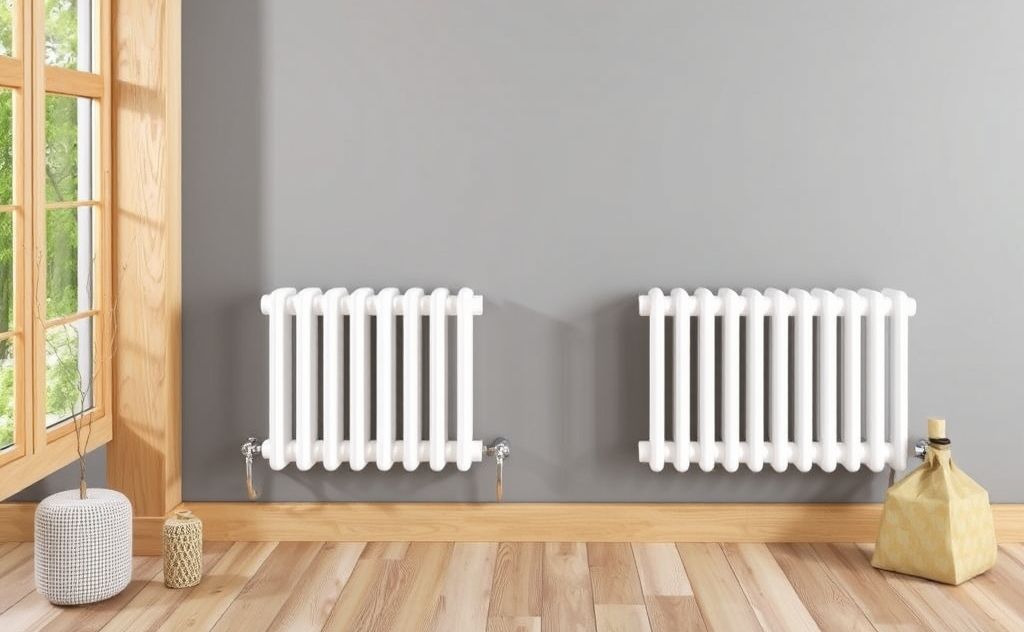

Exterior walls behind the radiator. If your radiator sits against an outside wall, the wall surface behind it stays cold. The radiator heats that wall, and the wall conducts heat straight to the outdoors. You’re essentially heating the siding. A reflective panel between the radiator and the wall stops that conduction and redirects radiant heat back into the room. Measured temperature difference on the back wall can drop 10–15°F after installing a reflector.

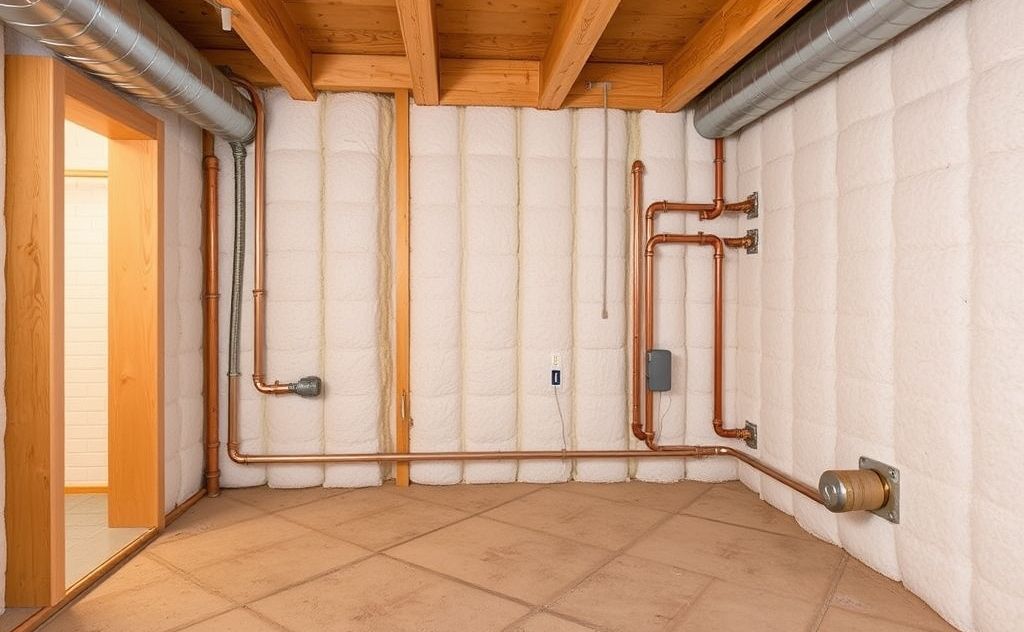

Uninsulated pipes. Supply and return pipes running through basements, crawl spaces, or unheated garages bleed heat every foot they travel. A ¾-inch copper pipe carrying 180°F water loses about 30–40 BTU per hour per linear foot in a 50°F basement. Over 50 feet, that’s 1,500–2,000 BTUs wasted — roughly 15% of a small radiator’s output.

Radiator covers and enclosures. Many people put decorative covers over radiators. If the cover has solid wood or metal on top, hot air gets trapped underneath. The radiator can’t draw cool air from below, and warm air can’t rise freely. Efficiency drops 15–25% depending on cover design. A slatted top or a gap of at least 4 inches avoids this problem.

You can also improve overall system efficiency by learning energy savings for hydronic radiators with advanced thermostat scheduling.

Choosing and installing reflective insulation panels

Reflective insulation works because it has low emissivity (e) — typically 0.03 to 0.05 for aluminum foil. That means it reflects 95–97% of radiant energy instead of absorbing it. For comparison, painted drywall has an emittance of about 0.90. The foil bubble layer also adds a small amount of conduction resistance (R-value roughly 1.0–1.5 per layer).

The AGHITG roll gives you 48 inches wide by 10 feet long — enough for several radiators. Cut it with scissors to match the radiator width plus 2 inches overhang on each side for better coverage. Attach it to the wall behind the radiator using double-sided tape (the product has adhesive backing, but I recommend adding a few strips of foil tape for permanence). Leave a ½-inch air gap between the foil and the wall if possible — the reflective effect works best with an air space.

Where to install it:

• Behind every radiator mounted on an exterior wall — this is the highest-impact spot.
• Between a radiator and a window if the radiator sits below a window well.
• On the wall behind a radiator in an alcove or recess.
• Under a portable radiator if you have one on a cold floor.

What not to do: Don’t wrap the foil completely around the radiator. It needs free airflow for convection. Don’t place it directly against the back of the radiator — you want the heat to radiate out, not get trapped against the foil. A 1-inch gap is ideal.

One caveat: if your radiator is inside a heated space and the wall behind it is interior (like a hallway partition), the benefit is small. Focus on exterior walls first.

Insulating hydronic pipes for heat retention

Pipe insulation is cheap and fast. Standard closed-cell foam tubes cost about $0.30–$0.50 per foot and give R-2 to R-3 per inch of thickness. For hydronic systems, use insulation rated for at least 200°F continuous service — standard pipe wrap often fails above 180°F.

Priority locations:

1. First 10 feet of supply pipe leaving the boiler. Water leaving the boiler is hottest. If that pipe runs through unheated space, you’re losing maximum heat right at the start.
2. Pipes in unconditioned basements or crawl spaces. Every foot matters, but concentrate on runs longer than 8 feet.
3. Pipes near windows or exterior walls inside the room. A pipe running along the floor behind curtains can lose a surprising amount of heat.

Installation is straightforward: slit the foam tube lengthwise, snap it over the pipe, and tape the seams with foil tape. For elbows and T-joints, miter-cut the foam at 45° angles. Don’t leave gaps — air leaks kill the insulation effect.

If you have old fiberglass pipe wrap, replace it. Fiberglass loses its R-value when it gets wet (condensation in basements is common) and degrades over time. Closed-cell foam stays dry and doesn’t settle.

Regular maintenance helps too — bleeding radiators removes trapped air that blocks hot water flow, so the system operates at peak temperature.

Balancing the system and blocking drafts

Even with perfect insulation, your system still loses efficiency if water flow is unbalanced. A radiator that doesn’t get enough hot water runs cool, so the boiler cycles more often. Balancing means adjusting valves so each radiator receives the right flow.

Start by opening all valves fully. Let the system run 15 minutes. Use a surface thermometer or an infrared gun to measure the temperature difference between the supply and return pipes at each radiator. A well-tuned radiator has a delta T of 15–20°F. If the difference is smaller (5–10°F), too much water is flowing — close the valve slightly. If larger (25°F+), not enough — open the valve.

You can go further with thermostat selection for hydronic systems that modulate room-by-room temperatures instead of heating the whole house all day.

Draft blocking: Cold air leaking around windows and doors cancels out any insulation gains. Use a cheap incense stick to find drafts. Seal gaps with caulk or weatherstripping before you bother with radiator insulation. A drafty room with a perfectly insulated radiator still feels cold.

One more detail: if your radiators sit on legs above the floor, the gap underneath draws cold air across the floor. A simple foam baffle (cut from the same reflective roll) placed at the bottom of the radiator can force cold air to come from the front instead of the floor crack. This reduces cold floor syndrome.

Comparison of insulation methods

Method	Typical R-value added	Best for	Cost per 10 sq ft	Difficulty
Reflective foil panel (behind radiator)	~1.5 (radiant)	Exterior walls, windows	$5–8	Easy
Closed-cell foam pipe wrap (1 in thick)	~3.0 per inch	Exposed pipes in basements	$3–6	Easy
Radiator cover with slatted top	None (avoids efficiency loss)	Aesthetic enclosures	$30–100	Moderate
Boiler pipe insulation (2 in fiberglass)	~7.0	Short runs near boiler	$10–15	Moderate

Frequently asked questions

Will reflective insulation behind a radiator actually lower my heating bill?

Yes, but the savings depend on the wall type. On an uninsulated masonry or plaster wall, you can cut heat loss through the wall by 15–20% for that radiator location. If the wall already has R-13 fiberglass insulation inside, the gain drops to maybe 5–10%. Most homes with old hydronic systems have minimal wall insulation, so the effect is noticeable.

Can I use regular aluminum foil instead of bubble insulation?

Household foil has an emissivity of about 0.05, same as the specialty stuff. But it’s thin and tears easily. It also has almost no compressive strength — if the radiator touches it, heat conducts through the contact points. The bubble layer in products like the AGHITG creates an air gap that prevents that conduction. Stick with the thicker material.

Do I need to insulate both the supply and return pipes?

Mostly the supply. Return water is cooler (120–140°F vs 180°F supply), so heat loss per foot is lower. Insulate the first 10–15 feet of supply pipe unconditionally. If you have extra time and materials, wrap the return too for marginal gain. But focus on supply first.

Will insulating my radiators cause my boiler to short-cycle?

No, not if you insulate properly. Reflective panels and pipe insulation reduce heat loss, so the system delivers more usable heat to the rooms. The boiler runs fewer cycles overall because the room reaches temperature faster and holds it longer. Short-cycling happens when radiators are undersized or when a room heats too quickly due to high water temperature — not from insulation.

Should I insulate the space behind a radiator built into a wall (recessed)?

Absolutely. Recessed radiators have even more surface area in contact with the wall cavity. The wall cavity behind them acts like a chimney, pulling warm air out of the room and up through the stud bays. Install reflective insulation on the cavity side (facing the radiator) and seal any gaps around the recess frame with foam caulk.

What to do with these tips

• Install reflective panels behind radiators on exterior walls first — that’s the highest return for the lowest effort.
• Wrap all exposed hot water pipes in unconditioned spaces with 1-inch or thicker closed-cell foam.
• Balance each radiator’s valve so the supply-return temperature difference lands between 15°F and 20°F.
• Check for drafts around windows and doors before you do anything else — it’s wasted work otherwise.
• Leave at least 1 inch of air space between the back of the radiator and any reflective insulation — contact kills reflection.
• Replace old fiberglass pipe wrap with closed-cell foam rated for 200°F — fiberglass degrades with moisture.
• Measure temperature before and after with an infrared thermometer to confirm your work. If you don’t see a 10°F+ difference on the wall surface behind the radiator, try a larger air gap.
