To check safety after oil heater installation, inspect for leaks, ensure proper ventilation, test the thermostat, and verify that all connections are secure and functional.
Installing an oil heater requires careful attention to safety protocols. Proper post-installation checks prevent fire hazards, carbon monoxide risks, and inefficient operation. Follow these critical steps to ensure your oil heater operates safely.
Immediate Post-Installation Safety Checks
Leak Testing Procedures
Check all fuel connections with soapy water solution. Bubbles indicate leaks that need immediate attention. Pay special attention to:
- Fuel line connections
- Tank fittings
- Pump seals
Ventilation Verification
Confirm adequate airflow by:
- Measuring 1 square inch of vent area per 1,000 BTU output
- Checking for obstructions in flue pipes
- Testing CO levels with a detector

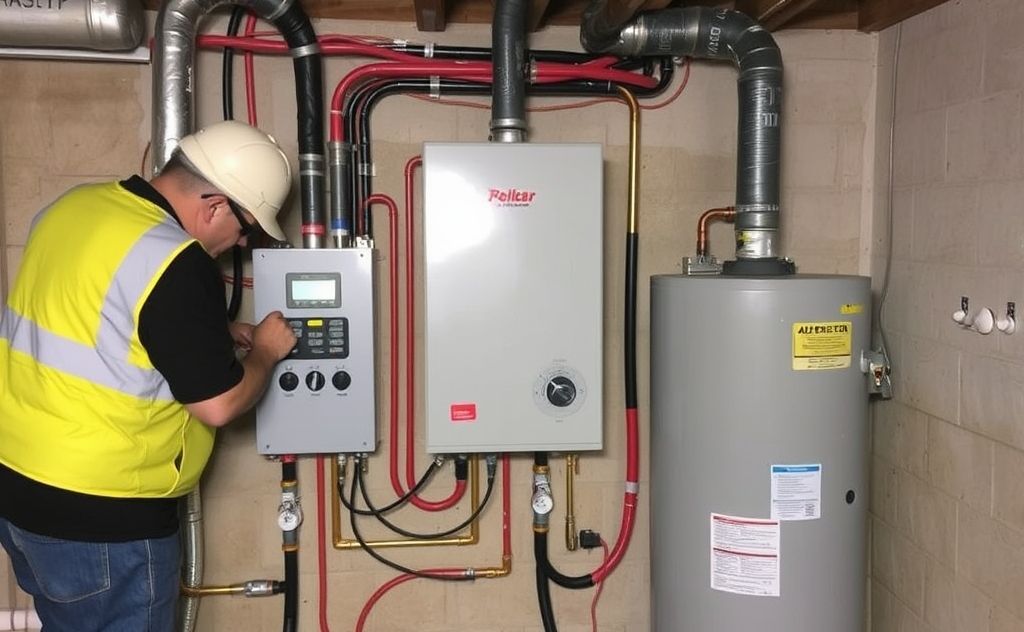

Electrical System Inspection
Wiring Safety
All electrical connections must meet NEC standards. Verify:
| Component | Check |
|---|---|
| Thermostat wiring | Proper gauge and insulation |
| Power supply | Correct voltage and amperage |
Grounding Verification
Use a multimeter to confirm proper grounding. Resistance should measure less than 1 ohm between heater chassis and ground rod.
Operational Testing
First Fire Procedure
Follow this sequence for initial startup:
- Purge air from fuel lines
- Verify ignition within 10 seconds
- Check for steady blue flame
Safety Shutdown Test
Manually trigger each safety device to confirm proper function:
- High limit switch
- Flame rollout switch
- Pressure relief valve
Ongoing Maintenance Requirements
Cleaning Schedule
Follow this maintenance timeline:
| Component | Frequency |
|---|---|
| Burner nozzle | Annually |
| Heat exchanger | Every 2 years |
Professional Inspection
Schedule annual service with a licensed technician to maintain warranty coverage and ensure safe operation.
Safety Equipment Requirements
Essential Protective Devices
Install these critical safety components:
- Carbon monoxide detectors (one per floor)
- Fire extinguisher (ABC-rated)
- Smoke alarms near sleeping areas
Fuel Storage Safety
Follow NFPA 31 guidelines for oil storage:
- Keep tanks at least 5 feet from ignition sources
- Use secondary containment for indoor tanks
- Label all tanks clearly
Troubleshooting Common Issues
Smoke or Soot Problems
Excessive smoke indicates combustion issues. Check:
- Air shutter adjustment
- Nozzle size and spray pattern
- Chimney draft
Unusual Noises
Knocking or rumbling sounds may require specialized tools to address pump or burner issues.
For complex installations, consider consulting NFPA 31 standards or your local building department.
