Master Temperature Sensor Calibration in 4 Simple Steps

To calibrate temperature sensors, use a reference thermometer, compare readings, and adjust the sensor output to match the reference at multiple points.

Accurate temperature measurement is critical for industrial processes, HVAC systems, and even home automation. This guide reveals professional techniques to calibrate temperature sensors with precision, whether you’re working with industrial RTDs or budget Arduino sensors.

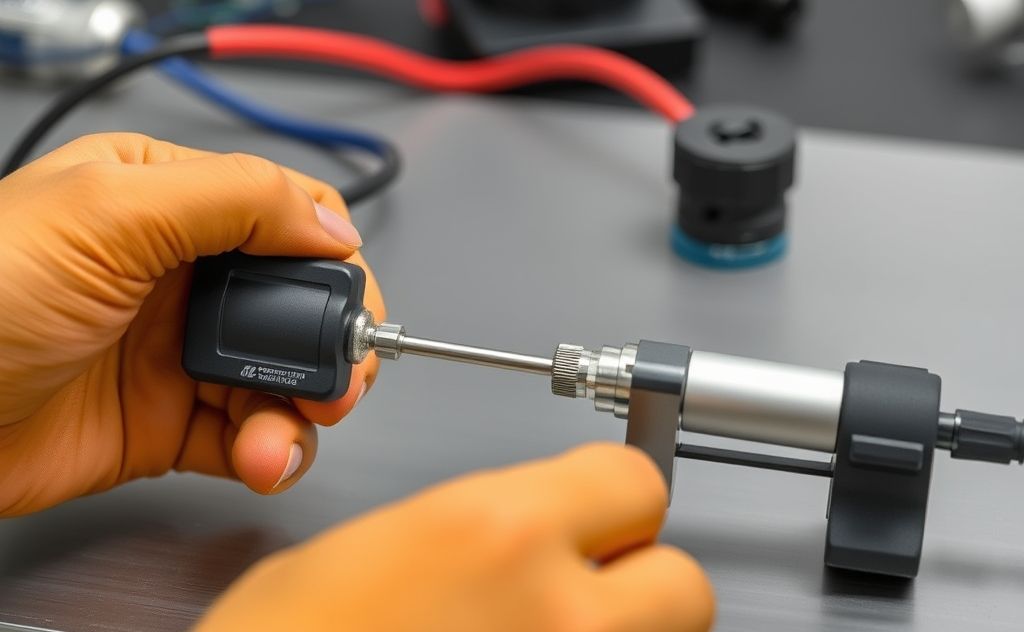

Calibrate temperature sensors with precision tools

Understanding Temperature Sensor Types

Different sensors require different calibration approaches. The most common types include:

Sensor Type Accuracy Temperature Range Output Signal
RTD (Pt100) ±0.1°C to ±1°C -200°C to 850°C Resistance
Thermocouple ±1°C to ±5°C -270°C to 2300°C Voltage
Thermistor ±0.1°C to ±2°C -50°C to 150°C Resistance
Semiconductor (MCP9700) ±2°C (improves with calibration) -40°C to 150°C Voltage

Industrial vs. Consumer Sensors

Industrial sensors like precise thermostat controls often connect to transmitters that convert signals to 4-20 mA for long-distance transmission. Consumer-grade sensors typically output direct voltage or resistance.

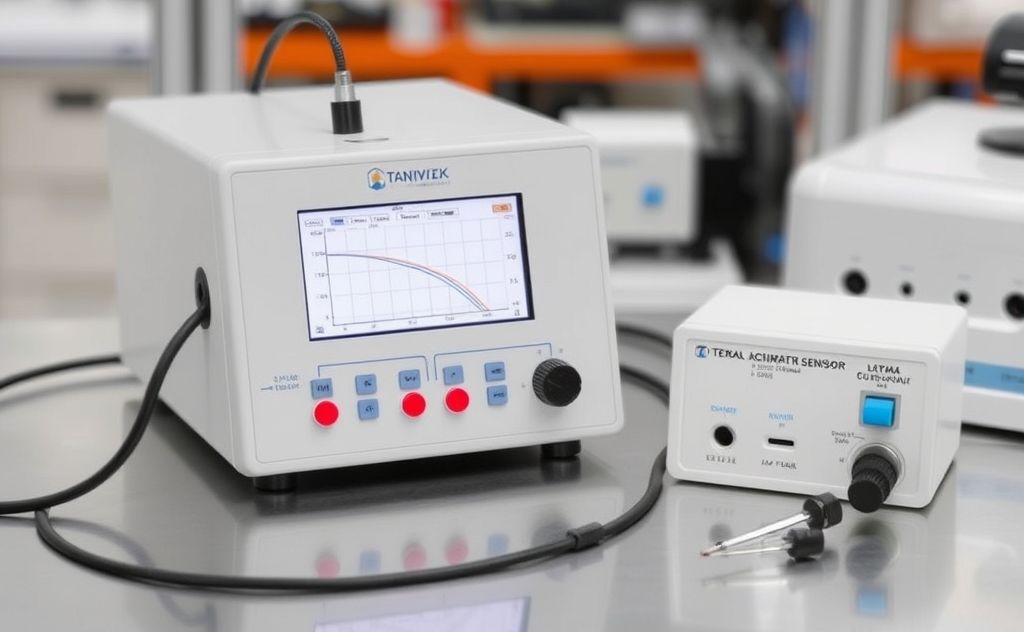

Essential Calibration Equipment for Temperature Sensors

Essential Calibration Equipment

Reference Temperature Sources

You’ll need a stable temperature environment for calibration:

  • Ice bath (0°C reference)
  • Temperature-controlled dry blocks
  • Stirred liquid baths (oil or water)
  • Industrial calibration furnaces

Measurement Instruments

Depending on sensor type:

  1. Precision multimeter (for RTD/thermistor resistance)
  2. Thermocouple reader
  3. Temperature calibrator with sensor simulation
  4. Data acquisition system

Step-by-Step Calibration Process

1. Prepare Your Reference

For industrial applications, use a calibrated reference sensor in the same environment. For DIY projects, a known-accurate thermometer works.

2. Establish Measurement Points

Choose at least three points across your expected range:

  • 0°C (ice bath)
  • Room temperature (~25°C)
  • Maximum operating temperature

3. Compare and Adjust

For voltage-output sensors like the MCP9700:

  1. Measure output at known temperature
  2. Calculate offset from expected value
  3. Adjust formula in your controller
READ MORE  Optimizing Sensor Calibration: Top Industry Tips

4. Verify Accuracy

Test at intermediate points to ensure linearity. For critical applications like RV water heaters, repeat calibration annually.

Advanced Calibration Techniques

Multi-Point Calibration

For highest accuracy, use 5-7 points and create a calibration curve rather than simple offset adjustment.

Environmental Compensation

Account for:

  • Self-heating effects
  • Thermal lag
  • Lead resistance (for RTDs)
  • Cold junction compensation (for thermocouples)

Maintaining Calibration Accuracy

Regular verification is crucial. Industrial sensors should be checked:

  • Annually for non-critical applications
  • Quarterly for process control
  • After any mechanical shock

For DIY projects, recalibrate whenever ambient conditions change significantly or if readings seem inconsistent.
