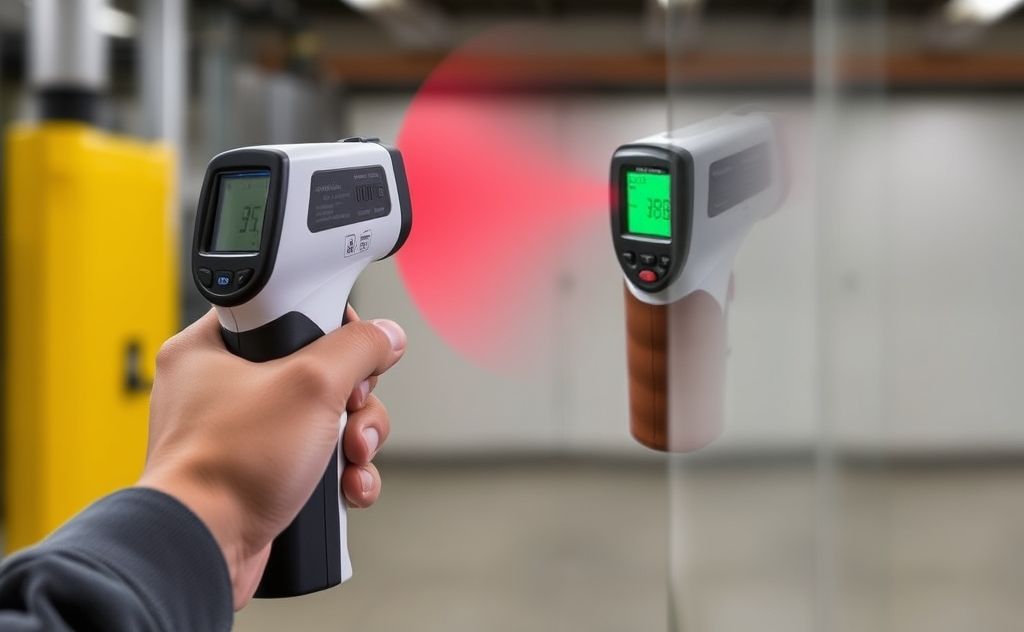

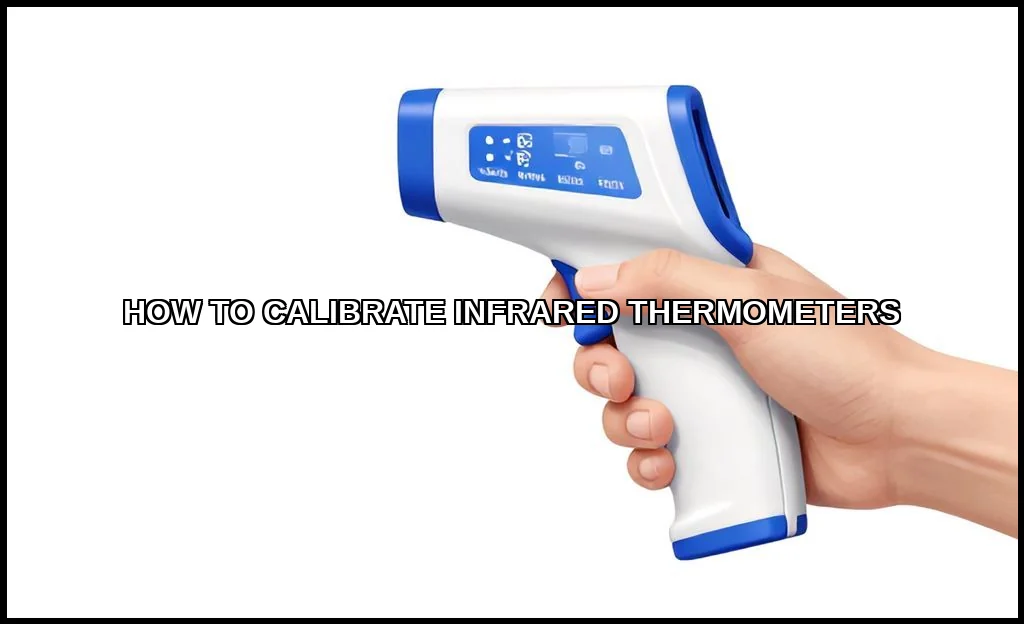

You pick up your infrared thermometer, point it, and get a reading. Seems simple. But that number is only as good as the calibration behind it. In critical fields like food safety, HVAC, or manufacturing, an uncalibrated IR gun is just an expensive guess. Calibration ensures your tool measures reality, not just a convenient approximation.
It’s not just about compliance, though that’s a big part. It’s about trust in your data. Whether you’re checking a motor’s temperature or ensuring a meal is cooked safely, accuracy is non-negotiable. For many tasks, an Economical Infrared Temperature gun can be a perfect starting point, offering reliable readings for general use when properly maintained.
What is Infrared Thermometer Calibration and Why It’s Critical
Calibration is the process of comparing your infrared thermometer’s reading against a known, more accurate standard. You’re essentially resetting its “zero point.” Without this step, drift occurs. Components age, and environmental factors cause readings to skew over time.
Think of it like tuning a musical instrument before a performance. The stakes are high. In the food industry, a miscalibrated gun could mean serving undercooked food. For an HVAC technician, it could lead to misdiagnosing a system’s pros and cons. The goal is definitive infrared thermometer accuracy.
The Role of Emissivity: The Invisible Variable
Heres the nuance most people miss. Infrared thermometers don’t measure temperature directly. They measure infrared radiation. The property that determines how much radiation a surface emits is called emissivity. A perfect emitter has an emissivity of 1.0 (a blackbody calibrator). Most real-world surfaces are less.
If your gun’s emissivity setting is wrong for the surface you’re measuring, the reading will be wrong. Calibration often involves setting the emissivity correctly for the calibration source. This is why understanding your target material is as important as the temperature calibration process itself.
Essential Equipment: From Blackbody Sources to Reference Standards
You can’t calibrate a ruler with another ruler of the same kind. You need a better ruler. The same principle applies here.
The Gold Standard: Blackbody Calibrators
A blackbody calibrator is a precision device with a cavity that emits infrared radiation at a very stable, known temperature. It provides the most reliable target for IR gun calibration. These units range from portable field models to high-end lab equipment. Their key benefit is a consistent, high-emissivity surface.
Reference Contact Thermometers
For methods without a blackbody, you need a highly accurate reference thermometer. This is often a calibrated thermocouple or RTD probe. Its accuracy must be an order of magnitude better than the IR thermometer you’re checking. Crucially, its calibration should be NIST traceable, meaning it can be linked back to national standards through an unbroken chain.
The Importance of a Calibration Certificate
When you buy a reference standard or send your IR gun to a lab, you receive a certificate. This document is your proof. It details the standards used, the procedures followed, and the results. For audits in regulated industries, no certificate often means your tool is considered uncalibrated. It’s the paperwork that gives your data credibility.
Step-by-Step Calibration Procedure
Let’s break down the infrared thermometer calibration procedure. We’ll cover the proper method and a common field check.
Method 1: Using a Blackbody Calibrator (The Right Way)
- Stabilize the Equipment: Place the blackbody source and the infrared thermometer in the calibration environment for at least 30 minutes. This avoids thermal shock.
- Set the Source: Turn on the blackbody and set it to your desired calibration point (e.g., 0C, 100C, or a point critical to your use).
- Configure the IR Gun: Set your infrared thermometer’s emissivity setting to match the blackbody’s (typically 0.95 or 0.99). Ensure the correct distance-to-spot ratio is used.
- Take Measurements: Aim the IR gun at the center of the blackbody cavity. Take multiple readings and note the average.
- Compare and Adjust: Compare the IR gun’s average reading to the blackbody’s set temperature. If your gun has a calibration offset function, adjust it until the readings match. If not, document the error for future reference.
- Repeat: Perform this at at least two other temperature points across your typical working range.
Method 2: How to Check Infrared Thermometer Accuracy Without a Blackbody
Need a quick field check? The ice bath method is a classic for a zero-point verification. It’s not a full calibration, but it’s a great sanity check.
- Fill a glass with crushed ice and distilled water. Stir well.
- Let it sit for 2-3 minutes to stabilize at the freezing point (0C / 32F).
- Insert your reference thermometer (a NIST traceable probe) into the slurry, ensuring it doesn’t touch the glass. Confirm it reads 32F.
- Set your IR gun’s emissivity to ~0.97 (for water). Aim it at the surface of the ice slurry, holding it close to avoid measuring the glass sides.
- Compare readings. A deviation beyond your gun’s stated accuracy spec indicates a need for formal calibration.
This method is a core part of how to calibrate an infrared thermometer without a blackbody for basic verification. For a water heater technician, knowing a tool is accurate at lower temps can build confidence before assessing if a unit is performing to its potential, like checking how good Bradford White models are running.
Verifying Accuracy and Troubleshooting Common Issues
So you’ve run through the infrared temperature gun calibration steps. What if things are off?
Common Calibration Problems and Fixes
- Consistent High/Low Error: This is the simplest fix. Use the gun’s calibration offset function to correct it. If no function exists, you must mentally apply the correction factor.
- Error Changes with Distance: Your gun’s optics may be dirty or damaged. Clean the lens with appropriate materials. If the problem persists, the unit may need professional service.
- Readings are Erratic: Check for environmental interference. Steam, dust, or strong ambient light (like sunlight) can scatter the IR signal. Measure in a clear, stable environment.
- Fails Ice Bath but Seems Fine Otherwise: Emissivity is likely the culprit. The ice slurry’s surface isn’t a perfect blackbody. This test is best for spotting large errors, not fine-tuning.
For a deeper dive into metrology principles, the NIST website is an excellent official source.
Documenting Your Results
Every calibration check, formal or informal, should be recorded. Note the date, standard used, set temperature, readings taken, and any adjustments made. This log is the history of your instrument’s performance and is vital for field calibration of infrared thermometers.
Maintaining Compliance: Calibration Frequency and Documentation
Calibration isn’t a one-time event. It’s a scheduled maintenance item.
How Often Should You Calibrate an Infrared Thermometer?
There’s no universal answer. Frequency depends on:
- Usage: Heavy daily use demands more frequent checks than occasional use.
- Criticality: A gun used for food safety checks may need monthly verification. One for DIY projects might be fine with an annual check.
- Manufacturer’s Recommendation: Always check the manual.
- Environmental Stress: Tools subjected to shocks, temperature extremes, or humidity need more attention.
A common baseline for professional use is every 6 to 12 months. After any event that could affect accuracy (like dropping it), check it immediately. Establishing your own schedule is key to knowing how often should you calibrate an infrared thermometer in your context.
Industry-Specific Needs: The Food Example
Consider infrared thermometer calibration steps for food industry applications. They’re often governed by HACCP plans. Calibration might be required before each shift, especially for critical control points like checking final cook temps. The standard is higher, the documentation more rigorous, and the consequences of failure more severe.
The Best Way to Calibrate a Cheap Infrared Thermometer
Let’s be practical. Not every tool gets a lab-grade calibration. The best way to calibrate a cheap infrared thermometer is through regular verification against a known, stable reference. Use the ice bath and boiling water (correcting for altitude) points. Understand its limitationsdon’t use a $30 gun for precision engineering work. Its value is in trend spotting, not absolute, legally-defensible measurement.
Calibrating your infrared thermometer bridges the gap between a number on a screen and actionable, trustworthy data. It blends simple checks like an ice bath with formal procedures using a blackbody calibrator. Start by understanding why it matters for your work, then build a routine. Verify regularly, document everything, and never assume accuracy. Your measurements, your diagnoses, and your decisions will be fundamentally more reliable. Thats the real point of the entire exercise.
