Building a frame for an electric fireplace insert is usually a half-day to full-day DIY job if the opening is simple, the wall is square, and you’re comfortable cutting lumber and fastening trim. The job is mostly framing, measuring, and finish carpentry; electrical work stays limited to a standard outlet unless the insert needs a new circuit.
The most common mistake is framing to the outside trim size instead of the insert’s required opening and clearance. That mistake costs you time, patching, and sometimes a do-over when the unit won’t slide in or the cord gets pinched.
A second easy miss is treating the insert like a wood stove. It doesn’t need a flue, but it does need the airflow and access the manual calls for, plus a cord path that won’t get crushed behind the surround.
What to remember
Measure the opening from the insert manual, not from the decorative trim.
Leave the clearances the manufacturer calls for so the fan and intake aren’t blocked.
Use solid framing anchored to studs if the surround carries a mantel or cabinet face.
Keep the cord accessible and never bury a plug behind fixed trim.
Call a pro if the job means moving electrical wiring, opening walls for a new circuit, or changing load-bearing framing.

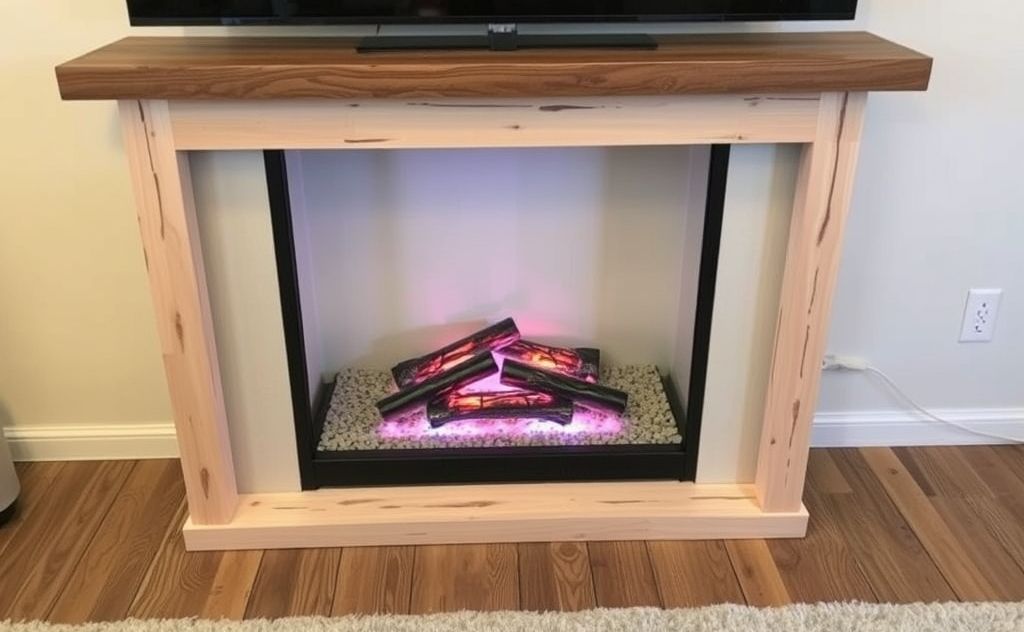

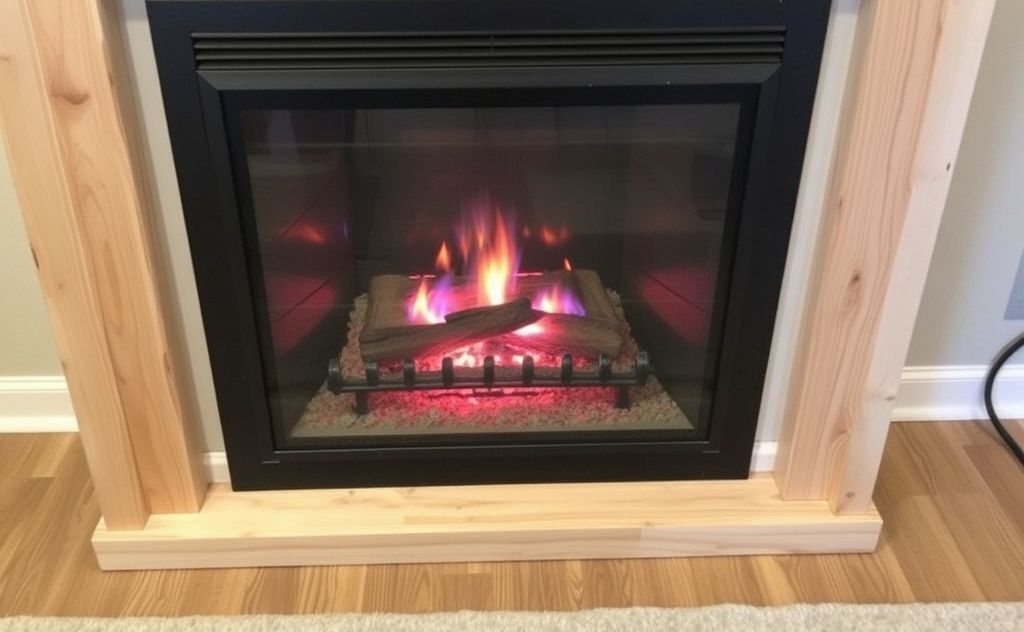

How To Build A Frame For An Electric Fireplace Insert
Build the frame to the electric fireplace insert’s specified rough opening, not its face trim, to ensure a proper fit and ventilation. Usually, you’re constructing a wood box or stud wall around a plug-in insert, leaving space for the cord and vents as the manual requires.
Start by measuring the unit’s height, width, and depth to mark your wall studs and layout accurately. Whether you’re building a wall in a corner, installing into an existing wall, or framing a TV cabinet around the fireplace, the principle is the same: precise measurements come first.
1
Measure the Insert
Note the rough opening dimensions from the manufacturer’s specs, not the outer trim. The built-in frame must fit this exact size.
2
Mark Studs and Layout
Use a stud finder and tape measure to mark where your frame will go, keeping the unit’s required height and clearance off the floor in mind—usually 12 to 18 inches, but check the manual.
3
Build Base and Sides
Cut 2×4 or 2×6 lumber to size. Assemble the base and vertical sides with screws, making sure it’s square and level.
4
Add Cross Supports
Install horizontal cross braces inside the frame for stability and to match the insert’s depth. Leave space for cord access and ventilation.
5
Test-Fit the Insert
Slide the insert into the opening to confirm fit and clearance. Adjust shims or framing as needed.
6
Add Finish Panels and Trim
Attach plywood or MDF only if the manufacturer allows it. Finish with trim and paint or stain to match the room.
Typical Tools and Parts
Tape measure
Level
Stud finder
Circular or miter saw
Drill/driver
2×4 or 2×6 lumber
Plywood or MDF (manufacturer-approved)
Screws
Shims
Trim
Installation Styles
Some inserts can be recessed, wall-mounted, or used with a mantel surround only if the product data specifically permits it. Confirm your model’s options before building.
Electrical Safety
Most plug-in electric fireplace inserts run on standard 120 V and must plug directly into a wall outlet. Avoid power strips or extension cords to reduce fire risk.
120 V
Plug-in insert power
This voltage means you don’t usually need new wiring or circuits for installation.
For a corner fireplace frame, build the wood box to the same rough opening dimensions and secure it firmly to the corner studs. When installing into an existing wall, remove drywall as needed and reinforce framing to create the proper opening. Building a TV cabinet around an insert involves framing the opening precisely, then adding shelves or cabinetry around it without blocking vents or cords.
Keep the insert height from the floor comfortable for viewing and safety—typically between 12 and 18 inches, depending on room layout and manufacturer guidelines. Fireplace surround depth varies, but most inserts need at least 10 to 12 inches of clearance to fit properly and allow airflow.
Fits Insert Framing
LegendFlame Carl 30 Inches with Trim Kit
Product 1’s trim kit and multiple installation options make it ideal if you want to frame a clean, recessed opening that matches its 39.7″ by 28.8″ face dimensions.
Choose an insert that fits your opening and heating needs.
Large opening fit
LegendFlame Carl 30″ Electric Fireplace Insert
This insert fits a 39.7″ wide opening with its trim kit, ideal if your frame has a larger cutout. It offers adjustable flame brightness and a heater with thermostat, controlled remotely for convenience.
At 23″ wide and 19 3/4″ high, this insert slides into a rear opening as small as 24″ by 20 1/4″. It provides up to 1400W heating with a thermostat and remote, great for rooms up to 400 sq ft.
Electactic 36″ Ultra-Thin Electric Fireplace Insert
This ultra-slim 3.86″ deep insert fits flush into a frame for a built-in look. It offers 12 flame colors and adjustable heating up to 1500W with thermostat and timer, controlled by remote or touchscreen.
Measuring for an electric fireplace insert is about more than just fitting the front face; the frame must match the insert’s rough opening precisely to avoid gaps and airflow problems.
Measuring accurately is crucial for a proper fit.
The three key measurements are width, height, and depth, plus the rear opening if the unit mounts from behind. These define the rough opening—the space the fireplace insert slides into—not the decorative trim size, which is larger and covers the frame edges.
The rough opening is the critical number because it ensures the insert fits snugly and vents properly. If the frame is built to the trim size or even close to it, you risk gaps, blocked vents, or an insert that won’t seat fully.
Myth
Any opening close to the insert size will work.
Fact
Even a half-inch mismatch can leave gaps, block airflow, or prevent the insert from sliding smoothly into place.
Take the Innoflame 23″ Electric Fireplace Insert as an example. Its furniture front opening measures 23 inches wide by 19 3/4 inches high, but the rear opening—the actual cavity it fits into—must be at least 24 inches wide by 20 1/16 inches high. The frame you build has to accommodate that larger rear opening to let the unit slide fully forward into the cavity.
Measurement
Size (Innoflame 23″)
Purpose
Front opening (width × height)
23″ × 19 3/4″
Visible face opening of the insert
Rear opening (width × height)
24″ × 20 1/16″
Frame’s internal rough opening size to fit the insert
Depth
Varies by model
Allows space for insert and ventilation
Key measurements for framing the Innoflame 23″ Insert.
Worked example
Say the front opening is 23 inches wide, but the rear opening is 24 inches wide. If your frame matches the front opening at 23 inches, the insert won’t slide into the cavity all the way; you need to build the frame to at least 24 inches to fit the insert properly.
Measurement example
Innoflame 23″ Electric Fireplace Insert
Product 2’s front and rear opening dimensions clearly show why the frame must match the rear opening, not the decorative front face.
Height off the floor isn’t fixed by code or design software; it depends on the insert’s manual and the room layout. You might mount it higher for a TV above or lower for seating comfort, but always follow the manufacturer’s recommended clearances.
Special installs
Corner installations and builds into TV cabinets require extra clearance for power cords, heat flow, and access to control panels. Don’t squeeze these areas or you risk damage or difficulty using the insert.
What You’ll Need
Prepare a solid toolkit and the right materials before you start framing your electric fireplace insert. You’ll want a tape measure, level, square, stud finder, pencil, drill or driver, saw, clamps, and a vacuum for the inevitable dust.
Having the right tools ensures a smooth framing process.
For parts, stock up on framing lumber matched to your wall type, backer board or paneling the manufacturer approves, screws sized for wood framing, shims for leveling, trim for finishing, and a plan for outlet access if the insert’s cord exits the frame.
Electric fireplace inserts come with controls built in, so you won’t need extra wiring unless specified. Repairs usually mean working on the unit itself, not the frame, so keep the manual handy for troubleshooting.
Not every material is safe around heating elements. Follow the insert’s manual for required clearances and heat ratings of backer and finish materials. A glossy Pinterest photo doesn’t trump manufacturer specs — the manual does.
Parts That Protect Your Installation
Electric fireplace insert manual
Wall anchors only if wall material requires them
Backer or panel material with heat tolerance per manual
Appropriate screws and fasteners
Trim rated for heat exposure
Best for ultra-thin framing
Electactic 36 Inch Electric Fireplace Insert Ultra-Thin
The Electactic 36 Inch Electric Fireplace Insert’s slim profile helps keep framing minimal while maintaining a built-in look.
Plug-in electric fireplace inserts don’t need chimneys or vents, but the surrounding framing and electrical setup must meet local building codes.
Consult a licensed electrician if your project involves adding a new outlet, moving an existing circuit, or hardwiring the insert — but only if the manufacturer explicitly allows hardwiring.
Permits may be necessary when you alter wall framing, build new cabinets around the insert, or affect load-bearing walls. Check local rules before cutting lumber.
Solid wood trim or cabinet faces are fine only if the manual approves heat exposure at that location and clearance requirements are met. Otherwise, use the specified materials to avoid warping or fire risk.
Different Unit Types Require Different Rules
Outdoor, gas, wood, or vented fireplaces are a completely different installation. Treat plug-in electric inserts separately and do not apply those installation rules here.
If the insert has a damaged cord, trips breakers, or malfunctions, focus on repair rather than trying to work around the problem with framing.
Metal vs Wood Studs
Framing a direct vent electric fireplace with metal studs is possible but wood studs are easier if allowed by the manual. The key is following clearance and fire safety guidelines.
In short
No chimney or vent needed for plug-in inserts, but electrical and framing work must meet code. Call a pro for wiring changes and check permits for structural work.
Mistakes That Cause Damage Or Gaps
Painting an electric fireplace requires care: never coat vents, glass, or controls unless the manufacturer explicitly approves the paint type and location. Most finishes must avoid hot surfaces to prevent peeling, cracking, or hazardous fumes.
Building the frame to the outer trim instead of the insert’s rough opening is the leading cause of fit problems. The frame should match the insert’s specified rough opening exactly to avoid gaps or pressure points that can warp the insert or block airflow.
Common framing errors include blocking intake or exhaust vents. These vents must remain clear to maintain proper heat circulation and prevent overheating. Never nail or screw trim across vent areas or service access points.
Electrical Safety
Always unplug the electric fireplace before fitting the insert. Avoid trapping the power cord behind fixed panels or routing it through holes without a protective bushing or grommet to prevent insulation damage and fire risk.
Skipping a level or square check before installing the frame leads to crooked trim and uneven gaps that are difficult to fix later. Use a carpenter’s level and square throughout to keep everything true.
A cloudy glass front usually results from dust, film buildup, or cleaning residue. This is normal and can be cleaned with a manufacturer-recommended cleaner. If the glass seal is damaged or the unit fails to heat properly, that’s a repair issue, not a framing problem.
Some electric fireplace inserts have no factory button for controls on the front trim. In these cases, plan the frame to leave access to remote controls or app connectivity without forcing removal of the whole unit.
Good for
A fixed built-in frame offers a clean, integrated look that suits permanent installations.
Stable trim protects the insert and hides wiring neatly.
Not for
Fixed frames make accessing controls and service points difficult.
Not ideal if you expect to remove the insert frequently for maintenance or upgrades.
Frames should be designed so you can remove the electric fireplace insert easily for service or repair. Future-you will thank past-you for avoiding a cabinet that fights back when the unit needs attention.
Questions People Ask
How much clearance do you need around an electric fireplace insert?
You generally need at least one inch of clearance on all sides of the insert for proper ventilation and heat dissipation. Always check the manufacturer’s instructions because some models require more space to prevent overheating and allow airflow.
Does an electric fireplace need a chimney?
No, electric fireplaces do not require a chimney or venting because they do not burn fuel or produce combustion gases. This makes installation simpler and safer indoors, as long as the electrical outlet and framing meet code.
How far off the floor should my electric fireplace insert be?
Most inserts are designed to sit about 12 to 18 inches above the floor, but this depends on your room’s layout and the model’s specifications. Position it so the heat and visual effect are optimal without blocking baseboards or outlets.
Should I frame my direct vent electric fireplace with metal studs or wood?
Direct vent gas fireplaces usually require metal studs around the firebox to meet fire safety codes and handle heat better. Wood framing is common for electric inserts since they run cooler, but always follow local code and the manufacturer’s framing guidelines.
