How Tankless Water Heater Recirculation Pumps Work

A tankless water heater recirculation pump circulates hot water through the pipes, ensuring instant hot water at faucets while reducing wait time and water waste.

Tankless water heaters provide endless hot water on demand, but they often require a recirculation pump to deliver instant hot water to fixtures. These pumps eliminate the frustrating wait for hot water by continuously circulating heated water through your pipes.

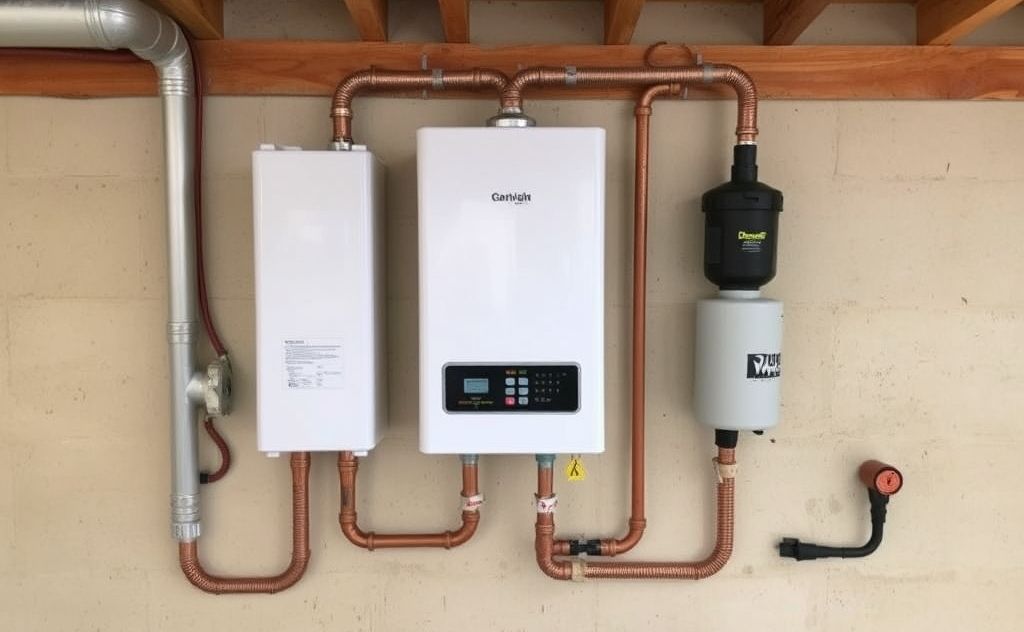

Tankless water heater with recirculation pump setup

What Is a Tankless Water Heater Recirculation Pump?

A recirculation pump is a device that maintains hot water in your plumbing lines so it’s immediately available when you open a faucet. Without one, cold water must first flush from the pipes before hot water arrives from the heater.

Key Components

  • Circulation pump
  • Temperature sensor
  • Check valve
  • Control system

How the Recirculation System Works

The pump creates a continuous loop that keeps hot water moving through your pipes. When water temperature drops below a set point, the pump activates to return cooled water to the heater for reheating.

Two Primary System Types

1. Dedicated Return Line System

This professional-grade installation uses a separate pipe to return cooled water to the heater. It’s most efficient but requires extensive plumbing work, making it ideal for new construction.

2. Crossover Valve System

This simpler system uses your existing cold water line as the return path. A special valve at the farthest fixture connects the hot and cold lines when needed.

Benefits of Adding a Recirculation Pump

Benefit Description
Instant Hot Water Eliminates wait time at fixtures
Water Conservation Saves 10,000+ gallons annually
Energy Efficiency Reduces standby heat loss

Installation Considerations

Proper installation is critical for optimal performance. Factors to consider include:

READ MORE  How to Install a Tankless Water Heater: Step-by-Step Guide

Pump Location

The pump should be installed near the water heater on the hot water outlet. Some tankless models have built-in pumps.

Pipe Insulation

Insulating hot water pipes reduces heat loss and improves system efficiency.

Timer Controls

Adding a timer prevents unnecessary pumping during low-use periods.

Maintenance Requirements

Recirculation systems require periodic maintenance:

  1. Annual pump inspection
  2. Regular descaling (especially in hard water areas)
  3. Temperature sensor calibration

According to U.S. Department of Energy, properly maintained recirculation systems can reduce water waste by up to 15,000 gallons per year for a family of four.

Cost vs. Savings Analysis

While adding a recirculation system requires upfront investment, the long-term savings are significant:

  • Average installation cost: $500-$1,500
  • Annual water savings: $50-$100
  • Payback period: 3-5 years

For homes with point-of-use tankless heaters, multiple pumps may be needed for optimal performance.
