How Resistance Temperature Detectors (RTDs) Work: The Complete Guide

Resistance Temperature Detectors (RTDs) measure temperature by correlating the change in electrical resistance of a metal, typically platinum, with temperature variations.

Resistance Temperature Detectors (RTDs) are among the most accurate temperature sensors available. These devices measure temperature by correlating the resistance of a platinum element with temperature changes. Widely used in industrial applications, RTDs offer superior stability and repeatability compared to other temperature measurement methods.

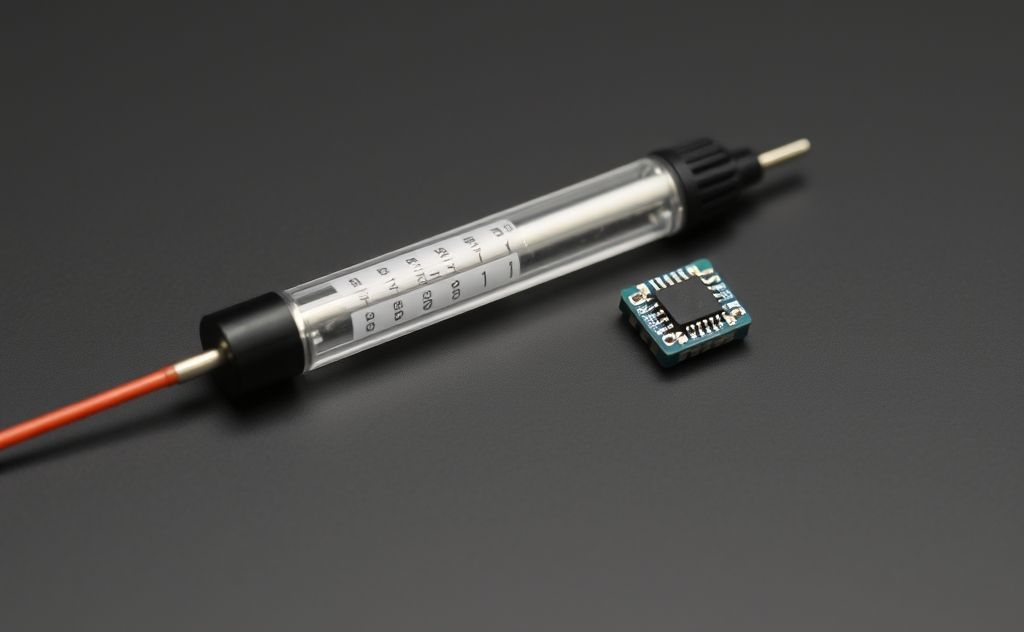

Temperature sensor with wires and electronic components

What Is an RTD?

An RTD is a passive temperature sensor that measures temperature through changes in electrical resistance. Unlike thermostats that simply switch at set temperatures, RTDs provide continuous, precise temperature readings. The key component is a pure platinum wire or film that changes resistance predictably as temperature fluctuates.

Key Characteristics of RTDs

  • Operating range: -200°C to +600°C
  • Standard resistance: 100Ω at 0°C
  • Temperature coefficient: 0.00385 Ω/Ω/°C
  • Accuracy: ±0.1°C to ±1°C

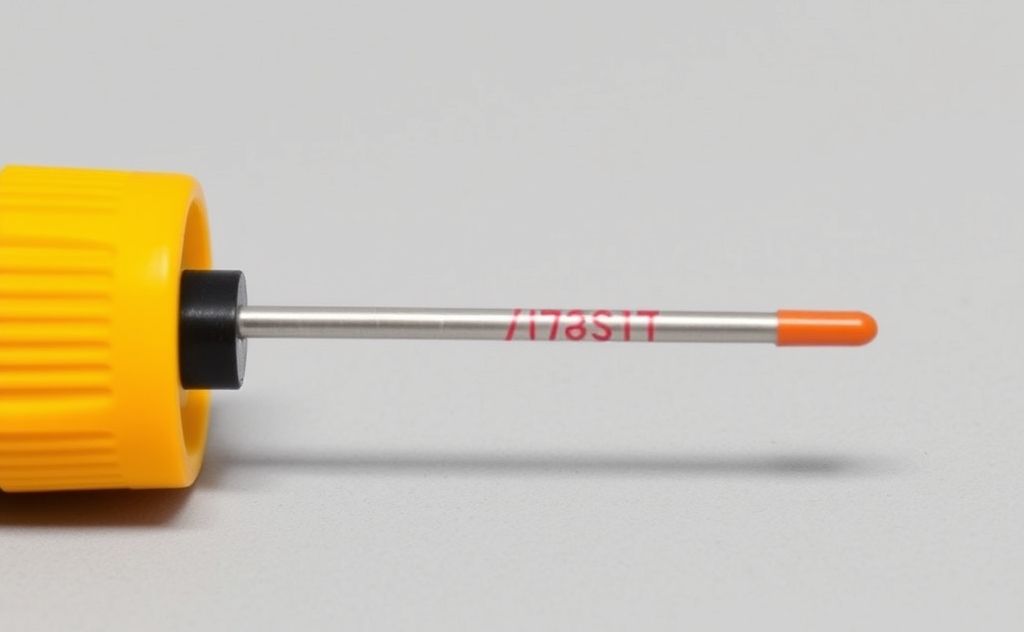

RTDs measure temperature using resistance changes

How RTDs Measure Temperature

The working principle of RTDs relies on the predictable resistance change of platinum with temperature. Here’s the step-by-step process:

  1. A small constant current (typically 1mA) passes through the RTD element
  2. The voltage drop across the element is measured
  3. Resistance is calculated using Ohm’s Law (R=V/I)
  4. The resistance value is converted to temperature using standardized curves

According to Omega Engineering, platinum RTDs follow the Callendar-Van Dusen equation, which describes the resistance-temperature relationship with extreme precision.

Types of RTD Construction

1. Wire-Wound RTDs

These traditional RTDs feature a fine platinum wire wound around a ceramic or glass core. The wire is typically 0.001″ in diameter, allowing for precise measurements.

Advantages

  • Highest accuracy available
  • Suitable for extreme temperatures
  • Long-term stability
READ MORE  How to Calibrate a Thermometer for Perfect Accuracy

Disadvantages

  • More expensive to manufacture
  • Sensitive to vibration
  • Larger physical size

2. Thin-Film RTDs

Modern thin-film RTDs deposit a platinum layer on a ceramic substrate, then laser-trim it to achieve the desired resistance. These are commonly used in water heater elements and other industrial applications.

Advantages

  • More vibration resistant
  • Lower production cost
  • Compact size

Disadvantages

  • Slightly less accurate than wire-wound
  • Limited high-temperature capability

RTD Wiring Configurations

Configuration Wires Accuracy Typical Use
2-Wire 2 Low Short cable runs
3-Wire 3 Medium Most industrial applications
4-Wire 4 High Laboratory precision

RTD vs Thermocouple Comparison

While both measure temperature, RTDs and thermocouples have distinct differences:

  • Accuracy: RTDs are typically more accurate (±0.1°C vs ±1°C)
  • Range: Thermocouples handle higher temperatures (up to 2000°C)
  • Stability: RTDs maintain calibration longer
  • Cost: RTDs are generally more expensive
  • Response Time: Thermocouples react faster

As noted by Process Parameters, the choice between RTD and thermocouple depends on application requirements.

Common RTD Applications

RTDs are used across various industries for precise temperature measurement:

  • Industrial process control
  • HVAC systems
  • Food processing
  • Pharmaceutical manufacturing
  • Laboratory equipment
  • Aerospace systems

Testing and Maintaining RTDs

To verify RTD functionality:

  1. Measure resistance at known temperatures (ice water = 100Ω)
  2. Check for linear resistance change with temperature
  3. Inspect for physical damage or contamination
  4. Verify wiring connections

Proper maintenance ensures long-term accuracy and reliability in critical applications like pool heater controls and industrial processes.
