How Geothermal Heat Exchangers Work: The Complete Guide
On this page 8 sections
Heat exchangers in geothermal systems transfer thermal energy between the ground and fluid, efficiently heating or cooling buildings by utilizing the earth’s stable temperature.
Geothermal heat exchangers are the hidden heroes of ground-source heat pump systems, efficiently transferring heat between buildings and the earth. These systems leverage the earth’s stable underground temperatures to provide year-round heating and cooling with remarkable efficiency.
The Science Behind Geothermal Heat Exchange
Geothermal heat exchangers work by circulating fluid through underground pipes to exchange heat with the earth. The ground maintains a relatively constant temperature (40°-70°F/4.5°-21°C) just a few feet below the surface, serving as both a heat source in winter and heat sink in summer.
Key Components
- High-density polyethylene (HDPE) piping or copper tubing
- Water-antifreeze solution or refrigerant
- Circulation pumps
- Heat exchanger unit

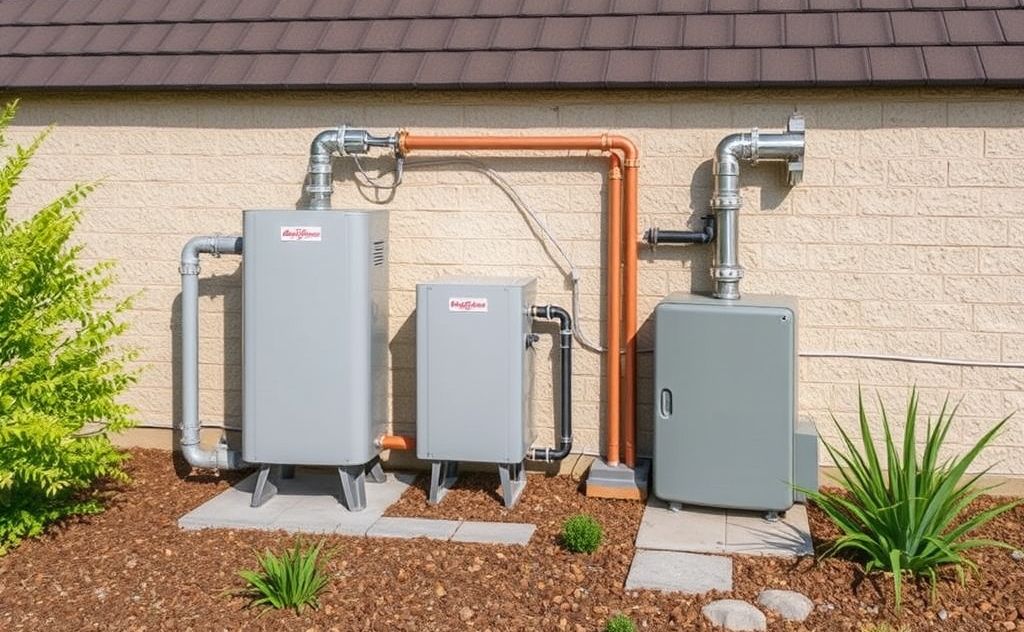

Types of Geothermal Heat Exchanger Systems
Closed-Loop Systems
Closed-loop systems circulate a water-antifreeze solution through sealed underground pipes. These account for most residential installations.
Horizontal Loop
Pipes are buried in trenches 4-6 feet deep in horizontal configurations. This is the most cost-effective option when sufficient land is available. According to the U.S. Department of Energy, horizontal systems typically use two pipes placed side-by-side in two-foot wide trenches.
Vertical Loop
Vertical systems drill boreholes 100-400 feet deep, making them ideal for properties with limited space. Each ton of heating/cooling capacity typically requires one vertical bore.
Pond/Lake Loop
If a suitable water body is available, coils can be submerged at least 8 feet deep to prevent freezing. This often provides the most efficient heat transfer.
Open-Loop Systems
These systems use groundwater directly from a well, circulating it through the heat pump before discharging it. They require adequate water supply and proper discharge methods.
Direct Exchange (DX) Systems
DX systems circulate refrigerant through copper tubing buried in the ground, eliminating the need for a separate heat exchanger. These offer higher efficiency but require more copper and careful installation.
Heat Transfer Process in Action
| Season | Process | Temperature Relationship |
|---|---|---|
| Winter | Extracts heat from ground | Earth warmer than air |
| Summer | Rejects heat to ground | Earth cooler than air |
Winter Operation
The fluid absorbs heat from the warmer ground and carries it to the heat pump, where it’s concentrated and distributed through the building.
Summer Operation
The system works in reverse, absorbing heat from the building and transferring it to the cooler ground.
Heating System Upgrade PlannerChoose between a heat pump, a furnace, a boiler or a hybrid with your own numbers, and hire the right installer.Every system compared side by side25 questions for contractors, red flagsRunning-cost, payback and quote calculator (Excel)Choosing the Right System for Your Property
Several factors determine the best heat exchanger configuration:
- Available land: Horizontal systems need more space than vertical
- Soil composition: Thermal conductivity varies by soil type
- Water availability: Pond loops require suitable water bodies
- Local regulations: Some areas restrict certain system types
For those considering pool heating applications, geothermal systems can be particularly effective when paired with the right heat exchanger.
Efficiency and Performance Benefits
Geothermal heat exchangers offer several advantages over conventional systems:
- 300-600% efficiency compared to 90-98% for top furnaces
- 50-70% lower heating costs than conventional systems
- 30-50% lower cooling costs
- Quieter operation with no outdoor compressor
- Longer lifespan (20+ years for heat pumps, 50+ for ground loops)
According to the DOE, geothermal systems can pay back their higher installation costs in 5-10 years through energy savings.
Maintenance Considerations
Geothermal heat exchangers require minimal maintenance:
- Annual system checkups
- Periodic fluid quality testing
- Filter changes (for open-loop systems)
- Monitoring for leaks or pressure changes
For those interested in related heating technologies, our guide to electric heaters that resemble wood stoves offers alternative heating solutions.
Environmental Impact
Geothermal systems significantly reduce environmental impact by:
- Eliminating on-site fossil fuel combustion
- Reducing electricity demand by 25-50%
- Minimizing refrigerant use in closed-loop systems
- Providing clean, renewable energy
Installation Process
Professional installation typically involves:
- Site evaluation and thermal conductivity testing
- System design and permitting
- Excavation or drilling
- Pipe installation and connection
- Pressure testing and system charging
- Heat pump installation and commissioning
The installation process varies significantly between horizontal and vertical systems, with vertical installations typically requiring specialized drilling equipment.
“`
