Can You Vent a Gas Furnace With PVC Pipe? Safety Guide

No, you cannot vent a gas furnace with PVC pipe; it requires specific venting materials like B-vent or stainless steel for safety and compliance.

Many homeowners wonder if PVC pipe is safe for venting high-efficiency gas furnaces. While some installations use PVC, strict guidelines apply. This guide explains when PVC works, when it fails, and what alternatives exist.

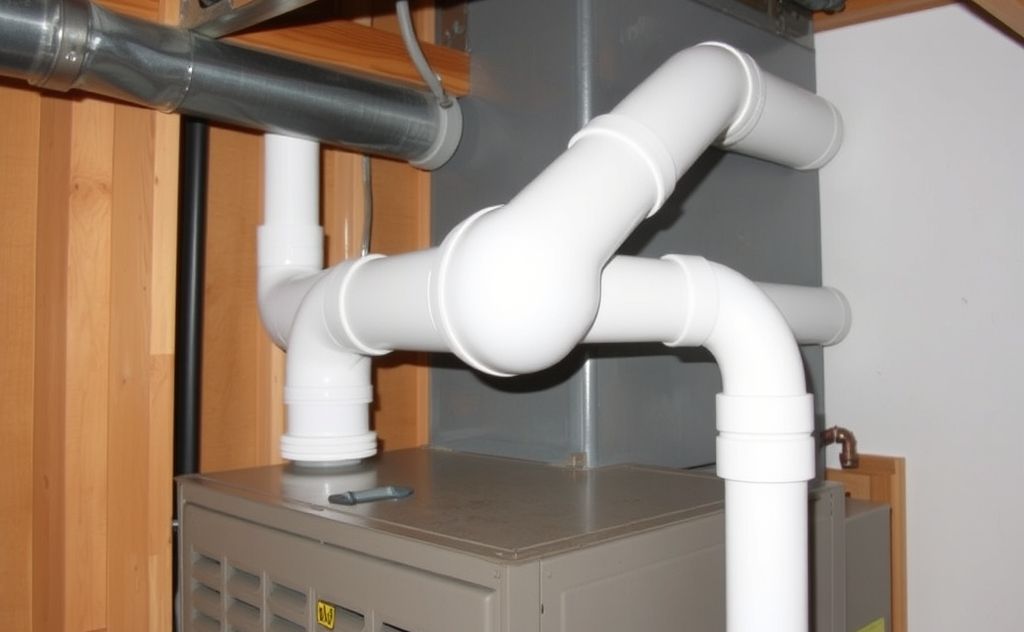

Gas furnace venting with PVC pipe in home setting

When PVC Works for Furnace Venting

High-efficiency condensing furnaces (90%+ AFUE) may use PVC for venting under specific conditions:

  • Exhaust temperatures below 140°F (60°C)
  • Solid-core Schedule 40 PVC (never foam core)
  • Proper slope for condensate drainage
  • Manufacturer-approved installation

These systems work because condensing furnaces extract so much heat that exhaust gases cool significantly. The resulting acidic condensate requires corrosion-resistant materials like PVC.

PVC Venting Requirements

Proper PVC furnace venting must include:

Component Requirement
Pipe Type Solid-core Schedule 40 PVC
Slope 1/4″ per foot back to furnace
Termination 12+ inches above snow line
Clearances 12″ from windows/doors
PVC failure in gas furnace venting issues

When PVC Fails for Furnace Venting

PVC becomes dangerous for furnace venting in these situations:

  • Mid-efficiency furnaces (80% AFUE) with hotter exhaust
  • Areas with extreme temperature fluctuations
  • Improperly sloped installations
  • Using foam-core or thin-wall PVC

According to Structure Tech, improper venting can lead to exhaust gas leaks or ice blockages in winter.

PVC Alternatives for Furnace Venting

When PVC won’t work, consider these approved materials:

  1. CPVC – Handles higher temperatures than PVC
  2. Polypropylene vent systems – Specialized plastic for venting
  3. Stainless steel – For high-temperature applications

For built-in gas heaters or other specialty units, always check manufacturer specifications.

READ MORE  5 Game-Changing Rheem Gas Water Heaters You Need to See

Critical Installation Considerations

Proper furnace venting requires attention to several key factors:

Pipe Sizing

Vent diameter depends on:

  • Furnace BTU rating (80k BTU = 2″, 100k+ BTU = 3″)
  • Total equivalent length (pipe + elbows)
  • Altitude above sea level

Termination Clearances

Vent pipes must terminate:

  • 12+ inches above ground/snow line
  • 12+ inches below decks/overhangs
  • 36+ inches from windows/doors (non-direct vent)

Common Venting Mistakes

Homeowners and installers often make these dangerous errors:

  • Using foam-core PVC that can’t handle heat
  • Reversing intake and exhaust pipes
  • Creating flat sections that trap condensate
  • Terminating exhaust below intake

For water heater installations, similar venting principles apply.

Manufacturer Requirements Trump All

Always consult your furnace’s installation manual. Some key points to verify:

  • Approved vent materials (PVC, CPVC, etc.)
  • Minimum/maximum vent lengths
  • Elbow restrictions (type and quantity)
  • Special termination requirements

As noted by HVAC experts, improper venting can create carbon monoxide hazards and void warranties.
