Radiant heaters are a popular choice for targeted warmth. They work by directly heating objects and people, not the air. This makes them efficient for spot heating in chilly rooms or drafty spaces. The materials inside are what make this magic happen. They determine everything from heat quality to safety and lifespan. Understanding these components helps you choose the right heater for your needs.
For whole-room, consistent warmth, many users find oil-filled radiators to be a reliable alternative. These units use thermal oil as a reservoir, providing a gentle, convection-based heat that lingers. A model like the Dreo Oil Filled heater exemplifies this approach, offering silent operation and steady temperature control. It’s a different technology, but it highlights how material choice is central to any heater’s performance.
How Radiant Heaters Work: The Core Principle
Think of the sun. Radiant heaters operate on a similar principle. Instead of warming the air, they emit infrared radiation. This energy travels in a straight line until it strikes a solid surfaceyour skin, a chair, the floor. That surface then absorbs the energy and warms up. It’s direct, immediate, and feels like sunshine indoors. The key components that create and direct this infrared energy are the heating element and the reflector.
This method avoids the heat loss associated with warming entire air volumes. It’s why you feel warm quickly, even in a cool garage or workshop. The efficiency hinges entirely on the quality and design of the radiant heater parts.
Primary Heating Element Materials
The heart of any radiant heater is its heating element. This is where electrical energy is transformed into infrared heat. The material used here defines the heater’s character, response time, and light output. Let’s break down the main types.

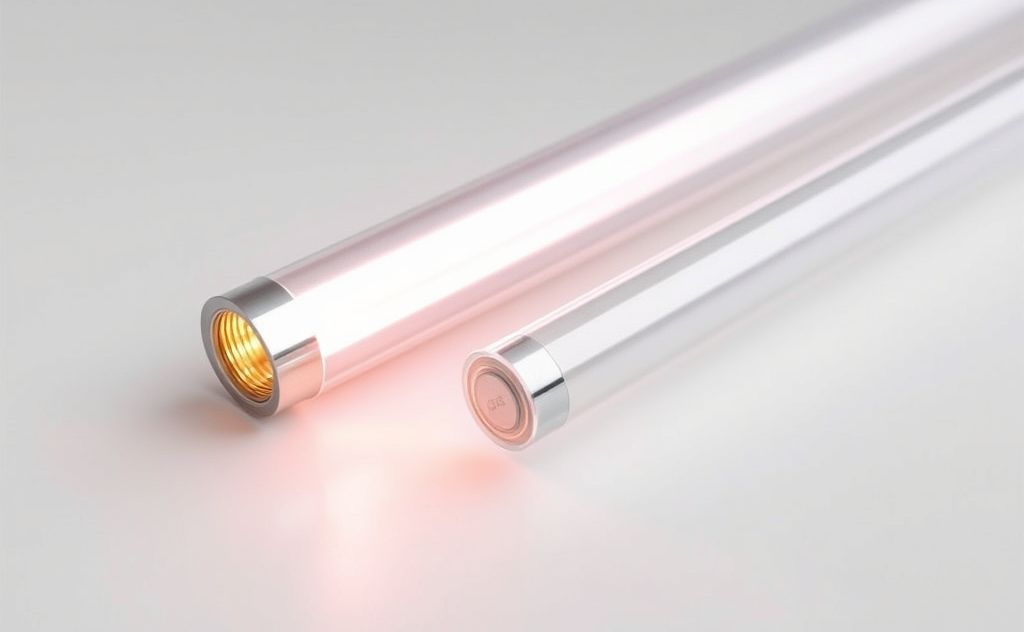

Quartz Tube Elements
Perhaps the most recognizable type. A quartz tube houses a coiled resistance wire, typically made of nichrome wire (an alloy of nickel and chromium). The quartz sheath allows infrared wavelengths to pass through with minimal absorption. It heats up and cools down very quickly, providing almost instant warmth.
You’ll often see a visible orange glow when these are operating. A common question is, are quartz tubes in radiant heaters safe? The quartz itself is inert and safe, but the high surface temperature necessitates protective grilles. They are durable but can be fragile if physically impacted.
Ceramic Elements
These use a positive temperature coefficient (PTC) ceramic element. The ceramic itself is the conductor. As it heats, its resistance increases, which self-regulates its temperature. This makes them inherently safer and more energy-efficient. They operate at a lower surface temperature than quartz and emit no visible light.
The ceramic heater construction is compact and robust. They are excellent for enclosed spaces and are a core component in many modern portable heaters. The difference between ceramic and quartz radiant heaters often comes down to this: ceramic for safer, steady heat; quartz for faster, more intense radiant warmth.
Metal Sheathed Elements
Often found in industrial settings or radiant tube heaters. These metal sheathed elements feature a nichrome coil embedded in magnesium oxide powder, all sealed inside a metal tube (usually steel or incoloy). They are incredibly rugged and have a long lifespan. The metal sheath gets very hot, radiating heat effectively.
This design is common in high-wattage shop heaters and some patio heaters. They are slower to heat up than quartz but are built for durability in demanding environments. Understanding these heating element types is the first step to picking the right tool for the job.
Reflector & Housing: Directing and Containing the Heat
The element creates the heat, but the reflector directs it. Without a proper reflector, infrared energy would radiate in all directions, wasting much of it.
Reflector Panel Material
The best material for a radiant heater reflector is polished aluminum. An aluminum reflector is lightweight, corrosion-resistant, and has excellent reflectivity for infrared wavelengths. Its shapeusually parabolicfocuses the infrared rays into a beam, projecting the heat across the room. A dull or oxidized reflector significantly reduces efficiency.
Some heavy-duty heaters might use stainless steel for the reflector, prioritizing durability over maximum reflectivity. The quality of this component is a major factor in the heater’s effective range.
Housing and Safety Grilles
The housing, or body, of the heater is typically made from cold-rolled steel or heat-resistant plastics. It provides structural integrity and protects the internal infrared heater components. The front always features a safety grille or mesh to prevent direct contact with the hot element.
This grille is a critical safety feature, especially in homes with children or pets. It allows infrared energy to pass through while acting as a physical barrier. The housing also incorporates feet or a stable base to prevent tipping, another key safety check.
Internal Components: Wiring, Insulation, and Controls
Behind the scenes, several other materials ensure safe and controlled operation.
- Wiring & Insulation: High-temperature wiring connects the element to the power supply and controls. Mica sheet is a commonly used insulator. This natural mineral silicate can withstand very high temperatures and is used to isolate electrical components from heat and each other.
- Thermostats & Tip-Over Switches: These are the brains and guardians. A bimetallic thermostat cycles the heater on and off to maintain a set temperature. A tip-over switch is a non-negotiable safety deviceit cuts power immediately if the heater is knocked over.
- Fan Assemblies (in Fan-Forced Models): Some radiant heaters include a gentle fan to help distribute warmth. These use a small electric motor and plastic or metal fan blades, adding a convection element to the radiant heat.
All these parts work in concert. For instance, knowing the what is the maximum temperature for your home’s hot water system is good practice for safety and efficiency, just as understanding your space heater’s internal limits is.
Material Comparison: Durability, Efficiency, and Safety
How do these material choices stack up against each other? Heres a quick breakdown.
| Material / Component | Durability | Heat-Up Speed / Efficiency | Key Safety Notes |
|---|---|---|---|
| Quartz Tube | Moderate (fragile if hit) | Very Fast / High | Very hot surface; requires grille. |
| Ceramic (PTC) | High | Fast / Self-regulating (Efficient) | Lower surface temp; safer for enclosures. |
| Metal Sheathed | Very High | Slower / High at steady state | Extremely hot; for industrial/commercial use. |
| Aluminum Reflector | High (if protected) | Critical for directional efficiency | Can get warm, but not a primary burn risk. |
Efficiency isn’t just about the element. A clean, parabolic aluminum reflector paired with a well-insulated housing ensures more infrared energy reaches you. Safety is multi-layered: from the tip-over switch to the quality of the mica sheet insulation around live parts. It’s why choosing a brand known for good construction matters, whether for a water heater or a space heater.
Putting It All Together
So, what is the heating element in a radiant heater made of? Now you know it’s not one answer. It could be nichrome wire inside a quartz tube, a PTC ceramic plate, or a rugged metal sheath. Your choice depends on your priority: instant radiant glow, safe and steady heat, or industrial-grade durability.
The reflector material is just as important as the element. And none of it works without the silent partners: the wiring, insulation, and safety switches. When shopping, look at the whole system. Check for safety certifications and read reviews about long-term reliability. For more on safe operation, the Department of Energy has an excellent authority guide on portable heaters.
Ultimately, the materials define the experience. They determine how quickly you feel warm, how much electricity you use, and how safely the unit operates for years. Choose with the components in mind, and you’ll find a heater that fits your space perfectly.
