How Self-Modulating Tankless Water Heaters Work

A self-modulating tankless water heater is a type of on-demand water heater that adjusts its energy consumption based on the flow rate and temperature of incoming water, ensuring optimal heating efficiency and consistent hot water supply without the need for a storage tank.

A self-modulating tankless water heater automatically adjusts its heat output based on water flow demand. Unlike traditional models with fixed power settings, these advanced units precisely match energy consumption to your hot water needs. This technology eliminates wasted energy while providing consistent temperature control.

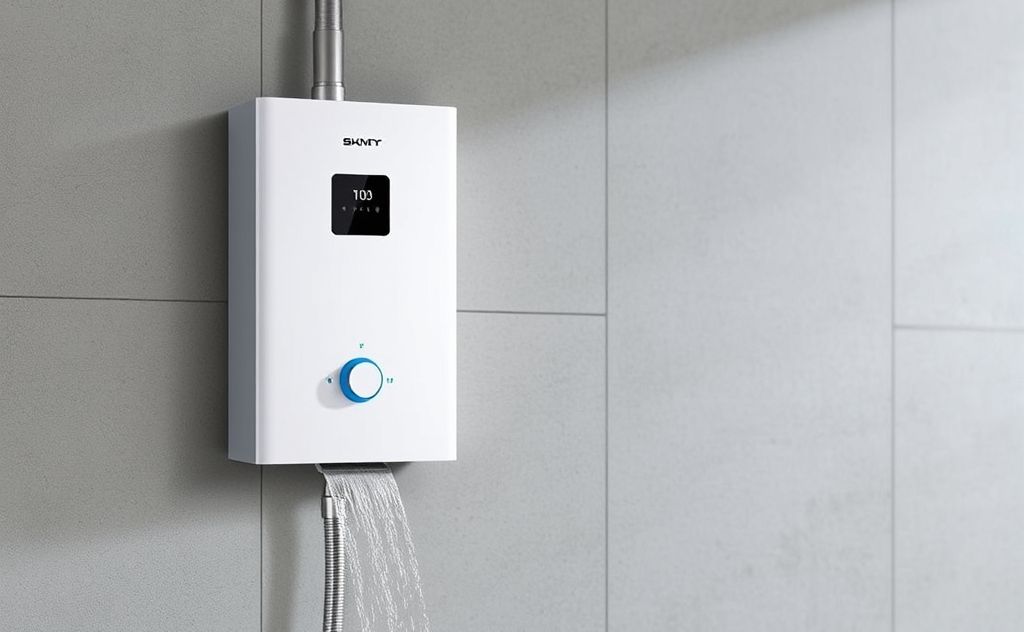

Modern tankless water heater with sleek design and flowing water

How Self-Modulation Technology Works

Self-modulating heaters use flow sensors rather than simple on/off switches. When you open a hot water tap:

  • A sensor detects water movement through the unit
  • The system calculates required temperature rise
  • Heating elements activate only at needed power levels
  • Energy adjusts continuously as flow changes

This differs from flow switch models that activate full power at fixed flow rates (typically 0.75-1 GPM). Those older designs can’t adjust to partial demands, leading to cold water surges when mixing valves reduce flow below activation thresholds.

Key Components Enabling Self-Modulation

Flow Sensors

High-precision sensors measure exact water flow rates down to 0.3 GPM. This allows activation at lower flows than traditional switches.

Microprocessor Controls

Advanced processors analyze incoming water temperature and desired output to calculate precise energy needs. Units like the Rheem RETEX series adjust in 1°F increments for perfect temperature control.

Modulating Heating Elements

Instead of fixed-power elements, these use variable-output designs. The Black+Decker 27kW model can scale from 2.72 to 5.2 GPM output based on demand.

READ MORE  The Surprising Top Choices for Best Water Filter for Tankless Water Heater
Create an image showcasing innovative self-modulating design in architecture, highlighting its benefits and adaptability in a modern setting.

Benefits of Self-Modulating Design

Feature Traditional Tankless Self-Modulating
Energy Efficiency Good (80-85%) Excellent (up to 96%)
Temperature Consistency Variable with flow changes Stable across all flows
Minimum Activation Flow 0.75-1 GPM 0.3 GPM
Cold Water Sandwich Effect Common Eliminated

Real-World Performance Advantages

In homes with multiple bathrooms, self-modulating units prevent temperature drops when:

  • Someone flushes a toilet while showering
  • Dishwasher and shower run simultaneously
  • Mixing valves reduce hot water flow

According to EcoSmart’s technical documentation, their modulating technology maintains steady temperatures even at flow rates as low as 0.5 GPM – impossible with conventional designs.

Installation Considerations

While offering superior performance, self-modulating heaters have specific requirements:

Electrical Needs

Most models require substantial power:

  • 18kW units need 2x 40A circuits
  • 27kW models require 3x 40A circuits
  • Proper wire sizing (typically 8/2 AWG)

Water Quality Factors

Hard water can reduce efficiency over time. Consider adding a whole-house water filter if your area has mineral-heavy water.

Climate Considerations

Incoming water temperature dramatically affects performance. A unit delivering 5 GPM in Florida might only provide 2.7 GPM in Minnesota winters. Always size units based on your coldest expected groundwater temperatures.

Maintenance Requirements

To maintain peak performance:

  1. Descale annually in hard water areas
  2. Check inlet filters quarterly
  3. Verify temperature calibration every 2 years
  4. Inspect electrical connections annually

Many manufacturers like Black+Decker offer extended warranties (up to 7 years) when using approved descaling kits annually.

Comparing Top Self-Modulating Models

Key differences between leading brands:

Rheem RETEX Series

  • Copper heat exchangers
  • 0.5 GPM activation flow
  • Self-diagnostic error codes

EcoSmart ECO Series

  • Stainless steel elements
  • 0.3 GPM activation
  • Digital temperature display
READ MORE  Should I Replace My Water Heater With A Tankless?

Black+Decker

  • 7-year leakage warranty
  • 5.3 GPM maximum flow
  • 1°F temperature increments

For cold climates, consider pairing with a freeze protection system to prevent winter damage.
