When buying a central heating radiator, consider size, material, heat output (BTU), efficiency, design, compatibility with your system, and budget.
Choosing the right central heating radiator is crucial for maintaining comfort and energy efficiency in your home. With various types, materials, and heat outputs available, it’s essential to understand the key criteria before making a purchase.
1. Determine the Correct Size and Heat Output
The size of your radiator directly impacts its ability to heat your space effectively. A radiator that’s too small won’t provide enough warmth, while one that’s too large wastes energy.
Calculating BTU Requirements
British Thermal Units (BTUs) measure heat output. To calculate the required BTU for your room:
- Measure room dimensions (length × width × height in meters)
- Multiply by 153 (standard multiplier for well-insulated rooms)
- Adjust for factors like window size, insulation quality, and room usage
For example, a 4m × 5m × 2.4m living room would need approximately 7,344 BTUs (4×5×2.4×153). Our radiator room heater guide offers more detailed calculations.
Delta Temperature Ratings
Delta (Δ) values indicate radiator performance at different boiler temperatures:
| Delta Rating | Boiler Temperature | Typical System |
|---|---|---|
| Δ50 | 75°C flow/65°C return | Older conventional boilers |
| Δ30 | 55°C flow/45°C return | Modern condensing boilers |
| Δ20 | 45°C flow/35°C return | Heat pumps |

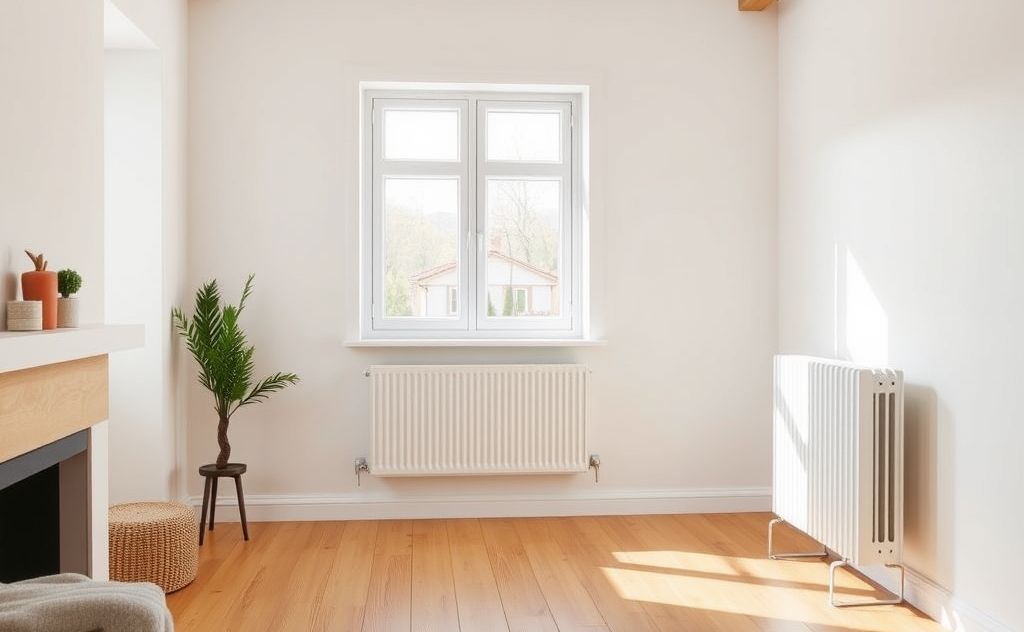

2. Choose the Right Radiator Type
Different radiator designs offer varying heat outputs and aesthetic appeal:
Panel Radiators
The most common type, available in three configurations:
- Type 11: Single panel with no convector fins (lowest output)
- Type 21: Double panel with single set of fins
- Type 22: Double panel with double set of fins (highest output)

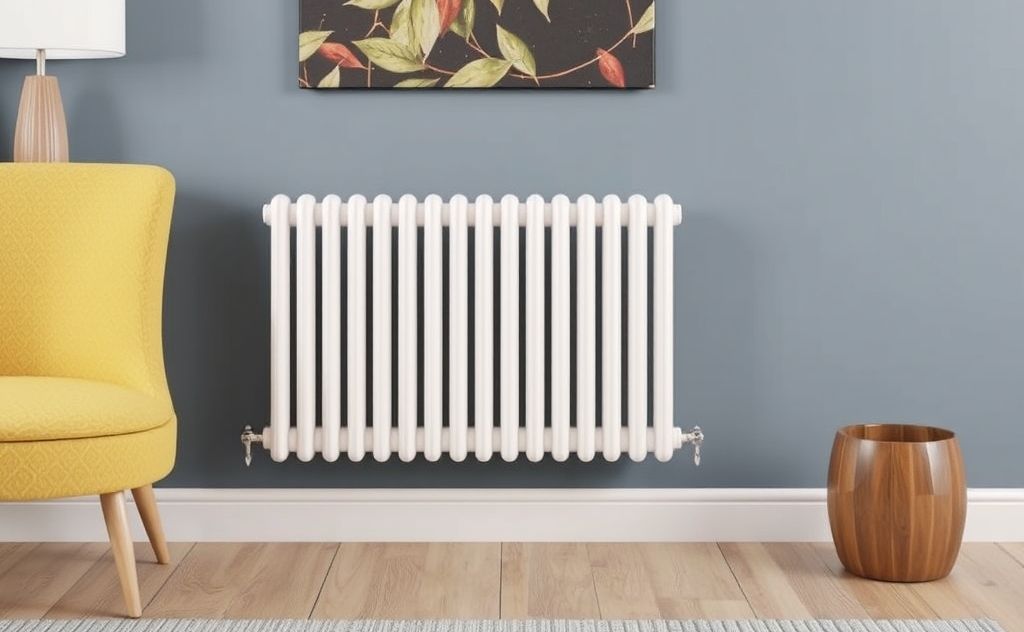

Column Radiators
Traditional style with vertical columns. While they take longer to heat up, they retain heat longer after the boiler turns off. Ideal for period properties.
Heated Towel Rails
Dual-purpose radiators that heat bathrooms while drying towels. Available in ladder or contemporary designs. Consider our water heater rod options for complementary bathroom heating solutions.
3. Select Appropriate Materials
Radiator material affects heat output, response time, and longevity:
Steel Radiators
- Most common and affordable
- Quick to heat up and cool down
- Available in various styles and colors
Aluminum Radiators
- Lightweight and excellent heat conductor
- 30% more efficient than steel
- Corrosion-resistant but more expensive
Cast Iron Radiators
- Traditional appearance with high heat retention
- Slow to heat but provides consistent warmth
- Heavy and requires strong wall support
4. Consider Style and Aesthetics
Modern radiators come in various designs to complement your decor:
- Vertical radiators: Space-saving for narrow walls
- Horizontal radiators: Traditional placement under windows
- Designer radiators: Artistic pieces that double as heating
- Colors and finishes: From classic white to bold statement colors
5. Evaluate Energy Efficiency
According to U.S. Department of Energy, heating accounts for about 42% of home energy use. Consider these efficiency factors:
- Look for radiators compatible with low-temperature systems (Δ30 or below)
- Choose thermostatic radiator valves (TRVs) for individual room control
- Consider smart controls that adjust heating based on occupancy
6. Installation and Compatibility
Ensure your chosen radiator works with your existing system:
- Check pipework configuration (center-to-center measurements)
- Verify water pressure compatibility
- Consider weight and wall strength requirements
- For electric radiators, ensure proper circuit capacity
For homes with built-in gas heating systems, consult a professional about compatibility.
7. Budget Considerations
Radiator prices vary significantly based on:
| Type | Price Range | Lifespan |
|---|---|---|
| Basic Steel Panel | $50-$200 | 10-15 years |
| Aluminum | $150-$500 | 15-20 years |
| Designer | $300-$2000+ | 15-25 years |
Remember to factor in installation costs, which typically range from $150-$500 per radiator depending on complexity.
8. Maintenance Requirements
Different radiators have varying maintenance needs:
- Bleeding: Required for all water-based systems to remove air pockets
- Cleaning: Dust buildup reduces efficiency – clean fins annually
- Corrosion protection: Important for steel radiators in humid areas
- Inhibitor fluid: Extends system life by preventing internal corrosion
As noted by This Old House, proper maintenance can extend radiator life by 5-10 years.
