For a standard electric water heater, use a double-pole 30-amp breaker, ensuring it matches the heater’s wattage and complies with local electrical codes.
Selecting the correct breaker size for your water heater is critical for safety and performance. The right breaker prevents electrical fires while ensuring your system runs efficiently. This guide covers everything from basic calculations to advanced installation tips.
How to Calculate Water Heater Breaker Size
Most residential water heaters require either 30-amp or 50-amp breakers. The exact size depends on your unit’s wattage and voltage. Here’s how to determine what you need:
Step-by-Step Calculation
- Find your water heater’s wattage (typically 3,500W to 5,500W)
- Divide wattage by voltage (usually 240V)
- Multiply by 1.25 (NEC safety factor)
| Wattage | Voltage | Basic Amps | 125% Safety Factor | Recommended Breaker |
|---|---|---|---|---|
| 3,500W | 240V | 14.58A | 18.23A | 20A |
| 4,500W | 240V | 18.75A | 23.44A | 25A or 30A |
| 5,500W | 240V | 22.92A | 28.65A | 30A |

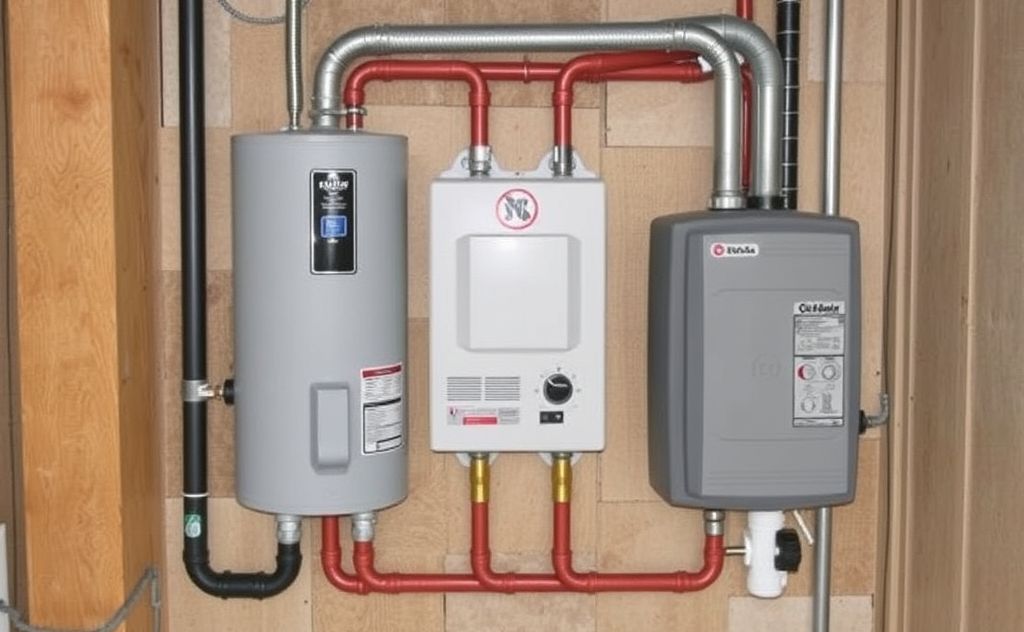

Understanding Dual Element Water Heaters
Most modern water heaters use two heating elements, but they don’t operate simultaneously. The upper element heats first, then switches to the lower element once the top portion is hot. This design means you only need to account for one element’s wattage when sizing your breaker.
For example, a unit with two 4,500W elements still only requires a 30-amp breaker because only one element runs at a time. This explains why manufacturers list “total connected watts” as 4,500W rather than 9,000W.
Wiring Requirements
- 30-amp circuit: 10-gauge NM-B or MC cable
- 50-amp circuit: 8-gauge NM-B or MC cable
- Always use copper wiring for water heater connections
Common Installation Mistakes
Many DIYers make these dangerous errors when installing water heater breakers:
Undersized Wiring
Using 12-gauge wire on a 30-amp circuit creates a fire hazard. The wire can overheat before the breaker trips. Always match wire gauge to breaker size.
Ignoring Local Codes
Some municipalities require larger breakers than NEC minimums. For example, Chicago mandates 30-amp breakers for all residential water heaters regardless of wattage.
Improper Grounding
Water heaters require proper grounding to prevent electrocution. Never rely on the plumbing system for grounding – use the designated ground wire.
When to Upgrade Your Breaker
Consider these scenarios where a breaker upgrade may be necessary:
- Replacing an old water heater with a higher-wattage model
- Converting from gas to electric water heating
- Adding a tankless water heater with greater power demands
- Experiencing frequent breaker trips during operation
For specialized installations like RV water heaters or commercial units, consult a licensed electrician. These systems often have unique electrical requirements.
Professional vs DIY Installation
While some homeowners attempt breaker installations themselves, professional help is recommended because:
- Electricians understand local code variations
- They can properly assess your home’s electrical capacity
- Professional installations come with warranties
- Mistakes can be dangerous and costly to fix
According to NFPA, improper electrical work causes approximately 51,000 home fires annually. Don’t risk your safety to save a few dollars.
Maintenance and Safety Tips
Keep your water heater’s electrical system in top condition with these practices:
- Test GFCI protection monthly if installed
- Check for corrosion at connections annually
- Listen for unusual sounds from the breaker panel
- Monitor for frequent breaker trips
- Consider adding a smart thermostat for better energy management
For homes with older wiring, the Electrical Safety Foundation International recommends having a professional evaluate your system every 10 years.
