Upgrade Ductwork Insulation to Slash Energy Bills
On this page 6 sections
Upgrading ductwork insulation enhances energy efficiency by reducing heat loss, lowering energy bills, and improving overall HVAC system performance.
Leaky or poorly insulated ductwork can waste hundreds of dollars annually on heating and cooling costs. Properly sealing and insulating your ducts improves HVAC efficiency by up to 20%, while creating more consistent temperatures throughout your home.
Why Ductwork Insulation Matters
Ducts distribute conditioned air throughout your home. When they run through unconditioned spaces like attics or crawlspaces, up to 30% of heated or cooled air can escape through leaks and poor insulation. This forces your system to work harder, increasing energy bills.
Signs You Need Ductwork Upgrades
- Hot/cold spots in different rooms
- Dust buildup around vents
- Higher than normal energy bills
- Whistling sounds from ducts

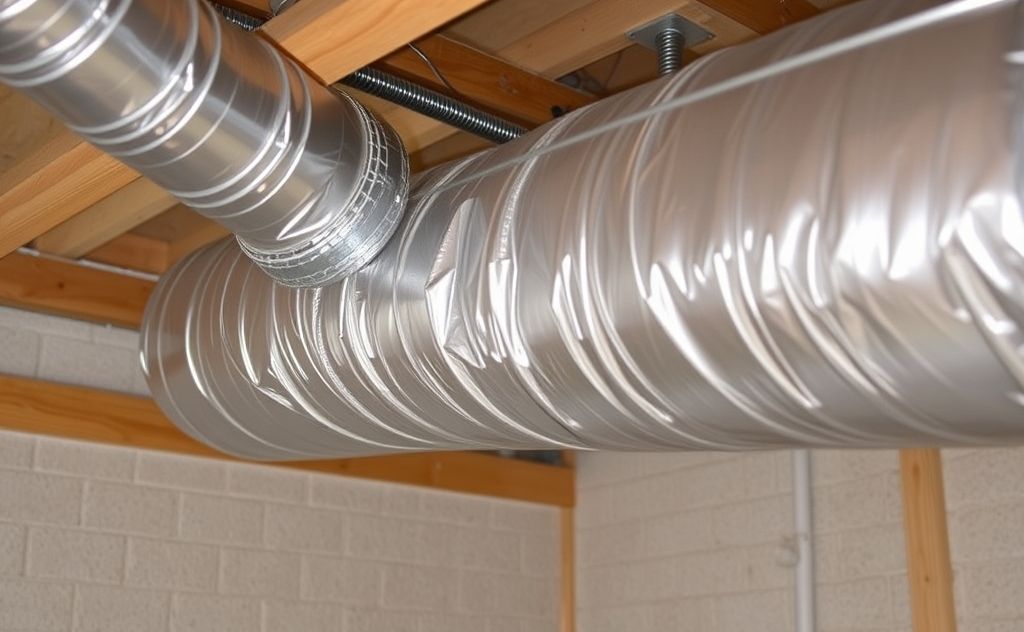

Best Materials for Duct Insulation
Choose insulation based on your climate and duct location:
| Material | R-Value | Best For |
|---|---|---|
| Fiberglass duct wrap | R-4 to R-8 | Attics, crawlspaces |
| Foam board insulation | R-5 to R-6.5 | Basements, garages |
| Reflective insulation | R-3.7 to R-6 | Hot climates |
For maximum efficiency, consider pairing duct insulation with a smart thermostat to optimize your HVAC system.
Step-by-Step Duct Sealing Process
1. Locate Leaks
Inspect all accessible duct joints and connections. Common leak areas include:
- Joints between duct sections
- Connections at registers and vents
- Plenum connections
2. Clean Surfaces
Remove dust and grease from areas to be sealed using a stiff brush or rag. This ensures proper adhesion.
3. Apply Sealant
Use mastic sealant or metal-backed tape (not standard duct tape) for permanent seals. For gaps larger than 1/4″, first apply fiberglass mesh tape.

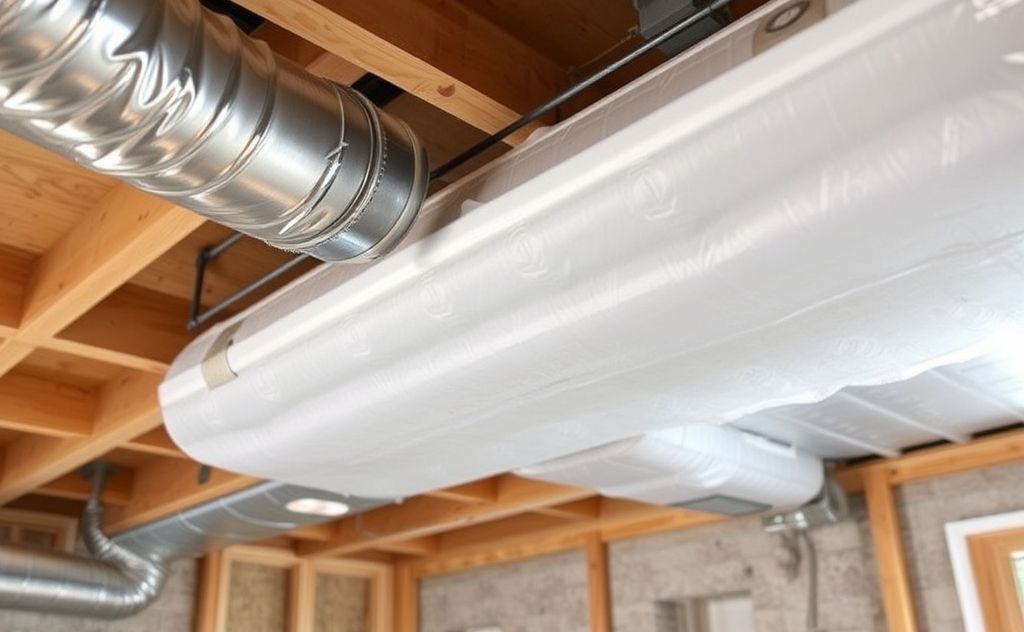

4. Insulate Ducts
Wrap ducts with insulation, ensuring complete coverage without compression. Secure with foil tape or wire.
Winter Heating Bill CutterSee what every heater in your home really costs, heat the rooms you use, and cut the waste in 30 days.Cost-per-hour tables for every heaterThermostat schedule and draft-proofing planRunning-cost and bill calculator (Excel)Professional vs DIY Installation
While homeowners can tackle simple duct sealing, consider professional help for:
- Hard-to-reach ductwork
- Complete system replacements
- Homes with asbestos materials
Many HVAC contractors offer energy audits that include duct testing with blower door equipment to identify all leaks.
Energy Savings & Tax Credits
The U.S. Department of Energy estimates proper duct sealing and insulation can save homeowners 10-30% on energy bills. Through 2032, homeowners may qualify for federal tax credits covering 30% of insulation upgrade costs (up to $1,200 annually).
According to ENERGY STAR, these improvements must meet specific standards to qualify. Always keep receipts and manufacturer certifications.
Maintaining Your Duct System
After upgrading your ductwork:
- Check insulation annually for damage
- Replace air filters regularly
- Keep vents unobstructed
- Consider professional cleaning every 3-5 years
For homes with supplemental heating systems, ensure ductwork modifications accommodate all heat sources.
