How Bends and Turns Impact HVAC Duct Efficiency

You feel it every summer. The bedroom at the end of the hallway never gets cool enough, while the living room feels like a walk-in freezer. The thermostat says 72°F, but the actual temperature varies wildly from room to room. Most homeowners blame the insulation or the age of the AC unit. In many cases, the real culprit is hiding inside the walls: the ductwork and its bends.

Every elbow, every turn, and every sagging flex duct section adds resistance to the airflow. Your blower has to work harder to push air through those restrictions, which means less air reaches the far rooms and your system uses more electricity. This article breaks down the actual physics, gives you measurable numbers for pressure loss, and shows you how to fix the worst offenders without tearing your house apart.

You’ll walk away knowing exactly which bends cost you the most, how to calculate the cumulative damage, and what simple retrofits can recover lost airflow. This is the engineering-backed math most contractors skip.

For quick fixes on existing runs, a quality adjustable elbow like the Mitchell Metal 4-inch duct elbow gives you a smooth, galvanized steel turn that beats a crushed flex duct every time. It’s a small part, but it solves a big problem when you need a tight 90-degree turn in a confined space.

Why Duct Bends Matter More Than You Think

Straight duct is easy. Air moves in a straight line with only friction from the duct walls slowing it down. The moment you add a bend, you introduce two problems: turbulence and pressure drop.

Turbulence happens because air has momentum. When it hits a turn, it doesn’t want to change direction. It slams into the outer wall of the elbow, swirls around, and creates eddies. Those eddies waste energy. The blower has to push harder to overcome that chaotic motion.

The result is a measurable drop in static pressure. Static pressure is the force the blower uses to push air through the system. Every bend consumes some of that force. Lose too much, and the air simply stops moving effectively through the farthest registers.

Most residential systems have a blower rated for 0.5 to 0.8 inches of water column (in. WC) of static pressure. That’s not a lot of headroom. A few poorly placed elbows can eat through that budget quickly, leaving you with weak airflow and a noisy system.

The Physics of Airflow at a Bend (Turbulence vs. Friction)

Two forces work against air moving through a bend: friction loss and dynamic loss. Friction loss comes from air rubbing against the duct walls. It exists in straight sections too, but bends make it worse because the air path is longer and the velocity profile gets distorted.

Dynamic loss is the bigger problem. It’s the energy lost to turbulence and flow separation as air changes direction. When air hits a sharp turn, it separates from the inner wall of the elbow. This creates a low-pressure zone that sucks energy out of the airflow. The sharper the turn, the bigger the separation zone.

Think of a river hitting a sharp rock. The water splashes, sprays, and loses forward momentum. Air does the same thing inside a duct elbow.

How Static Pressure Drops at Every Turn

Each elbow in your system adds a certain amount of equivalent length to the duct run. Equivalent length is a way to express the resistance of a fitting in terms of straight duct feet. A standard 90-degree elbow in 6-inch round duct has an equivalent length of about 15 feet. That means one elbow creates the same resistance as 15 feet of straight pipe.

If your system has five elbows, that’s 75 feet of extra resistance added to the run. The static pressure at the blower stays the same, but the pressure available at the registers drops. The blower sees a longer, harder path and moves less air. This is called a reduction in CFM (cubic feet per minute).

You don’t need a manometer to feel the difference. A system with excessive bends will have weak airflow, higher energy bills, and uneven temperatures. The blower runs longer and harder, wearing out faster.

Measuring the Real Cost: CFM Loss by Bend Type

Let’s put real numbers on this. The table below shows typical pressure loss for different bend types in a 6-inch round duct carrying 200 CFM. These are industry-standard values from ASHRAE fundamentals, expressed as equivalent length in feet.

Fitting Type	Equivalent Length (ft)	Approx. Pressure Drop (in. WC)	CFM Reduction at 200 CFM
Straight duct (per 10 ft)	10	0.02	Baseline
45° elbow (standard radius)	6	0.012	2-3%
90° elbow (standard radius, R/D=1)	15	0.03	5-7%
90° elbow (long radius, R/D=1.5)	10	0.02	3-4%
90° elbow (sharp, R/D=0.5)	25	0.05	10-12%
Flex duct 90° bend (not stretched)	30	0.06	15-20%

These numbers assume smooth, properly installed fittings. Real-world conditions are often worse. A crushed flex duct or a kinked aluminum bend can double these losses.

90° vs. 45° vs. 30° Elbows

The angle of the bend matters, but not in the way most people assume. A 45° elbow is not half as bad as a 90° elbow. It’s actually much better than half. The pressure loss scales with the square of the turning angle. A 45° elbow has roughly one-third the loss of a 90° elbow, not one-half.

So if you can break a 90° turn into two 45° turns with a short straight section between them, you’ll reduce the total pressure drop. That straight section lets the airflow reattach to the duct walls before the next turn. It’s a simple trick that works well in tight spaces.

A 30° elbow is even better, but you rarely see them in residential work. Most installers default to 90° elbows because they’re easy to fit. That’s a mistake when space allows a gentler angle.

Flex Duct vs. Rigid Duct at Bends

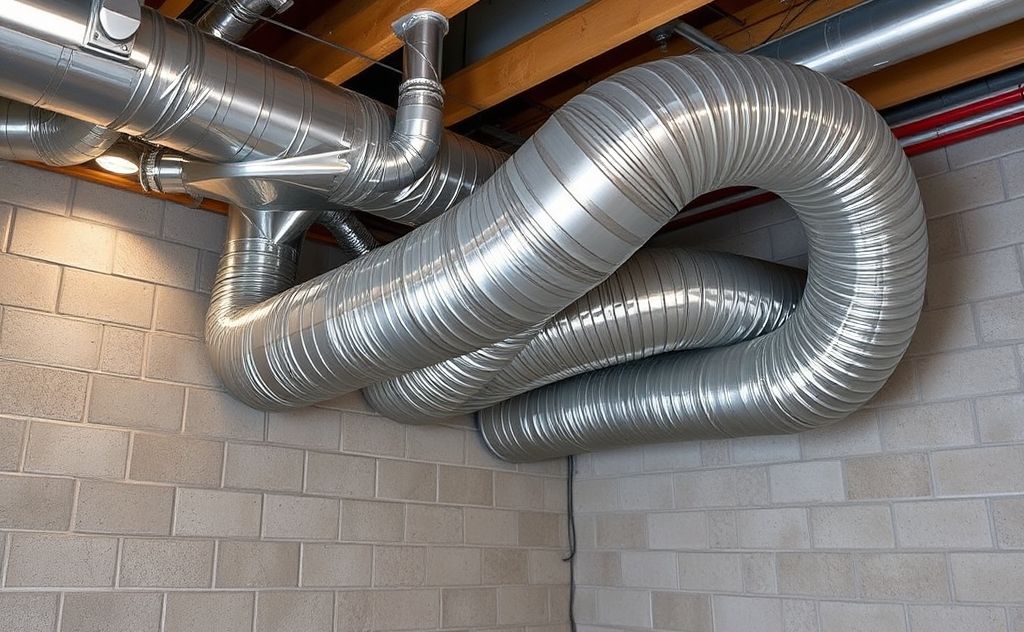

Flex duct is the biggest offender in residential systems. It’s cheap, easy to install, and universally misused. The problem is the spiral wire core. Even when fully stretched, the ridges create friction. When you bend flex duct, the wire core collapses on the inside of the curve, creating a severe restriction.

A properly stretched flex duct run has about 1.5 times the friction loss of smooth rigid duct. But a flex duct with a sharp 90° bend can have 3 to 5 times the loss of a rigid elbow. In extreme cases, a kinked flex duct can cut airflow by half.

Rigid duct (galvanized steel or spiral pipe) has a smooth interior. A properly formed rigid elbow maintains its circular cross-section through the turn. The air flows with less turbulence and less pressure drop. If you have a choice, rigid duct wins every time.

If you must use flex duct, keep it straight and use a rigid elbow at the turn. Connect the flex to the elbow, not the other way around.

The Critical Radius-to-Diameter (R/D) Ratio

The radius-to-diameter ratio is the single most important number for elbow performance. It’s the ratio of the centerline radius of the elbow to the diameter of the duct. A 6-inch duct with a 6-inch centerline radius has an R/D of 1.0. That’s a standard elbow.

An R/D of 1.0 is fine for most residential work. You get a reasonable balance between space and pressure drop. But you can do better. An R/D of 1.5 (a long-radius elbow) reduces pressure drop by about 30% compared to R/D 1.0. The air has a gentler turn, so it doesn’t separate from the walls as much.

An R/D below 1.0 is where things get ugly. A sharp 90° elbow with R/D of 0.5 has more than double the pressure drop of a standard elbow. This happens when installers force a tight turn in a cramped space. The result is poor airflow and a noisy system.

When you buy elbows, look for the R/D ratio on the spec sheet. Most standard fittings are R/D 1.0. Long-radius versions are R/D 1.5 and cost slightly more. The extra cost pays for itself in lower static pressure and better airflow.

How to Calculate Total Equivalent Length (TEL) for Your System

Total Equivalent Length is the sum of all straight duct sections plus the equivalent lengths of every fitting. It’s the number you use to estimate total system resistance. Here’s the simple formula:

TEL = (Length of straight duct) + (Equivalent length of each fitting)

Let’s walk through an example. You have a 30-foot straight run of 6-inch rigid duct with two standard 90° elbows and one 45° elbow.

1. Straight duct: 30 feet
2. Two 90° elbows: 2 × 15 = 30 feet
3. One 45° elbow: 1 × 6 = 6 feet
4. TEL = 30 + 30 + 6 = 66 feet

That 66 feet is your effective duct length for pressure drop calculations. If you compare it to the duct sizing chart for your blower, you can see if the system is oversized or undersized.

Now consider the same run using flex duct with two sharp bends. The equivalent length jumps dramatically. That same 30-foot run might have a TEL of 30 + 60 + 15 = 105 feet. The blower sees a much harder path, and airflow suffers.

You can use this calculation to compare design options before you install anything. It’s the same math HVAC engineers use for commercial systems. It works for homes too.

5 Ways to Minimize Efficiency Loss from Bends

You don’t need to rip out your entire duct system to improve performance. These fixes target the worst offenders and give you measurable gains.

Use Long-Radius Elbows

Swap out standard elbows for long-radius versions (R/D 1.5 or higher). This is a direct replacement that cuts pressure drop by roughly 30% per elbow. If you have three standard elbows, upgrading them all reduces the total equivalent length by about 15 feet. That’s significant for a small investment.

Install Turning Vanes

Turning vanes are curved metal blades installed inside the elbow. They guide the airflow around the corner, preventing flow separation and turbulence. They’re most effective in rectangular duct elbows, but some round duct versions exist. A well-vaned elbow can have a pressure drop close to a straight duct section.

You can find turning vane kits at HVAC supply houses. Installation takes about 30 minutes per elbow. The performance gain is substantial, especially on the main trunk line where all the air passes through.

Stretch Flex Duct Tightly

Most flex duct is installed with extra slack. That slack creates sags and dips that look like bends. Every sag adds resistance. Pull the flex duct taut between supports, removing all visible sag. You’ll be surprised at the airflow improvement.

Use the support straps every 4-5 feet to keep it from sagging over time. Gravity never stops working, and flex duct will slowly droop if you don’t secure it properly.

Avoid Sharp Kinks and Crushes

A kinked duct is a disaster for airflow. Even a small crush can reduce the cross-sectional area by half, doubling the velocity and quadrupling the pressure drop. Walk your attic or crawlspace and look for any duct that’s pinched, crushed, or bent at a sharp angle.

If you find a kink, cut it out and replace that section with a rigid elbow or a straight piece. It’s a quick fix that can restore lost airflow immediately.

Redesign the Duct Path for Fewer Turns

Sometimes the best fix is to reroute a section of duct. If you have a run that makes three 90° turns, see if you can consolidate them into two turns or use two 45° elbows instead. Every eliminated elbow reduces the TEL and improves airflow.

This is harder to do in finished spaces, but it’s often worth the effort in attics and basements where ducts are exposed. The labor cost is offset by the energy savings over the life of the system.

The Hidden Problem: Dust and Debris Accumulation at Bends

Bends don’t just restrict airflow through turbulence. They also collect dust and debris faster than straight sections. The same flow separation that wastes energy also creates low-velocity zones where particles settle out of the airstream.

Over time, this buildup narrows the effective duct diameter and increases friction loss. A duct that was marginal when clean becomes severely restricted after a few years of dust accumulation. This is why regular duct cleaning matters, especially at the elbows.

You can check for buildup by removing a register and looking inside the duct with a flashlight. If you see a thick layer of dust at the first bend, it’s time for a cleaning. Professional duct cleaning services use rotary brushes that can reach into elbows and remove the accumulation.

The good news is that cleaning restores most of the lost performance. A clean system with smooth elbows will move more air than a dirty one with the same fittings. It’s one of the cheapest ways to improve HVAC efficiency without changing any equipment.

Putting the Numbers to Work

Here’s the bottom line: every bend in your duct system costs you airflow and money. The losses are measurable and cumulative. A system with four standard 90° elbows and a few feet of sagging flex duct could be losing 20-30% of its potential airflow.

Start by calculating the TEL of your worst duct run. Identify the sharpest bends and the most restrictive flex duct sections. Fix those first. Replace sharp elbows with long-radius versions, stretch the flex duct, and remove any kinks you find.

You don’t have to do everything at once. Even fixing one or two bad bends will improve airflow to the rooms at the end of the run. The improvements compound as you address more fittings.

If you’re planning a new system or a major renovation, design the duct path with fewer turns and smoother elbows from the start. The upfront cost is slightly higher, but the energy savings and comfort improvements last for decades. For a deeper look at how the overall layout affects performance, check out this ductwork layout guide.

Frequently Asked Questions

How much airflow does a 90-degree elbow reduce?

A standard 90-degree elbow in 6-inch round duct reduces airflow by about 5-7% compared to a straight section of the same length. A sharp elbow (R/D less than 1.0) can reduce it by 10-12%. The exact loss depends on the duct size, air velocity, and the elbow’s radius.

Is flex duct worse than rigid duct for bends?

Yes, significantly. Flex duct has a spiral wire core that creates friction even when straight. At a bend, the core collapses and restricts the cross-sectional area. A flex duct bend can have 3-5 times the pressure drop of a rigid elbow. Always use rigid elbows at turns, even if the rest of the run is flex.

What is the best radius for a duct elbow?

The best radius-to-diameter ratio is 1.5 or higher. This is called a long-radius elbow. It reduces pressure drop by about 30% compared to a standard R/D 1.0 elbow. Anything below R/D 1.0 should be avoided unless there’s absolutely no space.

Can I use two 45-degree elbows instead of one 90-degree?

Yes, and it’s usually better. Two 45-degree elbows with a short straight section between them have a lower combined pressure drop than a single 90-degree elbow. The straight section allows the airflow to reattach to the duct walls before the second turn.

How do I know if my ducts have too many bends?

Calculate the total equivalent length (TEL) of your longest run. Compare it to the rated capacity of your blower. If the TEL exceeds the recommended maximum for your blower’s static pressure rating, you have too many bends. Symptoms include weak airflow at far registers, whistling sounds, and uneven room temperatures. For more on how duct design impacts overall energy use, see this HVAC duct design efficiency article.
