Where you put your HVAC system isn’t just about convenience or space. It’s a major factor in your home’s energy efficiency, comfort, and long-term operating costs. Think of it as the foundation for everything elsepoor placement can undermine even the most advanced, high-SEER equipment.
Getting the location right from the start is a proactive step toward lower utility bills. It affects everything from how hard your system works to how evenly your home is heated or cooled. For homeowners looking to optimize an existing setup, tools like the SmartZone-4X Control – can be a game-changer, allowing for precise zoning and management of airflow based on actual room usage, which directly addresses inefficiencies caused by less-than-ideal unit placement.
Why Your HVAC’s Address Matters for Energy Bills
Your HVAC system’s location directly influences its thermal loadthe amount of heating or cooling it must produce to keep you comfortable. Place an outdoor unit in full afternoon sun, and it’s fighting against nature before it even starts cooling your house. This isn’t just theory; it’s physics impacting your wallet.
Proper HVAC positioning minimizes strain. When the system doesn’t have to overcome environmental handicaps, it runs shorter cycles, uses less energy, and lasts longer. This is the core of system efficiency. Its one of the most impactful yet overlooked aspects of home performance.
Key Factors: Sun, Air, and Access
Three environmental elements demand your attention during the planning phase. Ignoring them is a common mistake with costly consequences.
- Sun Exposure: This is the big one for outdoor units. A condenser baking in direct sunlight can lose up to 10% of its efficiency. North-facing or shaded spots are ideal. For indoor units like furnaces, avoid unconditioned spaces like attics where summer heat soars.
- Ventilation & Airflow: Both indoor and outdoor units need abundant, unobstructed air. An outdoor condenser crammed against a wall or hedges will struggle to expel heat. Inside, a furnace or air handler needs clear space for return and supply airclutter causes airflow restriction.
- Accessibility for Service: If a technician can’t easily reach the unit for maintenance, it won’t get serviced properly. Poor maintenance is a fast track to degraded thermal performance and higher energy use. Simple access promotes care.
Indoor vs. Outdoor Unit: A Placement Guide
Breaking down the HVAC placement guide by unit type clarifies the priorities for each component.
Finding the Best Place for Your AC Unit & Heat Pump

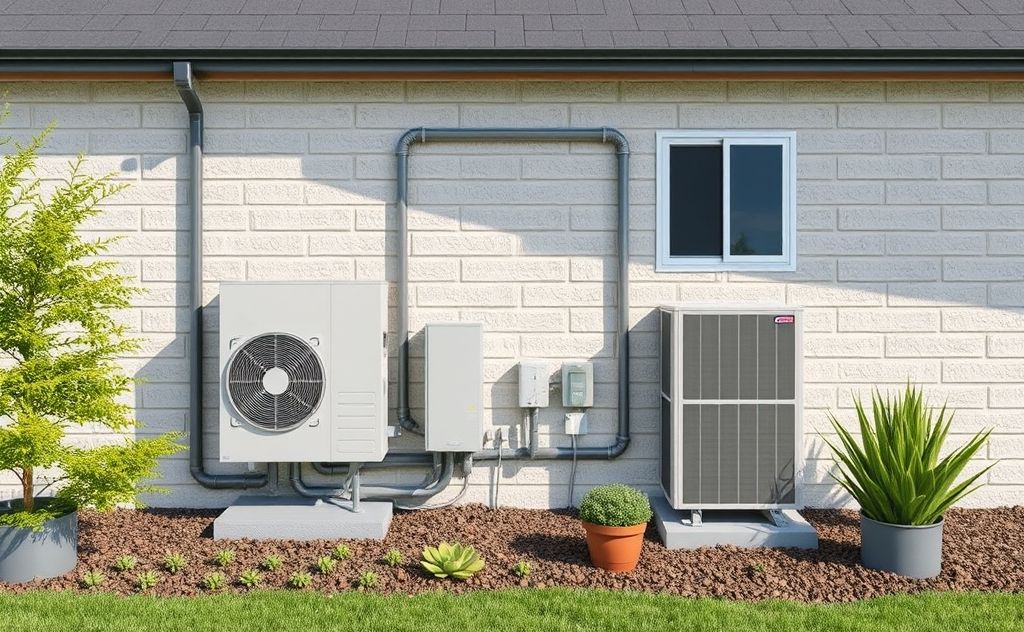

Your outdoor condenser or heat pump is the workhorse. Its installation location is critical. Aim for a spot on the north or east side of your home, shielded from the worst of the afternoon sun. Ensure at least 2-3 feet of clearance on all sides for airflow.
Heat pump placement tips also include considering noise. While modern units are quieter, placing one directly under a bedroom window might be disruptive. A common question is, how far should heat pump be from house for efficiency? The manual specifies minimum distances, but generally, close enough for short, efficient refrigerant lines, but with ample clearance.
Optimizing Furnace and Air Handler Location
Indoor units thrive in conditioned, central, and spacious locations. A basement often works well, as it’s typically cooler in summer. But does furnace location in basement affect energy bills? Only if the basement is excessively damp, poorly insulated, or the ductwork runs through unconditioned spaces, losing conditioned air.
The indoor air handler location should be central to the ductwork layout to minimize long, leaky duct runs. A closet in a central hallway is often better than a far corner of the attic. For two-story homes, the best HVAC placement for two-story home efficiency often involves strategic zoning or even separate systems to handle different thermal load demands per floor.
Common Placement Mistakes and Their Energy Impact
Seeing these errors helps you avoid them. They’re more common than you think.
- The Sun-Trap Condenser: Placing the outdoor unit in a south/west facing spot with no shade. Result: It works 10-15% harder, increasing wear and energy consumption from the start.
- The Cluttered Mechanical Room: Storing boxes around the furnace blocks return air. This causes airflow restriction, forcing the fan to work harder and reducing heating/cooling delivery. It can also lead to dangerous overheating.
- Ignoring Zoning Needs: Using one thermostat for a multi-story or sun-drenched home creates hot/cold zones. The system runs constantly to satisfy the thermostat, leading to comfort complaints and wasted energy. This is where a zoning system, or even simpler solutions like the SmartZone-4X Control –, proves its worth by managing different areas independently.
- Long, Leaky Duct Runs: Putting the air handler in a remote attic means ducts must travel far. Ducts in unconditioned spaces leak conditioned air, sometimes wasting 30% of the energy. It’s a silent budget drain.
These mistakes often lead to short-cycling, where the system turns on and off too frequently. This constant starting and stopping is incredibly inefficient and stressful on components. It’s a key symptom of a poorly located or sized system.
Professional Assessment and Optimization Tips
You can’t always move a system easily. But you can optimize. Start with a professional energy audit. They use tools like blower doors and thermal cameras to find air leaks and insulation gaps that exacerbate placement issues.
For existing systems, focus on mitigation:
- Create Shade: Install a shading structure (with ample clearance) over a sun-exposed condenser. Use deciduous plants for seasonal shade.
- Seal and Insulate Ductwork: This is the single best retrofit, especially for ducts in attics or crawlspaces. It directly improves system efficiency.
- Improve Airflow: Clear all obstructions around indoor and outdoor units. Change filters monthly. Consider upgrading to a high-efficiency air filter, but ensure it doesn’t cause excessive static pressure.
- Implement Zoning: Install dampers in your ducts and a zoning control panel. This allows you to direct air only where it’s needed, counteracting the downsides of a less-than-perfect indoor air handler location. It’s a powerful upgrade for energy savings.
- Consider Supplemental Solutions: In areas with specific heating needs, like a drafty room, a targeted solution can be more efficient than overtaxing the central system. Understanding the pros of different portable heaters, for instance, can help you make an efficient choice for spot heating.
Always consult a qualified HVAC contractor for major changes. They can perform Manual J and D calculations to determine your home’s precise load and ideal duct design. For more on system selection, which goes hand-in-hand with placement, our review on what makes good water heaters highlights how quality installation location applies to all home systems.
Your Action Plan for Efficient Placement
Whether you’re installing new or retrofitting old, keep this checklist handy. It consolidates the energy efficient HVAC location principles.
| Unit Type | Priority | Question to Ask |
|---|---|---|
| Outdoor Condenser/Heat Pump | Shade & Ventilation | Where should I place my outdoor AC unit for best efficiency? (Answer: Shaded, clear, on a stable pad) |
| Indoor Furnace/Air Handler | Central, Conditioned, Accessible | Is it in a space that stays relatively moderate year-round? |
| Ductwork | Short, Sealed, Insulated | Are the ducts mostly inside the home’s thermal envelope? |
| Overall System | Professional Design | Was the system sized and laid out based on a room-by-room load calculation? |
The location of your HVAC system is a strategic decision with decades-long repercussions. It’s not just about where it fits. It’s about how it performs. A well-placed system works with your home’s environment, not against it, leading to tangible energy savings and enhanced comfort. For the latest technical standards and tips, the Department of Energy’s official source on central air is an invaluable reference. Start with smart placementit’s the quiet, unseen upgrade that pays for itself every single month.
