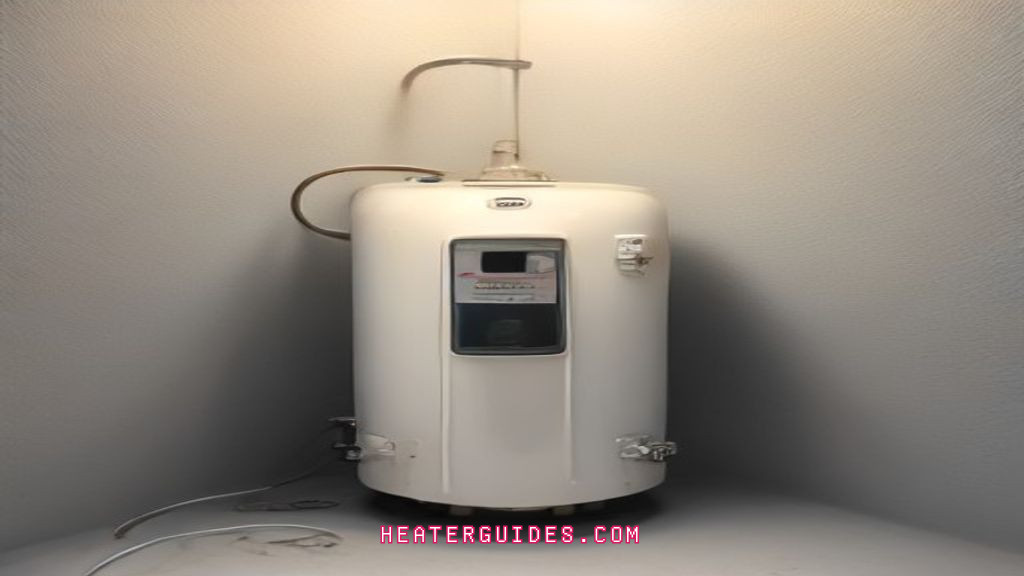

Water Heater Pilot Light Won’t Stay On? Fix It Fast

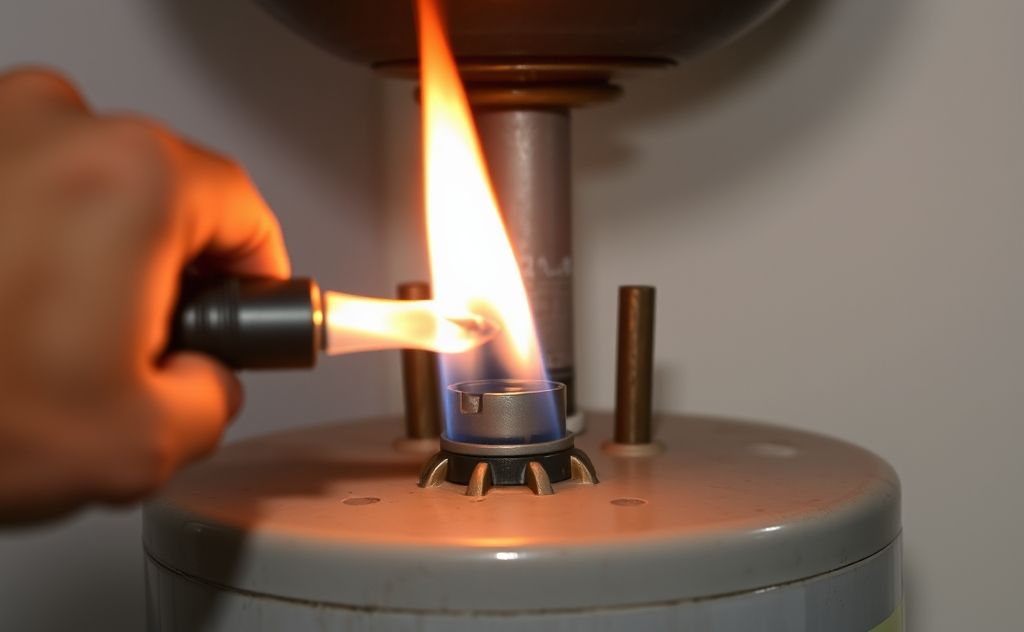

You hold the pilot button, light the flame, and wait the required 60 seconds. The moment you release the button, the flame dies with a soft puff. Repeat three times. Same result. Now you’re staring at a cold shower and wondering if this is a $10 repair or a $500 service call.

Most of the time, it’s the cheap one. A water heater pilot light that won’t stay on is almost always a thermocouple that’s worn out, a pilot orifice that’s clogged, or a draft blowing the flame away from the sensor. This guide walks you through each cause in order of likelihood, shows you exactly how to test the parts, and tells you when to stop DIY and call a professional. You’ll know how to fix it fast, without replacing parts you don’t need.

If you’re working on an RV or camper with an Atwood or Dometic unit, the Lrichy 91603 Jade Pilot Thermocouple Kit includes both the pilot tube and thermocouple in one package. That saves you from buying two separate parts and hoping they match.

Why Your Pilot Light Keeps Going Out (The 30-Second Diagnosis)

Think of the pilot assembly as a tripod. The gas tube delivers propane or natural gas to the pilot head. The thermocouple sits in the flame and generates a small electrical voltage. That voltage holds open the safety valve inside the gas control valve. If any leg of that tripod fails, the valve closes and kills the flame.

Here’s the quick diagnostic sequence. Watch the flame when you release the button.

• Flame burns bright blue but dies instantly on release: Thermocouple is weak or the connection at the gas valve is loose.
• Flame is small, yellow, or flickering: Pilot orifice is partially clogged. The flame isn’t hitting the thermocouple with enough heat.
• Flame looks normal but gets blown out by a draft: Environmental issue, not a parts failure.
• Pilot won’t light at all: Gas valve problem, air in the line, or a completely blocked orifice.

That’s the whole diagnostic tree in one glance. Now let’s get into the specifics of testing each component.

Safety First: What to Do Before You Touch Anything

Gas appliances demand respect. One mistake can fill your home with carbon monoxide or create an explosion risk. Before you remove a single screw, do these three things.

1. Turn the gas control valve to OFF. This is the dial with PILOT, ON, and OFF positions. Wait five minutes for any residual gas to dissipate.
2. Shut off the gas supply at the shutoff valve on the gas line feeding the water heater. This is a separate valve, usually a lever or a knob, located on the pipe before the control valve.
3. Have a flashlight and an adjustable wrench ready. You’ll need both. A 9/16-inch wrench fits most thermocouple nuts, and a 1/2-inch wrench fits the pilot tube fitting.

Also, check the area around the water heater for anything flammable. Gasoline, paint thinner, cardboard boxes — move them away. If you smell gas at any point during the repair, stop, open a window, and call your gas company from outside the house.

The 4 Most Common Culprits (And How to Test Each One)

Faulty Thermocouple: The #1 Cause

The thermocouple is a copper tube with a small metal probe on one end and a threaded nut on the other. When the probe is heated, it generates about 25 to 30 millivolts of DC electricity. That voltage travels up the copper tube to the gas valve, where it energizes an electromagnet that holds the safety valve open.

Over time, the two dissimilar metals inside the probe degrade. Heat cycles cause them to lose their ability to generate voltage. A thermocouple that produces less than 10 millivolts won’t hold the valve open.

Testing it takes a multimeter. Set the meter to DC millivolts. Disconnect the thermocouple nut from the gas valve. Clip one meter lead to the copper tube and the other to the tip of the probe. Light the pilot and hold the button down. You should see a reading between 20 and 30 millivolts. If it reads below 10, replace it. If it reads 15 to 19, it’s marginal and will likely fail soon.

Clogged Pilot Orifice: The Silent Killer

The pilot orifice is a tiny brass fitting with a hole the size of a pinhead. It meters the exact amount of gas needed to keep a small flame burning. Dust, spider webs, and corrosion from the gas line can partially block that hole.

A clogged orifice produces a weak, lazy flame that doesn’t reach the thermocouple. The thermocouple doesn’t get hot enough, so it can’t generate the millivolts needed to hold the valve open. The pilot lights, but dies the second you release the button.

You can test this without removing anything. Look at the flame while holding the button down. A healthy pilot flame is a crisp blue cone, about 1/2 to 3/4 inch tall, with the tip of the inner flame wrapping around the thermocouple probe. If the flame is yellow, sputtering, or barely touching the probe, the orifice is likely clogged.

Failing Gas Control Valve: When to Call a Pro

The gas control valve is the brain of the water heater. It regulates gas flow, monitors the thermocouple signal, and contains the safety cutoff. If the valve itself is failing, you’ll see one of these symptoms:

• Pilot lights but won’t stay on even with a brand-new thermocouple.
• The pilot won’t light at all, even with the gas supply confirmed open.
• The gas valve makes a clicking or hissing sound that isn’t normal.
• The reset button (if equipped) won’t stay depressed.

Gas control valves are not user-serviceable. They contain springs, diaphragms, and safety mechanisms that must be calibrated. Replacing one involves disconnecting the gas line and re-tightening fittings to exact torque specs. This is a job for a licensed plumber or HVAC technician. The cost of a new valve runs $150 to $300, plus labor, but it beats the risk of a gas leak.

Drafts and Airflow: The Environmental Factor

Sometimes the hardware is fine and the problem is the wind. A pilot flame is small and easily extinguished by a draft. This happens most often in:

• Basements with open windows or doors.
• Garages where a car door opening creates a pressure wave.
• Outdoor or vented closet installations exposed to wind.

Check for drafts by holding a lit match or lighter near the pilot assembly. If the flame flickers or bends when you move the match around, you’ve found the problem. A draft hood or baffle can redirect airflow, but the simplest fix is often closing a nearby window or adding a door sweep.

How to Fix It Fast: Step-by-Step Repairs

Replacing a Thermocouple in 10 Minutes

You’ll need a new thermocouple, an adjustable wrench, and a 1/2-inch wrench. Most universal thermocouples cost $10 to $20 and work with any gas water heater.

1. Turn off the gas at both the control valve and the shutoff valve.
2. Remove the access panel at the bottom of the water heater to expose the burner and pilot assembly.
3. Disconnect the old thermocouple nut from the gas control valve. It’s the copper tube with a hex nut on the end. Turn it counterclockwise with a wrench.
4. Pull the thermocouple probe out of the bracket near the pilot head. It slides out, but may need a gentle wiggle if it’s corroded.
5. Insert the new thermocouple probe into the same bracket. Make sure the tip sits in the path of the pilot flame, usually just above the pilot tube opening.
6. Thread the new nut into the gas valve. Tighten it snugly with the wrench, but don’t overtighten — the nut is brass and can strip.
7. Turn the gas back on, set the valve to PILOT, and relight. Hold the button down for 60 seconds, then release. If the flame stays, you’re done.

One tip: if the thermocouple nut won’t thread in smoothly, check the threads on the gas valve. They can corrode. A wire brush cleans them up in seconds.

Cleaning the Pilot Assembly Without Removing It

If the flame looks weak, the orifice is likely clogged. You can clean it without removing the whole assembly from the tank.

1. Turn off the gas and wait five minutes.
2. Disconnect the pilot tube from the gas valve. This is the smaller tube, not the thermocouple.
3. Remove the pilot assembly from its bracket. It’s held by a single screw or clip.
4. Locate the orifice — a small brass insert at the end of the pilot tube.
5. Use a needle or a thin wire (like a bread tie stripped of paper) to gently poke through the hole. Don’t use a toothpick; it can break off and wedge deeper.
6. Blow compressed air through the tube from the other end to dislodge any debris.
7. Reassemble everything, turn on the gas, and relight.

If the orifice looks corroded or pitted, replace the entire pilot assembly. It’s a $25 to $40 part and takes the same amount of time to swap.

Resetting the Honeywell Control Valve (Step-by-Step)

Many gas water heaters use a Honeywell gas valve with a red or black reset button. This button trips when the thermal cutoff switch (ECO) detects overheating. The ECO is a safety device that shuts off the gas if the water temperature exceeds about 180°F.

If your pilot light goes out and the reset button is popped up, here’s how to reset it:

1. Turn the gas valve to OFF.
2. Wait five minutes for the valve to cool down.
3. Press the reset button firmly until it clicks and stays flush.
4. Set the valve to PILOT and relight the pilot.
5. Turn to ON and set the temperature dial.

If the ECO trips again within a day, you have a different problem — likely a failed thermostat or a sediment buildup in the tank causing hot spots. Don’t keep resetting it. Call a plumber.

When to Stop DIY and Call a Plumber

You can handle a thermocouple swap, an orifice cleaning, and a draft fix. But some situations need professional help:

• You’ve replaced the thermocouple and cleaned the orifice, but the pilot still won’t stay lit. That points to the gas control valve.
• You smell gas. This is non-negotiable. Evacuate the area and call the gas company.
• The water heater is more than 10 years old and has other issues — leaking tank, rusted fittings, or a faulty thermostat. The cost of repairs may exceed the value of the unit.
• Your local code requires a licensed installer for gas appliance work. Many municipalities do.

Also, if you’re not comfortable working with gas, there’s no shame in calling a pro. A service call runs $150 to $300, and it’s cheaper than a hospital visit.

How to Prevent This From Happening Again

Pilot light failures aren’t random. They’re the result of wear, contamination, and neglect. Here’s how to extend the life of your pilot assembly:

• Dust the burner area annually. Use a vacuum with a brush attachment to remove lint, spider webs, and debris from the access panel area.
• Check the flame color every few months. A healthy flame is blue with a small yellow tip. If it turns orange or lazy, clean the orifice.
• Keep the area around the water heater clear of cardboard boxes, cleaning supplies, and anything that could block airflow or catch fire.
• Test the thermocouple voltage once a year with a multimeter. If it drops below 15 millivolts, replace it before it fails.
• Drain a few gallons of water from the tank every six months to flush out sediment. Sediment can cause overheating, which trips the ECO and kills the pilot.

These steps take about 30 minutes a year and can save you from a cold-shower emergency in the middle of winter.

Frequently Asked Questions

How long should I hold the pilot button down?

Hold it for 60 seconds. That’s the standard for most gas water heaters. The thermocouple needs time to heat up and generate enough millivolts to hold the safety valve open. Holding it for 30 seconds often isn’t enough, especially if the thermocouple is marginal. If the flame dies after 60 seconds, you have a hardware problem, not a patience problem.

Can I bypass the thermocouple to test it?

Technically yes, but don’t. Bypassing the thermocouple defeats the safety system. If the pilot flame goes out, the gas valve would continue to release gas without a flame to burn it. That’s a recipe for an explosion. Test the thermocouple with a multimeter instead. It takes two minutes and doesn’t compromise safety.

Why does my pilot light go out in windy weather?

Wind creates a pressure differential that can blow the pilot flame away from the thermocouple. This is most common with outdoor water heaters or units installed in vented closets. A draft hood or a wind guard on the vent pipe can help. If the problem only happens during storms, check the vent pipe for blockages like bird nests or leaves.

What’s the difference between a thermocouple and a thermopile?

A thermocouple is a single probe that generates about 30 millivolts. A thermopile is a bundle of thermocouples that generates about 750 millivolts. Thermopiles are used in water heaters with electronic ignition or standing pilot systems that power a gas control valve with a digital display. If you have a thermopile system, the testing procedure is the same, but the voltage readings are much higher. A healthy thermopile reads 400 to 750 millivolts.

Can a dirty pilot tube cause the pilot to go out?

Yes. The pilot tube delivers gas to the orifice. If it’s kinked, corroded, or blocked, the gas flow drops, and the flame becomes too weak to heat the thermocouple. Inspect the tube for kinks and blockages when you clean the orifice. If the tube is damaged, replace the entire pilot assembly.

What to Do Now: A Quick Action Plan

• Start with the flame test: bright blue means thermocouple, weak yellow means clogged orifice.
• Test the thermocouple with a multimeter before buying a replacement. It should read 20-30 millivolts.
• Clean the pilot orifice with a needle and compressed air before replacing any parts.
• Check for drafts around the water heater and eliminate them.
• If you have an RV or camper, the Lrichy pilot thermocouple kit fits most Atwood and Dometic models and includes both parts.
• Call a plumber if you’ve replaced the thermocouple, cleaned the orifice, and the pilot still won’t stay lit.
• Do the annual maintenance: dust, drain, and test the thermocouple voltage.

You’ve got the knowledge now. The next time that pilot light dies, you’ll know exactly where to look and what to fix.
