How HVAC and Building Insulation Work Together for Efficiency

The connection between HVAC and building insulation lies in insulation’s role in enhancing energy efficiency, reducing heating and cooling costs, and improving comfort.

HVAC systems and building insulation are two critical components that work together to maintain comfortable indoor temperatures. Proper insulation reduces the workload on HVAC equipment, leading to lower energy costs and better performance. Understanding this relationship helps homeowners and builders create more efficient structures.

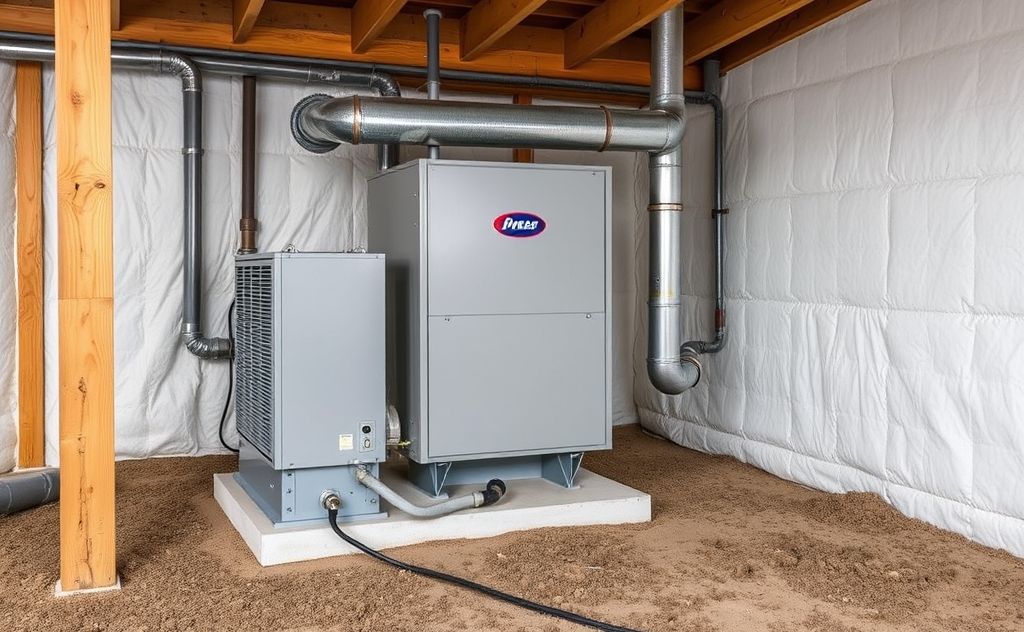

HVAC system with insulated building elements

The Role of Insulation in HVAC Performance

Insulation acts as a thermal barrier between indoor and outdoor environments. Quality insulation prevents heat transfer through walls, ceilings, and floors. This directly impacts how hard your HVAC system must work.

Heat Transfer Reduction

Insulation materials like fiberglass, cellulose, or spray foam slow heat movement. In winter, they keep warm air inside. In summer, they block heat from entering. This stable temperature reduces HVAC cycling.

Ductwork Efficiency

Insulated ducts prevent energy loss as air travels through the system. According to building codes, ducts in unconditioned spaces require minimum R-values for proper performance.

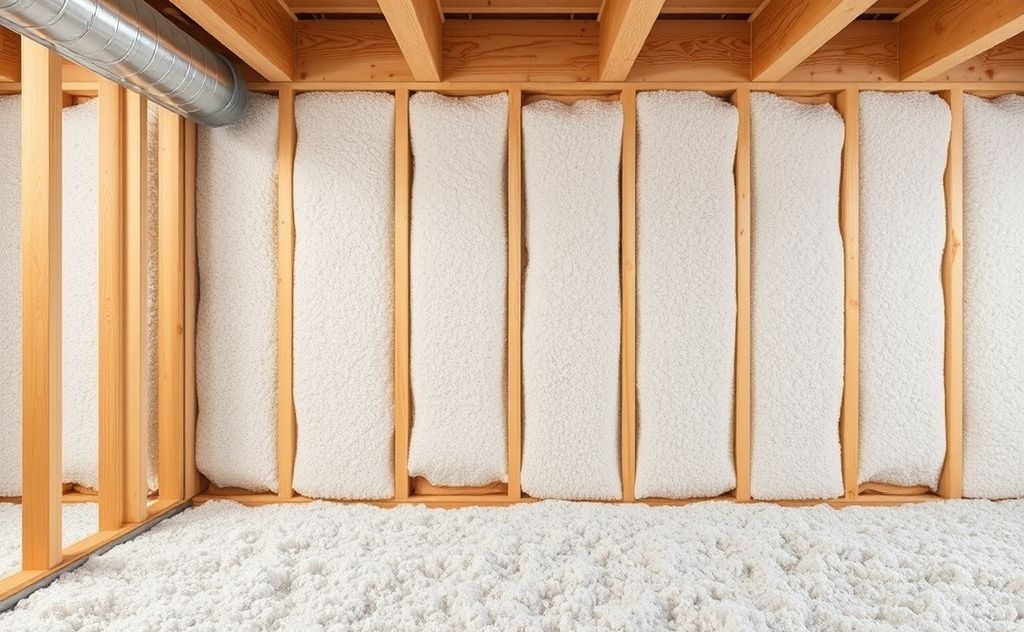

Types of insulation for HVAC efficiency

Types of Insulation for HVAC Optimization

Different insulation materials offer varying benefits for HVAC efficiency:

Material R-Value per Inch Best Use
Fiberglass 2.9-3.8 Walls, attics, ducts
Cellulose 3.2-3.8 Wall cavities, attics
Spray Foam 6.0-7.0 Irregular spaces, sealing

HVAC System Design Considerations

Proper HVAC design must account for insulation levels throughout the building. Oversized systems in well-insulated homes lead to short cycling and inefficiency.

Load Calculations

HVAC professionals perform Manual J calculations to determine proper system sizing. These account for insulation values, window quality, and air leakage rates.

READ MORE  Demand Controlled Ventilation: Smart HVAC Energy Savings

Zoning Strategies

Well-insulated buildings may benefit from zoned HVAC systems that allow different temperature control in various areas.

Common Insulation Problems Affecting HVAC

Several insulation issues can negatively impact HVAC performance:

  • Compressed insulation losing R-value
  • Gaps around electrical boxes and pipes
  • Moisture damage reducing effectiveness
  • Settled material in walls over time

Energy Savings Potential

The U.S. Department of Energy estimates proper insulation can reduce heating and cooling costs by up to 20%. Combined with an efficient HVAC system, savings can be even greater.

Payback Period

Most insulation upgrades pay for themselves within 3-5 years through energy savings. High-quality materials like spray foam may have longer payback periods but offer superior performance.

Maintenance for Optimal Performance

Regular maintenance ensures both insulation and HVAC systems work effectively:

  1. Annual HVAC inspections
  2. Duct leakage testing every 3-5 years
  3. Insulation checks during home renovations
  4. Air sealing improvements as needed

Advanced Technologies

New developments continue to improve the HVAC-insulation relationship:

Smart Vapor Barriers

These materials adjust permeability based on humidity levels, improving moisture control while maintaining thermal performance.

Aerogel Insulation

With R-values up to 10 per inch, aerogel offers superior performance in thin applications, though at higher cost.

Building Code Requirements

Modern energy codes specify minimum insulation levels for different climate zones. The International Energy Conservation Code provides guidelines for both residential and commercial buildings.

Climate Zone Variations

Northern regions require higher R-values than southern areas. Proper HVAC sizing must account for these regional differences in insulation requirements.

Indoor Air Quality Considerations

While insulation improves efficiency, some materials can affect indoor air quality if not properly installed or maintained. Fiberglass particles and mold growth in damp insulation are potential concerns that may require specialized HVAC filtration.
