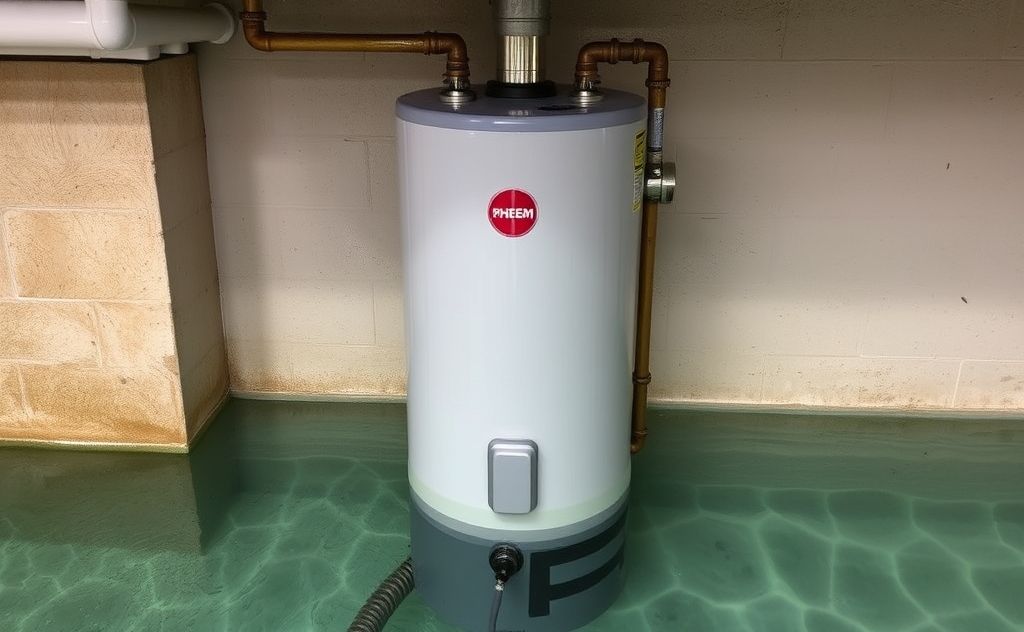

You walk into the basement or utility closet and see it. A puddle of water around the base of your Rheem water heater. Your heart sinks a little. A water heater leaking from the bottom is a problem you can’t ignore. It demands immediate attention, but it doesn’t always spell disaster. The key is a calm, systematic diagnosis.
Panic is the enemy here. A leak can range from a simple, five-minute fix to a sign of terminal failure. The locationthe bottomnarrows down the suspects. Before you call for a full replacement, let’s play detective. You might be surprised how often the issue is something you can handle yourself. For many homeowners, having a reliable backup plan is wise. If you’re considering a different type of unit, exploring an EWH-01 Electric Water heater could be a solid option for consistent performance.
Step-by-Step Diagnosis: Finding the Source of the Leak
First, safety. Turn off the power to an electric unit at the circuit breaker. For gas, turn the thermostat to “Pilot” or off. Shut off the cold water supply valve feeding the tank. This stops new water from entering and gives you a dry workspace. Now, grab a flashlight and a towel.
Dry the entire tank, especially around the bottom. Use the towel to soak up any standing water in the drain pan if you have one. This is critical. You need to see where the water is coming from, not just where it’s pooling. Turn the water supply back on briefly and watch closely. Follow the water uphill.
Common Culprits: The Usual Suspects
Most leaks from the bottom area originate from a few key components. Start your inspection here, moving from the easiest to the most serious.
The Drain Valve
This is public enemy number one for leaks at the base. The drain valve is a brass or plastic spigot at the very bottom of the tank. It’s used for flushing sediment. Over time, the washer inside can degrade, or the valve itself can loosen. Feel around it. Is water actively dripping from the spout or the threads? A common long-tail query is how to fix a Rheem water heater leaking at the drain valve. Often, simply tightening the valve a quarter-turn with a wrench stops the leak. If the washer is shot, replacement valves are cheap and easy to install.
The Temperature and Pressure (T&P) Relief Valve
This vital safety device is usually on the side or top of the tank, with a pipe that runs down the side to near the bottom. If this valve is leaking, water will travel down that discharge tube and appear at the base, mimicking a tank leak. Check the end of the pipe. A small, occasional drip might be normal operation relieving excess pressure. A steady stream indicates a faulty valve or dangerously high tank pressure. Never cap this valve. Replacement is straightforward.
Inlet and Outlet Connections
Check where the cold water inlet and hot water outlet pipes connect to the tank. These fittings can corrode or loosen. Tighten them gently with a pipe wrenchbut don’t over-torque. Also, inspect the pipe nipples themselves for corrosion. A leak here is usually a simple fix involving pipe tape or a new fitting.
The Condensation Mirage
Here’s a curveball. In humid environments, cold water entering a tank can cause the outer shell to sweat. This condensation can drip and pool, looking exactly like a leak. The test is simple. Touch the water. If it’s cool and the tank isn’t actively leaking from a fitting, it’s likely condensation. Improving ventilation often solves this.
When It’s a Tank Leak: Understanding Tank Corrosion
If you’ve ruled out all the fittings, valves, and condensation, the news is more serious. The leak is likely from the tank itself. This is often caused by internal tank corrosion that has breached the steel. The anode rod, a sacrificial component designed to corrode instead of your tank, may be fully depleted. This is a terminal diagnosis.
A leak from the tank body, especially along a weld seam or from a corroded spot, is not repairable. The tank is under constant pressure, and any patch is temporary at best. This is when you face the repair vs. replacement decision. Many ask, is a Rheem water heater leaking from bottom covered under warranty? It can be, but typically only if the tank is within its warranty period (often 6-12 years) and the failure isn’t due to improper installation or lack of maintenance. Check your manual or the official source for details.
The Role of Sediment and Maintenance
Neglect accelerates death. Water heater sedimentminerals and debris that settle at the tank bottomcreates a barrier. This causes the bottom of the tank to overheat, accelerating corrosion. It can also clog the drain valve, making flushing difficult. A Rheem water heater leaking from bottom after flushing might indicate that disturbing the sediment bed exposed a weak, corroded spot. Regular flushing and anode rod replacement are the best ways to maximize your tank’s lifespan.
| Symptom / Source | Likely Cause | Action |
|---|---|---|
| Drip from drain valve spout | Faulty valve or washer | Tighten or replace valve |
| Water at end of T&P discharge pipe | Faulty T&P valve or high pressure | Replace T&P valve; check home water pressure |
| Moisture on tank shell, cool water | Condensation | Improve air circulation, insulate pipes |
| Seeping from tank seams or rust spots | Internal tank corrosion | Plan for immediate replacement |
Safety First: When to Stop DIY and Call a Pro
Know your limits. Working with water and electricity or gas is hazardous. If you’re uncomfortable at any point, stop. Specifically, call a licensed plumber for:
- Any suspected gas leak (smell of rotten eggs).
- Major flooding from the tank area.
- If the T&P relief valve is discharging scalding hot water continuously.
- When the diagnosis points to a tank leak. Installation is a job for good professionals.
- If your troubleshooting hits a dead end. A pro can diagnose in minutes.
Sometimes, replacement is the smarter economic choice. If your heater is old, recurrent problems are likely. Investing in a new, energy-efficient model can save money long-term. When considering brands, many plumbers have strong opinions on what’s good for longevity. For tankless options, researching if a brand like navien is a fit for your home is a logical step.
The Bottom Line on a Leaky Bottom
Don’t let a puddle panic you. Methodical Rheem water heater troubleshooting starts at the top. Check the easy stuff first: valves and connections. Understand the difference between a fixable part failure and a fatal tank leak. Your water heater is a workhorse, but it needs basic care. Listen to it. A small drip today is a shout for helpignoring it leads to a flood tomorrow. Whether you DIY or call in a pro, act swiftly. Your dry floor and peace of mind depend on it.
