To use thermometers in refrigeration systems, install them at key points to monitor temperatures, ensuring optimal performance and preventing food spoilage.
Proper temperature monitoring is the backbone of efficient refrigeration. Whether you’re maintaining commercial freezers or residential HVAC systems, selecting and positioning thermometers correctly ensures food safety, energy efficiency, and equipment longevity.
Types of Refrigeration Thermometers
Different thermometer technologies serve specific purposes in refrigeration systems:
Bimetal Coil Thermometers
These durable, mechanical thermometers use two bonded metals that expand at different rates. The WIKA A48 bimetal thermometer is specially designed for air ducts with adjustable flanges for various insulation thicknesses.
Digital Probe Thermometers
Modern digital units like the 1441E Waterproof Digital Thermometer offer min/max recording and fast response times. They’re ideal for spot-checking multiple locations.
Vapor Tension Thermometers
Models like the 6642 series use gas pressure changes to measure temperature. They’re reliable for continuous monitoring in harsh environments.

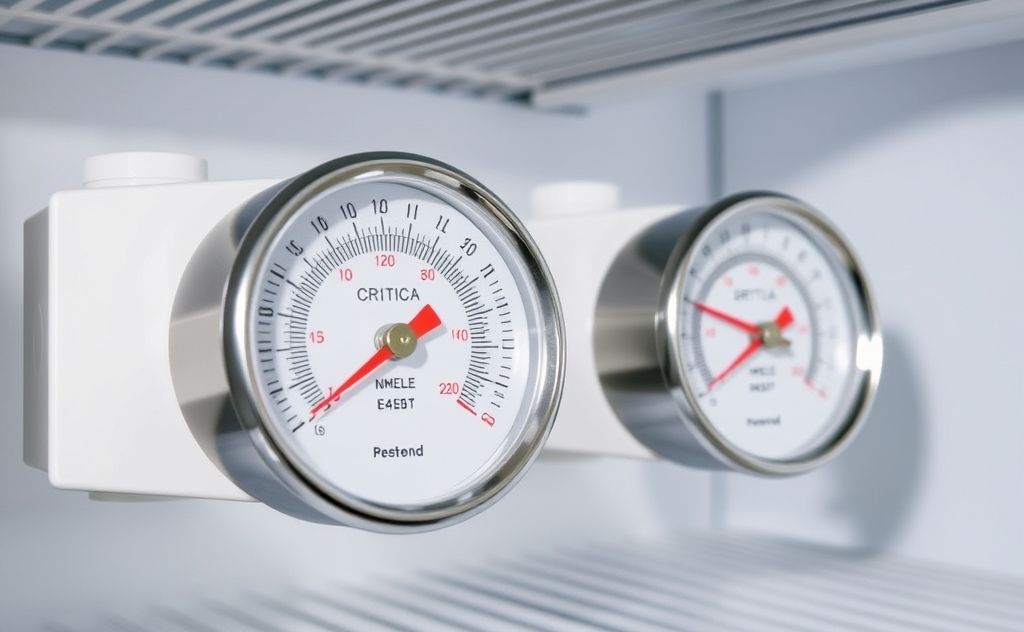

Critical Measurement Points
Strategic placement maximizes system monitoring:
Evaporator Coils
Measure within 2 inches of the coil surface. Ideal range is 20-25°F (-6 to -4°C) for medium-temperature systems.
Suction Line
Place probes on the pipe 6-12 inches from the compressor. Normal superheat should be 8-12°F (4-7°C).
Discharge Line
Monitor within 6 inches of the compressor. High-side pressures typically correlate to 130-160°F (54-71°C).

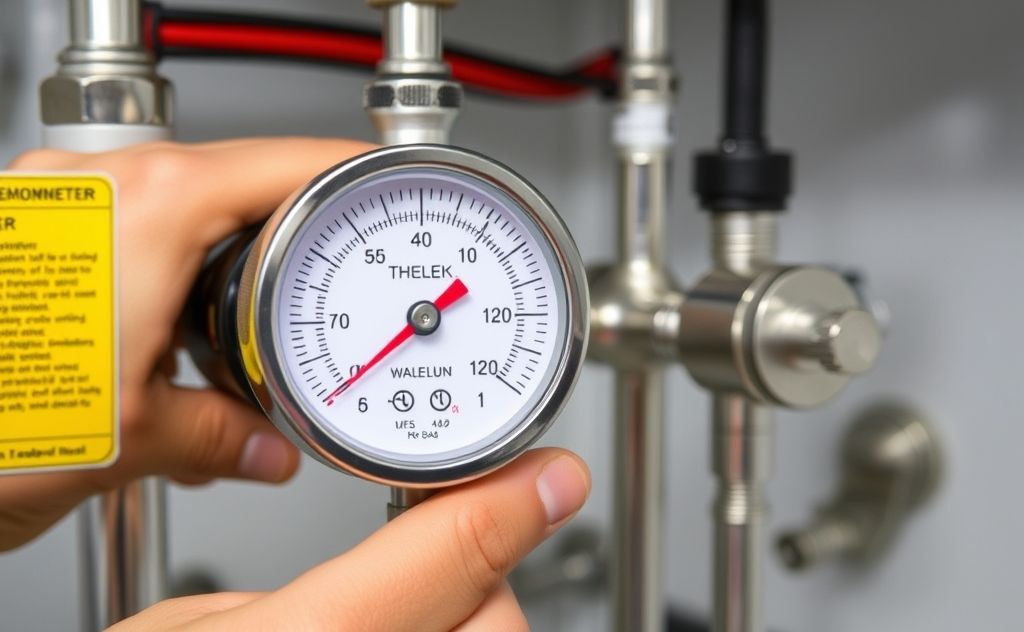

Installation Best Practices
Probe Placement
For accurate readings:
- Ensure full contact with measured surfaces
- Use thermal paste for metal-to-metal contacts
- Secure probes with insulated clamps
Calibration Procedures
Verify accuracy quarterly:
- Immerse in ice water (32°F/0°C)
- Check boiling water (212°F/100°C at sea level)
- Adjust per manufacturer instructions
Temperature Monitoring for Food Safety
The USDA recommends:
| Storage Area | Safe Temperature Range |
|---|---|
| Refrigerator | 34-40°F (1-4°C) |
| Freezer | 0°F (-18°C) or below |
| Walk-in Cooler | 32-38°F (0-3°C) |
For commercial applications, consider precision thermostat controls to maintain consistent temperatures.
Troubleshooting with Temperature Data
Common issues identified through proper monitoring:
Short Cycling
Rapid compressor cycling often indicates incorrect thermostat placement or faulty temperature differential settings.
Frost Buildup
Evaporator temperatures below 20°F (-7°C) with high humidity may signal defrost system failures.
High Energy Use
Condenser temperatures more than 30°F (17°C) above ambient suggest poor heat transfer or refrigerant issues.
Advanced Monitoring Solutions
For critical applications:
Wireless Data Loggers
Units like the Testo 174H provide continuous monitoring with alarm notifications for temperature excursions.
Infrared Thermometers
Non-contact tools help identify insulation gaps or compressor hot spots without system intrusion.
For specialized heating applications, explore built-in gas heater options that integrate with temperature control systems.
Maintenance Considerations
Regular thermometer care ensures accuracy:
- Clean probes with alcohol wipes monthly
- Replace batteries in digital units annually
- Inspect probe insulation for cracks
- Verify calibration after any impact
According to USDA guidelines, thermometer accuracy should be verified at least twice per year for food service applications.
