Diesel garage heating involves choosing the right heater size, installing with proper ventilation, and maintaining the system for odorless, efficient warmth. The process takes a few hours and is doable for a confident DIYer with basic tools and safety gear.
Say your garage is 24 by 24 feet with 8-foot ceilings, mostly insulated but with a single garage door. Heating that space comfortably through winter requires about 40,000 to 60,000 BTU output, depending on insulation and climate.
Diesel heaters can provide this heat efficiently and quietly if installed correctly. This guide walks you through selecting, installing, and maintaining a diesel garage heater that defies the usual concerns about odor and safety.
Key takeaways
Proper diesel garage heating needs correct BTU sizing for your space and insulation level.
Ventilation or airflow is critical to prevent carbon monoxide buildup and ensure clean combustion.
Diesel heaters designed for indoor use must always be installed with proper ventilation, combustion exhaust directed outdoors, and a working carbon monoxide alarm in place. Any noticeable diesel odor indoors means something is wrong and nee
Regular maintenance every few hundred hours keeps heaters running efficiently and odor-free.
Carbon monoxide detectors and safe installation practices are non-negotiable for indoor diesel heater use.
How Diesel Garage Heating Defies Expectations
Diesel garage heaters provide strong BTU output and can use less fuel than electric heaters in large spaces. However, only indoor-rated models installed exactly as the manual directs—with exhaust vented outside, adequate airflow, and a functioning CO detector—are safe for indoor use. If you smell diesel odor inside the garage, stop using the heater and check for leaks or ventilation issues; odor is a warning sign, not normal.
The efficiency comes from concentrated fuel energy and a burner designed to turn that fuel into heat instead of relying on a 1,500 W plug-in heater. A standard outlet heater draws about 12.5 A at 120 V, so several electric heaters can quickly consume a garage circuit’s capacity while still leaving cold spots.
Feature
What it means in a garage
BTU output
Commercial diesel heaters can cover large spaces; SunFire models, for example, range from 80,000 to 160,000 BTU.
Fuel use
Diesel heaters generally consume less fuel than electric heaters when heating a large garage.
Odor and emissions
Clean-burner designs, such as XTREME CLEAN, can provide odorless heat when maintained correctly.
Controls
Some units accept a thermostat, although the heater may require a mechanical or battery-operated thermostat.
Noise
A muffler and quieter fuel pump reduce noise, but forced-air fans still make more sound than a silent electric radiator.
The manual and the heater’s listing decide the real limits.
A forced-air diesel heater warms and circulates garage air quickly, while a radiant unit puts more heat onto people, vehicles and nearby surfaces. Either style needs free airflow around the heater, and a sealed combustion system still needs its exhaust handled outside the occupied space.
Useful for larger garage spaces
VEVOR 8KW Diesel Heater
Product 2 suits a garage that needs an 8 kW forced-air heater, with a built-in CO alarm, app or remote control, and stated fuel consumption of 0.18–0.4 L/h; skip it if you need silent operation or a unit whose installation manual does not fit your garage.
A garage door cracked open may change the air, but it doesn’t replace the manufacturer’s ventilation requirements or a CO alarm. Never use an outdoor, patio, torpedo or construction heater inside a garage, and don’t treat a clean flame as permission to ignore exhaust routing.
Worked example
Say a diesel heater is rated at 0.18–0.4 L/h and runs for 8 hours. Fuel use would be 1.44–3.2 L for that shift; your actual result depends on the thermostat setting, outdoor temperature, insulation and how often the garage door opens.
Runtime8 hours
Stated burn rate0.18–0.4 L/h
Estimated fuel used1.44–3.2 L
Tools and Parts Needed for Diesel Garage Heating
Essential items for installation, safety, and maintenance
Small-workshop setup
BougeRV 5KW All-in-One Heater
Product 1 suits a small garage setup because its 5KW output and compact all-in-one case are easy to position while you route the combustion exhaust outdoors. The 5L tank can run for 9–27 hours, and app control from up to 33 ft away lets you preheat before walking into the cold.
Product 2 is the stronger choice for a larger garage or a space that loses heat quickly: its 8KW output heats faster, while the built-in CO alarm can alert you or shut the heater off when CO levels rise. Bluetooth app, remote, and display-panel controls also make startup and monitoring easier after the exhaust and fuel lines are installed correctly.
For a 24 × 24 × 8 ft insulated garage, an 8 kW diesel heater—about 27,000 BTU/h—is a sensible starting point, while a leaky garage, severe winter weather or frequent door opening can require a heat-loss calculation and more capacity. A diesel heater BTU calculator starts with volume, then adjusts for insulation, air leakage, ceiling height and the local temperature difference.
This diesel heater is ideal for spaces sized 400 to 1,000 sq ft.
Calculate volume by multiplying length × width × ceiling height: 24 × 24 × 8 equals 4,608 cubic feet. Volume helps compare spaces, but insulation controls how quickly heat escapes; sealed walls and a weather-stripped garage door reduce the burn time, while bare masonry and air leaks increase it.
Garage example
Volume
Rough starting point
12 × 20 × 8 ft, insulated
1,920 ft³
5 kW, about 17,000 BTU/h
24 × 24 × 8 ft, insulated
4,608 ft³
8 kW, about 27,000 BTU/h
24 × 24 × 8 ft, leaky or frequently open
4,608 ft³
Start with the 8 kW comparison, then size from measured heat loss rather than guessing
These are starting points, not a substitute for the heater’s rated coverage and local conditions.
Forced-air diesel heaters are usually the practical choice when you need the whole garage warmed quickly because a fan distributes heat through the room. Radiant heaters warm people and objects in their line of sight, which can work well at a workbench but may leave the far side of a large garage cooler; see how a radiant heater differs from a forced air heater before choosing.
24 × 24 Garage Example
The 576-square-foot floor area becomes 4,608 cubic feet at an 8-foot ceiling. In an insulated garage, an 8 kW unit provides about 27,000 BTU/h as a practical starting point; insulation, door openings and outdoor temperature decide whether it cycles normally or runs continuously.
Floor area576 sq ft
Room volume4,608 ft³
Starting heater8 kW / about 27,000 BTU/h
Size for the coldest work
A heater sized only for a closed, insulated garage may struggle when the overhead door stays open. If the room cannot hold its target temperature after sealing obvious leaks, improve the envelope before buying a much larger heater; oversizing can cause short cycling and wasted fuel.
Safe Installation Practices for Diesel Garage Heaters
Diesel heater installation in a garage requires the combustion intake and exhaust to terminate outdoors, with a working carbon monoxide alarm inside. Ventilation for an indoor diesel heater doesn’t replace an outdoor exhaust connection: keep doors, windows and the heater’s air intake clear as the manual directs, and check local fire and building codes before drilling.

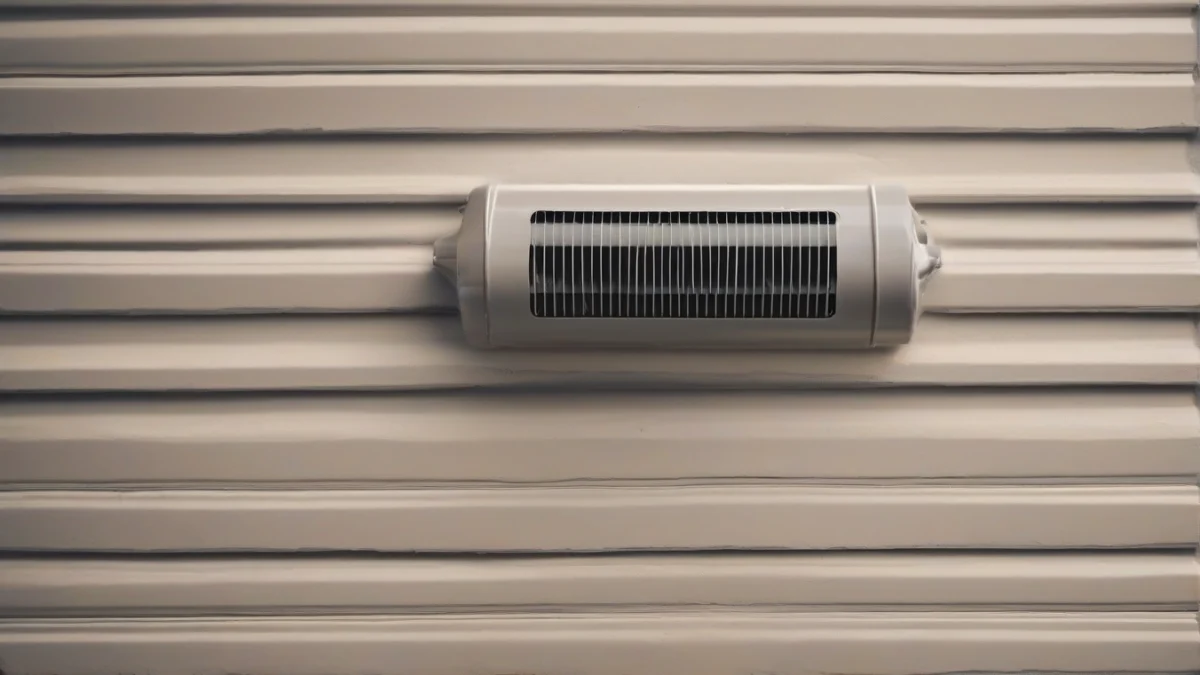

Ensure the exhaust is vented outdoors for safe operation.
Gather Safety Gear First
You’ll need a drill and bits, screwdrivers, wrenches, a level, tape measure, sealant approved for the exhaust temperature, gloves, eye protection, a fire extinguisher and a CO alarm. Add a multimeter if you’re making a 12 V connection. Don’t use an extension cord, improvised exhaust tubing or fuel containers that aren’t approved for diesel.
1
Choose the location
Set the heater on a stable, noncombustible surface with the clearances and service access listed in its manual. Keep vehicles, cardboard, rags, paint and other flammables away from the hot exhaust and heater body.
2
Route the exhaust outside
Use the supplied exhaust parts and seal every joint. Terminate outdoors where fumes can’t re-enter through a garage door, window, wall opening or combustion-air intake. The exhaust outlet must stay clear of snow, leaves and anything that can burn.
3
Place the combustion intake
If the unit has a separate combustion-air intake, route it outdoors as specified by the manufacturer and keep it away from the exhaust outlet. Don’t draw combustion air from the garage if the manual calls for an outside intake.
4
Install the warm-air duct
Aim the outlet into the occupied work area, away from stored fuel and flammable materials. Don’t block the return or outlet grille; restricted airflow can overheat the heater and reduce efficiency.
5
Connect power and fuel
Follow the wiring diagram, protect the circuit with the required fuse, and verify polarity before powering a 12 V unit. Shut the heater off and let it cool before filling the tank; wipe spills immediately and store diesel in an approved, closed container.
6
Test before working nearby
Run the heater outdoors or with the complete exhaust installation in place, then check every joint for leaks, unusual smoke and abnormal odor. Test the CO alarm and keep the garage’s required airflow available.
Useful for a small, portable setup
BougeRV 5KW Diesel Heater
Product 1 suits a small workshop where compact size, 12 V/24 V or AC compatibility, a leak-proof design and a quieter pump help with flexible installation; don’t use its portability as a reason to skip outdoor exhaust.
Exhaust and combustion intake follow the manual and terminate outdoors.
CO alarm is operating and visible from the work area.
Heater, duct and exhaust have the required clearances.
Fuel lines and fittings are dry with no seepage.
Power wiring has correct polarity, fuse protection and secure connections.
Permit and inspection requirements have been checked with the local authority.
Permits and codes vary by city, state and building type, so call the local building or fire department before installation when the heater is hard-wired, permanently mounted, connected to a fuel tank or used in a commercial garage. Hire a licensed electrician for fixed electrical work and a qualified heating professional when the exhaust, fuel system or code requirements exceed your experience.
Maintenance and Troubleshooting to Keep Odor and Emissions Low
A diesel heater maintenance schedule should include a pre-season inspection, a clean fuel filter, and nozzle and combustion-chamber cleaning at the intervals in the manual. A diesel heater odor fix starts with stopping the unit, checking airflow and fuel quality, and finding the cause of incomplete combustion rather than masking the smell.
1
Inspect before the season
Check the exhaust for soot, dents, loose joints and blockage, then inspect the combustion-air intake, warm-air grille, fuel line and wiring. Test the CO alarm before the first indoor run.
2
Service the fuel path
Replace or clean the fuel filter at the manufacturer’s interval and drain water or sediment from the tank if the design allows it. Use clean, fresh fuel from a sealed container; diesel contaminated with water or dirt can make ignition unreliable and damage the pump.
3
Clean the burner
Clean the nozzle and combustion chamber as the manual specifies, especially after smoky operation or long storage. A carbon-coated chamber restricts clean burning and can bring back odor.
4
Check a bad burn
Soot, visible smoke, repeated flame-outs, a strong diesel smell or a yellow, unstable flame point to incomplete combustion or restricted airflow. Shut the heater down, let it cool, check the intake, exhaust, filter and fuel, and stop using it if the problem remains or the CO alarm sounds.
5
Reduce noise and wear
Mount the fuel pump as the manual shows, keep its fuel line free of kinks, and use the supplied muffler and exhaust supports. Avoid repeated short cycles when the controls allow a steady lower setting; warm-up and cool-down cycles are hard on igniters.
Refurbished Units
A refurbished heater is worth considering only when the listing states exactly what warranty and technical support remain. One documented refurbished option includes a 2-year warranty and lifetime technical support; keep that paperwork with the service records.
Symptom
First checks
Strong odor or smoke
Fuel quality, blocked intake or exhaust, dirty nozzle and combustion chamber
Won’t start
Fuel level, filter, wiring polarity, fuse and glow plug or igniter
Runs, then shuts down
Fuel restriction, overheating from blocked airflow, exhaust blockage or a sensor fault
More pump noise
Pump mounting, air in the fuel line, kinked tubing or contaminated fuel
If a CO alarm activates, leave the garage, get fresh air and don’t restart the heater until the cause is repaired.
Common Mistakes That Cause Damage or Leaks
Diesel heater leaks usually come from loose fuel-line connections, cracked tubing or a poorly secured tank, while the most dangerous installation mistake is allowing exhaust into the garage. Damage also follows contaminated fuel, blocked airflow, vibration and skipped cleaning, so check those points before blaming the heater.
Keep Exhaust Outside
Terminate the exhaust outdoors and keep its outlet away from doors, windows, vents and the combustion-air intake. The intake and exhaust must follow the heater’s manual; never swap them, point the exhaust into the garage, or assume an open garage door makes indoor exhaust safe. Diesel heaters produce carbon monoxide (CO), which has no smell. Run a working CO alarm inside the garage and leave the heater off if that alarm sounds.
Before The First Run
Use only the fuel named in the manual. Contaminated diesel, water in the fuel or fuel left sitting through the off-season can clog the filter and nozzle.
Inspect every fuel connection for dampness, drips or a diesel smell before starting the heater. Replace damaged fuel line rather than wrapping it with tape.
Secure the tank upright and protect the fuel line from sharp edges, hot exhaust parts and vehicle traffic.
Bolt the heater mount firmly to a solid surface. A loose mount lets vibration work on fuel fittings, wiring, the exhaust joint and the fan.
Confirm the tip-over, overheat and flame-out protections are present and unobstructed; don’t bypass a safety switch to keep a failing heater running.
Clean the nozzle, filter and combustion chamber on the schedule in the manual. A dirty nozzle can produce poor combustion, odor and soot.
Never shut off a diesel heater by cutting its power while it’s firing; use the normal shutdown control so the fan can complete its cool-down cycle. Sudden power loss can leave heat in the combustion chamber and unburned fuel in the system. If you find a fuel leak, smoke, unusual soot or a CO alarm, disconnect power only if you can do so safely, ventilate from outside, and don’t restart the unit until the fault is repaired.
Frequently Asked Questions
Are diesel heaters safe to use inside a garage without venting?
No. A diesel heater used in a garage should send combustion exhaust outdoors through the approved exhaust system; normal room airflow isn’t a substitute for that. Keep a working carbon monoxide alarm inside the garage, and stop the heater if the alarm sounds or exhaust odor enters the space.
How much diesel fuel does a typical garage heater consume per hour?
Fuel use depends on the heater’s output and burn rate, so use the gallons-per-hour figure in its manual rather than guessing from the BTU rating. For a monthly estimate, multiply that burn rate by hours per day, days used, and your diesel price per gallon; thermostat cycling can reduce the actual total.
What BTU rating do I need for a 24×24-foot garage?
An insulated 24 × 24 × 8 ft garage is a reasonable match for an 8 kW heater, or about 27,000 BTU/h. Choose more capacity only when heat loss is clearly higher—such as poor insulation, frequent overhead-door openings or severe winter conditions—and make sure the heater can run low enough to avoid short cycling.
Can I install a diesel heater myself, or do I need a licensed professional?
A confident DIYer can handle a listed heater installation when the manual and local code allow it, but the exhaust route, combustion-air intake, fuel tank and electrical connections must all follow the instructions. Hire a licensed professional if the job involves permanent wiring, structural roof or wall changes, fuel-system work beyond the listed fittings, or a local permit requirement.
How often should I perform maintenance to keep my diesel heater odor-free?
Inspect the heater before each heating season and clean the fuel filter, burner or nozzle, combustion chamber and exhaust path at the intervals in the manual. Odor that appears after warm-up, visible smoke, hard starting or repeated shutdowns means the heater needs service before continued use; a clean burner alone can’t correct a blocked exhaust or contaminated fuel.
