Hydronic Floor Heating Safety: Expert Installation Tips

To ensure safety during hydronic heating installation under the floor, always follow manufacturer guidelines, use proper tools, and ensure electrical and plumbing systems are safely managed.

Hydronic radiant floor heating offers efficient, comfortable warmth but requires careful installation to ensure safety and performance. Proper planning, material selection, and professional techniques prevent leaks, overheating, and structural issues.

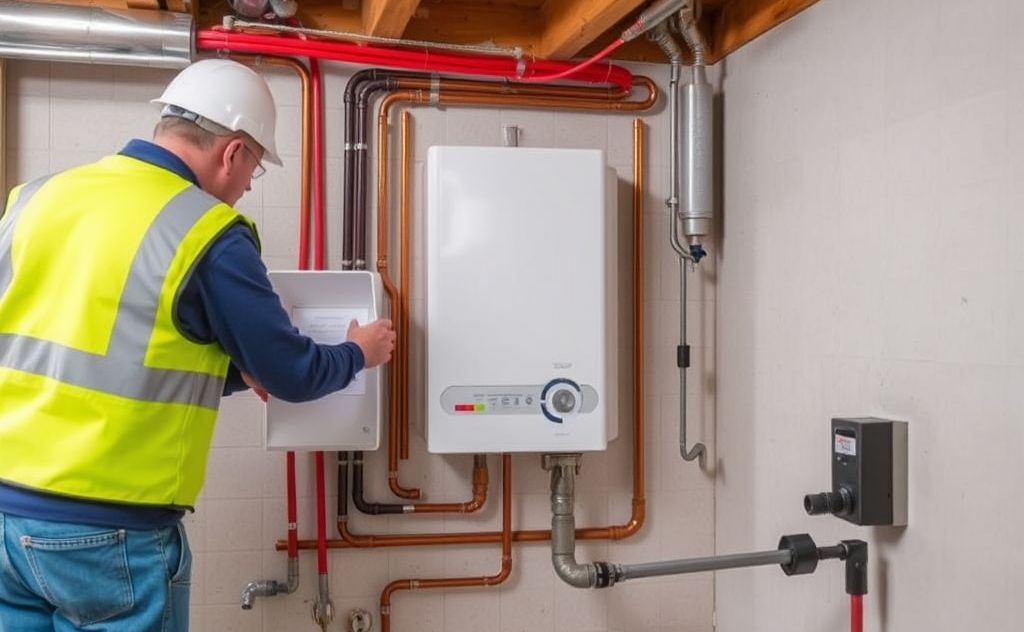

Safety tips for hydronic heating installation

Pre-Installation Safety Checks

Before installing hydronic tubing, verify your subfloor can handle the added weight of a wet system. Concrete slabs need proper curing time. Wood subfloors require reinforced joists in some cases.

Pressure Testing Tubing

Always pressure test PEX tubing before pouring concrete or closing up floors. The U.S. Department of Energy recommends testing at 1.5 times working pressure for 24 hours. Check for pressure drops indicating leaks.

Thermal Expansion Planning

Hydronic systems expand when heated. Include expansion joints and loops in your tubing layout. This prevents stress on connections that could lead to leaks over time.

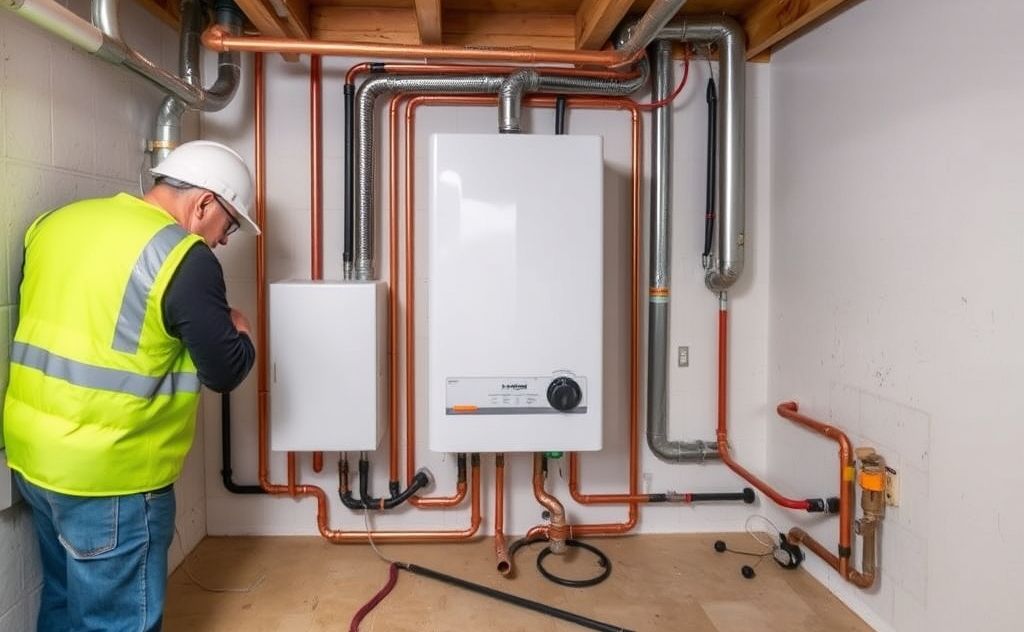

Safe installation of hydronic heating system

Safe Installation Methods

Choose between wet (embedded) and dry (suspended) installations based on your home’s structure. Each approach has specific safety requirements.

Wet Installation Safety

For concrete-embedded systems:

  • Use oxygen-barrier PEX to prevent corrosion
  • Maintain 2″ concrete cover over tubing
  • Install insulation beneath slab to direct heat upward

Dry Installation Safety

For suspended tube systems:

  • Use aluminum heat diffuser plates for even distribution
  • Maintain 1″ air space around tubing
  • Install reflective insulation below tubes

System Component Safety

Quality materials prevent failures. Consider these key components:

Component Safety Feature
Boiler Pressure relief valve
Manifold Flow control valves
Tubing Oxygen barrier coating
READ MORE  How to Purge Air From Hydronic Floor Heating Systems

For boiler connections, use quality check valves to prevent backflow. The manifold should have individual zone controls for temperature regulation.

Floor Covering Considerations

Floor materials affect system safety and performance:

Tile and Stone

Ideal for heat transfer. Use uncoupling membranes to prevent cracking from thermal expansion.

Wood Flooring

Engineered wood performs better than solid. Maintain relative humidity between 30-50% to prevent warping.

Carpet

Limit to R-2.5 total insulation value. Use thin pads and low-pile carpet.

Professional vs. DIY Installation

While some homeowners attempt DIY hydronic installations, professionals offer critical advantages:

  • Proper heat load calculations
  • Correct tubing layout design
  • Boiler sizing and venting
  • System balancing

According to licensed plumbing experts, improper boiler installation creates carbon monoxide risks. Always hire professionals for gas connections.

Operating Temperature Safety

Hydronic floors typically operate at 85-140°F surface temperature. Higher temperatures can:

  • Damage floor coverings
  • Create discomfort
  • Increase energy costs

Use mixing valves to maintain safe water temperatures. The DOE recommends no more than 120°F for wood floors.

Maintenance for Long-Term Safety

Annual maintenance prevents safety issues:

  1. Check boiler pressure
  2. Test pressure relief valve
  3. Inspect for leaks
  4. Clean filters
  5. Check pump operation

For systems using anode rods, inspect every 3-5 years. Corroded rods reduce boiler lifespan.
