Harnessing the sun’s energy for hot water isn’t new technology. It’s a beautifully simple application of solar thermal technology that has been refined over decades, offering a reliable way to cut energy bills and reduce your carbon footprint. The core idea is straightforward: capture sunlight, convert it to heat, and transfer that heat to your water. But the engineering behind a modern solar water heating system is where things get interesting.
Think of it as a specialized, high-efficiency cousin to leaving a garden hose in the sun. For a more decorative and functional solar application, consider a product like the OICEME Bird Bath. It uses a small solar panel to power a pump, creating a charming water feature. Its a great example of how solar energy can be integrated into daily life, albeit on a much smaller scale than a whole-home water heater.
How a Solar Water Heater Works: The Core Components
Every system, whether simple or complex, relies on a few key parts working in concert. Understanding these is the first step to answering “what are the main parts of a solar water heating system?“
The Solar Collector: Where Sunlight Becomes Heat

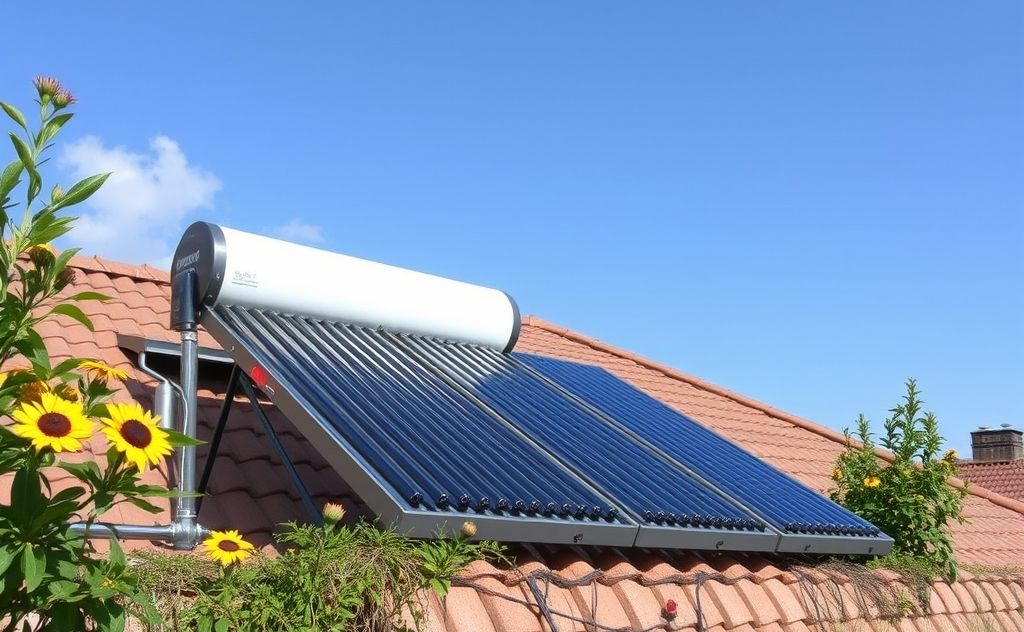

This is the heart of the operation, mounted on your roof or a ground rack. The most common type is a glazed flat-plate collector. Its main parts include:
- Glazing: A durable, transparent cover (like tempered glass) that lets sunlight in and traps heat inside, creating a greenhouse effect.
- Absorber Plate: A dark metal sheet, often coated with a selective surface, that absorbs solar radiation and gets very hot.
- Insulated Housing: Minimizes heat loss to the surrounding air.
The solar collector efficiency depends on materials, design, and proper orientation toward the sun.
The Heat Transfer Loop: Moving the Energy
Heat from the absorber plate needs to travel to your water. This is done via a closed loop containing a heat transfer fluidusually a water-antifreeze mixture. A circulation pump (in active systems) moves this fluid when the collector is hotter than the water in the storage tank.
The Storage Tank and Heat Exchanger: Delivering Hot Water
You don’t heat water directly in the collector. Instead, the hot heat transfer fluid travels to a storage tank. Inside the tank, coiled tubing acts as a heat exchanger. The hot fluid passes through these coils, transferring its thermal energy to the potable water surrounding them without the two fluids ever mixing. This keeps your drinking water safe and prevents scale buildup in the collectors.
For days with insufficient sun, most systems have a backup, like an electric element or a connection to a conventional good gas water heater. This ensures you never run out of hot water.
The Heat Transfer Process Explained Step-by-Step
So, how does a solar water heater work step by step? Let’s trace the journey of energy through an active system.
- Collection: Sunlight passes through the glazing and strikes the absorber plate, heating it up.
- Transfer to Fluid: The heat transfer fluid circulating through pipes bonded to the plate absorbs this thermal energy.
- Pumping: A controller activates the circulation pump when the collector temperature exceeds the tank temperature by a set amount.
- Exchange: The pumped, hot fluid enters the heat exchanger inside the storage tank, releasing its heat to the domestic water.
- Return: The now-cooled fluid returns to the solar collector to be reheated, continuing the cycle.
This process continues as long as the sun is providing usable energy. Its a continuous, automated loop of capturing and moving thermal energy.
Active vs. Passive Solar Water Heaters: Key Differences
This is a fundamental design choice. The difference between active and passive solar water heaters boils down to how the heat transfer fluid moves.
Active Solar Systems
These use pumps and electronic controls to circulate fluid. They are more efficient and offer greater installation flexibility, as the tank doesn’t need to be above the collectors. There are two subtypes:
- Direct Circulation (Open Loop): Pumps potable water directly through the collectors. Only suitable for frost-free climates.
- Indirect Circulation (Closed Loop): Uses a separate, freeze-protected heat transfer fluid and a heat exchanger. This is the standard for cold climates.
Passive Solar Systems
These rely entirely on natural physicsno pumps or controllers. They are incredibly reliable (fewer parts to break) and often more affordable. The most common type is a thermosiphon system.
Here, the storage tank is mounted above the collector. As water heats in the collector, it becomes less dense and rises naturally into the tank, while cooler, denser water sinks down to be heated. Its a silent, elegant cycle driven by convection. While less efficient than active systems, their simplicity is a major advantage. For homes considering efficient, on-demand hot water without solar, a Navien tankless unit can be an excellent complementary or alternative technology.
| Feature | Active System | Passive System (Thermosiphon) |
|---|---|---|
| Fluid Movement | Electric pump & controls | Natural convection (thermosiphon effect) |
| Efficiency | Generally higher | Generally lower |
| Cost | Higher (more components) | Lower |
| Reliability | Good (depends on pump/controller) | Excellent (no moving parts) |
| Installation Flexibility | High (tank can be below collector) | Low (tank must be above collector) |
| Climate Suitability | All (with indirect design) | Best for mild, frost-free climates |
Weighing the Investment: Pros, Cons, and Practicalities
So, is a solar water heater worth the investment? It depends on your location, energy costs, and goals. Let’s break it down.
Advantages: Why You Might Choose Solar Thermal
- Significant Energy Savings: Can provide 50-80% of your annual hot water needs, drastically cutting gas or electric bills.
- Reduced Carbon Footprint: Directly offsets fossil fuel consumption for water heating.
- Energy Independence: Leverages a free, renewable resource, insulating you from utility price spikes.
- Longevity & Low Operating Cost: Well-maintained systems can last 20+ years with minimal running costs (just pump electricity).
- Potential Incentives: Federal tax credits and local rebates can substantially lower the upfront cost.
Limitations and Considerations
- High Initial Cost: The upfront investment is significant, though payback periods have improved.
- Climate Dependency: Output varies with weather and season. A backup heater is non-negotiable.
- Space Requirements: You need adequate, unshaded roof space and room for a storage tank.
- Maintenance: Requires periodic checks of fluid pH, pump operation, and system pressure.
- Architectural Impact: Collectors are visible. Some homeowners’ associations may have restrictions.
For the most current, detailed information on costs, technologies, and national standards, the U.S. Department of Energys official source is an indispensable authority guide.
The decision isn’t just about math. It’s about valuing long-term stability over short-term cost, and choosing a tangible step toward sustainability. A solar water heater is a robust, proven piece of infrastructure for your home. It won’t work miracles on a cloudy week in December, but over the course of a year, its contribution is substantial and reliable. Evaluate your site, get multiple quotes, and crunch the numbers with incentives in mind. For many, the sun’s free heat is an opportunity too good to pass up.
