How Solar Heaters Store Excess Energy Efficiently

Solar heaters store excess energy primarily in insulated tanks filled with water, which retains heat for later use, ensuring efficient energy utilization.

Solar heaters capture abundant sunlight to provide hot water and space heating while reducing energy costs. But what happens when they generate more heat than needed? Understanding how solar thermal systems store excess energy helps maximize efficiency and savings.

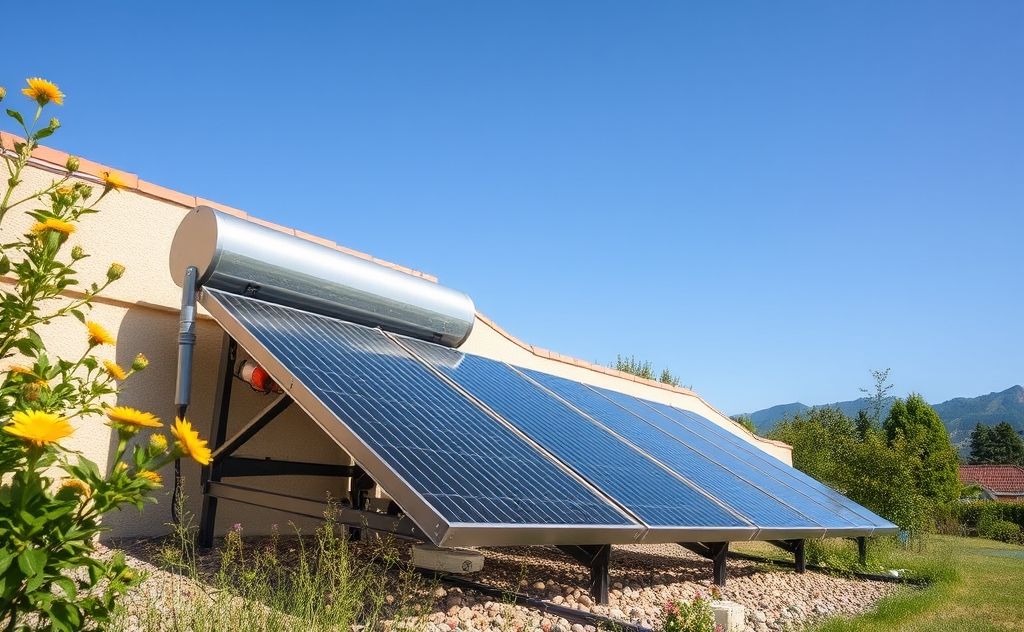

Solar heater storing energy in a sunny setting

Primary Storage Methods for Solar Heater Excess Energy

Solar heating systems use three main approaches to store surplus thermal energy:

1. Insulated Water Storage Tanks

The most common solution uses heavily insulated water tanks that maintain temperatures for hours or days. These tanks:

  • Range from 30-120+ gallon capacities for residential systems
  • Use polyurethane foam or fiberglass insulation (3-4″ thick)
  • Can maintain 90% of heat for 24-72 hours

For larger systems, horizontal water heater tanks provide greater storage capacity in limited spaces.

2. Phase Change Materials (PCMs)

Advanced systems use PCMs that absorb/release heat during state changes:

Material Melting Point Energy Density
Salt hydrates 90-130°F 2-3x water
Paraffin wax 100-150°F 2x water

3. Thermal Mass Materials

Some systems incorporate:

  • Concrete slabs (6-12″ thick)
  • Stone/rock beds
  • Ceramic bricks

These slowly release heat overnight. According to U.S. Department of Energy, properly sized thermal storage can maintain temperatures for 1-3 cloudy days.

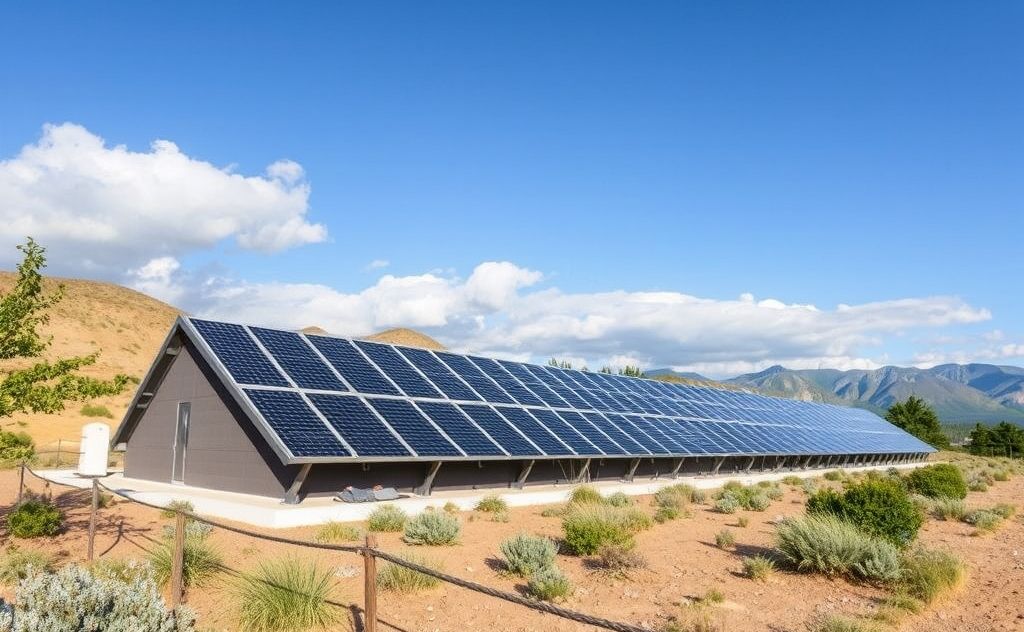

Key factors solar thermal storage energy use

Key Factors in Solar Thermal Storage

Insulation Quality

Premium insulation reduces standby heat loss to 1-2°F per hour. Closed-cell foam outperforms fiberglass.

Storage Volume

Residential systems typically need 1.5-2 gallons storage per square foot of solar collector area.

Temperature Stratification

Smart tank designs maintain hot water at the top while cooler water stays below for collector intake.

READ MORE  Solar Heater Lifespan: How Long Do They Really Last?

Advanced Storage Solutions

Seasonal Thermal Storage

Large underground systems store summer heat for winter use. These require:

  • 500-5,000+ gallon capacity
  • Borehole thermal energy storage
  • Aquifer thermal energy storage

Hybrid Electric-Thermal Systems

Some modern systems like the Rheem Marathon hybrid combine solar thermal with heat pump technology for maximum efficiency.

Maximizing Your System’s Storage

To optimize solar heater energy storage:

  1. Right-size storage to collector area
  2. Use high-quality insulation
  3. Install heat exchangers properly
  4. Consider smart controllers
  5. Perform annual maintenance

Properly designed solar thermal systems with adequate storage can provide 60-80% of annual hot water needs while significantly reducing energy bills. As noted by the Solar Reviews experts, the storage component is just as critical as the collectors themselves for system performance.
