How Solar Heaters Connect to Swimming Pools (Full Guide)

Solar heaters connect to swimming pools via a series of pipes that circulate water, heating it through solar panels before returning it to the pool.

Solar pool heaters provide an eco-friendly and cost-effective way to extend your swimming season. By harnessing the sun’s energy, these systems reduce reliance on gas or electric heaters while keeping your pool comfortably warm. This guide explains how solar heaters connect to pools, their components, installation process, and key benefits.

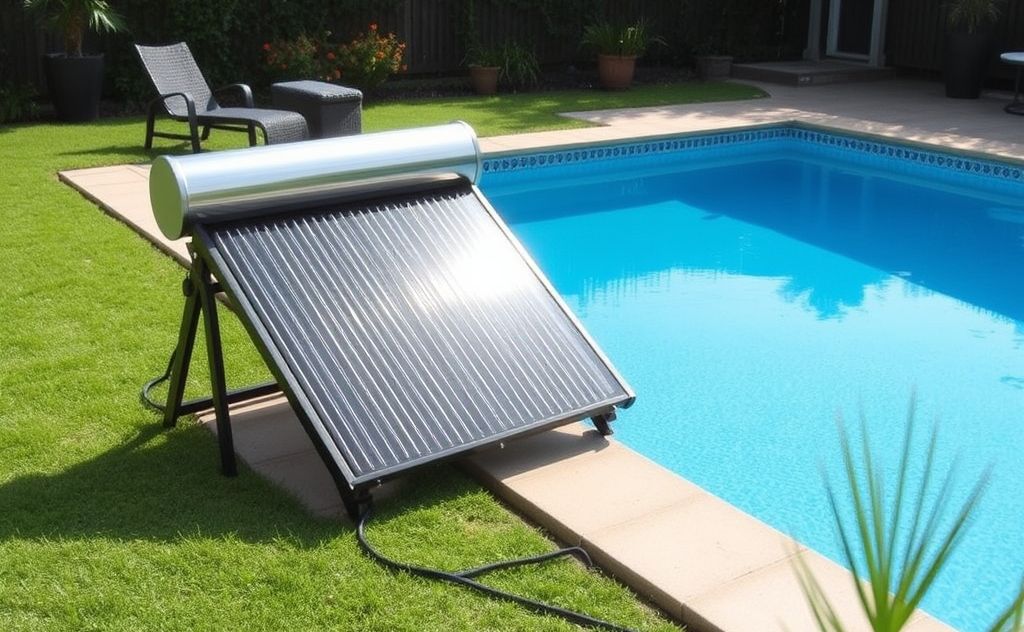

Solar heater connected to a swimming pool

How Solar Pool Heating Systems Work

Solar pool heaters operate by circulating water through solar collectors where it absorbs heat before returning to the pool. The basic process involves:

  1. Pool water is drawn through the existing filtration system
  2. Water passes through a solar collector (typically mounted on a roof or ground rack)
  3. Sunlight heats the water as it flows through the collector’s tubes or panels
  4. Warmed water returns to the pool through the return jets

An automatic flow control valve diverts water to the collectors only when they’re warmer than the pool. This prevents cooling the pool at night or during cloudy weather.

Key System Components

Every solar pool heating system includes these essential parts:

Component Purpose
Solar collectors Panels or tubes that absorb solar heat
Pump Circulates water through the system
Filter Removes debris before water enters collectors
Flow control valve Directs water to collectors when heating is needed
Piping Connects all components to the pool’s existing plumbing

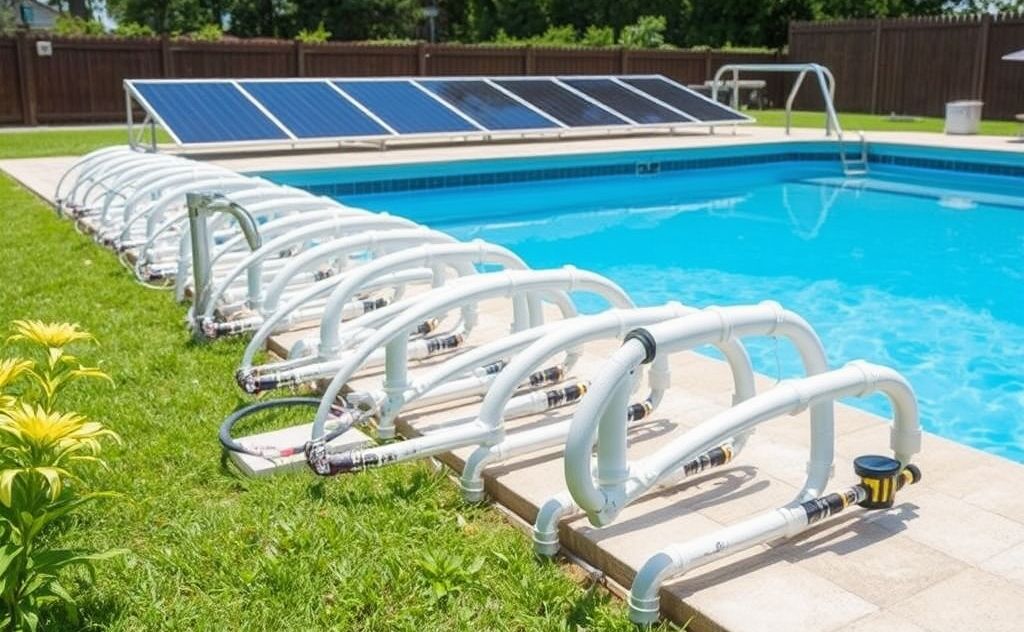

Types of solar pool collectors and connections

Types of Solar Pool Collectors

Solar collectors come in two main designs, each suited for different climates:

Unglazed Collectors

These consist of durable rubber or plastic panels with UV inhibitors. They’re:

  • Most cost-effective option
  • Ideal for warm climates where freezing isn’t a concern
  • Commonly used for seasonal pool heating
READ MORE  Transform Your Pool Experience with These Top Above Ground Solar Heaters

For colder regions, consider the best Hayward pool heater heat exchanger as a supplemental system.

Glazed Collectors

These feature copper tubing on aluminum plates with glass covers. They:

  • Work efficiently in colder temperatures
  • Can provide year-round heating in many climates
  • Cost more but last longer than unglazed models

Installation Process

Proper installation ensures optimal performance. Here’s what to expect:

1. Site Assessment

Installers evaluate:

  • Roof or ground space for collectors
  • Solar exposure (minimum 4-6 hours of direct sun)
  • Existing pool equipment location

2. Collector Mounting

Collectors mount on:

  • Roofs (most common)
  • Ground racks
  • Special poolside structures

3. Plumbing Connections

The system integrates with your pool’s existing plumbing:

  1. Tap into the return line after the filter
  2. Install bypass valves for maintenance
  3. Connect to the solar controller

For complex installations, consider the best water heater check valve to prevent backflow.

Sizing Your Solar Heating System

Proper sizing depends on:

  • Pool surface area
  • Desired temperature increase
  • Swimming season length
  • Local climate

As a general rule:

  • Warm climates: Collector area = 50-70% of pool area
  • Cooler regions: Collector area = 100% of pool area

Using a pool cover can reduce the required collector size by up to 30%.

Maintenance Requirements

Solar pool heaters need minimal maintenance:

  • Clean collectors annually to remove debris
  • Check for leaks in connections
  • Winterize in freezing climates
  • Monitor system pressure

For comparison, traditional heaters like the best Jandy pool heater igniter require more frequent servicing.

Cost and Savings

While initial costs range from $2,500-$4,000, solar pool heaters offer:

  • 50-80% lower operating costs than gas heaters
  • Payback periods of 1-7 years
  • System lifespans of 10-20 years
READ MORE  What's the installation process for solar heaters?

According to the U.S. Department of Energy, solar pool heating is one of the most cost-effective solar applications in many climates.

Environmental Benefits

Solar pool heaters:

  • Produce zero emissions during operation
  • Reduce reliance on fossil fuels
  • Have minimal environmental impact compared to conventional heaters

As noted by DualSun, solar pool heating can raise water temperatures by up to 5°C while being completely renewable.
