How Pellet Stoves Work: About 9,000 BTUs for 400 Sq Ft
On this page 7 sections

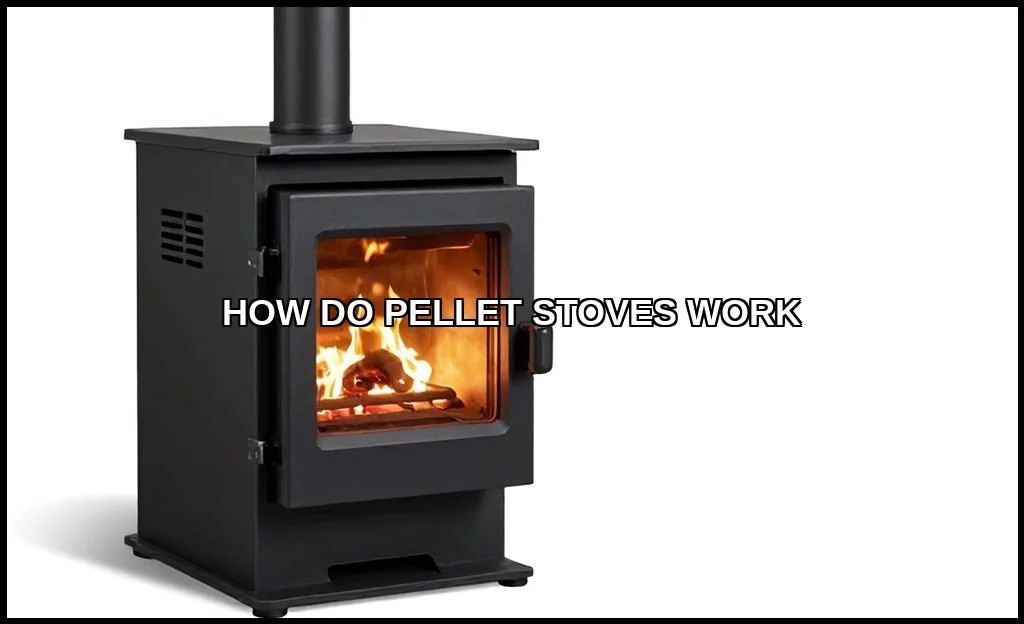

A pellet stove is a heating appliance that burns compressed wood pellets to generate heat automatically and efficiently.
Unlike traditional wood stoves, pellet stoves use an auger and blowers to control fuel delivery and airflow, making them easier to manage and cleaner to burn.
How a Pellet Stove Works
A pellet stove meters small compressed wood pellets into a burn pot, ignites them, and moves heat through a heat exchanger before sending exhaust outdoors. Wood pellet burners keep working because the hopper, auger, combustion blower, igniter, and control board repeat that fuel-and-air cycle as long as the stove has pellets, power, and a safe operating signal.
Pellets are usually compressed wood fibers and sawdust formed into uniform cylinders. That consistent shape lets the stove feed a measured amount instead of relying on logs that vary in size, moisture, and enthusiasm.
From Hopper To Burn Pot
The hopper stores the fuel. When the control board calls for heat, an auger turns and carries pellets toward the burn pot, where they collect for combustion. The auger runs in timed intervals or at a controlled speed, so the stove can raise or lower its heat output without someone adding fuel by hand.
At startup, an electric igniter heats the incoming air or the pellets until they catch. The combustion blower supplies air through the burn area and helps establish the draft that pulls exhaust toward the vent. For a closer look at the ignition sequence, see how pellet stove automatic ignition works.
How Air Becomes Heat
The control board balances pellet feed with combustion air. More fuel paired with the required airflow produces a larger fire; reducing the feed and blower output lowers the heat level. A flame sensor, temperature sensor, or pressure switch may tell the controls that ignition occurred and that the venting system is moving air as expected, depending on the stove.
Heat from the burn pot and firebox passes into the stove’s heat exchanger. The room-air blower pushes household air across those hot surfaces and returns warmer air to the room, while the combustion blower carries smoke and combustion gases through the exhaust vent. Room air and exhaust stay in separate paths; that separation is the whole point of the heat exchanger.
The cycle continues until the thermostat or onboard control lowers the heat demand, the hopper runs empty, or a safety control stops the stove. During shutdown, the auger stops feeding pellets while the blower may continue running to burn remaining fuel and cool the stove. Power is part of the bargain; a pellet stove isn’t a wood stove with a motor attached.
Power Up Timer Controls on Pellet Stoves
On a pellet stove, the power-up timer control manages how long the stove stays in its startup sequence before it moves into normal heating. It gives the igniter, auger, and combustion blower time to establish a stable fire instead of demanding full operation the instant you press the power button.
A typical startup begins with the exhaust or combustion blower creating airflow, followed by timed pellet delivery and igniter operation. Once the control system detects the expected heat or flame signal, it can advance to the run cycle; if that signal doesn’t arrive within the allowed time, many stoves shut down and display a fault. Exact names and timing vary by manufacturer, so the manual’s setting takes precedence.
The timer also prevents waste during ignition. Feeding too many pellets before the first batch lights can smother the igniter or leave an oversized pile in the burn pot, while too little time can make the stove quit before the fire is established. A controlled sequence uses only the fuel and electricity needed to get moving.
For you, the practical benefit is simpler operation: press start, let the stove prove that it has a fire and draft, then allow the controls to regulate heat. The power-up timer isn’t the same as a room thermostat schedule or a timer that turns the stove on at a chosen clock time. Those are separate pellet stove control options on models that provide them.
Evaluating Pellet Stoves for Home Heating
Pellet stoves can be worth it when you have a reliable pellet supply, a suitable venting route, and enough heating demand to justify the installation and maintenance. Pellet stove savings depend on your local pellet price, propane or electricity rate, house insulation, and how much of the home the stove actually heats.
Electric heat is easy to price: a 1,500-watt heater running for 8 hours uses 12 kWh, so at 17 cents per kWh it costs about $2.04 for that night. Propane costs depend on the heater’s input and efficiency; one gallon contains about 91,500 BTU, but only part of that becomes room heat. Pellet costs need the same treatment: divide the usable heat from a bag by its price, then compare that result with your electric or propane cost.
Automation is the main convenience advantage. An auger feeds pellets from the hopper, the controller adjusts the burn, and a thermostat or schedule can reduce the fire when the room reaches its target temperature. You still need to fill the hopper, remove ash, inspect the burn area, and keep the exhaust path clean. Wood heat has fewer chores than a traditional log stove, not zero chores—the ash pan didn’t get the memo.
Upfront cost includes the stove, venting, hearth or floor protection where required, installation, and electrical power for the controls and feed system. Annual maintenance can include combustion-chamber and vent cleaning, gasket checks, ash removal, and service for the igniter, auger, or fans. A lower fuel bill won’t compensate for an installation that heats one room while the rest of the house stays cold.
Pellet stoves benefit people who heat regularly, have space to store dry pellets, and want steadier automation than a cordwood stove provides. They’re a weaker fit for occasional weekend heat, homes without a practical vent route, or anyone who can’t handle fuel loading and cleaning. Compare your local fuel numbers before deciding; a useful way to work through the math is this guide to pellet stove savings.

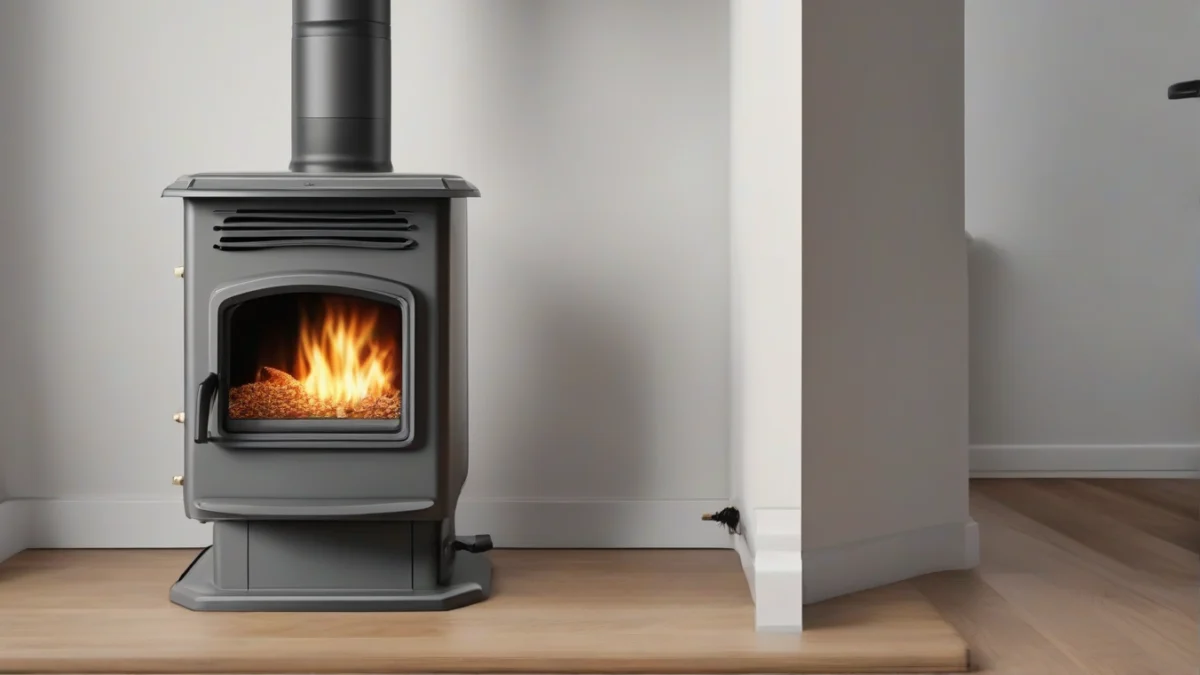

Efficiency Ratings of Wood Pellet Stoves
Wood pellet stoves are typically rated around 70% to 90% efficient, meaning that portion of the fuel’s measured energy becomes useful heat rather than leaving with the exhaust. The rating comes from controlled conditions, so your real result depends on fuel, airflow, installation, weather, and cleaning.
Pellet quality affects the fire before the stove has a chance to show off. Damp pellets, excessive fines, or pellets that produce a large amount of ash can restrict airflow, dirty the burn pot, and force more frequent cleaning. Store bags off damp floors and use the fuel grade recommended by the stove manual.
Stove design also changes how much heat reaches the room. A heat exchanger with clean surfaces transfers more heat from the combustion gases, while a blocked burn pot or ash-filled passage sends more heat outdoors. Fans, the auger, and the control board need electricity, and a poor vent layout can disturb the airflow the controller is trying to manage.
Efficiency changes running cost because fuel is purchased for its total energy, while your home receives only the usable portion. For example, if two stoves burn the same amount of pellets but one transfers 80% of the fuel energy and the other transfers 70%, the lower-rated stove needs more fuel for the same delivered heat. Clean the burn area and heat exchanger on the schedule in the manual; detailed advice on pellet stove efficiency covers ways to preserve heat output.
Dust Production from Pellet Stoves
Yes, pellet stoves can create some dust, mainly when you pour pellets into the hopper or empty ash from the burn pot; normal burning shouldn’t blow loose ash into the room when the stove and venting are sealed and operating correctly.
Pellets rub against one another in the bag, leaving fine sawdust that can spill around the hopper. Ash appears after combustion and may spread when you open the firebox, scrape the burn pot, or use a vacuum that isn’t designed for fine ash. A sealed-combustion stove draws combustion air from outdoors and sends exhaust outdoors, so room air stays separate from the dirty side of the process.
Keep Pellet Dust Under Control
Pre-Purchase and Usage Checks for Pellet Stoves
Working with pellets means having electricity, approved venting, a noncombustible base, suitable fuel, and a cleaning plan; if you’re searching for AVA pellet stoves troubleshooting, begin with those basics before replacing parts.
A pellet stove sits on a noncombustible hearth or floor protector sized and positioned according to its listing and local code. Keep the required clearance from walls, furniture, curtains, and other combustibles; the manual and the authority having jurisdiction settle the exact distances.
