17 Energy Efficient Duct Design Techniques for Lower Bills

Implementing energy efficient duct design techniques, such as proper sizing, insulation, and layout optimization, enhances HVAC performance and reduces energy consumption.

Proper duct design is critical for home comfort and energy efficiency. Leaky or poorly insulated ducts can waste hundreds of dollars annually on heating and cooling costs. These proven techniques will help optimize your duct system performance.

Energy-efficient duct design for optimal airflow

Fundamentals of Efficient Duct Design

Your home’s duct system distributes conditioned air throughout living spaces. When designed correctly, it maintains balanced airflow and neutral pressure. Common duct materials include:

  • Sheet metal
  • Fiberglass
  • Flexible ducting

Placement Matters

The most efficient systems locate ducts within conditioned spaces. This minimizes heat loss/gain through duct walls. Effective placement options include:

Location Advantages
Dropped ceilings Easy access, minimal space impact
Sealed chases Protects from unconditioned spaces
Raised floors Excellent for multi-story homes

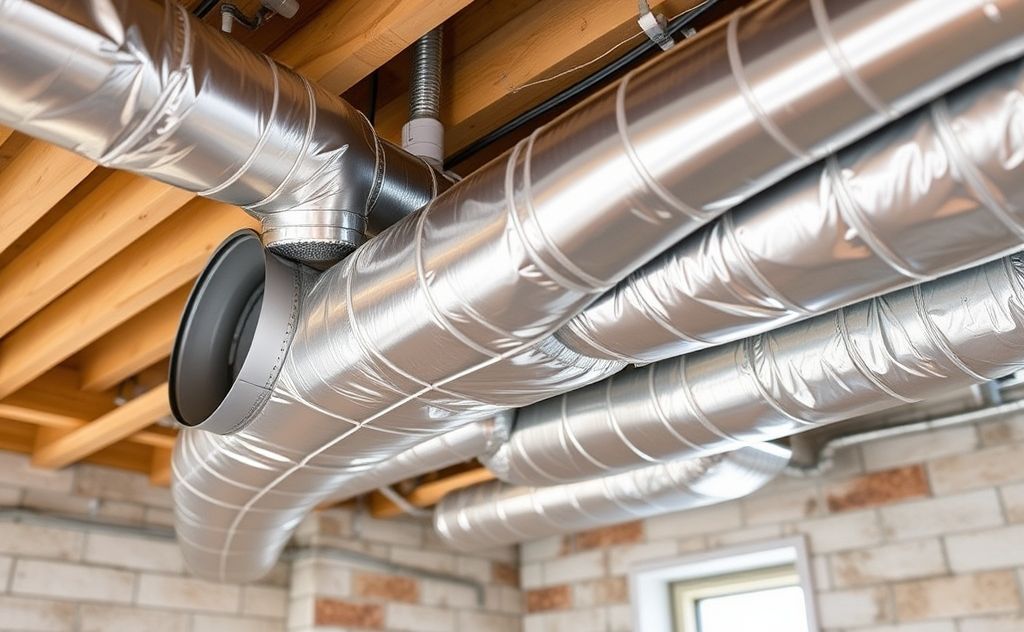

Energy efficient duct design techniques

Key Design Strategies

1. Proper Air Velocity

Maintain air velocity between 600-900 feet per minute in main trunks. Higher speeds create noise and resistance, while slower speeds may allow condensation in unconditioned spaces. For branch runs, 500-700 FPM is ideal.

2. Return Air Design

Every room needs proper return air pathways. Options include:

  1. Dedicated return ducts
  2. Jumper ducts between rooms
  3. Transfer grilles in walls/doors

As noted in our built-in heater guide, balanced airflow is essential for system performance.

3. Duct Layout Configurations

The two most efficient designs are:

  • Trunk and branch: Central main with smaller branches
  • Radial: Direct runs from air handler to each register

Sealing and Insulation Techniques

4. Professional Duct Sealing

Use mastic or UL-approved tapes for all joints. According to Energy.gov, proper sealing can reduce energy losses by 20% or more.

READ MORE  Best practices for ductwork installation.

5. Comprehensive Insulation

Insulate all ducts in unconditioned spaces with minimum R-6 insulation. Pay special attention to:

  • Attic runs
  • Crawlspace sections
  • Garage penetrations

6. Vapor Barriers

Install vapor barriers on the exterior of cooling ducts to prevent condensation. This is especially important in humid climates.

Advanced Optimization Methods

7. Right-Sizing Ducts

Oversized ducts reduce velocity and efficiency. Undersized ducts increase static pressure. Use Manual D calculations for proper sizing.

8. Smart Register Placement

Position supply registers to avoid direct airflow on occupants. Our wall heater accessories guide shows how proper placement improves comfort.

9. Filter Strategy

Consider installing filters at return grilles rather than at the air handler. This approach:

  • Keeps ducts cleaner
  • Makes filter changes easier
  • Allows for larger filter surface area

Maintenance and Upgrades

10. Regular Inspections

Check ducts annually for:

  • Disconnected sections
  • Visible holes or tears
  • Crushed flexible ducts

11. Airflow Balancing

Adjust dampers to ensure even airflow to all rooms. This may require professional testing with a flow hood.

12. Carbon Monoxide Safety

Install CO detectors when you have fuel-burning appliances. As noted by Department of Energy, this is critical for homes with gas furnaces or water heaters.

Special Considerations

13. Basement Ducts

Insulating basement ducts may make the space colder. Consider insulating both ducts and walls, or using pipe heating tape.

14. Flex Duct Best Practices

Use flex duct only for straight runs. Always use proper fittings for turns rather than bending the flex duct.

15. Fitting Selection

Choose duct fittings with low equivalent lengths to minimize resistance. Refer to ACCA Manual D tables for guidance.

READ MORE  UV Lights in HVAC Ducts: Boost Air Quality & System Cleanliness

New Construction Tips

16. Chase Protection

When building duct chases, prevent contractors from using them for wiring or other utilities that could compromise insulation.

17. System Zoning

For larger homes, consider multiple zones with separate thermostats. This allows for precise temperature control in different areas.
