5 Game-Changing Automated HVAC Case Studies You Need to See

You’ve seen the marketing. Smart thermostats, zone controllers, predictive diagnostics — all promising lower bills and fewer midnight emergency calls. But what actually happens after the install crew leaves? That’s where most HVAC automation stories go quiet. The brochures never mention the integration headaches, the sensor that kept dropping off the network, or how the maintenance contract fundamentally changed.

This article walks through five real-world automated HVAC case studies, each with specific dollar figures, payback periods, and the messy middle that vendors skip. You’ll see what worked, what broke, and what it’s really like to run a building on automated systems. If you’re a contractor, facility manager, or building owner weighing the ROI, these numbers will give you a grounded starting point.

For smaller projects — say a two-zone home or a light commercial space — a simple zone controller like the SmartZone-2 kit from ECOJAY is an easy entry point. It handles single-stage cooling and two-stage heat, includes a supply air temperature sensor, and works with heat pumps, dual fuel, gas, electric, and oil systems. The install is straightforward enough for a competent DIYer, but it also gives you a taste of how zoning changes comfort and energy use before you commit to a full building automation system.

The Real Cost of Ignoring HVAC Automation

HVAC accounts for roughly 40% of commercial building energy use. That’s not a small line item. A 100,000-square-foot office with a $50,000 annual HVAC bill is bleeding money if the system runs at setpoints all day, regardless of occupancy or weather.

The old approach — a programmable thermostat and a maintenance schedule based on the calendar — leaves a lot of waste. Filters get changed every three months whether they need it or not. Coils get cleaned on a schedule, not when pressure drops indicate a problem. And when something fails, it fails hard, often at the worst possible time.

Automation flips that model. Sensors collect data continuously. Controllers adjust setpoints based on occupancy, outside temperature, and even utility rates. Maintenance becomes predictive, not reactive. But the transition isn’t free, and it isn’t always smooth. The case studies below show the real trade-offs.

Case Study 1: Slashing Energy Bills by 30% in a Multi-Site Retail Chain

A regional retail chain with 14 locations, each around 15,000 square feet, had a problem. Their HVAC systems ran 24/7, even though stores were only open 8 AM to 9 PM. Night setback was manual — store managers had to remember to adjust thermostats before leaving, and many didn’t.

They installed a cloud-based building management system (BMS) with occupancy sensors and smart thermostats at every site. The system automatically set back temperature at closing, pre-cooled before opening, and adjusted based on real-time foot traffic. It also sent alerts when a unit’s energy consumption spiked, which often indicated a failing component.

Results after 12 months:

• Average energy savings: 30% across all sites, with the best-performing store hitting 38%
• Total annual savings: $126,000 (from $420,000 baseline)
• System cost: $180,000 including hardware, installation, and first-year software subscription
• Payback period: 17 months

But the installation wasn’t clean. Two stores had legacy thermostats that didn’t communicate with the new system, requiring a week of downtime while replacements shipped. The chain also underestimated how much staff training mattered — managers initially fought the automated schedules because they didn’t trust the system. Once they saw the savings reports, the pushback faded.

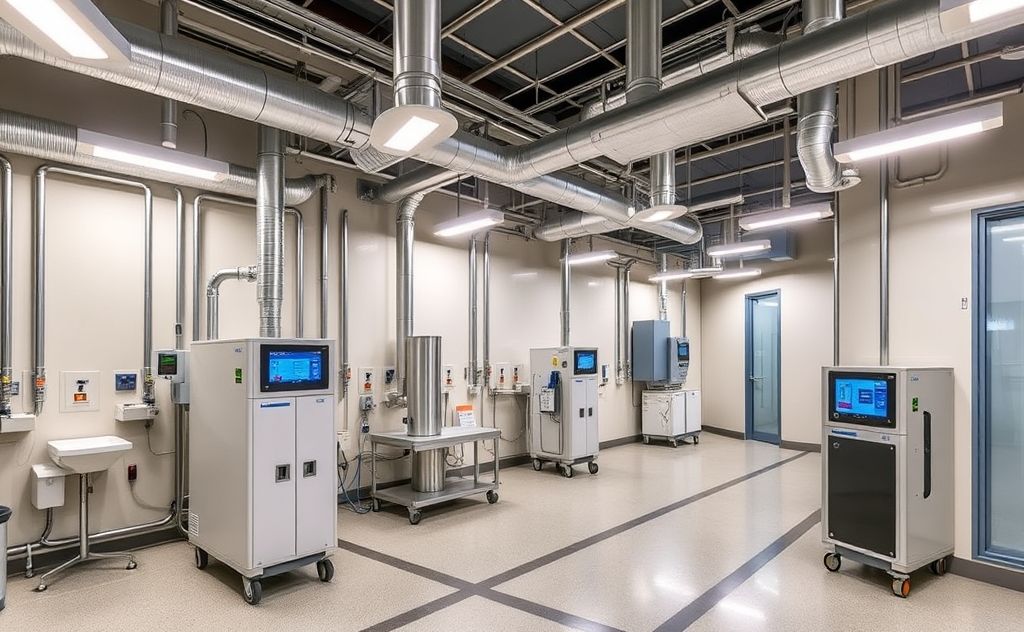

Case Study 2: Predictive Maintenance Saves a Hospital $200K in Emergency Repairs

A 200-bed hospital in the Midwest ran a central plant with three 300-ton chillers. The chillers were 12 years old and had a history of failures during peak summer load. The hospital’s maintenance team was reactive — they fixed what broke, often paying overtime rates and rush shipping for parts.

They deployed a predictive maintenance platform that monitored vibration, refrigerant pressure, oil temperature, and current draw on each chiller. The system used machine learning to establish baselines and flag anomalies. Within six months, it caught a developing bearing failure on Chiller #2 — vibration levels were 15% above normal, but still below the manufacturer’s alarm threshold.

The maintenance team replaced the bearing during a scheduled weekend shutdown. Cost: $4,000 in parts and labor. If the bearing had failed during a July heat wave, the hospital would have faced emergency repair costs of $50,000, plus the risk of losing cooling in patient areas.

The Specific Sensors and Alerts That Made the Difference

Three sensor types drove the win:

• Vibration sensors on compressor bearings — detected the early failure
• Refrigerant pressure transducers — caught a slow leak that reduced capacity by 8%
• Oil temperature probes — flagged a clogged oil filter that was causing overheating

The platform also generated daily health scores for each chiller. The hospital’s engineering team reviewed them every morning during their 15-minute huddle. That habit — a quick daily check — turned the data into action.

Over two years, the system prevented three major failures. The hospital estimates it saved $200,000 in avoided emergency repairs, plus another $60,000 in reduced energy use (the chillers ran more efficiently at optimal conditions). The software subscription cost $18,000 per year. Payback was under 10 months.

One caveat: the initial setup took longer than expected. The hospital’s network had strict security protocols, and getting the sensors on the building’s IT system required a security review that delayed the project by three weeks. Plan for that if you’re in a regulated environment.

Case Study 3: The Software Layer—How Smart Zoning Improved Office Comfort Complaints by 80%

A 40,000-square-foot office building in Austin had a chronic comfort problem. The east wing overheated by mid-afternoon, while the west wing was freezing. The single rooftop unit served both zones with one thermostat, so there was no way to fix one without making the other worse.

They added a zoning system with motorized dampers and separate temperature sensors for each wing, controlled by a smart zone controller. The software layer — scheduling, temperature balancing, and remote adjustment — was the key. The system automatically adjusted damper positions every five minutes based on temperature differentials.

Results in the first quarter:

• Complaints dropped from an average of 12 per month to 2 per month (an 80% reduction)
• Energy use fell 22% because the system stopped fighting itself
• Occupant satisfaction scores in the annual survey rose from 61% to 78%

The hardware cost was $14,000, including dampers, sensors, and the controller. Installation took two days, but the building had to be partially evacuated during ductwork modifications — a disruption the facilities manager hadn’t anticipated. The payback from energy savings alone was 2.1 years, but the comfort improvement alone justified the project for the building owner.

This is a good example of why the software layer matters as much as the hardware. A basic zone controller with fixed schedules wouldn’t have adapted to the building’s thermal quirks. The machine-learning scheduling algorithm learned the building’s thermal mass and adjusted start times accordingly.

Case Study 4: Overcoming the Retrofit Nightmare: Integrating Automation with 20-Year-Old Equipment

Not every automation project starts with new equipment. A 30-year-old manufacturing plant in Ohio had two 20-ton air handlers from the late 1990s. The controls were proprietary, and the original vendor had gone out of business. The plant manager wanted to add automation but assumed they’d need to replace the air handlers first — a $120,000 expense.

They found a controls contractor who specialized in legacy integration. The contractor installed universal controllers that communicated via BACnet, a common building automation protocol, and wired them to the existing actuators and sensors. They also added a wireless sensor network to measure temperature and humidity in different production zones.

The Downtime and Installation Challenges We Solved

The retrofit required a full shutdown of the HVAC system for two days. The plant scheduled it over a holiday weekend, but the shutdown still cost $8,000 in lost production time (the plant ran 24/5). During the install, the team discovered one air handler had a seized damper actuator that wasn’t in the original scope. They sourced a replacement locally and added $1,200 to the bill.

Total retrofit cost: $38,000, including the controllers, sensors, wiring, and labor. The new system allowed the plant to set different temperature setpoints for the welding area (which needed cooling) and the assembly area (which needed heating). That ended the constant fighting between the two air handlers.

Energy savings in the first year: $21,000 (18% reduction). The plant also reduced maintenance calls by 40% because the system flagged issues before they became failures. Payback period: 1.8 years, even with the unexpected actuator replacement.

The lesson here is that legacy equipment doesn’t automatically disqualify you from automation. You just need a contractor who understands the older control protocols and can bridge them to modern systems. It’s not always pretty, but it’s often a fraction of the cost of full equipment replacement.

Case Study 5: Small Business Win—A Boutique Hotel’s Quick Payback Period

Small businesses often think automation is out of reach. A 28-room boutique hotel in Portland proved otherwise. Their HVAC system was a mix of PTAC units (packaged terminal air conditioners) in each room, controlled by guests with manual dials. The hotel’s energy bill hit $6,000 a month in summer, and guests frequently complained about rooms being too hot or too cold.

The owner installed smart thermostats in each room, connected to a central dashboard. The system allowed front desk staff to set temperature limits (e.g., guests could adjust between 68°F and 75°F, but not beyond), and it automatically set back rooms to 60°F when unoccupied.

Results over a full year:

• Energy bill dropped from $72,000 to $52,000 — a 28% reduction
• Guest complaints about temperature fell from 9 per month to 1 per month
• Hardware cost: $7,500 (28 smart thermostats plus a bridge)
• Installation: two days, done by a local electrician
• Payback period: 9 months

The owner’s only complaint: the dashboard software had a learning curve. It took a week for the front desk manager to get comfortable with the scheduling features. But once she did, she became the biggest advocate — she could adjust room temperatures from her phone while checking in guests.

This case study shows that automation ROI isn’t limited to large facilities. A small operation with high HVAC usage can see a faster payback because the percentage savings apply to a significant absolute cost.

Comparing the Five Approaches: What Works for Different Building Types

Case Study	Building Type	Primary Strategy	Hardware Cost	Energy Savings	Payback Period	Key Challenge
Retail chain	14 stores, 15k sq ft each	Cloud BMS + occupancy sensors	$180,000	30%	17 months	Legacy thermostat integration
Hospital	200 beds	Predictive maintenance on chillers	$18,000/yr subscription	Not measured separately	10 months	IT security review
Office building	40k sq ft	Smart zoning + dampers	$14,000	22%	2.1 years	Partial building evacuation
Manufacturing plant	20-ton air handlers	Legacy retrofit with BACnet	$38,000	18%	1.8 years	Seized actuator found during install
Boutique hotel	28 rooms	Smart thermostats + central dashboard	$7,500	28%	9 months	Software learning curve

What to Copy from These Projects (Without the Headaches)

• Start with a clear baseline. Measure your current energy use for at least a month before installing anything. The retail chain’s 30% savings was credible because they had a 12-month baseline.
• Expect integration issues with legacy equipment. Budget 10-15% extra for unexpected parts or downtime. The manufacturing plant’s seized actuator was a $1,200 surprise.
• Train your staff. The hotel’s front desk manager and the retail chain’s store managers both resisted at first. A 30-minute training session on the dashboard can save weeks of frustration.
• Look for payback under 2 years. All five case studies hit that mark. If your projected payback is longer, reconsider the scope or the vendor.
• Predictive maintenance pays off fastest when equipment is already aging. The hospital’s 12-year-old chillers were the perfect candidate. New equipment might not need it yet.
• Software matters more than hardware. The office building’s zoning system was only as good as the scheduling algorithm. Don’t skimp on the software subscription.
• Small projects can have the fastest ROI. The hotel’s 9-month payback beats every larger project. Don’t assume automation is only for big buildings.

The Bottom Line on Automation ROI

Automated HVAC systems aren’t magic. They require upfront investment, careful planning, and a willingness to deal with the messy middle. But the case studies above show that, when done right, the financial returns are real and often faster than expected.

The common thread isn’t the hardware — it’s the data. Every successful project used sensors and software to make better decisions than humans could make manually. Whether that’s a $7,500 smart thermostat system in a hotel or a $180,000 BMS in a retail chain, the principle holds: you can’t manage what you don’t measure.

If you’re starting with a small project, a simple zone controller like the IoT energy savings examples can show you the potential before you scale up. And if you’re still on the fence, remember the hospital’s story — the $4,000 bearing replacement that avoided a $50,000 emergency. That’s what automation can do: turn a crisis into a routine maintenance task.

For more on how automation changes the design process, check out this automated HVAC design article. And if you’re weighing whether to retrofit or replace, these IoT HVAC implementations offer more real-world examples.

Frequently Asked Questions

How long does an HVAC automation retrofit typically take?

It depends on the scope. A single-zone smart thermostat install can take a few hours. A full building management system with multiple sensors and controllers can take several days to weeks, especially if you’re integrating legacy equipment. The retail chain’s 14-store rollout took three months, but each store’s hardware install was only a day or two. The hospital’s predictive maintenance system took three weeks just for the security review. Plan for at least a week of project time for any system that touches your network.

Will automation work with my existing HVAC equipment?

Often, yes. The manufacturing plant case study proved that even 20-year-old air handlers can be retrofitted with universal controllers and BACnet communication. The key is finding a contractor who specializes in legacy integration. Some older proprietary systems are harder to bridge, but most modern controllers can speak multiple protocols. If your equipment is from the 1980s or earlier, you might need to replace some components first.

What’s the difference between a smart thermostat and a building management system?

A smart thermostat is a single point of control for one HVAC unit. It learns your schedule and adjusts setpoints accordingly. A building management system (BMS) coordinates multiple units, sensors, and zones across a whole building. It can optimize based on occupancy, weather, and even utility rates. The boutique hotel used smart thermostats in each room, which is a middle ground. The retail chain used a full BMS. Your choice depends on building size and complexity.

How do I calculate the payback period for an HVAC automation project?

Start with your annual HVAC energy cost. Multiply by the expected savings percentage (20-30% is common). That gives you annual savings. Then divide the total project cost by that number. For example, if your HVAC bill is $50,000 a year and you expect 25% savings, that’s $12,500 a year. A $25,000 system would pay back in two years. Don’t forget to factor in maintenance savings — predictive maintenance can reduce repair costs by 20-40%.

Do automated systems require more maintenance than manual ones?

They shift maintenance from reactive to proactive. You’ll spend more time reviewing data and checking alerts, but you’ll spend less time on emergency repairs. The hospital’s maintenance team spent about 15 minutes a day reviewing chiller health scores. That’s less than the time they used to spend dealing with failures. Sensors themselves need occasional calibration, but that’s a minor cost compared to the savings from avoiding failures.
