Mastering Digital Temperature Sensor Calibration

Calibrating digital temperature sensors ensures accurate readings by comparing them against known temperature standards and adjusting for any discrepancies.

Accurate temperature measurement is critical across industries from manufacturing to HVAC systems. Digital temperature sensors form the foundation of these measurements, but their precision depends on proper calibration. This guide explores professional calibration techniques to ensure your sensors deliver reliable data.

Digital temperature sensors in a high-tech lab setting

Understanding Digital Temperature Sensors

Digital temperature sensors convert thermal energy into electrical signals that microprocessors can interpret. Unlike analog sensors that output continuous voltage or resistance, digital sensors provide discrete temperature readings through protocols like I2C or SPI.

Common Digital Sensor Types

  • DS18B20 (1-Wire interface)
  • LM75 (I2C interface)
  • TMP36 (Analog output with digital conversion)
  • DHT22 (Digital humidity/temperature combo)

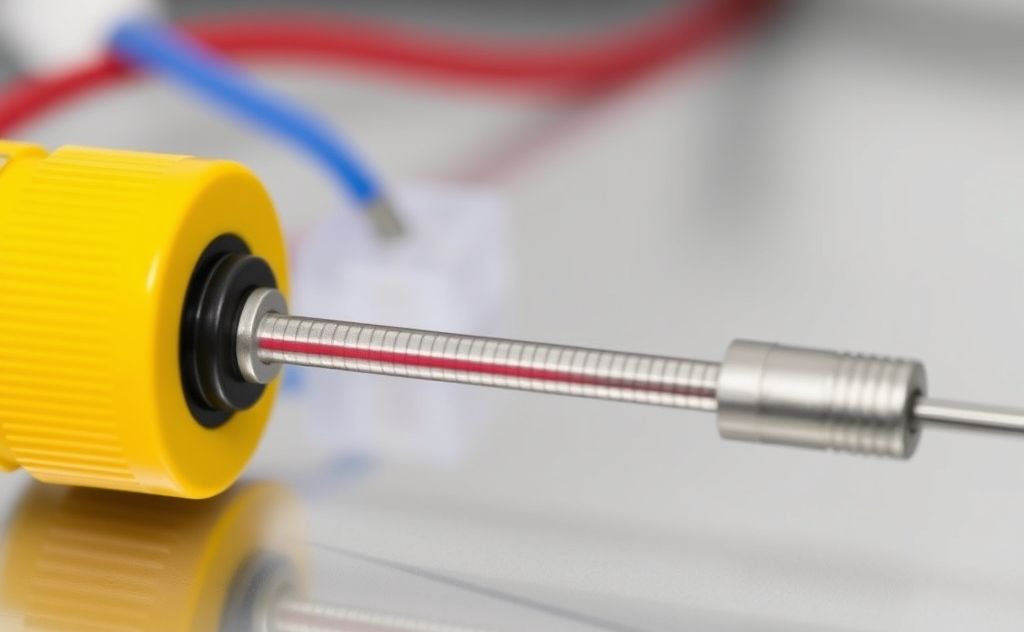

Essential Calibration Methods for Temperature Sensors

Essential Calibration Methods

1. Electronics-Only Calibration with Simulator

This method tests the sensor’s digital processing circuitry without temperature exposure. A signal generator simulates known temperature inputs while you verify the digital output.

Pros Cons
Fast execution Doesn’t test sensor element
Portable equipment Limited accuracy verification

2. Dry-Well Calibration

This comprehensive approach tests both sensor and electronics by placing the entire unit in a temperature-controlled dry-well. Compare readings against the dry-well’s reference thermometer.

For optimal results when using dry-wells, consider our guide on water heater thermostat control which covers similar precision temperature concepts.

3. Reference Thermometer Method

The gold standard for calibration uses a dry-well with a separate, high-accuracy reference thermometer. This provides traceable calibration with uncertainties below ±0.1°C.

Step-by-Step Calibration Process

Preparation

  1. Allow sensors to stabilize at room temperature
  2. Verify power supply stability (5V ±1% for most digital sensors)
  3. Prepare data logging equipment
READ MORE  Overcoming Key Challenges in Temperature Calibration

Calibration Points

Select at least three temperature points spanning your operational range. Common choices include:

  • 0°C (ice bath)
  • 25°C (room temperature)
  • 50°C (moderate heat)
  • 100°C (boiling water)

Execution

For each temperature point:

  1. Stabilize the temperature source
  2. Insert reference probe and unit under test
  3. Record readings after thermal equilibrium (typically 5-15 minutes)
  4. Calculate offset and correction factors

Advanced Calibration Techniques

Multi-Point Curve Fitting

For maximum accuracy, create a correction curve using 5-7 calibration points. This compensates for non-linear errors across the temperature range.

Environmental Compensation

Some sensors require compensation for:

  • Humidity effects
  • Barometric pressure
  • Power supply variations

For specialized applications like pool heating systems, see our resource on XtremepowerUS pool heater calibration.

Maintaining Calibration Accuracy

Recalibration Intervals

Recommended frequencies based on application:

Application Interval
Laboratory 3-6 months
Industrial 6-12 months
Commercial HVAC 12-24 months

Environmental Factors Affecting Calibration

  • Mechanical shock/vibration
  • Thermal cycling extremes
  • Exposure to contaminants
  • Electromagnetic interference

Troubleshooting Calibration Issues

Common Problems and Solutions

Symptom Possible Cause Solution
Erratic readings Poor electrical connections Check solder joints and connectors
Consistent offset Sensor drift Apply software offset correction
Non-linear errors Sensor damage Replace sensor

For more on maintaining temperature measurement systems, the National Institute of Standards and Technology provides excellent technical resources.

Digital Calibration Tools

Recommended Equipment

  • Fluke 724 Temperature Calibrator
  • Amprobe TMD-56 Thermocouple Calibrator
  • Beamex MC6-T Temperature Calibration System

The International Organization for Standardization provides guidelines (ISO 17025) for temperature calibration laboratories.
