HEPA filters in HVAC systems improve indoor air quality by trapping 99.97% of airborne particles, reducing allergens, dust, and pollutants effectively.
HEPA filters in HVAC systems provide superior air filtration by capturing 99.97% of particles as small as 0.3 microns. These high-efficiency filters create cleaner indoor air while improving system performance and energy efficiency.
How HEPA Filters Work in HVAC Systems
HEPA (High Efficiency Particulate Air) filters use a dense mat of randomly arranged fibers to trap airborne particles. The mechanical filtration process works through three mechanisms:
- Interception: Particles stick to fibers when passing nearby
- Impaction: Larger particles collide with fibers and embed
- Diffusion: Small particles zigzag and eventually get caught
HVAC-Specific HEPA Filter Designs
Unlike portable air purifiers, HVAC-compatible HEPA filters come in specialized configurations:
| Type | Thickness | Airflow Resistance |
|---|---|---|
| Pleated HEPA | 1-4 inches | Medium |
| Bag HEPA | 6-12 inches | Low |
| Rigid HEPA | 6-12 inches | Low |

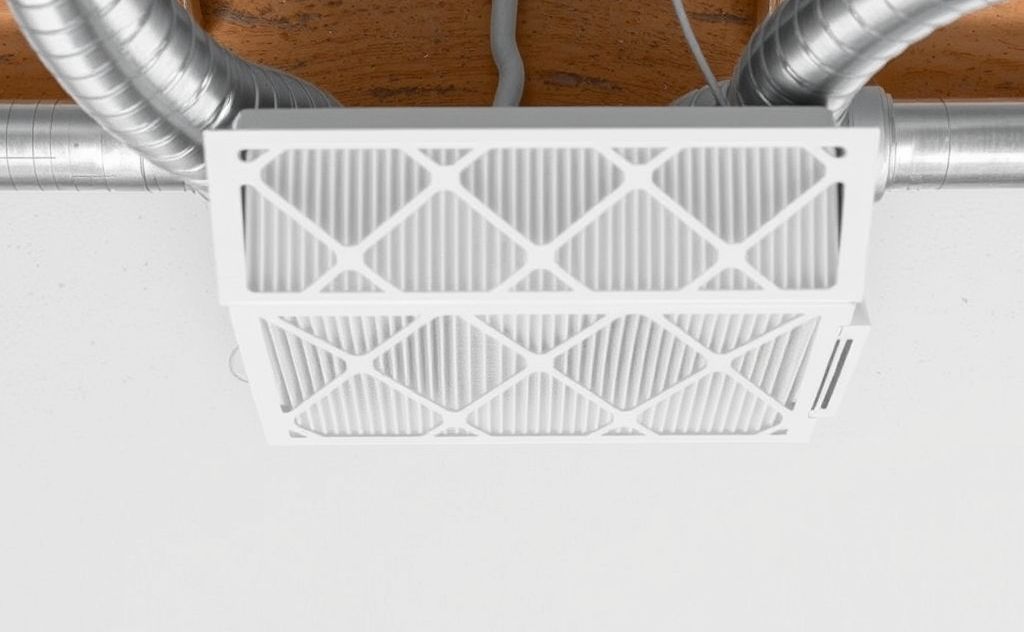

Key Benefits of HEPA Filters in HVAC
1. Superior Particle Removal
HEPA filters capture:
- Dust and dust mites
- Pollen and mold spores
- Pet dander
- Bacteria and viruses
- Smoke particles
According to EPA studies, HEPA filters reduce particulate levels by 50-75% compared to standard filters.
2. Allergy and Asthma Relief
HEPA filtration significantly reduces airborne allergens. A 2020 study showed 60% reduction in allergy symptoms with continuous HEPA use.
3. Improved HVAC Efficiency
While HEPA filters have higher initial resistance, they maintain airflow better over time compared to clogging fiberglass filters. This leads to:
- More consistent airflow
- Reduced strain on blower motors
- Longer system lifespan
4. Whole-Home Protection
Unlike portable units that clean single rooms, HVAC-integrated HEPA filters treat air throughout the entire home. This is particularly beneficial for larger homes or those with built-in heating systems.
5. Odor Reduction
Many HVAC HEPA systems include activated carbon layers that absorb:
- Cooking odors
- Pet smells
- VOCs from cleaning products
6. Wildfire Smoke Protection
During fire seasons, HEPA filters capture dangerous PM2.5 particles from smoke. They’re 8x more effective than standard filters at removing these hazardous particles.
7. Energy Savings
Clean HEPA filters maintain proper airflow, preventing the 5-15% energy waste caused by dirty, restrictive filters. Some models like those paired with efficient electric heaters can reduce overall energy use.
HEPA Filter Maintenance Tips
To maximize benefits:
- Check pressure drop monthly
- Replace per manufacturer schedule (typically 6-12 months)
- Use quality pre-filters to extend HEPA life
- Ensure proper sealing in filter rack
- Monitor system static pressure
Choosing the Right HEPA Filter
Consider these factors for HVAC applications:
| Factor | Recommendation |
|---|---|
| MERV Rating | MERV 17 or higher |
| Depth | 4-12 inches for lower resistance |
| Frame Material | Sturdy metal or rigid plastic |
| Pleat Count | Higher pleat count = more surface area |
For homes with precise temperature control systems, ensure HEPA filters won’t restrict airflow below design specifications.
