Baseboard Heater Installation: Complete DIY Guide
On this page 6 sections
Baseboard heater installation involves mounting the unit, connecting to a power source, and ensuring proper clearance and alignment for efficient heating.
Installing baseboard heaters provides efficient supplemental heating for any room. This guide covers everything from choosing the right unit to proper wiring and safety considerations.
Baseboard Heater Types and Sizing
Electric baseboard heaters come in 120V and 240V models. For most homes, 240V heaters are more efficient and recommended. Sizing depends on room dimensions:
| Room Size (sq ft) | Recommended Wattage | Heater Length |
|---|---|---|
| 50-100 | 500-1000W | 24-36 inches |
| 100-200 | 1000-2000W | 48-72 inches |
| 200-300 | 2000-2500W | 84-96 inches |
For larger rooms, consider multiple smaller units rather than one long heater. This provides more even heat distribution. The best devices for home temperature regulation often combine multiple heating sources.

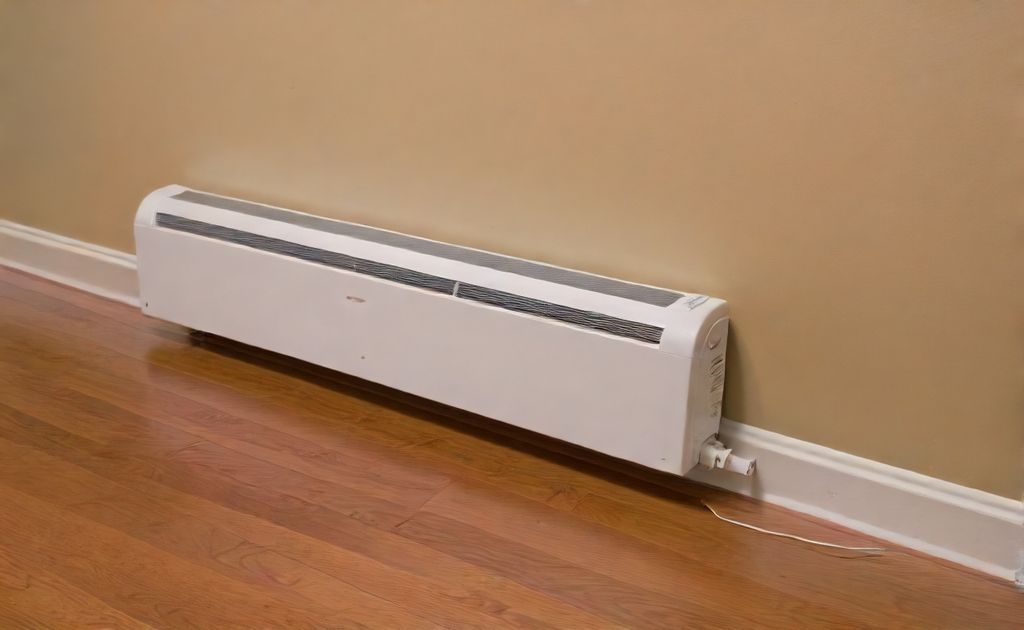

Installation Location Requirements
Clearance Distances
- 1 inch minimum from floor
- 12 inches minimum from furniture or drapes
- 6 inches minimum from side walls
- 8 inches minimum from electrical boxes
Window Placement
Install under windows when possible. This counteracts cold drafts and creates natural convection currents. Ensure at least 1 inch clearance from window sills.
Outlet Restrictions
Most codes prohibit installing heaters below electrical outlets. Some manufacturers allow outlets at least 12 inches above the heater. Always check local codes and manufacturer specifications.
Electrical Requirements
Circuit Needs
240V baseboard heaters require dedicated 20-30 amp double-pole circuits. Calculate circuit requirements:
- Determine heater wattage
- Divide watts by voltage (240V) to get amps
- Multiply by 1.25 for continuous load
Wiring Methods
Use 10/2 or 12/2 NM-B cable depending on amperage. Connect to a double-pole thermostat or direct to circuit for whole-unit control. For multiple heaters, wire in parallel.
Consider using a smart thermostat for better temperature control and energy savings.
Winter Heating Bill CutterSee what every heater in your home really costs, heat the rooms you use, and cut the waste in 30 days.Cost-per-hour tables for every heaterThermostat schedule and draft-proofing planRunning-cost and bill calculator (Excel)Step-by-Step Installation
1. Mounting the Heater
Mark mounting holes using the template provided. Drill pilot holes and secure with appropriate fasteners for your wall type. Maintain all required clearances.
2. Electrical Connections
Connect supply wires to heater terminals (black to black, white to red, ground to green). Use wire nuts for splices. Follow manufacturer’s wiring diagram exactly.
3. Testing
Turn power back on and test operation. Verify proper heat output and thermostat function. Check for any unusual noises or smells.
Safety Considerations
Key safety precautions include:
- Always turn off power at breaker before working
- Use proper personal protective equipment
- Never overload circuits
- Keep flammable materials away
- Install child guards if needed
For commercial installations, consider professional-grade units from Grainger that meet higher durability standards.
Maintenance Tips
Proper maintenance ensures longevity:
- Vacuum dust from fins annually
- Check wiring connections periodically
- Test thermostat accuracy
- Inspect for damage before winter
For homes with pets, ensure heaters have proper guards and consider pet-safe heating alternatives in high-traffic areas.
