Solar Heater Placement: Key Factors for Maximum Efficiency

Yes, consider factors like sunlight exposure, roof angle, shading from trees or buildings, and local climate for optimal solar heater placement.

Proper solar heater placement directly impacts performance and energy savings. Strategic positioning ensures optimal sunlight exposure while avoiding common pitfalls. This guide covers essential considerations for residential and pool solar heating systems.

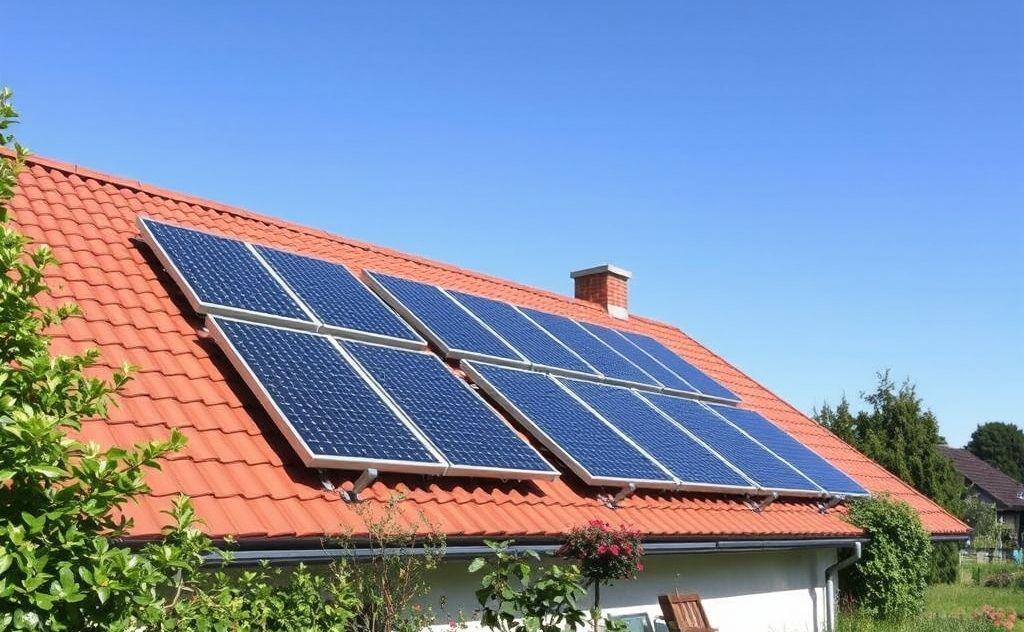

Optimal solar heater placement for maximum efficiency

Optimal Orientation and Angle for Solar Heaters

Solar collectors perform best when positioned to capture maximum sunlight throughout the day. Key positioning factors include:

Directional Placement

  • South-facing (Northern Hemisphere): Ideal for year-round performance
  • West-facing: Captures afternoon sun, good for evening use
  • East-facing: Captures morning sun, best for early hot water needs
  • North-facing: Not recommended (except in Southern Hemisphere)

Tilt Angle Considerations

Application Recommended Angle
Year-round use Equal to your latitude
Winter optimization Latitude + 15°
Summer optimization Latitude – 15°

For pool heating systems like the XtremepowerUS solar pool heater, a 45° angle or less is recommended for proper mounting and performance.

Shading analysis for solar heater placement

Shading and Obstruction Analysis

Even partial shading can significantly reduce solar heater efficiency. Conduct thorough shade analysis:

  1. Identify potential obstructions (trees, buildings, chimneys)
  2. Monitor shade patterns throughout the day and across seasons
  3. Consider future growth of nearby vegetation
  4. Use solar pathfinder tools for precise calculations

According to the U.S. Department of Energy, solar collectors should have at least 6 hours of direct sunlight daily for optimal performance.

Roof and Structural Considerations

Load Capacity

Solar water heaters add 3-4 lbs per square foot. Ensure your roof can support this additional weight, especially when wet.

Roof Condition

  • Ideal roof age: Less than 10 years old
  • Preferred materials: Composite shingle, metal, tile (concrete or clay)
  • Avoid: Wood shake, slate, or deteriorating surfaces
READ MORE  Solar Powered Electric Heater: Eco-Friendly Heating Solutions

Mounting Options

For homes with unsuitable roofs, consider ground-mounted systems or alternative heating solutions as backups.

System Sizing and Layout

Proper sizing ensures efficient operation without overloading your system:

Residential Water Heating

  • 20 gallons per person for storage tanks
  • 20 sq.ft collector area per person in sunny climates
  • 30-40 sq.ft collector area per person in cloudy climates

Pool Heating

As noted by Enersol, solar pool systems typically require:

  • 50-75% of pool surface area in collectors
  • 1 gallon per minute flow rate per 10 sq.ft collector area
  • Properly sized piping to maintain optimal flow velocity

Climate and Local Factors

Regional considerations significantly impact solar heater placement:

Cold Climate Adaptations

  • Increased tilt angles for winter sun capture
  • Drainback or antifreeze systems for freeze protection
  • Insulated piping to prevent heat loss

Hot Climate Considerations

  • Ventilation space behind collectors to prevent overheating
  • Light-colored roofing to reduce ambient temperature
  • Automatic temperature controls to prevent scalding

Maintenance Access and Safety

Proper placement should allow for:

  • 6-12 inches clearance around collectors for maintenance
  • Safe access paths for cleaning and repairs
  • Proper grounding and lightning protection
  • Clearance from fire department access points

For complex installations, consider professional help like the licensed plumbers who specialize in solar systems.
