Hydronic Radiator Customization: 12 Key Options for Your Home

You walk into a room that’s always cold, no matter what the thermostat says. Or you look at those old white metal panels and wish they matched your mid-century furniture. Standard radiators work, but they don’t have to be boring or inefficient. That’s where hydronic radiator customization comes in. By the end of this article, you’ll know the 12 specific levers you can pull to make your radiators heat better, look right, and cost less to run.

Most people pick a radiator off a shelf and call it done. That works, but it leaves money on the table. The right choices affect your monthly heating bills by 10% to 30%, according to field data from retrofit projects. And the look of a radiator can change a whole room. So let’s go through each option, with real numbers and honest trade-offs.

If you want to dig deep into the engineering behind radiator selection and thermal performance, the book Radiators in Hydronic Heating Installations: Structure, Selection and Thermal Characteristics (Springer, ASIN 3319856057) covers it in detail. It’s a technical reference, not a light read, but it’s the one I grab when I need exact numbers on heat output vs. flow rates. Check the current price on Amazon if you’re doing a full system design.

1. Radiator Size and Heat Output (BTU/hr)

Size is the first decision, and it’s not just about fitting the wall. Each radiator is rated in BTUs per hour — how much heat it puts into the room at a given water temperature. A common mistake is buying one that’s too small. Then the boiler runs longer, your bills go up, and you still feel cold.

The right size depends on room volume, insulation, window area, and desired temperature lift. For a 12×15 foot bedroom with average insulation, you need about 4,000 to 5,000 BTUs/hr. That’s a panel radiator roughly 24 inches tall and 60 inches long. Go too big — say double that — and the room heats fast but the boiler short-cycles, wasting fuel. Aim for 10-15% excess capacity for recovery on cold days.

One trick: use a hydronic radiator sizing guide that accounts for your specific wall construction. Don’t rely on square footage alone — a room with three exterior walls needs more than an interior room of the same size.

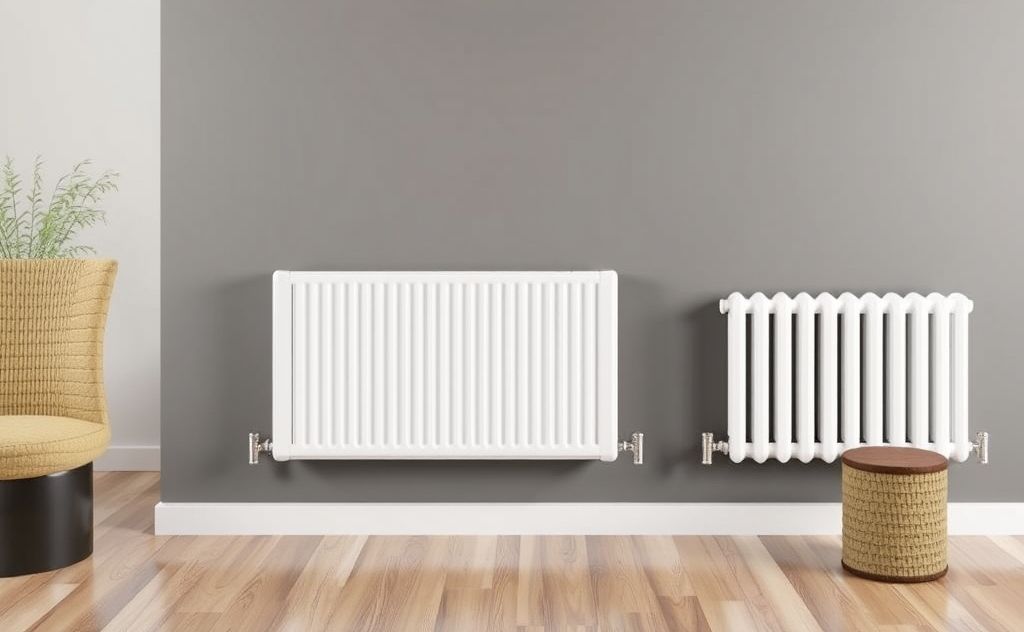

2. Material Choices: Steel, Cast Iron, or Aluminum

Steel panel radiators are the standard. They heat up fast (15-20 minutes) and cool down quickly, which works well with programmable thermostats. Cast iron takes 45-60 minutes to warm up but holds heat for 30 minutes after the boiler shuts off. That can buffer temperature swings, especially in rooms you use all day.

Aluminum radiators have the best thermal conductivity — they heat up in 10 minutes and weigh about half as much as steel. But they’re more expensive, usually 20-30% more per BTU. And aluminum is soft; you have to be careful with cleaning chemicals. For most homes, steel is the best balance of cost and performance.

3. Water Temperature Requirements

Every radiator is tested at a specific delta T — the difference between average water temperature and room temperature. Standard ratings use a delta T of 50°C (water 75°C, room 20°C). But modern condensing boilers run better at lower temperatures, around 55°C water. At that lower delta T (35°C), the radiator output drops by 40-50%.

So if you’re planning to pair radiators with a heat pump or a high-efficiency gas boiler, you need oversized models to compensate. Some manufacturers list output at multiple delta T values. That’s what you want. Without it, you’ll undersize your system.

4. Panel Design: Single, Double, Triple — and Convectors

Panel radiators come in single (type 11), double (type 22), and triple panel (type 33) configurations. Type 11 has one panel and one set of fins. Type 22 has two panels and two sets of fins — roughly double the output for only 30% more depth. Type 33 triples the panels but the third adds diminishing returns because the front panel blocks some radiant heat.

Convector fins also matter. Higher fin density (more fins per meter) boosts output but collects dust faster. In a dusty home, you’ll be cleaning fins every spring or output drops 15-20%. Type 22 is the sweet spot for most rooms: high output, reasonable depth (100-120mm), and easier to clean than type 33.

5. Height and Width Options

Radiator height is often constrained by under-window space. Standard heights are 300mm, 600mm, and 900mm. A 300mm tall radiator puts out about 60% of the heat of a 600mm model of the same length, because less surface area. But a tall, narrow radiator (like 900mm x 400mm) can fit in tight spots — think hallway or small bathroom.

Width ranges from 400mm to 3000mm. The trade-off is aesthetics and plumbing. A very long radiator (over 2000mm) may require two sets of pipe connections to keep flow even. For a large living room, two medium radiators often work better than one monster. They let you zone the room.

6. Connection Types and Positions

Radiators can connect at the bottom (bottom-bottom), sides (side-bottom), or diagonally (top opposite side). Bottom-bottom connections are simplest for hidden pipework — the pipes come straight up from the floor. Side-bottom works when pipes run along the baseboard. Diagonal connections give the best heat distribution but require more complex piping.

If you’re retrofitting into an existing system, check your current pipe positions. Changing connection type may mean new copper runs, which adds cost. Plan it before you buy.

7. Control Valves: Manual, Thermostatic, or Smart

Manual valves are cheap ($5-$10 each) but you have to walk to each radiator to adjust. Thermostatic radiator valves (TRVs) cost $15-$30 and regulate room temperature automatically. They save 10-20% on energy in rooms you don’t use all day — like a guest bedroom.

Smart TRVs add wifi control and schedules. You can set the living room to 21°C at 6 PM from your phone. They’re $40-$80 each and need a hub. Battery life is about 1-2 years. Worth it if you have a busy family with different schedules. For a deep dive on control options, see this guide on hydronic radiator controls.

8. Color and Finish

White is the default, but many manufacturers offer RAL colors. Matte black, anthracite, and brushed steel are popular now. Custom colors add 15-25% to the radiator cost. One thing people miss: darker colors radiate heat slightly better (5-10% more), but it’s negligible in practice. The real reason is aesthetics. If you can’t find a color you like, consider a radiator cover — but that blocks 20-30% of the heat output. Better to get the radiator painted to match your room.

9. Wall-Mounted vs. Floor-Standing

Wall-mounted radiators save floor space and let you clean under them. They need sturdy brackets — a 600mm x 2000mm steel radiator weighs about 60 kg when filled with water. Floor-standing models are simpler to install and can go on plasterboard walls that can’t hold the weight. The downside: they take up floor area and can be tripped over. For bathrooms, floor-standing towel radiators are common.

10. Vertical vs. Horizontal Orientation

Vertical radiators are becoming popular in modern homes. They fit into narrow wall strips — between doors or windows. A vertical unit 1800mm tall by 400mm wide can match the output of a 600mm x 1200mm horizontal unit. The catch: vertical radiators cost 20-30% more per BTU because of the specialized manufacturing. And they can look awkward in a traditional room. Use them where horizontal space is limited.

11. Multiple-Section vs. Monolithic Design

Cast iron and some steel radiators are made from multiple sections bolted together. You can add or remove sections to fine-tune heat output. That’s useful if you’re not sure about the load. Sectional radiators cost a bit more and have more joints to leak. Monolithic (single-piece) radiators are cheaper and less leak-prone but you’re stuck with the size you buy.

12. Towel Rails and Dual-Purpose Models

For bathrooms, heated towel rails are common. Pure towel rails (just a ladder) have low heat output — typically 500-800 BTUs/hr. Dual-purpose models combine a standard radiator with a towel ladder. They output 2026-4000 BTUs/hr and dry towels faster. Look for models with separate valves for the rail so you can turn off the towel heating in summer while keeping the room heat on.

Now, let’s compare the most common customization choices side by side.

Option	Best For	Cost Factor	Energy Impact
Type 22 double panel	Living rooms, bedrooms	Medium	High efficiency
Vertical radiator	Tight spaces, modern decor	20-30% higher	Same as horizontal
Smart TRV controls	Multi-zone homes	$40-80 each	Saves 10-20%
Custom color (RAL)	Design-focused rooms	15-25% upcharge	Negligible
Cast iron vs. steel	Continuous heat rooms	30-50% more	Slower response

That table gives a quick snapshot. Now let’s answer the questions people actually ask.

Does radiator color really affect heat output?

Yes, but not by much. Darker colors emit slightly more radiant heat — maybe 5% more at the same water temperature. But your room heats mostly by convection, not radiation. So a black radiator doesn’t heat the room noticeably faster than a white one. The main difference is visual. Paint quality matters: gloss finishes can reduce emission slightly. Stick to matte or satin for best thermal performance. If you love a bright color, go for it.

Can I mix radiator types in the same heating system?

Absolutely. You can put a steel panel in the living room, a cast iron in the bedroom, and an aluminum in the bathroom. But each type has different thermal mass and flow resistance. You need to balance the system — adjust the lockshield valves so each radiator gets enough flow. Otherwise, the path of least resistance will steal flow from the others. A professional balance job usually takes an afternoon. If you skip it, some rooms will be cold and some too hot.

How do I know which connection position my system uses?

Look at your existing radiators. If the pipes come up from the floor and connect to the bottom ends, that’s bottom-bottom. If they come from the wall and connect to the side, that’s side-bottom. If one pipe is at the top and the other at the bottom on the opposite side, that’s diagonal. Take a photo before you remove an old radiator. For new construction, you can choose any connection type. Most installers prefer bottom-bottom for hidden pipes.

What’s the actual savings from thermostatic valves?

Studies show 10-20% reduction in heating energy in rooms with TRVs compared to manual valves. The savings come from not overheating rooms when you don’t need them. For a typical house with four radiators, that’s $100-$200 per year at current gas prices. Smart TRVs with scheduling add another 5-10% because they can lower temperature when you’re asleep or away. Payback is 2-3 years for smart valves in a medium-sized home.

Should I oversize radiators for future heat pump compatibility?

Yes, if there’s any chance you’ll switch to a heat pump later. Heat pumps run at lower water temperatures (35-45°C). At those temperatures, radiator output drops by 40-60%. Oversizing by 50-80% today costs maybe $200 extra per radiator but saves you from replacing them later. More and more homeowners are doing this even if they stay with a gas boiler. Check hydronic radiator design options for more on future-proofing.

What to Do Next

• Measure each room’s heat loss using a BTU calculator, not just square footage. Include windows and insulation levels.
• Choose type 22 steel panel radiators for most rooms — best balance of cost, output, and serviceability.
• Install thermostatic valves on every radiator except one zone (usually the hallway) to maintain minimum flow.
• If you want custom colors, order the radiator painted at the factory. Avoid aftermarket spray cans — they flake.
• For bathrooms, pick a dual-purpose towel radiator with separate rail control. You’ll use the heat more months of the year.
• Plan for future heat pump temperatures: oversize your radiators by 50% now. It’s cheaper than replacing them later.
• Have your system professionally balanced after installation. Uneven flow wastes energy and leaves cold spots.
