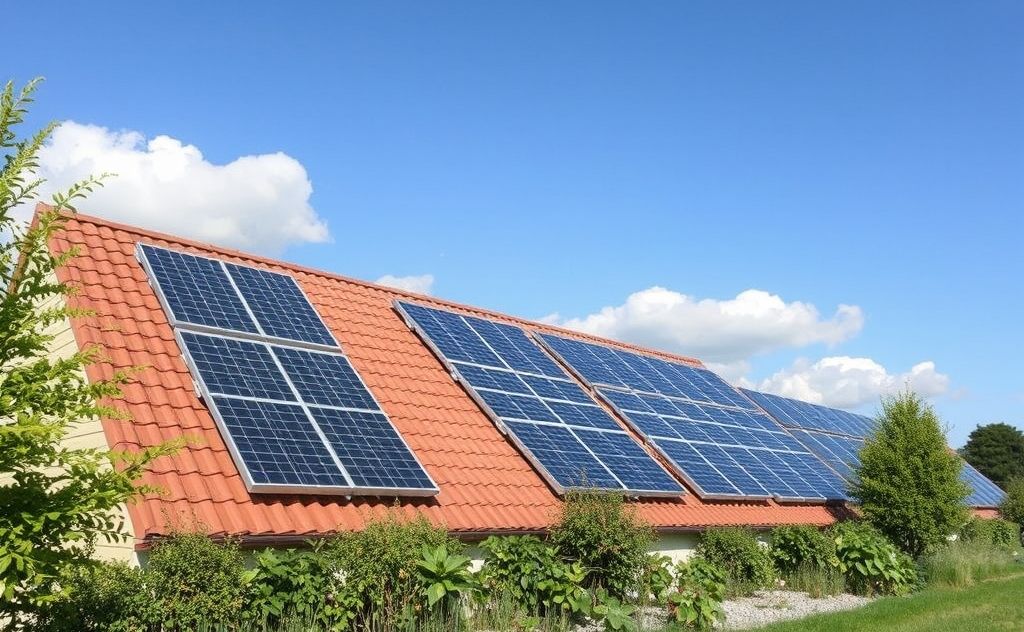

The main types of solar panels used in heating are flat-plate collectors, evacuated tube collectors, and concentrating solar power systems.
Solar panels for heating harness the sun’s energy to provide hot water and space heating for homes and businesses. With rising energy costs and environmental concerns, solar thermal technology offers an efficient, renewable solution. This guide explores the different types of solar panels used in heating applications.
Active vs. Passive Solar Heating Systems
Solar heating systems fall into two main categories: active and passive. Active systems use pumps and controls to circulate water or heat-transfer fluid, while passive systems rely on natural convection.
Active Solar Water Heating Systems
Active systems are more efficient but require more components. There are two primary types:
- Direct circulation systems: Pumps circulate household water through solar collectors. Best for climates where freezing is rare.
- Indirect circulation systems: Use a heat-transfer fluid that doesn’t freeze, making them ideal for cold climates.
For optimal performance, consider pairing your solar heating system with a quality water heater thermostat to regulate temperatures efficiently.
Passive Solar Water Heating Systems
Passive systems are simpler and more reliable but less efficient:
- Integral collector-storage systems: Combine storage and collection in one unit, good for mild climates.
- Thermosyphon systems: Use natural convection to move water from roof-mounted collectors to storage tanks.

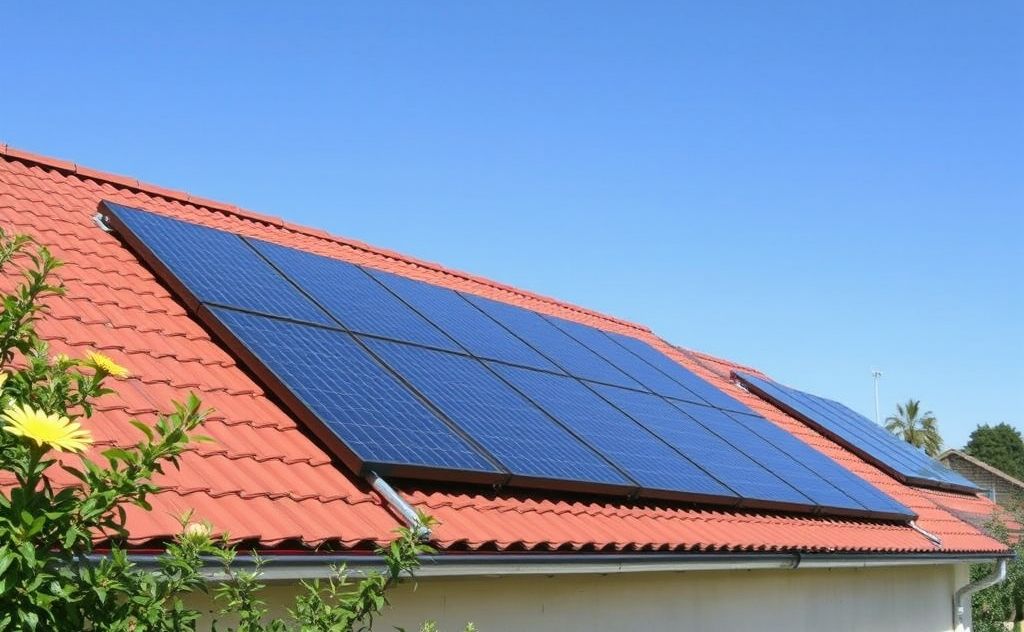

Types of Solar Collectors for Heating
Solar collectors are the heart of any solar heating system. The three main types vary in efficiency and application.
Flat-Plate Collectors
These are the most common for residential use:
- Glazed versions have a weatherproof box with glass covering an absorber plate
- Unglazed versions (often used for pool heating) lack the glass cover
- Typically achieve temperatures between 90-120°F (32-49°C)
Evacuated Tube Collectors
More efficient but more expensive:
- Consist of parallel glass tubes with vacuum insulation
- Can reach temperatures up to 350°F (177°C)
- Better performance in cold climates than flat-plate collectors
According to the U.S. Department of Energy, evacuated tube systems are becoming more popular for commercial applications.
Integral Collector-Storage Systems
Also called “batch” systems:
- Combine storage tank and collector in one unit
- Simple design with few moving parts
- Best suited for mild climates with minimal freezing risk
Solar Panel Materials and Technologies
Different solar heating technologies use various materials to maximize efficiency.
Monocrystalline Silicon
While primarily used for PV systems, these high-efficiency panels can power electric heating elements in hybrid systems.
Polycrystalline Silicon
A more affordable option that still delivers good performance for electric heating applications.
Thin-Film Solar
Lightweight and flexible, these can be integrated into building materials for space heating solutions.
Hybrid PV-Thermal Panels
These innovative panels combine photovoltaic and thermal collection:
- Generate electricity while capturing heat
- Can achieve total efficiencies over 80%
- Ideal for homes needing both power and heat
For pool heating applications, consider specialized options like the XtremepowerUS solar pool heater.
Key Components of Solar Heating Systems
A complete solar heating system requires several components working together.
Storage Tanks
Solar systems typically need well-insulated storage tanks. Options include:
- Single-tank systems with backup heater
- Two-tank systems where solar preheats water for conventional heater
Heat Exchangers
These transfer heat from solar collectors to water without mixing fluids:
- Internal heat exchangers inside storage tanks
- External heat exchangers with separate piping
Controls and Pumps
Active systems require:
- Circulation pumps
- Differential temperature controllers
- Safety valves and sensors
The National Renewable Energy Laboratory notes that proper system design is crucial for optimal performance.
Choosing the Right Solar Heating System
Selecting the best system depends on several factors:
| Factor | Consideration |
|---|---|
| Climate | Freezing temperatures require freeze-protected systems |
| Hot Water Demand | Larger households need bigger systems |
| Roof Space | Available area determines collector type and size |
| Budget | Simple passive systems cost less than active systems |
For specialized applications like RVs, products like the Suburban 6-gallon RV water heater offer compact solutions.
Maintenance and Longevity
Solar heating systems require minimal maintenance but benefit from periodic checks:
- Inspect collectors for debris or damage
- Check fluid levels and quality in active systems
- Monitor system performance regularly
- Have professional inspections every 3-5 years
With proper care, solar thermal systems can last 20-30 years, providing clean, renewable heat for decades.
