What Size Breaker for Electric Water Heater? (30-50A Guide)

For an electric water heater, typically a 30 amp double-pole breaker is recommended, but always check the manufacturer’s specifications for your model.

Choosing the correct breaker size for your electric water heater is critical for safety and performance. Most residential units require a 30-50 amp double-pole breaker, but the exact size depends on your heater’s wattage and voltage.

Choose the right amp breaker for water heater

How to Determine the Right Breaker Size

Electric water heaters typically operate at 240 volts and range from 3,000 to 5,500 watts. The breaker size must accommodate the heater’s electrical load while following National Electrical Code (NEC) requirements.

Step 1: Check Your Water Heater’s Specifications

Locate the manufacturer’s label on your water heater. It will list:

  • Voltage (usually 240V)
  • Wattage (typically 3,500W to 5,500W)
  • Amperage requirements

Step 2: Calculate the Amperage

Use this formula:

Amps = Watts ÷ Volts

Example for a 4,500W, 240V heater:

4,500 ÷ 240 = 18.75 amps

Step 3: Apply NEC 125% Rule

The NEC requires breakers to be sized at 125% of continuous loads (running 3+ hours):

18.75 amps × 1.25 = 23.44 amps

Step 4: Select the Next Standard Breaker Size

Common residential breaker sizes are 20A, 25A, 30A, 40A, and 50A. For our example, you’d choose a 25A or 30A breaker.

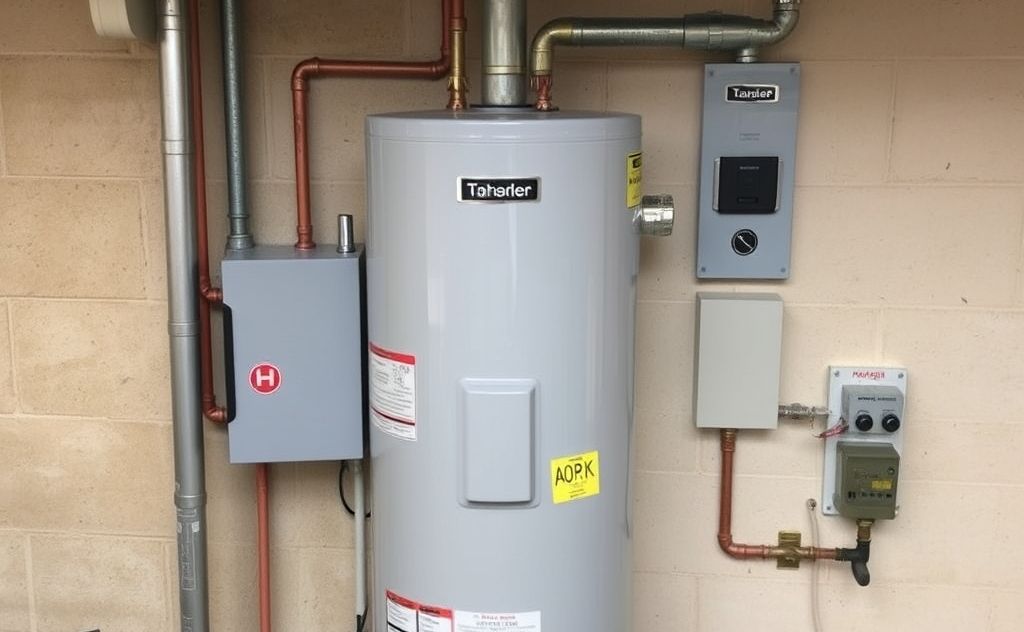

Water heater with appropriate breaker size

Common Water Heater Breaker Sizes

Heater Wattage Voltage Calculated Amps 125% Requirement Recommended Breaker
3,500W 240V 14.58A 18.23A 20A
4,500W 240V 18.75A 23.44A 25A or 30A
5,500W 240V 22.92A 28.65A 30A

Wire Size Requirements

The wire gauge must match your breaker size:

  • 20A breaker: 12 AWG copper wire
  • 25A breaker: 10 AWG copper wire
  • 30A breaker: 10 AWG copper wire
  • 40A breaker: 8 AWG copper wire
  • 50A breaker: 6 AWG copper wire
READ MORE  How to Prevent Electric Shocks From Water Heaters

Always verify local codes, as some areas may have specific requirements. For complex installations, consider consulting our guide to HVAC technician tools for professional-grade equipment recommendations.

How Electric Water Heaters Work

Understanding your water heater’s operation helps explain breaker requirements:

Dual Element System

Most residential electric water heaters have:

  1. Upper heating element (primary)
  2. Lower heating element (secondary)

These elements never operate simultaneously. The upper element heats first, then switches to the lower element once the top portion is hot. This design keeps the total electrical load at the single element’s wattage (typically 4,500W).

Thermostat Control

The upper thermostat controls both elements:

  • When upper water cools, it activates the upper element
  • When upper water reaches temperature, it deactivates upper and activates lower element
  • This prevents simultaneous operation that would double the electrical load

Safety Considerations

Why Proper Breaker Size Matters

An undersized breaker will trip frequently, while an oversized breaker may not protect against electrical faults. Both scenarios create potential hazards:

  • Fire risk: Overloaded circuits can overheat wires
  • Equipment damage: Improper protection may harm heating elements
  • Code violations: Incorrect installations may void insurance

GFCI Protection

The 2020 NEC requires GFCI protection for all 240V water heater circuits. This safety device shuts off power if it detects ground faults, preventing shocks. Consider our recommended HVAC multimeters for testing circuit safety.

Professional vs DIY Installation

When to Call an Electrician

Consider professional help for:

  • New circuit installations
  • Service panel upgrades
  • Uncertainty about local codes
  • Older homes with outdated wiring

DIY Precautions

If you’re experienced with electrical work:

  1. Always turn off power at the main panel
  2. Verify wires are dead with a voltage tester
  3. Use proper wire connectors and conduit
  4. Label all new circuits clearly
READ MORE  How to Secure a Water Heater Exhaust Pipe: Complete Guide

For more on electrical safety, the NFPA 70 National Electrical Code provides complete guidelines.

Troubleshooting Common Issues

Frequent Breaker Tripping

If your water heater trips the breaker:

  • Check for proper breaker size (compare to heater specs)
  • Test for short circuits or ground faults
  • Inspect heating elements for failure
  • Verify thermostat operation

No Hot Water

If the heater isn’t working:

  1. Check if the breaker has tripped
  2. Reset the high-temperature cutoff button
  3. Test thermostat continuity
  4. Verify element resistance (should be 10-16 ohms)

For complex electrical diagnostics, the International Association of Electrical Inspectors offers technical resources.

Upgrading Your Water Heater

When replacing an old unit:

  • Verify new heater’s electrical requirements
  • Check if existing wiring meets current codes
  • Consider energy-efficient heat pump models
  • Evaluate tankless electric options (higher amperage needed)

Remember that electrical work often requires permits and inspections. Always follow local regulations to ensure safe, compliant installations.
