Flexible HVAC ducts, often called flex ducts, are a common choice for residential heating and cooling systems due to their adaptability and lower upfront cost. Their bendable design allows routing through tight spaces where traditional metal ducts won’t fit easily.
However, flexible ducts come with trade-offs. When installed incorrectly, they can reduce system efficiency significantly, raising energy bills and causing uneven heating or cooling. Knowing their strengths and limits helps you decide if flex ducts fit your project.
What Are Flexible HVAC Ducts Used For?

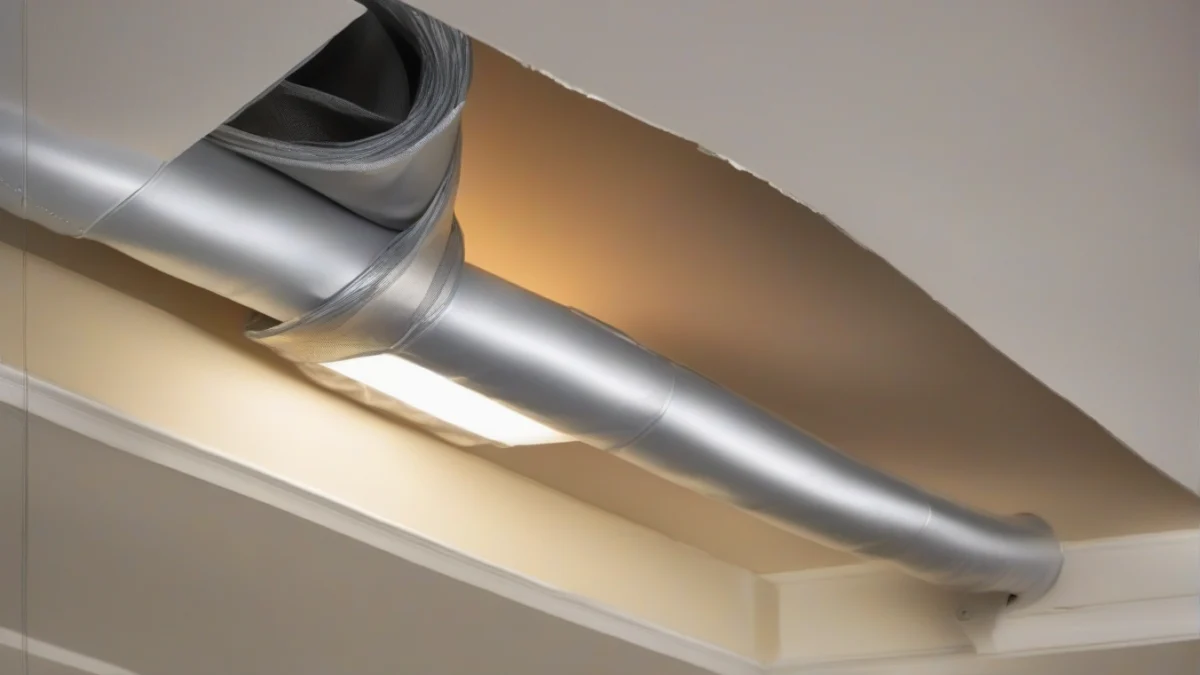

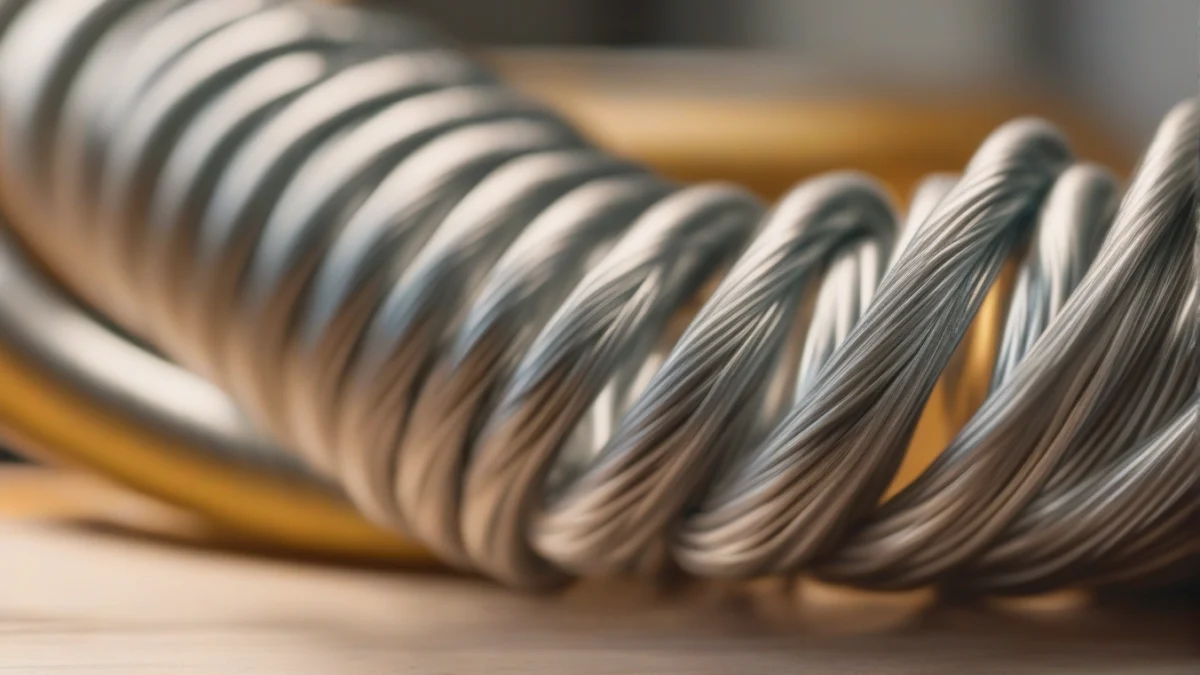

Flexible HVAC ducts are used primarily to connect air registers to main duct trunks and for short runs in spaces where rigid ducts won’t fit. They consist of a spiral wire core covered by a flexible inner liner, wrapped in insulation, and enclosed in an outer protective jacket.
Unlike rigid metal ducts, which maintain a fixed shape, flexible ducts can bend around obstacles and fit into tight or obstructed spaces such as attic corners, wall cavities, and retrofit jobs. This flexibility makes them ideal for connecting supply air outlets where straight runs are impossible or impractical.
Flexible ducts are rarely used for main trunk lines because their inner core can compress or kink, causing airflow restrictions and increased static pressure. Main trunks require rigid ducts that provide consistent diameter and smooth airflow for efficient system operation.
Sizing flexible ducts follows the same principles as rigid ductwork, based on the cubic feet per minute (CFM) airflow needed for the room and the static pressure the system can handle. Proper sizing and installation avoid compression and sharp bends, which reduce airflow and system efficiency.
| Component | Function |
|---|---|
| Spiral wire core | Provides shape and flexibility |
| Inner liner | Air barrier and smooth airflow surface |
| Insulation (R6 or R8) | Reduces heat loss/gain |
| Outer jacket (black or antimicrobial blue) | Protects insulation and resists damage |
Flexible ducts must be run through spaces at least as large as the duct inner diameter to prevent compression. They are common in residential HVAC for connecting registers and short supply runs but not recommended for long or main trunks due to airflow loss risks.
Flexible HVAC Duct Pros and Cons
Flexible ductwork offers clear advantages in cost, installation speed, and routing flexibility but also has notable drawbacks in airflow efficiency and durability.
On the plus side, flexible ducts are cheaper and faster to install than rigid metal ducts. Their pliability allows installers to navigate tight spaces and obstacles without custom fabrication. They also reduce noise and vibration transmission, making them quieter in operation.
However, flexible ducts come with risks. Kinks, sharp bends, or compression during installation can restrict airflow, reducing system efficiency by 10 to 40 percent. The inner liner’s spiral wire core is vulnerable to damage from rodents and UV exposure, shortening lifespan compared to metal ducts.
Maintenance is another challenge. Flexible ducts are difficult to clean thoroughly because their inner liner is irregular and prone to trapping dust. Worn or dirty ducts increase static pressure and energy use.
Energy efficiency suffers if flexible ducts are installed incorrectly. Compressed or unsupported sections cause higher duct friction, forcing the HVAC system to work harder. Proper support every 4 feet and gentle bends with radius at least equal to the duct diameter are critical.
| Heater | Watts | Per hour | Per day (24 h) | Per month (30 days) |
|---|---|---|---|---|
| Potential energy loss from poor installation | 150 W | 2.6¢ | 61¢ | $18.36 |
How to Size and Install Flexible Ducts Correctly
Sizing flexible HVAC ducts starts with ACCA Manual D, using airflow requirements from Manual J to determine the needed cubic feet per minute (CFM) for each room. This matches duct diameter to airflow and static pressure limits, preventing undersized ducts that choke airflow or oversized ducts that waste space.
Connecting flexible ducts properly means slipping the duct’s inner core over the collar or boot until it fits snugly, then securing it with a metal or plastic clamp. This avoids leaks and keeps the duct from pulling loose. Seal the connection with UL 181-rated mastic or metal foil tape—never regular duct tape—to meet code and maintain airtightness.
Adjusting flexible AC ducts involves gently extending or compressing the duct length without overstretching or crushing the core. The duct should run straight with no kinks or sharp bends. Avoid bending the duct with a radius less than its diameter, which restricts airflow and raises system static pressure.
Insulation rating matters: R6 is typical for moderate climates, but colder or stricter code areas call for R8 insulated ducts to limit heat loss or gain. Mobile homes require black jacket flex ducts that meet specific durability and fire standards. In humid or indoor air quality sensitive spaces, consider antimicrobial blue jackets for mold resistance.
Heating System Upgrade PlannerChoose between a heat pump, a furnace, a boiler or a hybrid with your own numbers, and hire the right installer.Every system compared side by side25 questions for contractors, red flagsRunning-cost, payback and quote calculator (Excel)How Flexible Ducts Affect Running Costs and Lifespan
Flexible ducts can leak air if connections aren’t sealed well or if the duct is punctured, raising energy use by 10 to 40 percent. Regular inspection for leaks and damage keeps running costs down and system efficiency up.
Condensation can form inside flexible ducts if warm, moist air meets cold duct surfaces, especially in uninsulated attic runs. This risks mold growth and damage. Proper insulation, like R8 in cold attics, and sealing joints prevents condensation problems.
The typical lifespan of flexible ducts is 15 to 20 years with proper installation and care. Damage from UV exposure or rodents can shorten this, so keep ducts protected and inspected annually.
Maintenance involves inspecting duct runs yearly for sagging, crushed sections, or seal failures. Prompt repairs keep airflow steady and prevent energy waste. Cleaning ducts every few years also helps maintain indoor air quality.
| Issue | Impact on Costs and Lifespan |
|---|---|
| Leaks from poor sealing | Increases energy bills by 10-40% |
| Compression and sharp bends | Raises static pressure, reducing efficiency |
| UV and rodent damage | Shortens duct life, leads to costly replacements |
| Inadequate insulation (using R6 where R8 needed) | More heat loss/gain, higher heating/cooling costs |
| Condensation inside ducts | Mold risk, potential health issues, premature duct replacement |
Who Should Skip Flexible Ducts and Choose Alternatives
Flexible HVAC ducts serve well for residential supply runs but are not a good fit for main trunks or long, straight duct runs. Those need rigid metal ducts, which maintain airflow better over distance and handle static pressure without collapsing or excess friction.
High-velocity commercial HVAC systems demand ductwork that resists wear and maintains precise airflow. Flexible ducts can degrade faster under such conditions and cause efficiency losses or noise issues.
Locations prone to rodent infestations or direct sunlight exposure should avoid flexible ducts unless the ducts have UV-resistant and pest-proof jackets. Otherwise, damage and leaks can occur quickly, raising repair costs and energy waste.
Homeowners who want guaranteed maximum HVAC efficiency and minimal maintenance benefits should pick rigid sheet metal or duct board instead of flex duct. These materials hold shape, seal tightly, and last longer under normal conditions.
| Situation | Why Flex Duct Fails | Better Option |
|---|---|---|
| Whole-home main trunks or long runs | Airflow loss and duct collapse risk | Rigid metal ducts |
| High-velocity commercial use | Durability and noise issues | Sheet metal ducts |
| Rodent or UV exposure | Jacket damage and leaks | UV-rated rigid ducts or protected flex |
| Maximum efficiency needs | Air leaks and friction losses | Duct board or metal ducts |
