Incorporating fire dampers in commercial HVAC ducts.

Fire dampers are essential safety devices that are installed in commercial HVAC ducts to prevent the spread of fire and smoke through the ductwork, and they must be incorporated in accordance with local building codes and regulations.
incorporating-fire-dampers-in-commercial-hvac-ducts
HeaterGuides.Com
<center>Key Takeaways:</center>
I. Fire dampers are essential components of HVAC systems in commercial buildings.
II. They prevent the spread of fire and smoke through ductwork, protecting occupants and property.
III. Proper installation and maintenance of fire dampers is crucial for ensuring their effectiveness in an emergency situation.

Check Out The Exclusive Deals Waiting For You! ∇

No products found.

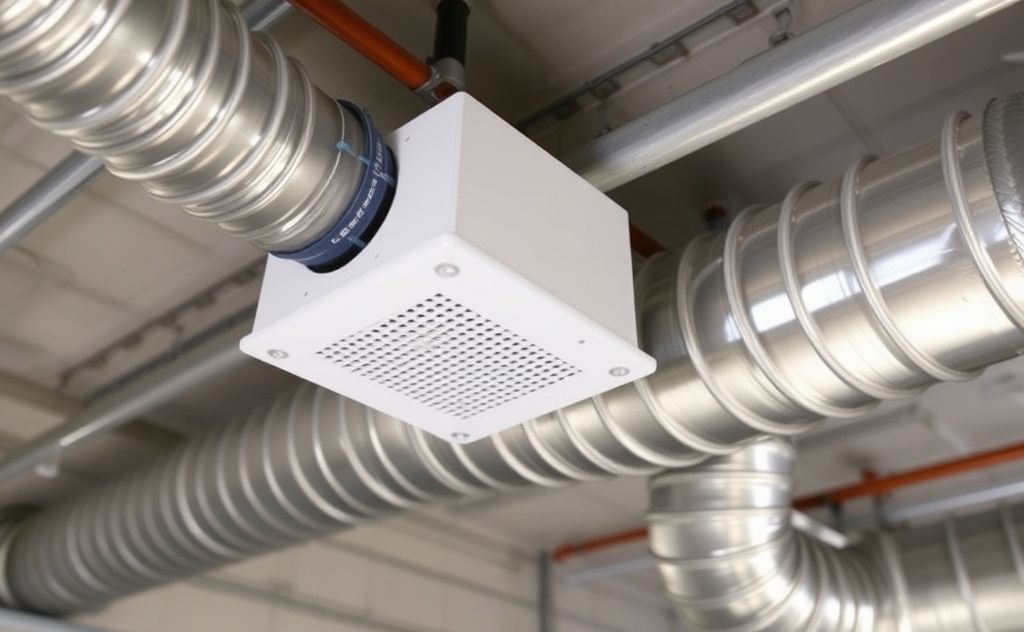

Types of Fire Dampers

Fire dampers are essential components in building safety systems, designed to prevent the spread of fire and smoke through ventilation systems. Grasping the different types of fire dampers is crucial for ensuring the effectiveness and compliance of these safety measures. This section explores three main types of fire dampers:

1. Mechanical Fire Dampers

Mechanical fire dampers are the most common type of fire dampers used in buildings. They are typically installed in the ductwork of heating, ventilation, and air conditioning (HVAC) systems. These dampers are activated by a fusible link or a thermal element that melts at high temperatures, triggering the closure of the damper blades. The mechanical design of these dampers ensures a rapid response to fire, effectively sealing off the ducts and preventing the spread of flames and smoke.

For example, in a commercial office building, mechanical fire dampers are strategically placed within the HVAC system to compartmentalize different areas, limiting the fire’s ability to travel through the ventilation network.

2. Curtain Fire Dampers

Curtain fire dampers are another type of fire damper commonly used in buildings. Unlike mechanical fire dampers, curtain dampers utilize a fabric curtain or flexible fire-resistant material to seal off duct openings during a fire. These dampers are often used in areas where the HVAC system requires frequent access, such as kitchen exhausts or maintenance shafts. The flexible curtain design allows for easier inspection, maintenance, and access to the ductwork without compromising fire safety.

For instance, in a large commercial kitchen, curtain fire dampers are installed in the exhaust system to prevent the spread of fire and smoke through the ducts whilst still allowing regular cleaning and maintenance of the exhaust system.

3. Combination Fire and Smoke Dampers

Combination fire and smoke dampers are specialized dampers that provide both fire protection and smoke control. These dampers are typically installed in areas where both fire and smoke containment are critical, such as stairwells or elevator shafts. They are designed to close automatically in the event of a fire, sealing off the ducts and preventing the spread of both flames and smoke.

For example, in a high-rise residential building, combination fire and smoke dampers are strategically placed in the ductwork connecting different floors, ensuring the safety of residents by containing both fire and smoke within specific areas.

Type of Fire Damper Main Function
Mechanical Fire Dampers Seal off ducts during a fire to prevent fire and smoke spread
Curtain Fire Dampers Flexible fabric curtains seal off duct openings at the same time allowing maintenance access
Combination Fire and Smoke Dampers Provide fire and smoke containment in critical areas
READ MORE  HVAC duct design impact on indoor air quality.

Installation and Placement of Fire Dampers

Fire dampers are an essential component in HVAC systems, as they help prevent the spread of fire and smoke through ductwork. Proper installation and placement of fire dampers are crucial to ensure their effectiveness in protecting buildings and occupants. In this section, we will navigate the regulatory guidelines for fire damper installation and discuss the proper placement of fire dampers in HVAC ducts.

1. Regulatory Guidelines for Fire Damper Installation

In terms of installing fire dampers, imperative to adhere to the regulatory guidelines set forth by local authorities and building codes. These guidelines outline the specific requirements for fire damper installation, including the types of dampers allowed, their locations, and the testing and inspection procedures.

Fire dampers should be installed at all penetrations through fire-rated walls, floors, and ceilings. This includes openings for HVAC ducts, electrical conduits, and plumbing pipes. The installation process should be carried out by qualified professionals who have a thorough perceiving of the applicable codes and standards.

Furthermore, fire dampers must be installed in accordance with the manufacturer’s instructions. This includes ensuring proper clearances around the damper, correct alignment with the ductwork, and appropriate sealing to maintain the integrity of the fire barrier. Regular maintenance and inspections are also necessary to ensure the continued functionality of the fire dampers.

2. Proper Placement of Fire Dampers in HVAC Ducts

The placement of fire dampers within HVAC ducts is critical to their effectiveness in containing fire and smoke. Fire dampers should be strategically located at specific points along the ductwork to create compartments and limit the spread of fire.

According to industry standards, fire dampers should be installed at every duct penetration through fire-rated barriers, such as walls, floors, and ceilings. They should also be placed at the intersection of vertical and horizontal ducts, as well as at duct terminations near exits or return air openings.

Furthermore, fire dampers should be positioned in such a way that they can be easily accessed for maintenance and inspections. Proper labeling and documentation of the damper locations are also essential for quick identification during emergency situations.

Key Takeaways:
1. Regulatory Guidelines: Adhere to local authorities’ guidelines for fire damper installation.
2. Professional Installation: Hire qualified professionals for the installation process.
3. Manufacturer’s Instructions: Follow the instructions provided by the manufacturer for proper installation.
4. Strategic Placement: Place fire dampers at specific points along the ductwork to contain fire and smoke.
5. Access and Labeling: Ensure easy access for maintenance and inspections, and label damper locations.

Maintenance and Testing of Fire Dampers

Fire dampers are essential components of a building’s fire safety system. They play a crucial role in preventing the spread of fire and smoke through ventilation ducts. To ensure their proper functioning, regular inspections, cleaning, lubrication, and testing are necessary.

1. Regular Inspections to Ensure Proper Functioning

Regular inspections of fire dampers are essential to identify any signs of damage, blockages, or malfunctions. These inspections should be conducted by qualified professionals who can assess the condition of the dampers and make necessary repairs or replacements. Inspections should include checking for proper installation, alignment, and operation of the dampers.

READ MORE  Energy-efficient duct design techniques.

2. Cleaning and Lubrication of Fire Dampers

Fire dampers can accumulate dust, debris, and dirt over time, which can hinder their performance. Regular cleaning of dampers is necessary to remove any obstructions and ensure smooth operation. Lubrication of moving parts is also important to prevent friction and ensure proper functioning.

3. Importance of Fire Damper Testing

Fire damper testing is a critical step in maintaining the fire safety of a building. Testing ensures that the dampers can effectively close when exposed to high temperatures, preventing the spread of fire and smoke. It also verifies that the dampers reopen correctly after the fire event. Testing should be conducted according to relevant regulations and standards to ensure compliance and safety.

incorporating-fire-dampers-in-commercial-hvac-ducts
HeaterGuides.Com

Benefits of Assimilating Fire Dampers in HVAC Ducts

Fire safety is a crucial aspect of any commercial building, and enmeshing fire dampers in HVAC ducts is an effective way to enrich this safety. These dampers serve as important components in preventing the spread of fire through the ventilation system, protecting both life and property.

Enhanced Fire Safety in Commercial Buildings

Protection of Life and Property

The primary purpose of fire dampers is to protect both life and property. By preventing the spread of fire, these dampers help to minimize potential injuries or casualties. Additionally, they can help to reduce property damage by containing the fire to a specific area, limiting the extent of the destruction. This protection is crucial for the safety and well-being of everyone within the building.

Compliance with Building Codes and Regulations

Benefits of Imbibing Fire Dampers in HVAC Ducts
Enhanced Fire Safety in Commercial Buildings
Protection of Life and Property
Compliance with Building Codes and Regulations
incorporating-fire-dampers-in-commercial-hvac-ducts
HeaterGuides.Com

Common Challenges and Troubleshooting Tips

1. Common Issues with Fire Dampers

In regard to fire dampers, there are several common issues that can arise. It’s important to be aware of these challenges and know how to troubleshoot them effectively.

  • Improper Installation: One of the most common issues with fire dampers is improper installation. This can lead to a variety of problems, including ineffective operation and even potential safety hazards. It’s essential to ensure that fire dampers are installed correctly by upholding manufacturer guidelines and local building codes.
  • Lack of Maintenance: Another challenge that often arises with fire dampers is a lack of maintenance. Over time, debris and dirt can accumulate in the damper, obstructing its proper functioning. Regular inspections and cleaning are necessary to ensure that fire dampers are in optimal working condition.
  • Faulty Components: Fire dampers are composed of various components, including blades, frames, and actuators. If any of these components are faulty or damaged, the damper may not operate effectively. It’s crucial to inspect and replace any worn-out or malfunctioning parts promptly.

2. Troubleshooting Tips for Fire Damper Problems

When faced with fire damper problems, there are several troubleshooting tips that can help resolve the issues:

  • Check for Obstructions: If a fire damper is not functioning correctly, the first step is to check for any obstructions. Debris, such as dust or dirt, may be blocking the damper blades. Clearing any obstructions can often restore proper operation.
  • Inspect the Actuator: The actuator is responsible for opening and closing the damper blades. If the damper is not opening or closing fully, the actuator may be malfunctioning. Inspect the actuator for any signs of damage or wear and consider replacing it if necessary.
  • Verify Power Supply: In some cases, fire dampers may not be operating due to a power supply issue. Ensure that the damper is receiving the correct voltage and that the power supply is functioning correctly.
READ MORE  Addressing condensation issues in HVAC ducts.

Conclusion

Fire dampers are an essential component of any commercial HVAC system. They help prevent the spread of fire and smoke throughout a building, protecting both people and property. When installing fire dampers, it’s important to follow all local codes and regulations, and to work with a qualified HVAC contractor who has experience with fire damper installation. Regular maintenance and testing of fire dampers is also crucial to ensure they are functioning properly in the event of a fire. By fusing fire dampers into your commercial HVAC system, you can help keep your building safe and compliant with fire safety regulations.

Read Also:
1. Benefits of energy-efficient HVAC systems
2. How to optimize HVAC energy efficiency

FAQ

Frequently Asked Questions

1: What is the purpose of fire dampers in HVAC ducts?

Fire dampers are designed to prevent the spread of fire and smoke through HVAC ducts by closing automatically when a certain temperature is reached. They act as barriers, stopping the flow of air and preventing the fire from spreading to other areas of a building.

2: How often should fire dampers be inspected?

Fire dampers should be inspected and tested at least once a year to ensure they are functioning properly. Regular inspections are necessary to identify any issues or malfunctions and to ensure that the dampers will work effectively in the event of a fire.

3: Can fire dampers be retrofitted in existing HVAC systems?

Yes, fire dampers can be retrofitted in existing HVAC systems. In contrast, fundamental to consult with a professional HVAC technician to determine the feasibility and specific requirements for retrofitting fire dampers in a particular system.

4: Are there any specific regulations governing fire damper installation?

Yes, there are specific regulations and codes that govern fire damper installation. These regulations vary by jurisdiction and may include requirements for the types of fire dampers to be used, their location within the HVAC system, and the frequency of inspections and testing.

5: What are the signs of a malfunctioning fire damper?

Signs of a malfunctioning fire damper may include difficulty in closing or opening, excessive noise or vibration, visible damage to the damper, or failure to close during a fire alarm test. If any of these signs are observed, fundamental to have the damper inspected and repaired as soon as possible.
