Calibrate Temperature Sensors in 3 Hours: Precision Bath Procedure
On this page 7 sections
- How to Master Temperature Sensor Calibration With Precision Baths
- How Long Should You Wait for Temperature Bath Stabilization?
- How to Quantify and Manage Calibration Uncertainty
- What Environmental Controls Affect Temperature Sensor Calibration?
- Common Mistakes That Cause Damage or Leaks During Calibration
- When to Get a Permit or Hire a Licensed Professional
- Questions People Ask
Say you need to calibrate an RTD sensor used in pharmaceutical storage, ensuring its accuracy within ±0.1°C. You prepare a precision temperature bath, aiming to stabilize at three key points over several hours to verify sensor readings against a master sensor. This guide walks you through that process clearly and safely.
How to Master Temperature Sensor Calibration With Precision Baths
To calibrate temperature sensors using precision baths, you stabilize the bath temperature at setpoints, insert sensors at equal depths, take multiple readings after stabilization, then calculate sensor errors and plot a calibration curve. This procedure typically requires waiting at each setpoint for the bath to stabilize within ±0.01°C.

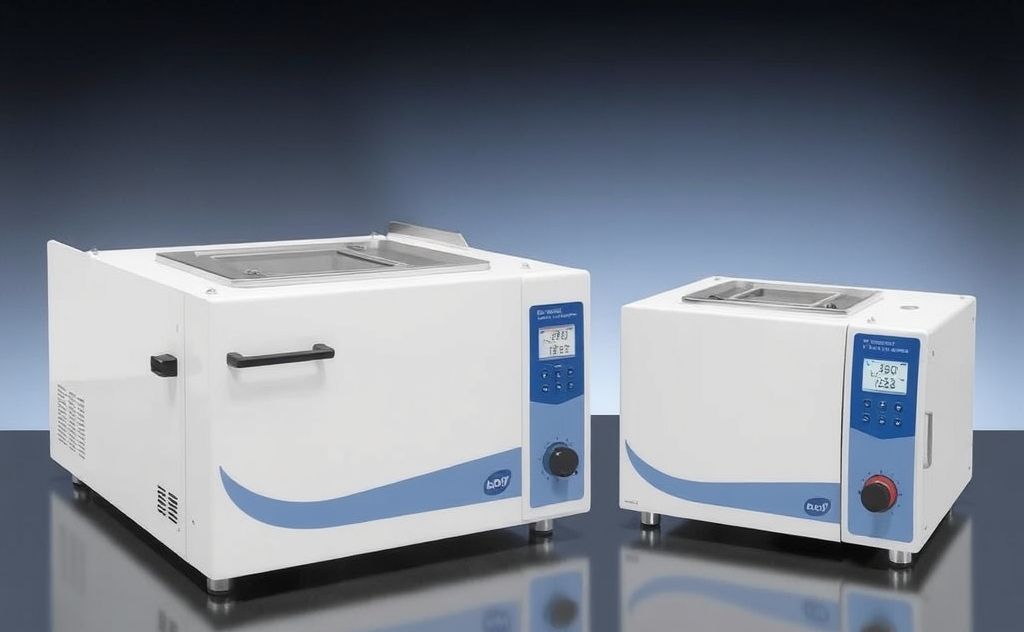

Start by setting your precision bath to the desired temperature setpoint. Allow the bath to stabilize, which often takes at least 30 minutes, ensuring the temperature does not drift beyond ±0.01°C per hour. Insert both the master temperature sensor and the sensor under test into the bath so their sensitive elements are at the same depth to avoid measurement discrepancies.
How Long Should You Wait for Temperature Bath Stabilization?
A temperature bath must stabilize for a minimum of 30 minutes at each calibration setpoint to ensure reliable sensor readings. Stability means the temperature remains steady within ±0.01°C per hour, which is critical for accurate calibration.
You assess stability by continuously monitoring the master temperature sensor’s readings. If fluctuations stay within the ±0.01°C range over 30 minutes, the bath is considered stable and ready for sensor measurements.
How to Quantify and Manage Calibration Uncertainty
Quantifying calibration uncertainty starts by identifying all sources of error in your temperature measurement process.
Sensor drift over time and inconsistencies in insertion depth are two major contributors. Drift means the sensor’s output slowly shifts from its true value due to aging or environmental exposure. Insertion depth changes cause thermal gradients that skew readings since temperature can vary within the bath.
Calculate the average deviation by taking multiple readings at each calibration setpoint and comparing them to the master sensor. For example, if your test sensor reads 50.2°C, 50.4°C, and 50.3°C while the master sensor reads 50.0°C, the deviations are +0.2, +0.4, and +0.3°C. The average deviation is (0.2 + 0.4 + 0.3) ÷ 3 = 0.3°C.
Sensor hysteresis refers to how readings differ when approaching the same temperature from above versus below. To check hysteresis, cycle the bath temperature up and down and record sensor outputs. The difference at identical setpoints quantifies hysteresis, which can be included as an uncertainty component.
| Direction | Sensor Reading (°C) |
|---|---|
| Increasing temperature | 40.1 |
| Decreasing temperature | 39.8 |
Apply calibration corrections by subtracting the average deviation from each sensor reading. If hysteresis is significant, use the appropriate correction depending on whether the sensor is heating up or cooling down. Record these corrections in your calibration certificate for traceability.
Including these uncertainty components ensures you account for both repeatability and systematic error, improving the reliability of your temperature measurements.
What Environmental Controls Affect Temperature Sensor Calibration?
Environmental factors beyond temperature, like humidity and barometric pressure, can influence temperature sensor calibration results.
Humidity affects sensors differently. For instance, some RTDs and thermistors may experience a slight resistance change with moisture absorption, causing small reading shifts. Barometric pressure changes alter air density, which can affect convective heat transfer around the sensor, especially in gas-filled or open calibration baths.
Controlling the calibration environment or at least recording these conditions during calibration helps identify and compensate for their impact later.
Multifunction calibrators that capture these parameters can improve uncertainty analysis by linking sensor performance variations to environmental changes. This data is particularly valuable in regulated industries requiring detailed calibration documentation.
Common Mistakes That Cause Damage or Leaks During Calibration
Skipping key precautions during temperature sensor calibration often leads to damage, leaks, or inaccurate results. One frequent mistake is mismatching insertion depths between the master sensor and the sensor under test. Different depths expose sensors to slightly different temperatures within the bath, skewing comparison readings.
Using bath fluids beyond their specified temperature range risks chemical breakdown or expansion that causes leaks or damage to sensors and the bath itself. Always check the fluid’s data sheet before heating beyond recommended limits.
Improper sealing around sensor cables or bath openings also leads to leaks that can ruin expensive equipment or cause electrical shorts. Make sure all seals are intact, tight, and designed for your setup. Handle sensors gently to avoid bending or twisting the leads, which can cause permanent faults.
Skipping or rushing temperature stabilization at each setpoint is a common shortcut that backfires. The bath must hold steady, typically within ±0.01°C for at least 30 minutes, before you record readings. Otherwise, transient fluctuations give false calibration data and may prompt incorrect adjustments.
| Mistake | Risk | How to Avoid |
|---|---|---|
| Mismatched sensor insertion depths | Inaccurate readings | Insert sensors at equal depth |
| Bath fluid used beyond temperature limits | Sensor or bath damage, leaks | Use fluids only within recommended ranges |
| Poor sealing or handling of sensors | Leaks and electrical faults | Check seals and handle sensors carefully |
| Not waiting for temperature stabilization | False readings and calibration errors | Wait for stabilization at each setpoint |
When to Get a Permit or Hire a Licensed Professional
Most temperature sensor calibrations with precision baths don’t require permits, but setups involving gas, hazardous materials, or high voltage may. For example, fixed-point calibration using materials like liquid nitrogen or mercury demands permits and strict controls.
If your calibration setup includes hazardous substances or permanent installation of electrical or gas lines, a licensed professional is needed. They ensure compliance with local codes, handle materials safely, and provide valid certification for quality assurance.
Calibration certificates must trace back to national standards such as NIST. Licensed calibration technicians have access to accredited reference standards and proper documentation to meet regulatory and customer requirements.
If your work involves any of these points, hiring a licensed calibration technician is the safest and most reliable choice. They reduce risk, ensure accuracy, and help you meet legal and industry standards.
For straightforward bench calibrations with water baths and common sensors, you can typically proceed without permits or professional help if you follow best practices carefully.
For more on selecting the right calibration methods and professionals, see master sensor calibration methods for accurate readings.
